£50.99

Stock Available: 0

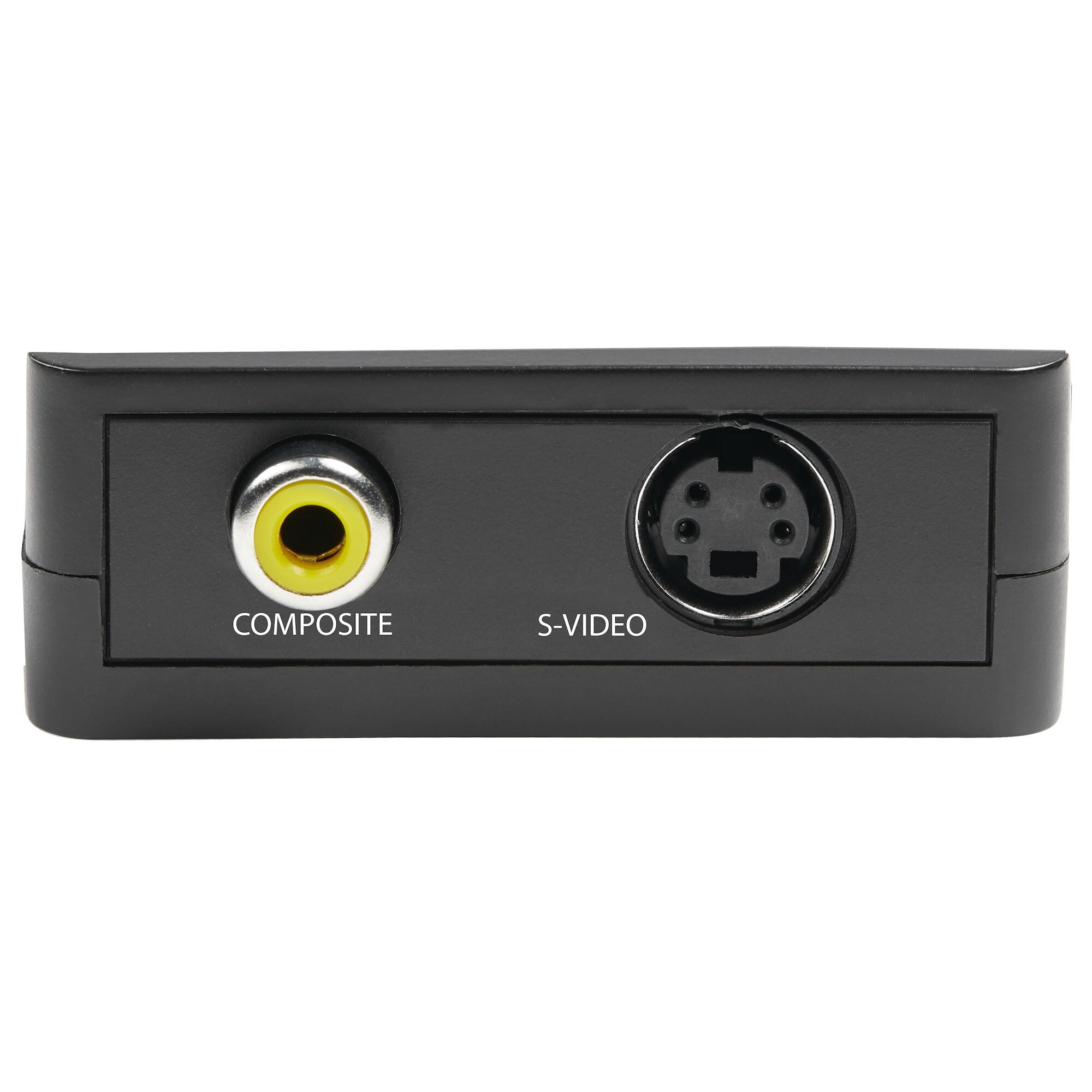

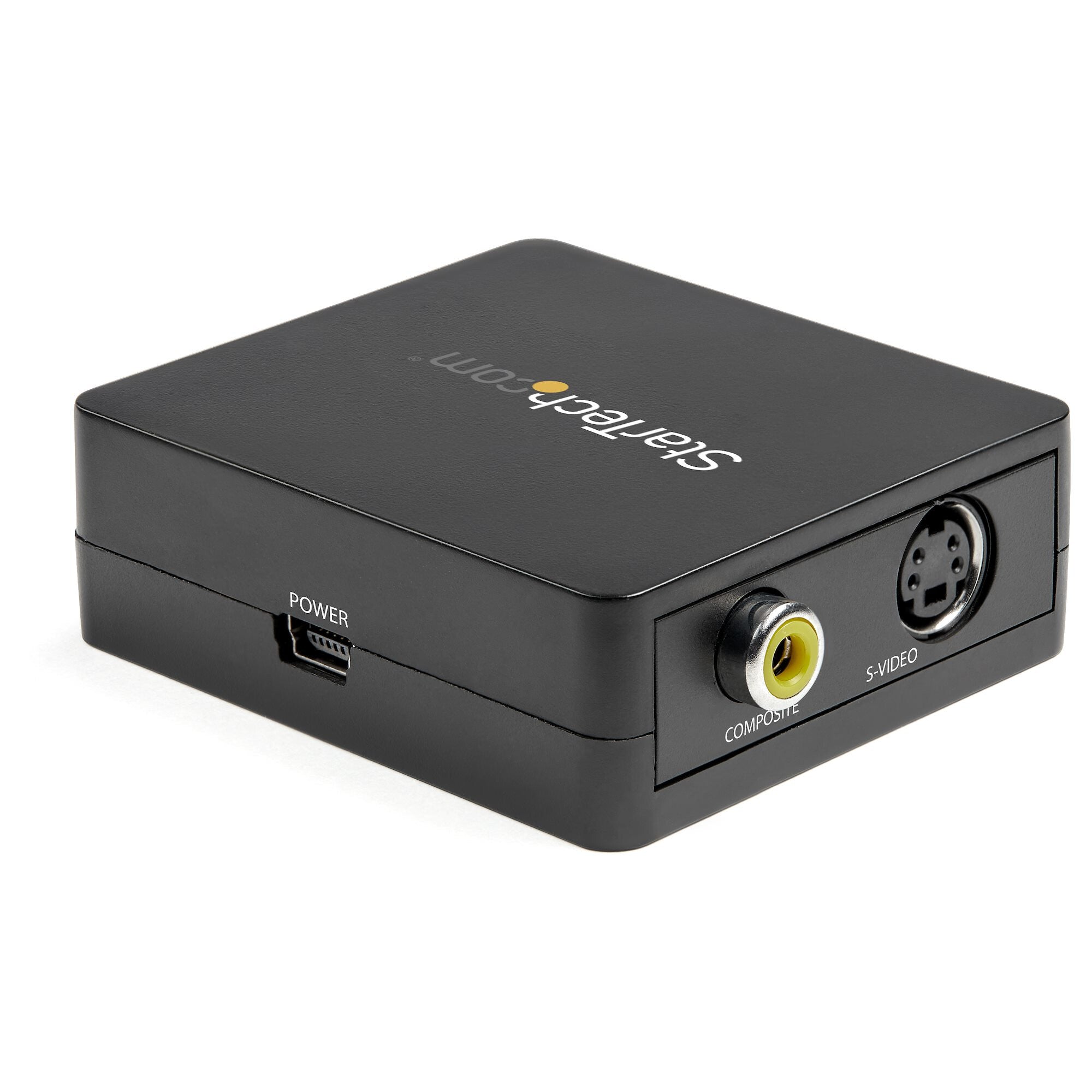

  • Provides output in both Composite and S-Video formats
  • Supports PC input resolutions up to 1920 x 1080
  • Select between NTSC and PAL outputs
  • Dynamically adjust image underscan and overscan

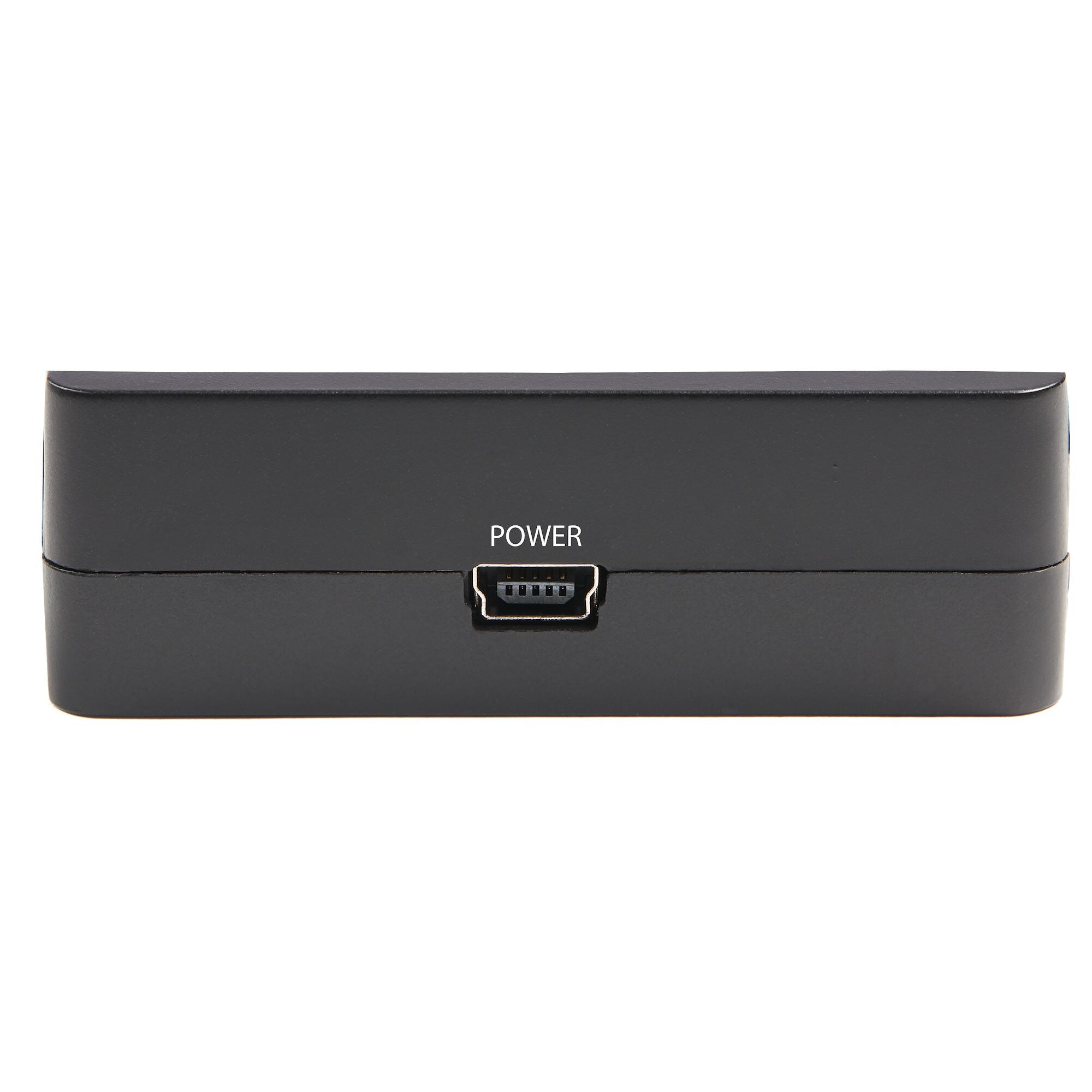

  • Powered by USB port

Computer to TV Converter | 1080p to 480i Scaler |Composite & S-Video | 2-Year Warranty

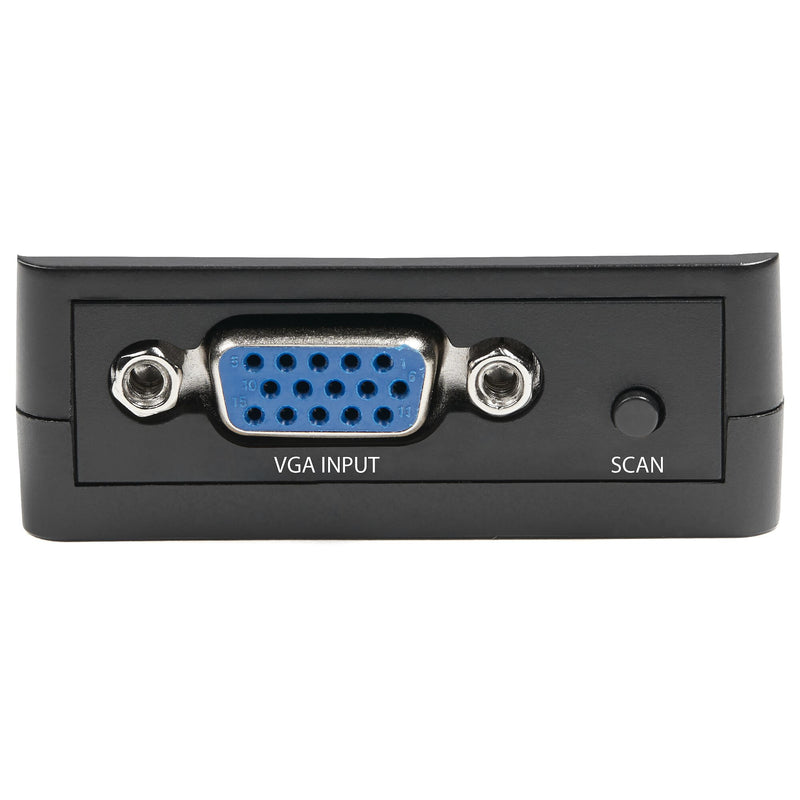

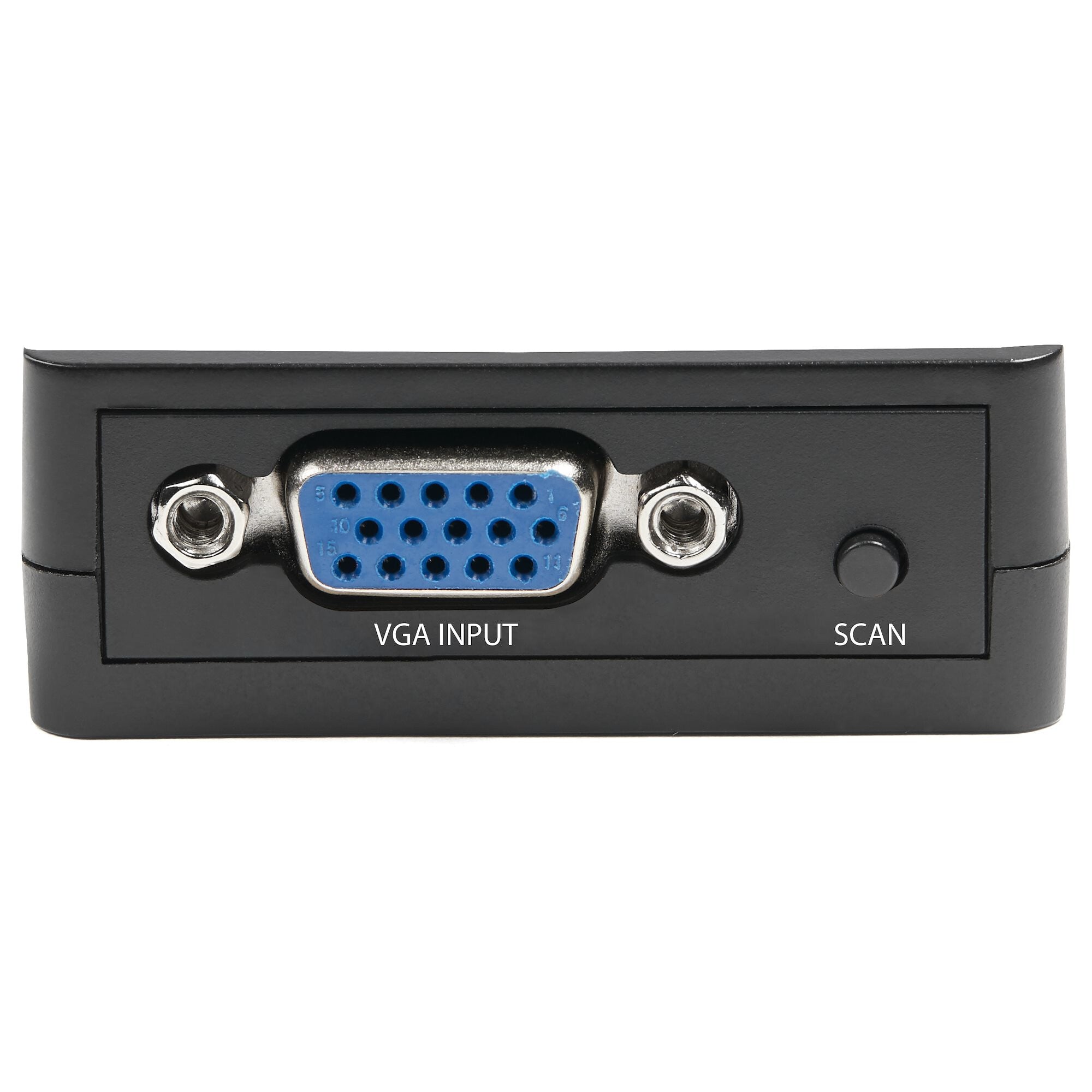

This VGA to RCA/S-Video converter box provides a simple way to convert and scale a 1080p VGA video input signal to a 480i composite (CVBS) or S-Video output signal. Perfect for use with legacy projectors or TV sets.

Hassle-Free Setup and Easy to Use

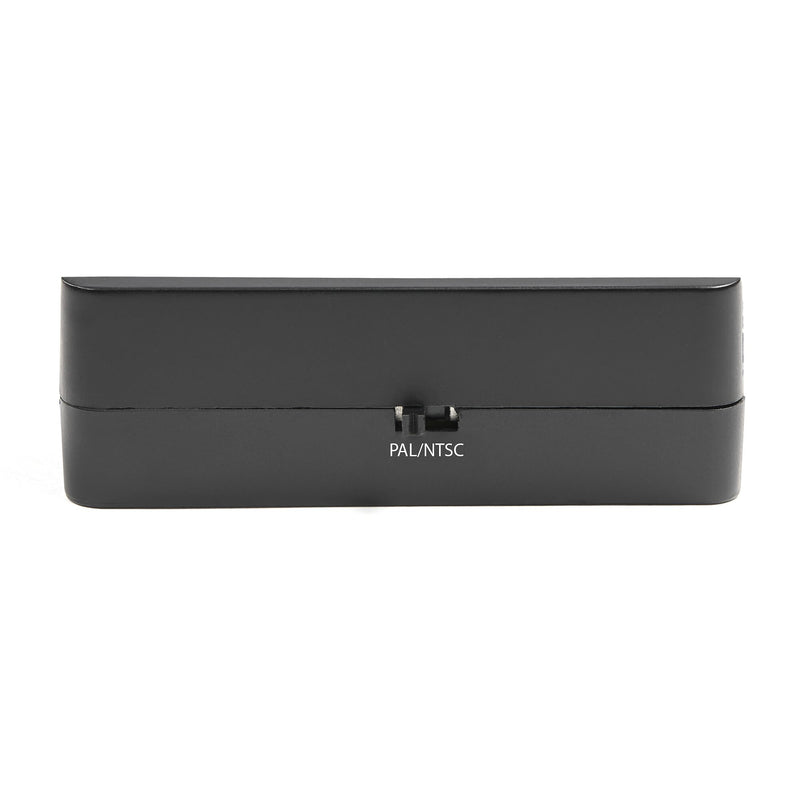

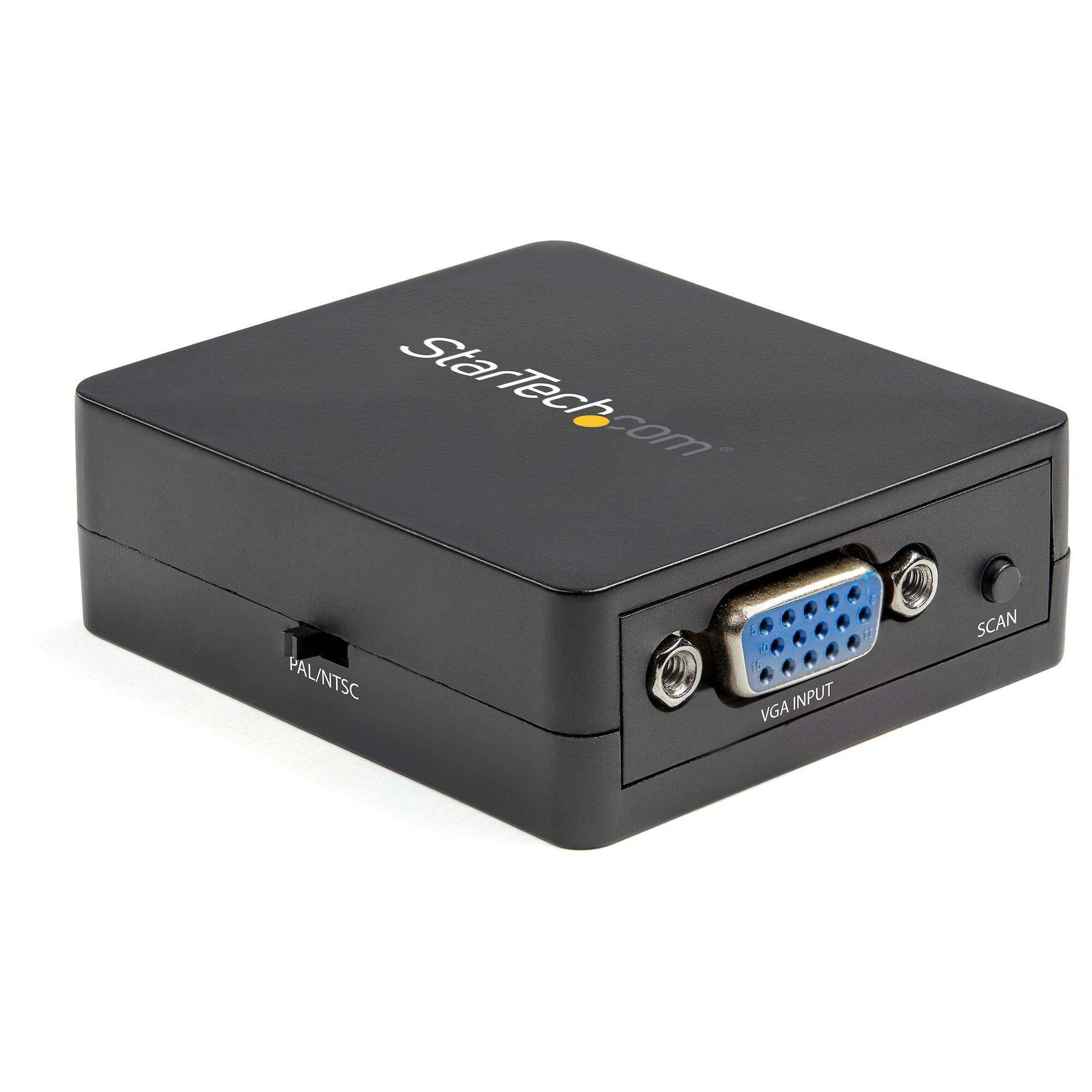

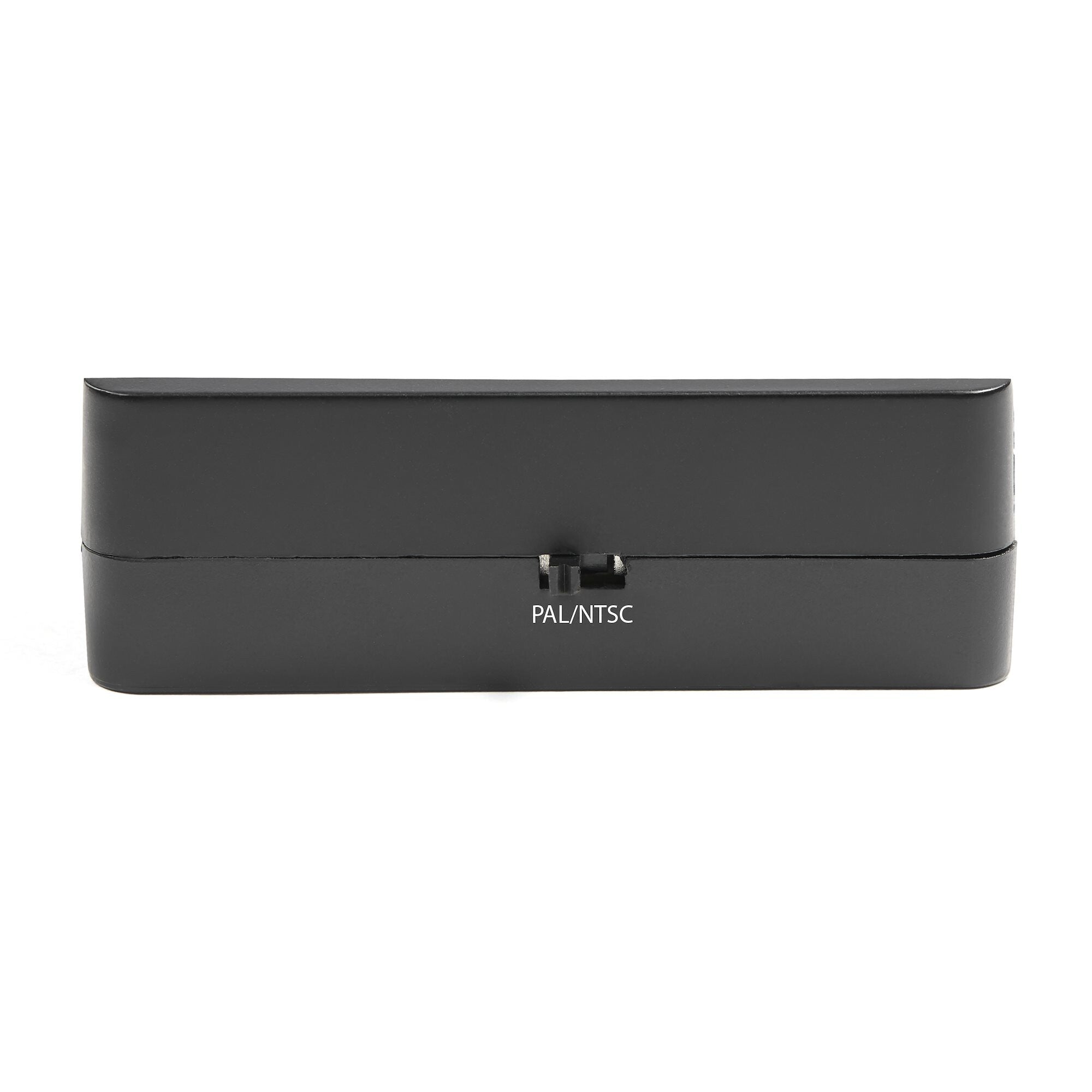

Equipped with a NTSC/PAL toggle switch and a scan button for simple configuration and selection of your video output settings, this compact VGA to Composite and S-Video adapter installs quickly and easily, for a true plug-and-play experience.

Save on Upgrade Costs

By using this VGA to AV adapter you can connect a PCs VGA connector to legacy TVs and projectors, ultimately saving the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching videos on your S-Video or Composite display.

Crystal-Clear Picture Quality

The PC to television converter features an integrated video scaler circuit that dynamically converts VGA video input signals with resolutions up to 1920x1200 @ 60Hz. To ensure compatibility with your display or projector the computer to TV converter outputs high quality 640 x 480 video, the highest supported by S-Video or Composite.

VGA2VID2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Certification CE, FCC, REACH
Product colour Black
Converter type Active video converter
Video
Maximum refresh rate 60 Hz
Video resolutions 640 x 480,1920 x 1080 pixels
Maximum video resolution 1920 x 1080 pixels
Ports & interfaces
Host interface VGA (D-Sub)
Output interface Composite/S-Video
Power
Power consumption (typical) 2.5 W
USB powered Yes
Technical details
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -10 - 80 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 46 g
Height 20 mm
Depth 60 mm
Width 54 mm
Packaging data
Package weight 162 g
Package height 24 mm
Package depth 105 mm
Package width 133 mm

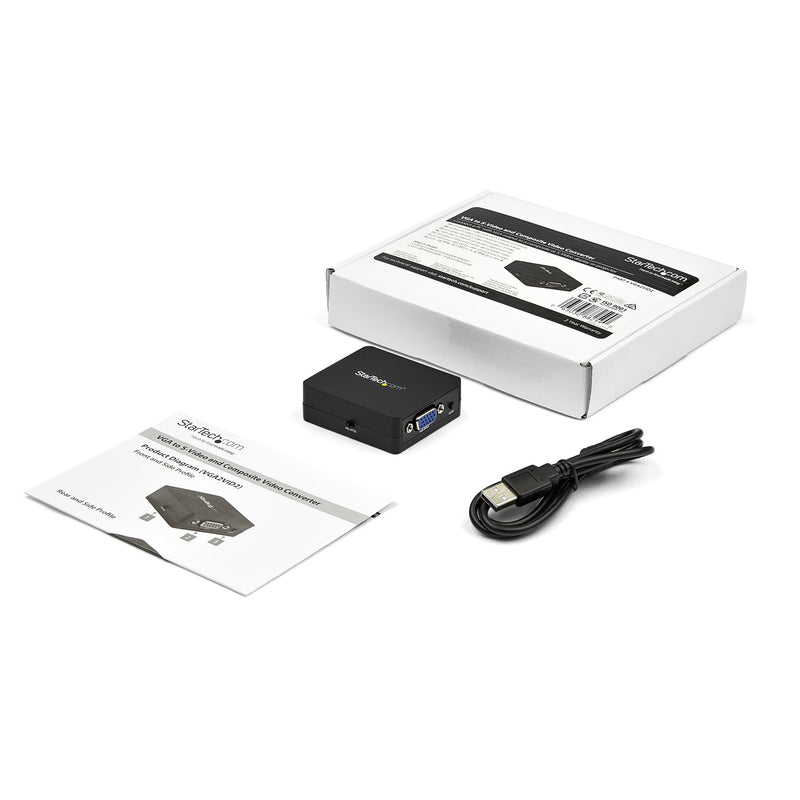

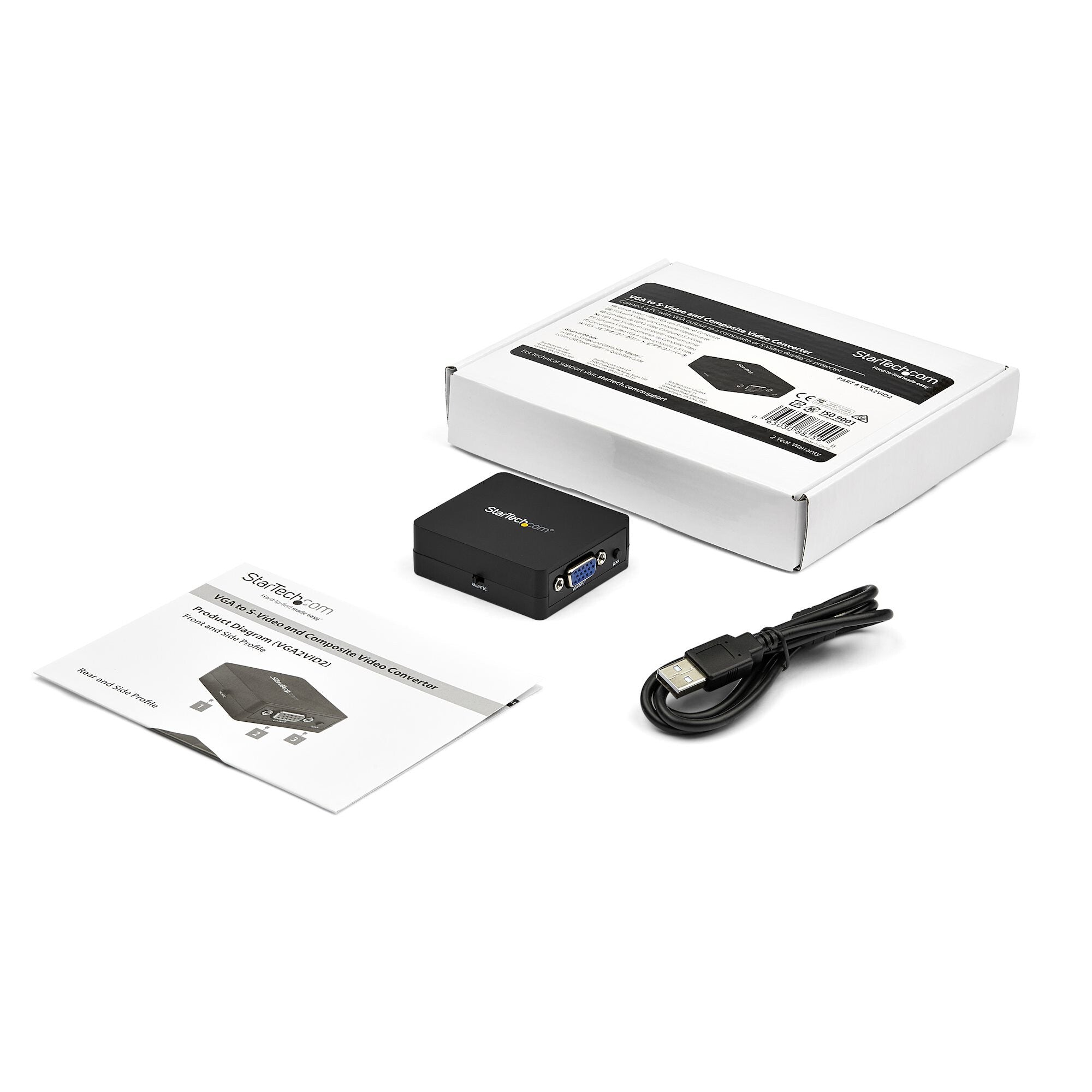

Quantity 1
Quick installation guide Yes
Cables included USB
Logistics data
Products per master (outer) case 100 pc(s)
Master (outer) case height 351 mm
Master (outer) case length 568 mm
Master (outer) case width 540 mm
Harmonized System (HS) code 85176990
