Overview
Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ethernet LAN 10,100,1000 Mbit/s Wake-on-LAN ready
Auto MDI/MDI-X Full duplex
Cable lock slot
Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

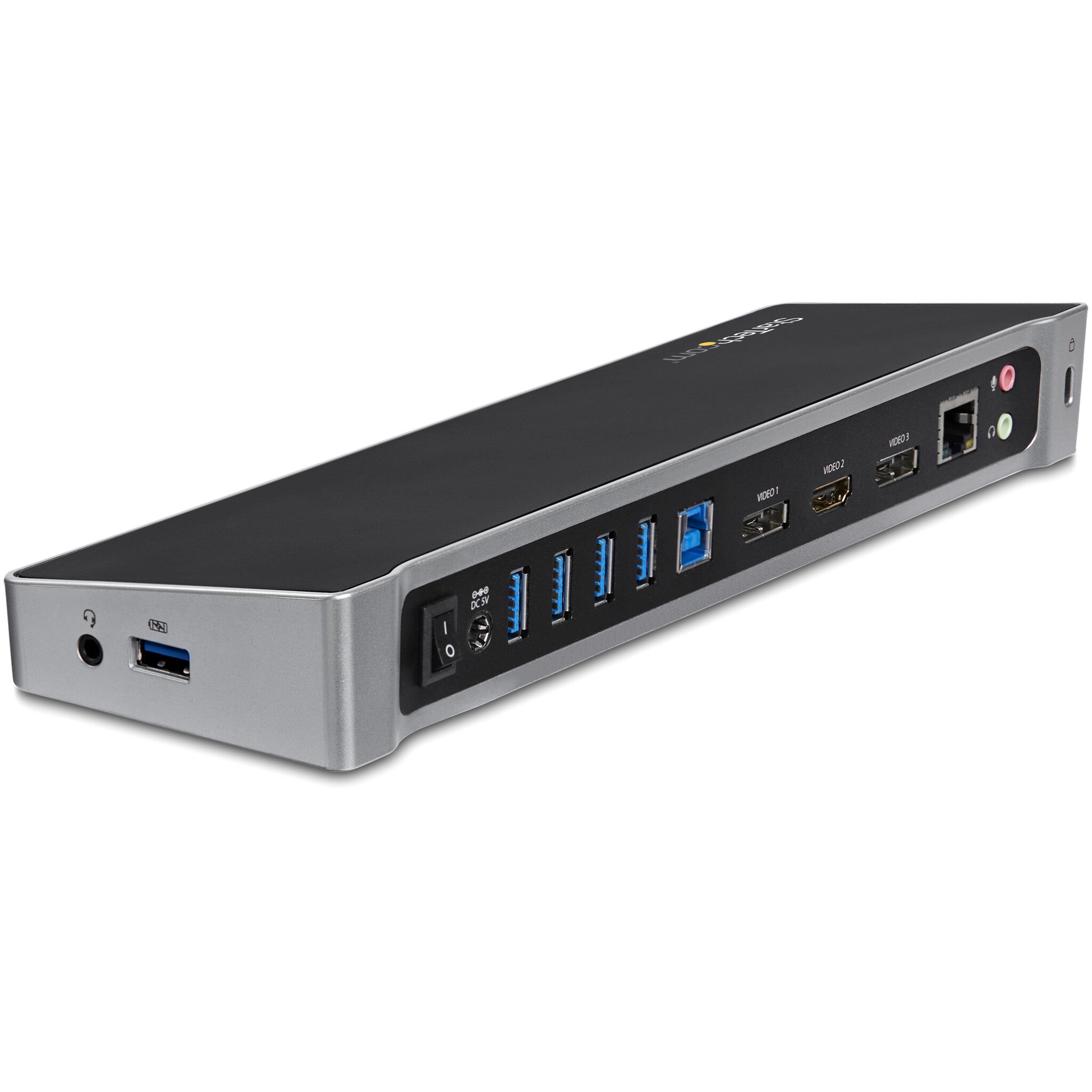

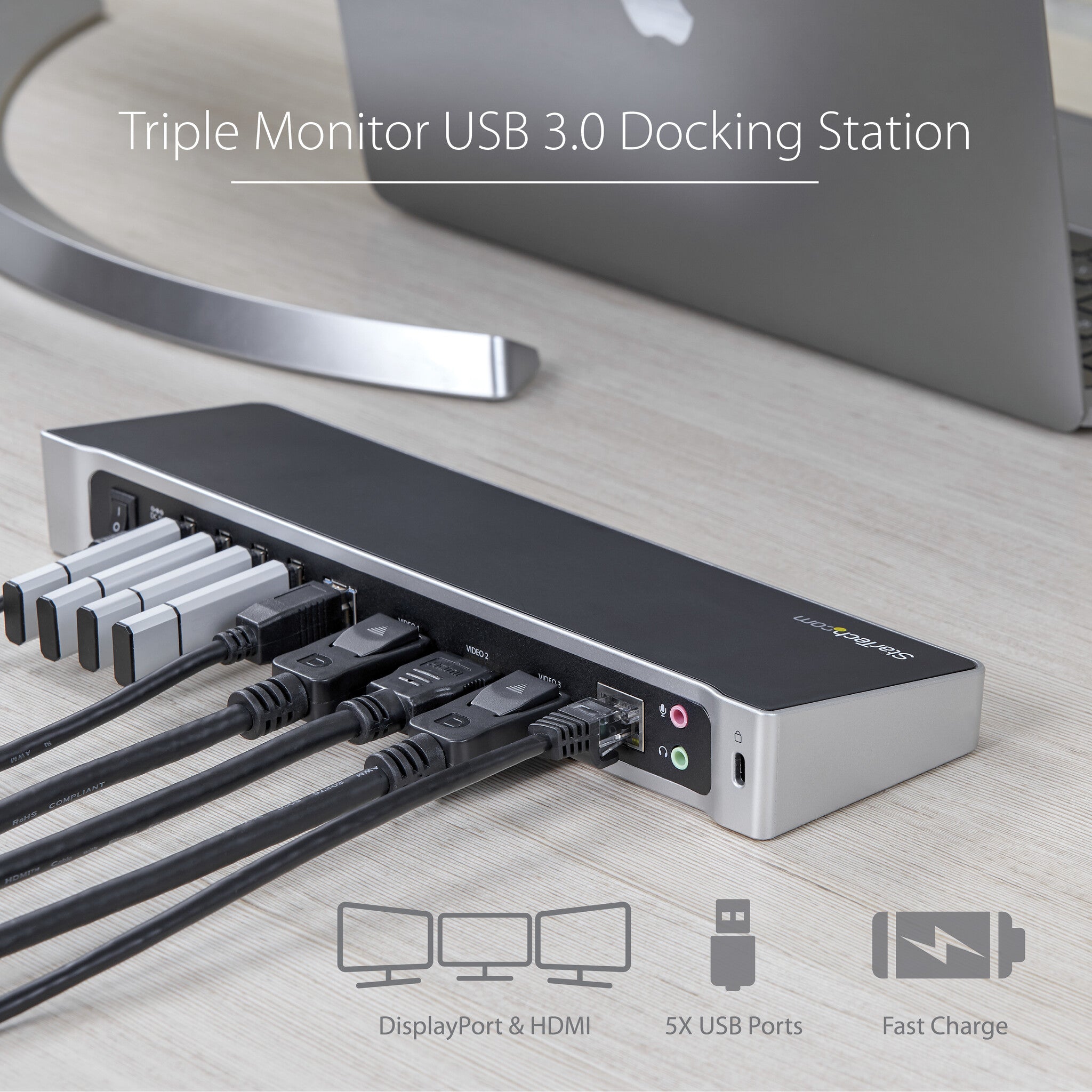

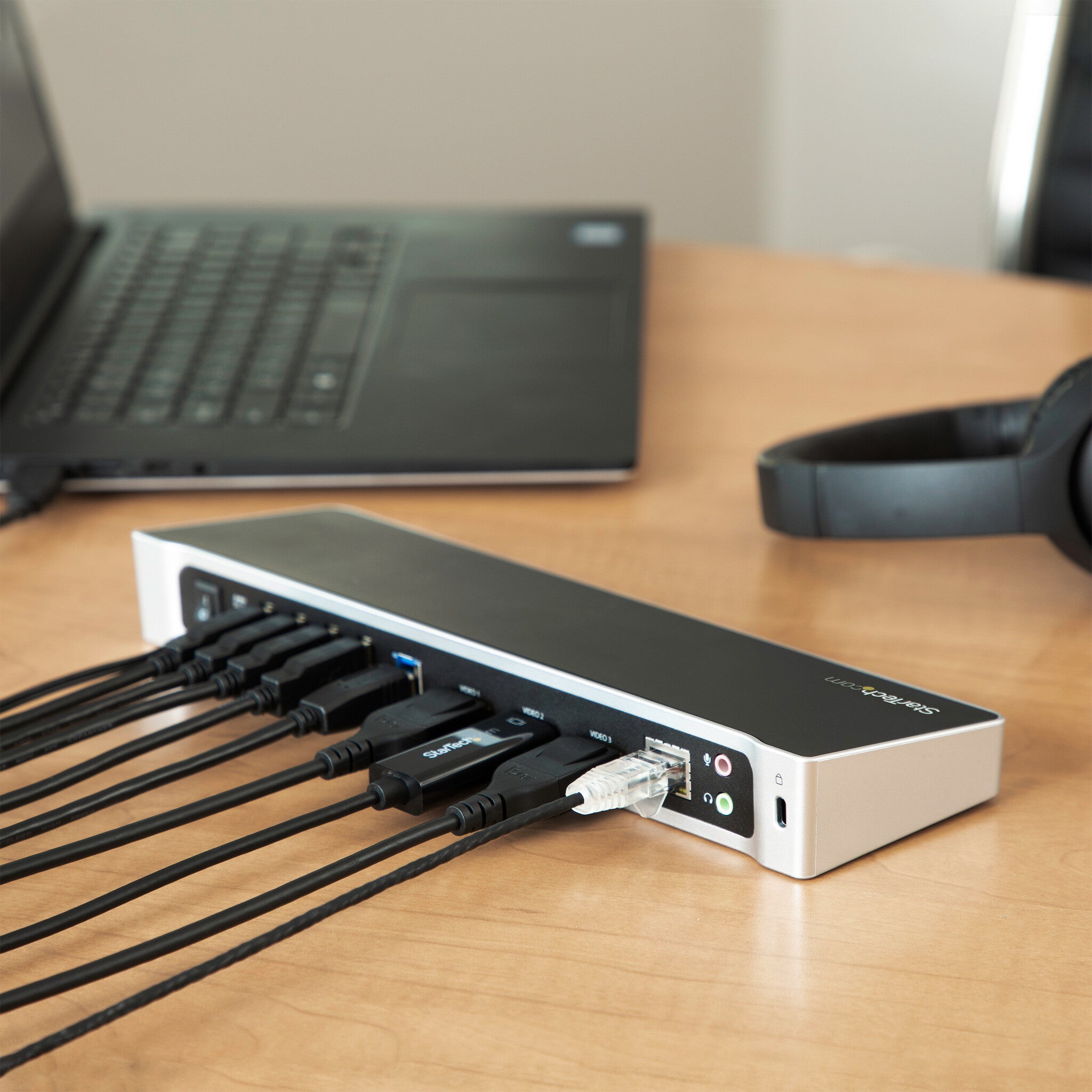

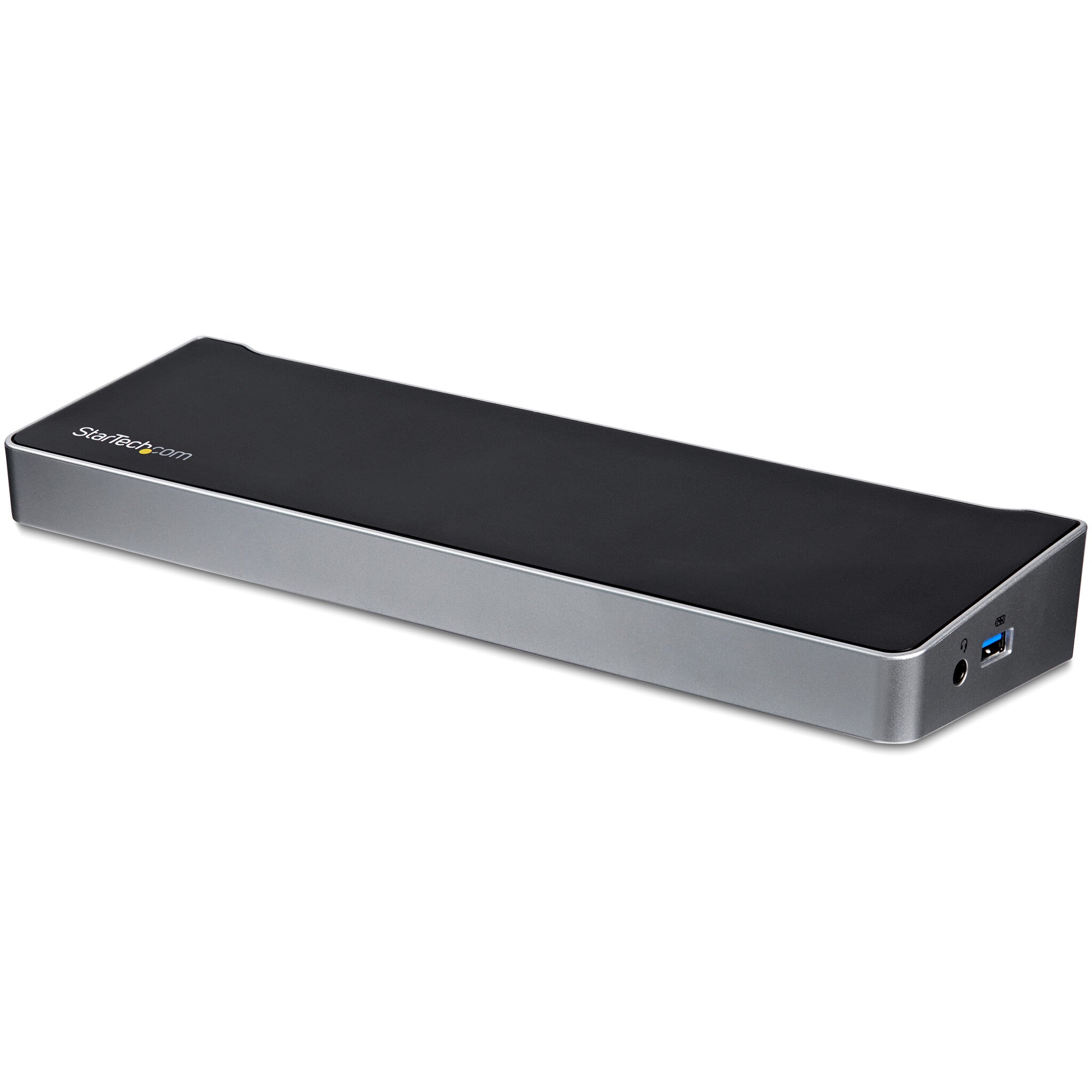

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

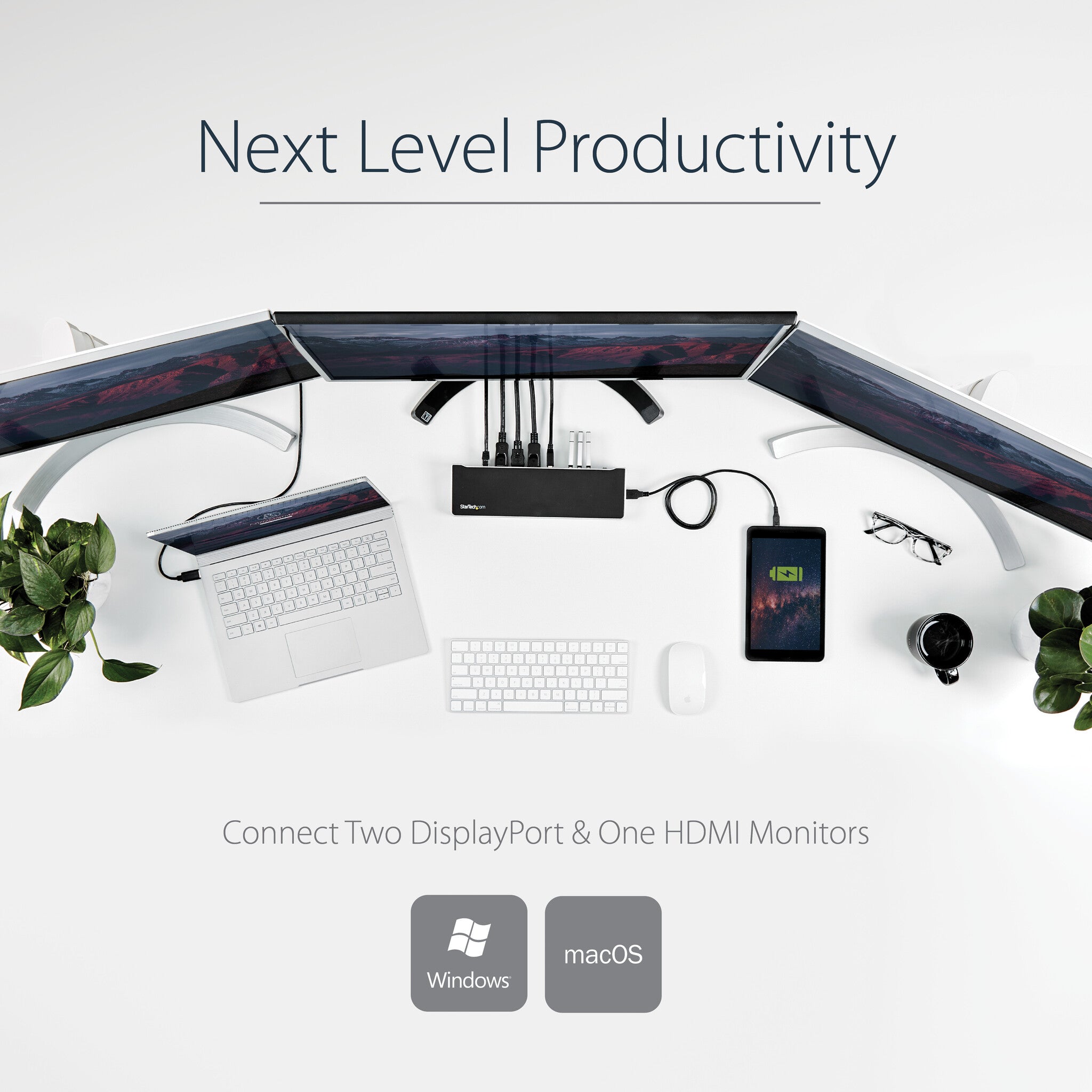

Triple Display Flexibility
The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

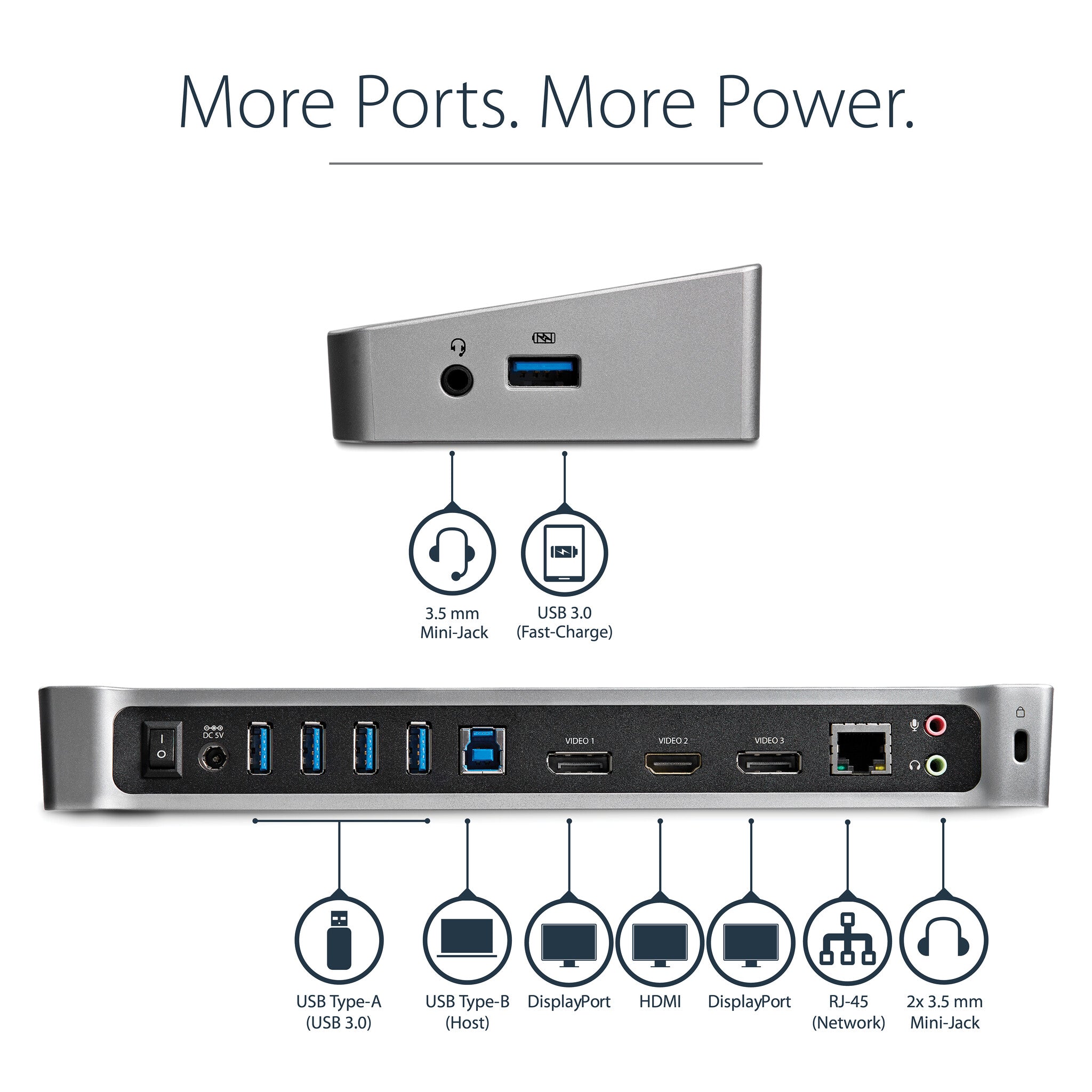

Powerful Connections and Fast Device Charging

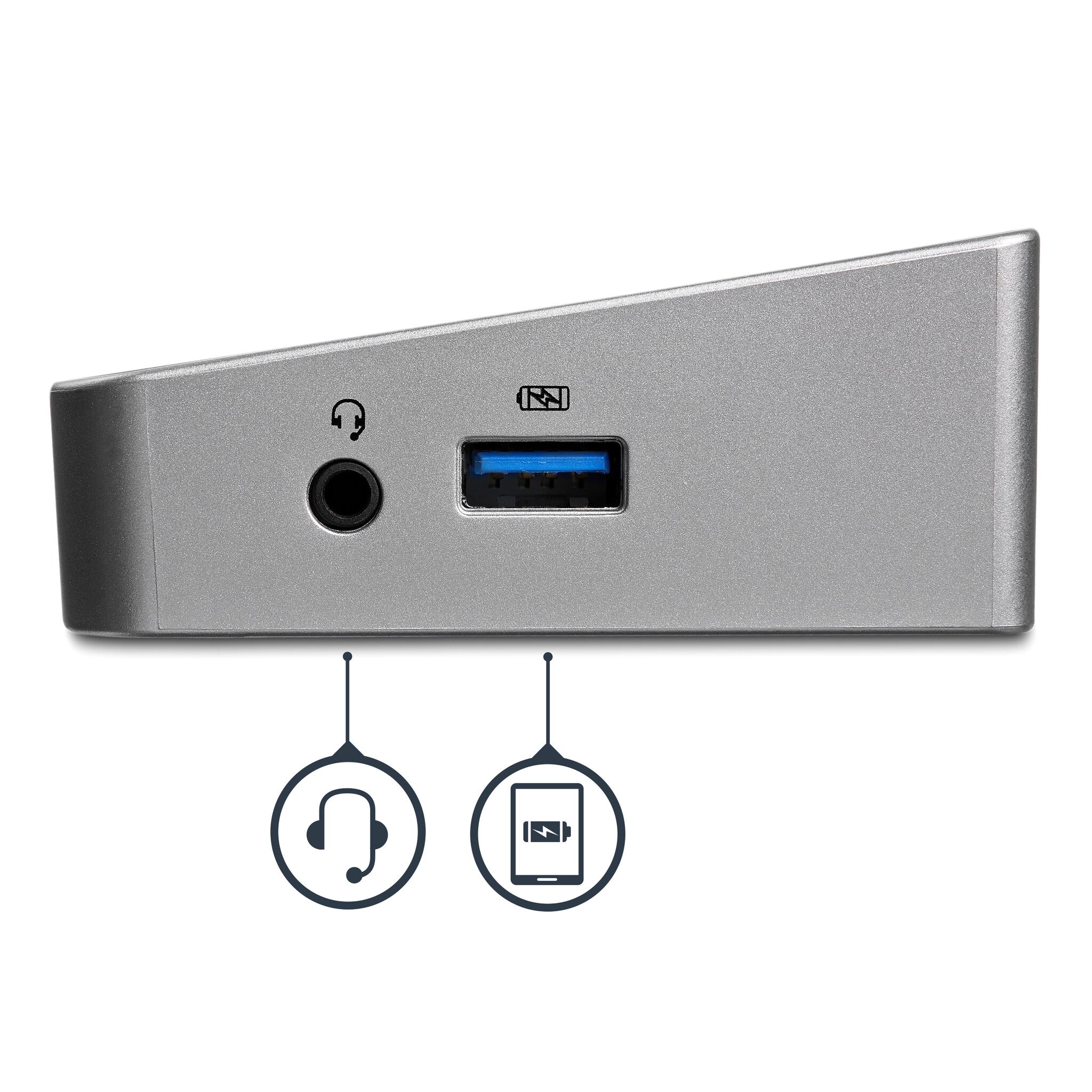

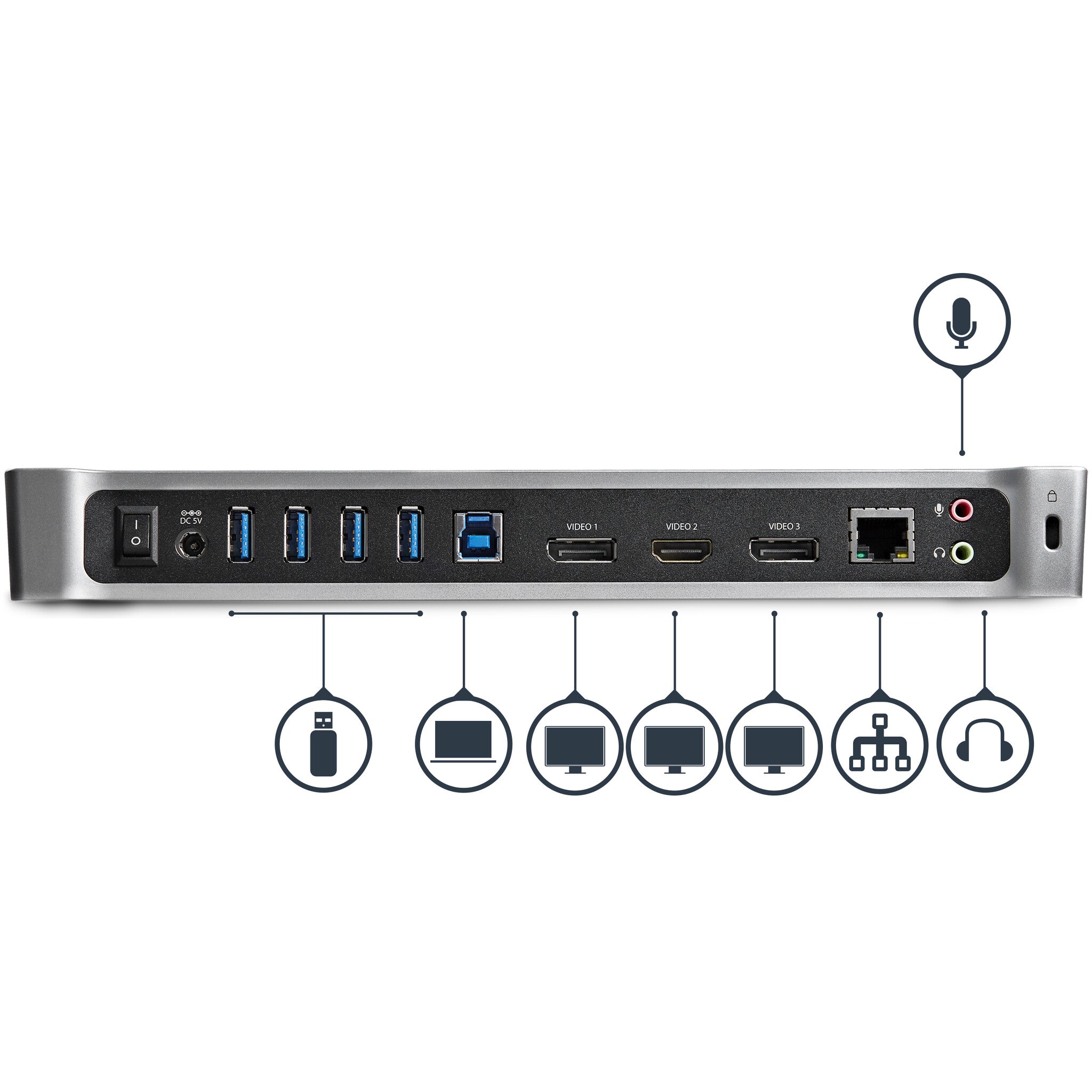

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.
The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
Ports & interfaces
DC-in jack
Yes
USB connector type
USB Type-A
Headphone connectivity
3.5 mm
Headphone outputs
2
Combo headphone/mic port
Yes
Microphone in
Yes
DisplayPorts quantity
2
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Connectivity technology
Wired
Network
Auto MDI/MDI-X
Yes
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
Show all 53 specificationsShow fewer specifications
Performance
Certification
CE, FCC, DisplayLink, TAA, REACH
Brand compatibility
Any brand
UASP support
Yes
LED indicators
Activity, Link
Housing material
Plastic
Cable lock slot
Yes
Maximum digital resolution
3840 x 2160 pixels
Data transfer rate
5 Gbit/s
Card reader integrated
No
Product colour
Black, Silver
Power
Compatible power plug types
AU, EU, UK, US
Power plug type
Type N
Power consumption (typical)
32.5 W
Output voltage
5 V
Output current
6.5 A
Input current
1.5 A
AC input voltage
100-240 V
Software
Other operating systems supported
ChromeOS
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility
Yes
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Operational conditions
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-10 - 80 °C
Operating temperature (T-T)
0 - 40 °C

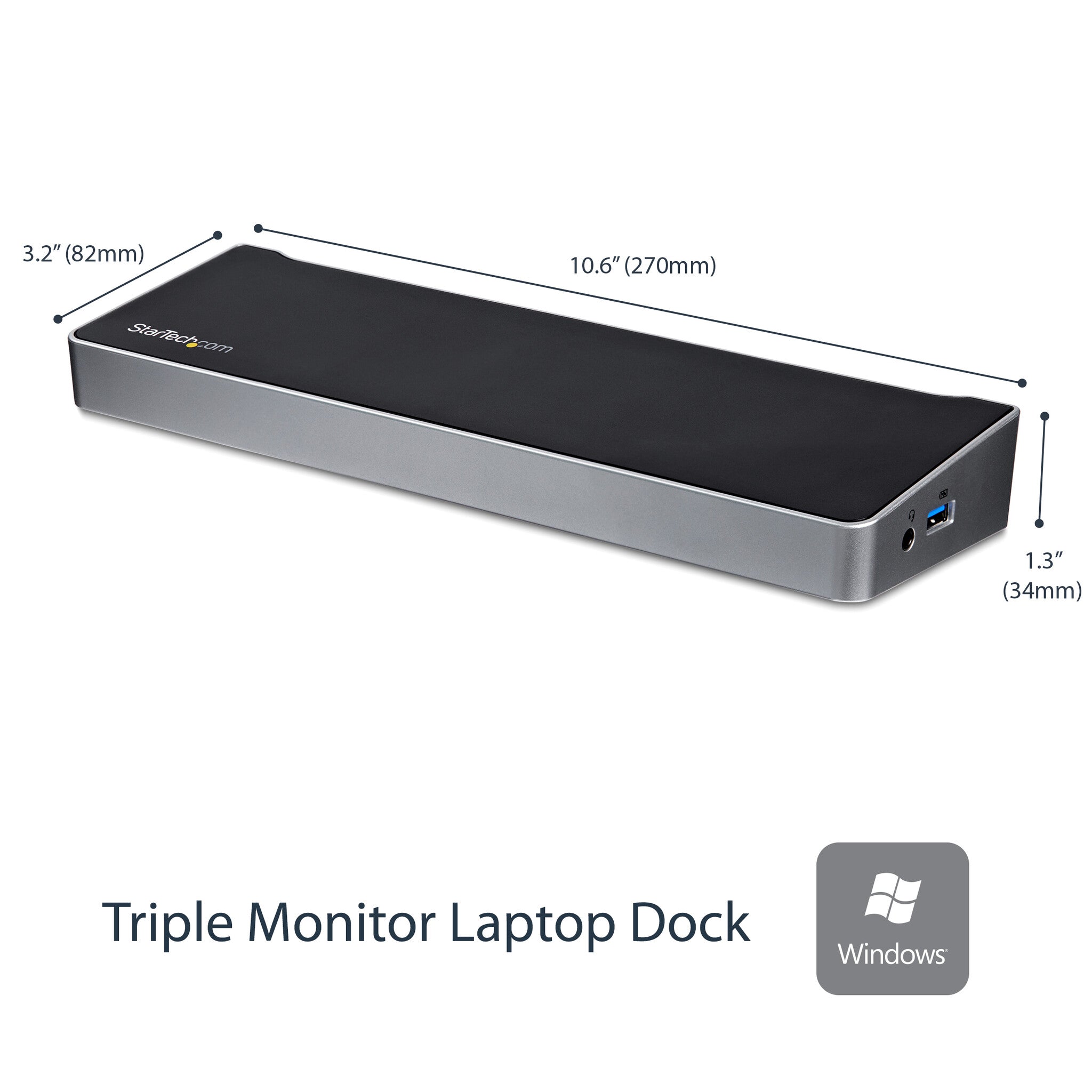

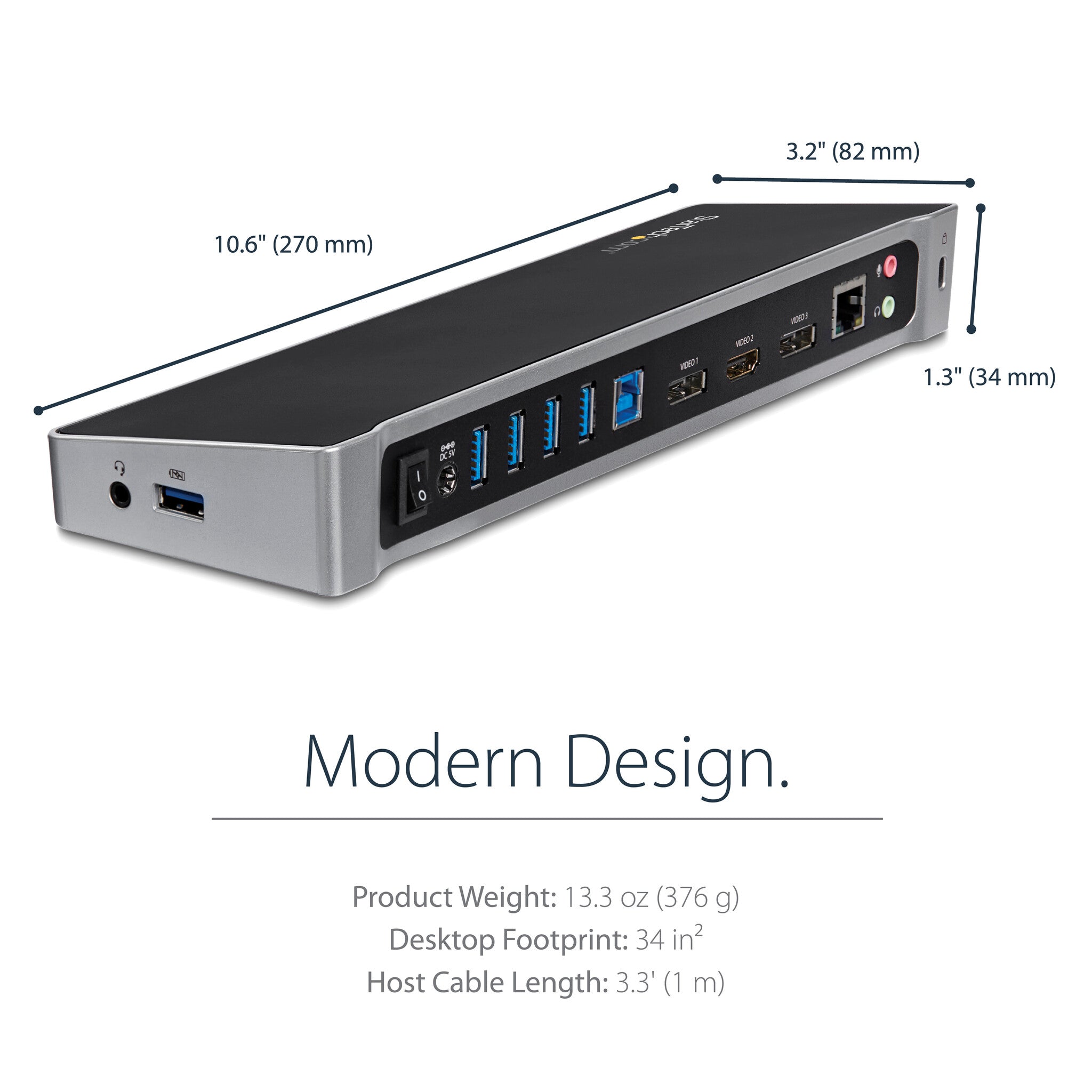

Weight & dimensions
Weight
376 g
Height
34 mm
Depth
270 mm
Width
82 mm

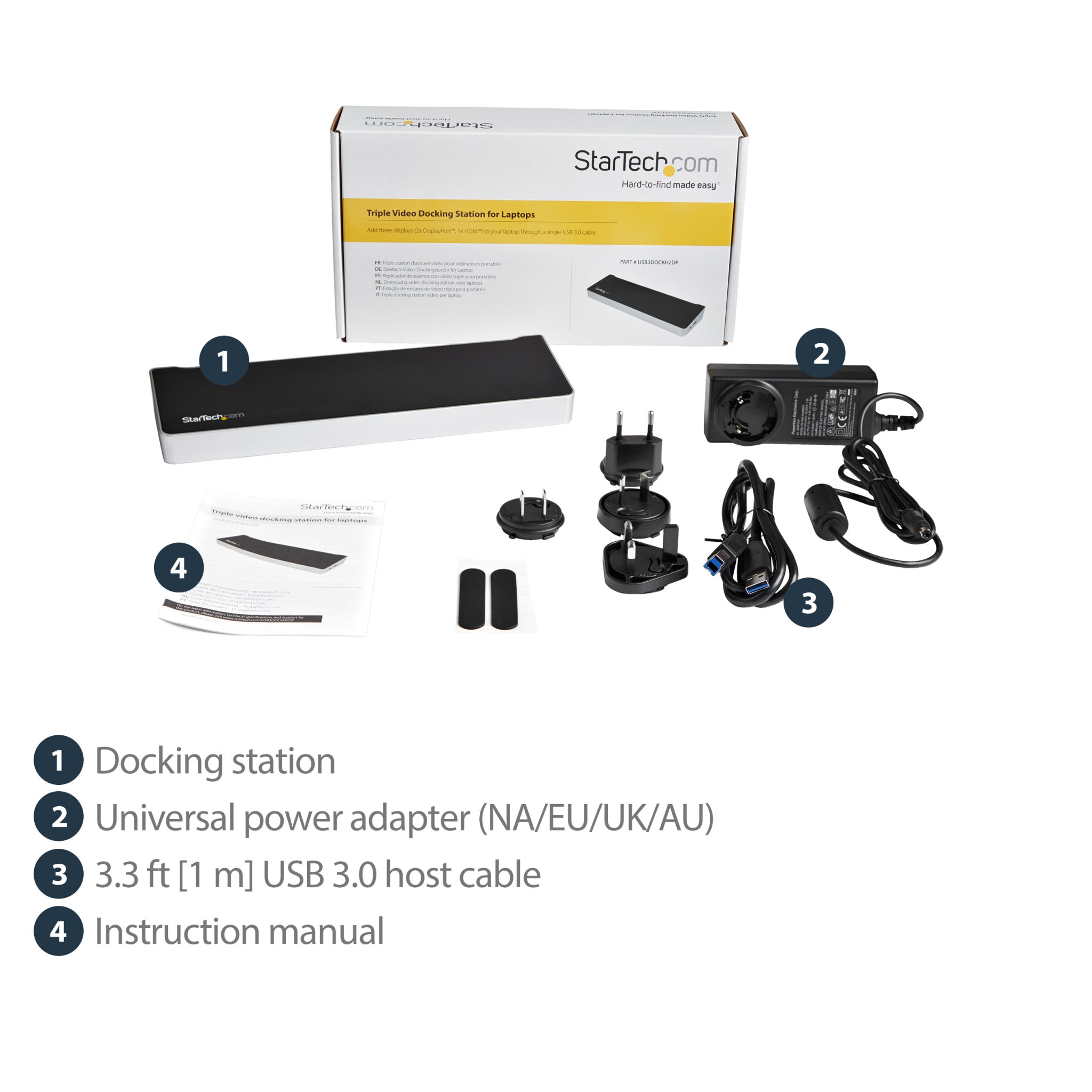

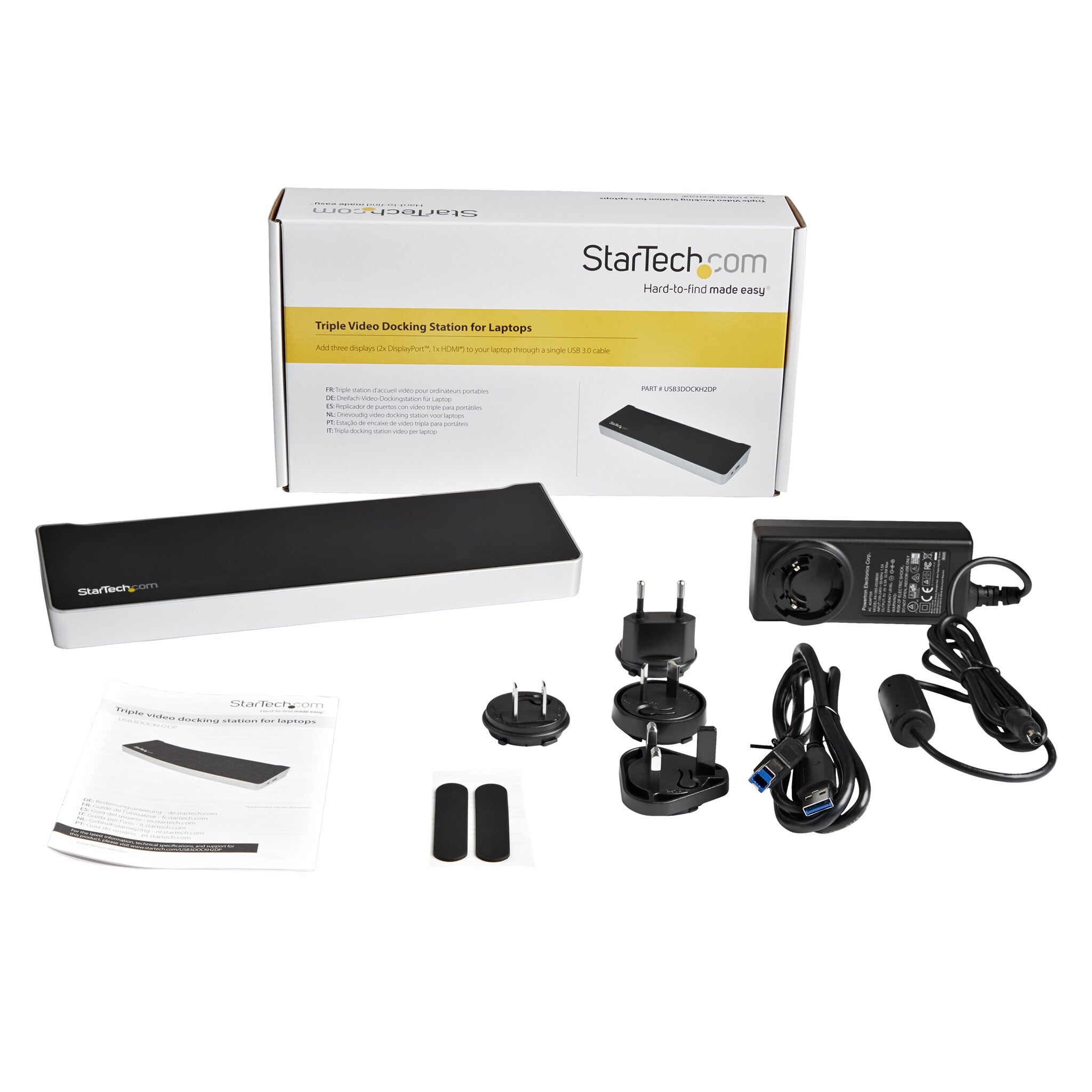

Packaging content
Cables included
USB
AC adapter included
Yes
Manual
Yes
Technical details
Compliance certificates
RoHS
Other features
Chipset
DisplayLink - DL-5910, VLI - VL812
Number of microphone inputs
1
USB data transfer rates
5000 Mbit/s
