£45.99

Stock Available: 0
  • Internal
  • Host interface: SATA
  • Output interface: SATA
  • 6 Gbit/s
  • Aluminium, Black, Green

Connect five SATA drives to a single internal SATA 6Gbps host connection

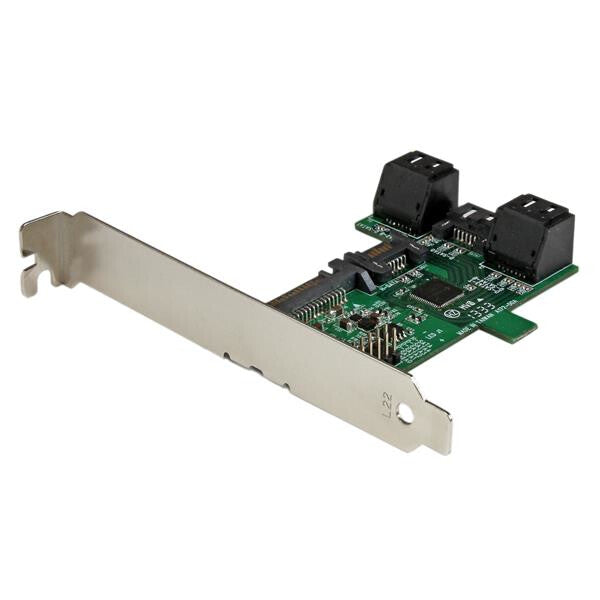

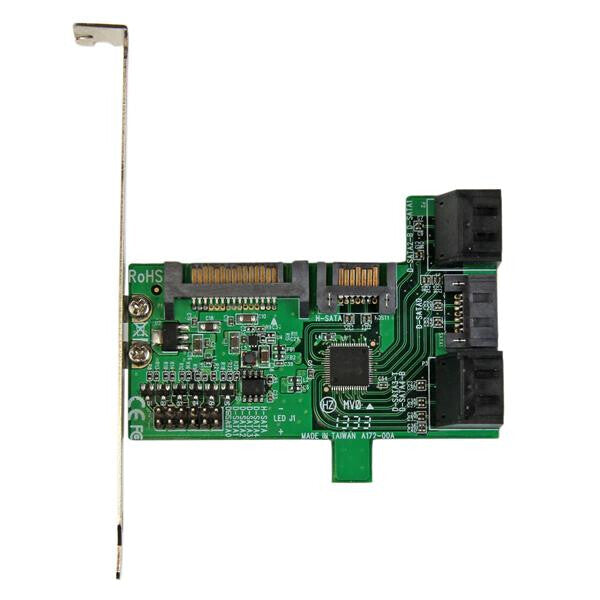

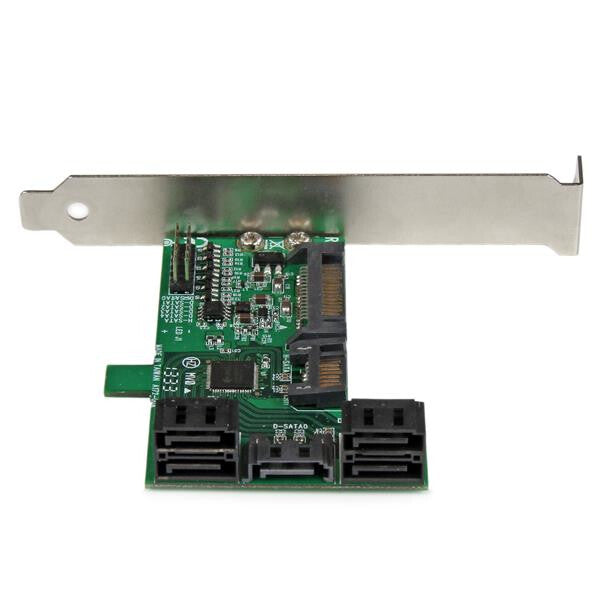

The ST521PMINT 1-to-5 SATA drive port multiplier lets you connect five individual SATA hard drives to a single SATA host controller, vastly increasing the storage capacity of your computer system.

The ST521PMINT optimizes port usage enabling you to connect up to five SATA drives to a single SATA port. To ensure maximum performance the SATA port multiplier supports SATA III host controllers and hard drives, with transfer speeds up to 6 Gbps, so you can experience fast performance, even with 5 individual drives connected.

For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included. The HDD adapter also includes HDD activity LED headers, so you can connect your computer case LEDs to the card for full activity reporting.

The ST521PMINT is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage

- Increase the storage capacity of your computer system by connecting five SATA hard drives (HDD) or solid-state drives (SSD) to a single SATA connector
- Maximize performance, with file transfer speeds up to 6 Gbps with support for SATA III host connections

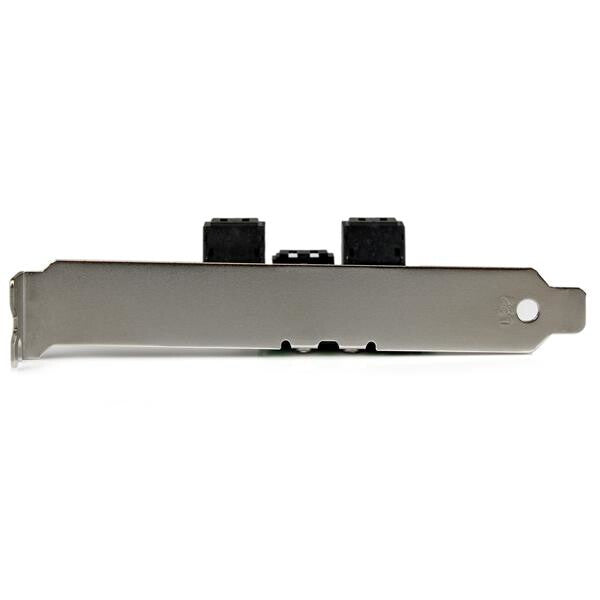

- Ensures installation compatibility with a wide range of computer systems with included low-profile (half-height), and full-profile brackets

Ports & interfaces
Port multiplier Yes
Internal SATA ports quantity 5
SATA revision 3.0
Output interface SATA
Host interface SATA
Design
Certification CE, FCC
Product colour Aluminium, Black, Green
Internal Yes
Features
Data transfer rate (max) 6 Gbit/s
Chipset JMB575A
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 5 - 50 °C
Technical details
Compliance certificates RoHS
Weight & dimensions
Weight 43 g
Height 120 mm
Depth 93 mm
Width 18 mm
Packaging data
Package weight 163 g
Package height 30 mm
Package depth 172 mm
Package width 142 mm
Manual Yes
Mounting brackets included Yes
Cables included SATA
Logistics data
Harmonized System (HS) code 84733020
