StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
Now £74.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • RS232 to 2/4-wire RS485 or RS422 conversion
  • Supports RS422 and RS485 auto detect and manual switching
  • ±15KV ESD protection on all signal pins
  • Supports baud rates up to 921.6 Kbps
  • Wall-mountable
  • Supports a maximum connection distance of 4000ft (1200m)

Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter

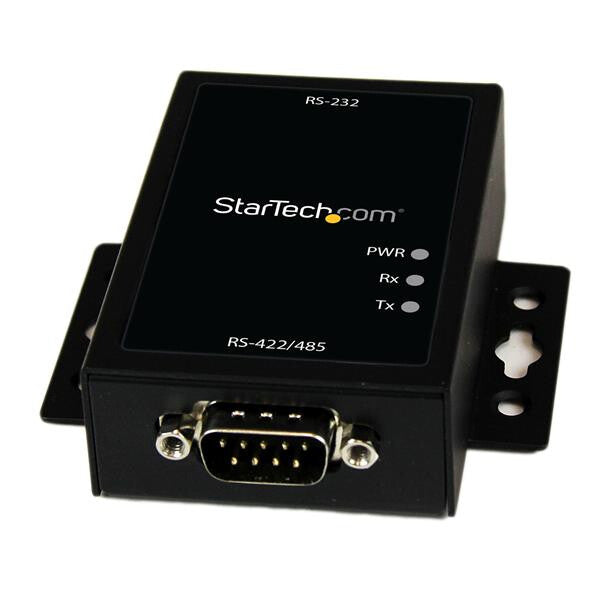

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.

The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

Technical details

Host interfaceRS-232
Output interfaceRS-232

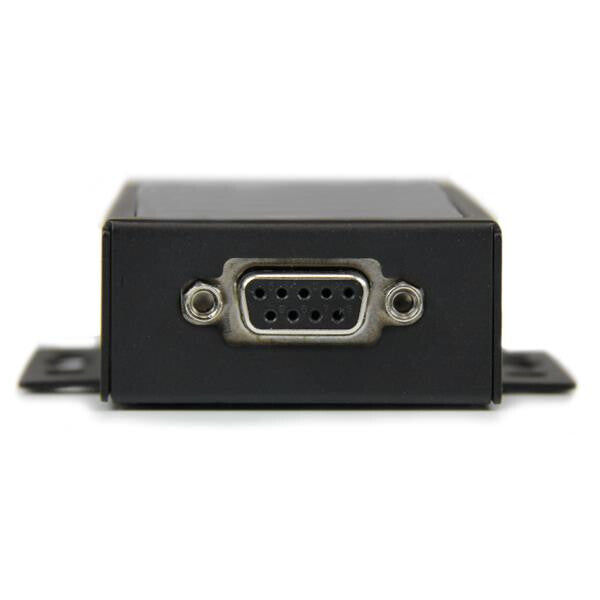

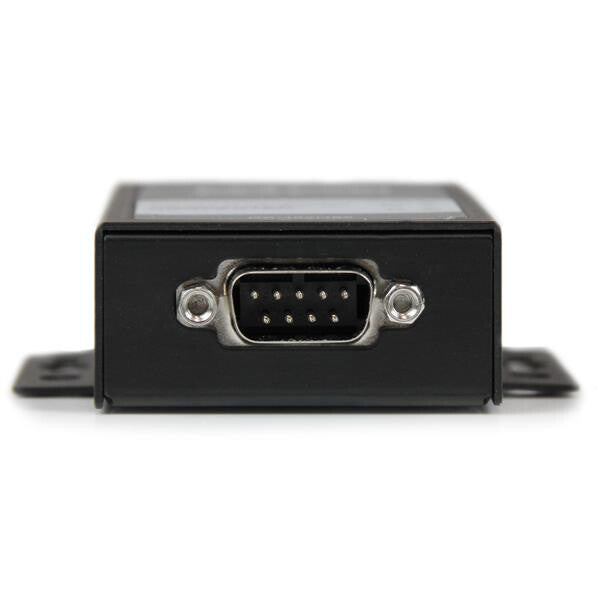

Connector 1DB-9
Connector 2DB-9
Connector genderMale/Female
Compliance certificatesRoHS
Maximum cable length1200 m
Product colourBlack

Certificates

CertificationCE, FCC, REACH
Show all 23 specificationsShow fewer specifications

Material

Housing materialSteel

Power

Input current0.3 A
Input voltage110 - 240 V

Weight & dimensions

Width59 mm
Depth117 mm
Height22 mm
Weight143 g
Package width189 mm
Package depth119 mm
Package height71 mm
Package weight351 g

Operational conditions

Operating relative humidity (H-H)5 - 85%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 50 °C
