StarTech.com Dual M.2 NGFF SATA Adapter with RAID
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £12.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
£4.95 delivery
Express £9.99
Spend £13.01 more for free delivery
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Host interface: SATA
- Output interface: M.2
- 6 Gbit/s
- Black, Metallic, White, Yellow

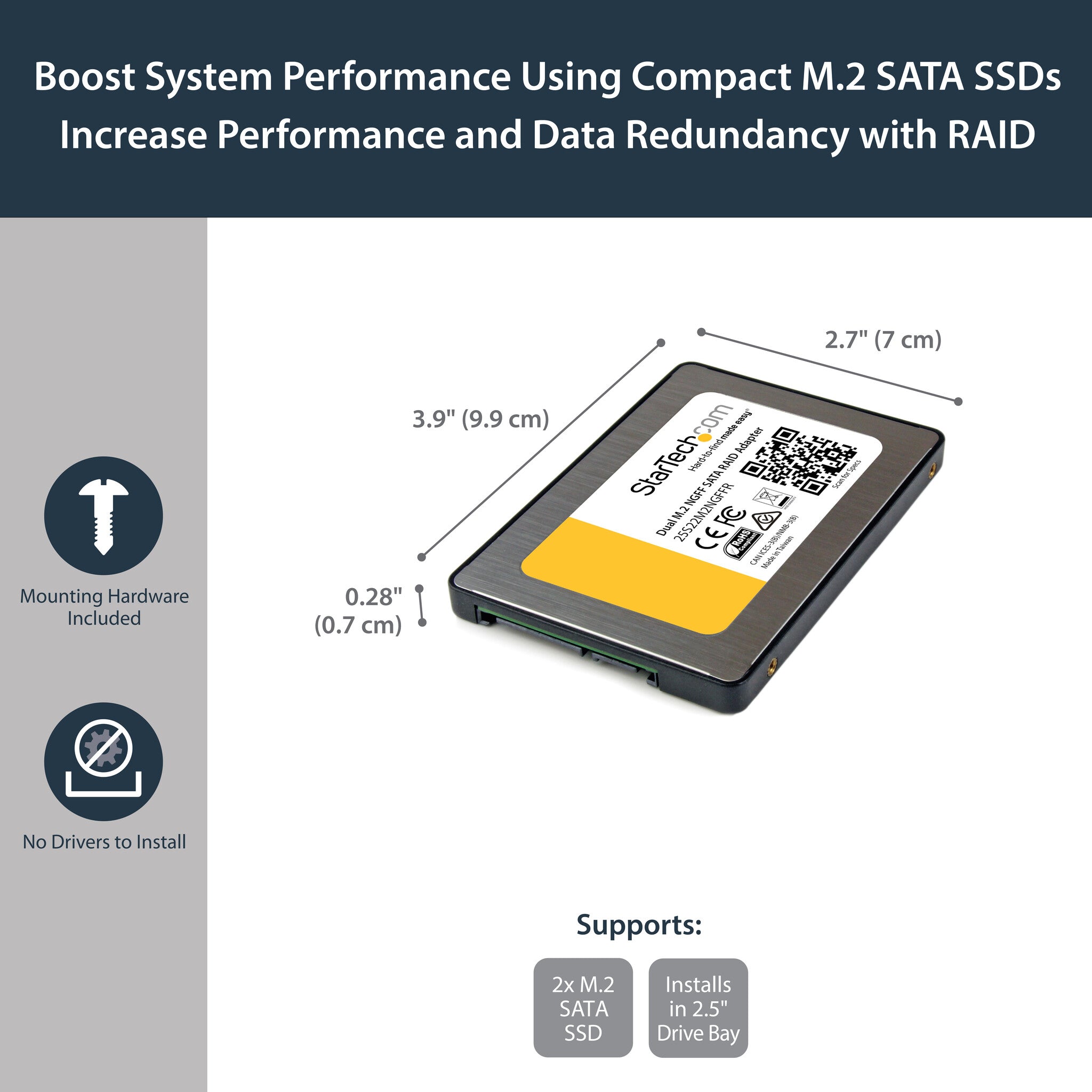

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5” drive bay and configure a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Maximize file transfer speeds
The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Get dependable drive protection
The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Ports & interfaces
| Port multiplier | Yes |
|---|---|
| SATA revision | 3.0 |
| Output interface | M.2 |
| Host interface | SATA |
Design
| Mean time between failures (MTBF) | 500000 h |
|---|---|
| Product colour | Black, Metallic, White, Yellow |
| Internal | No |
Show all 19 specificationsShow fewer specifications
Features
| RAID levels | 0, 1, BIG, JBOD |
|---|---|
| Data transfer rate (max) | 6 Gbit/s |
| Chipset | ASMedia - ASM1092R |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Storage temperature (T-T) | -10 - 85 °C |
| Operating temperature (T-T) | 0 - 50 °C |
Technical details
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Weight | 55 g |
|---|---|
| Height | 8 mm |
| Depth | 98 mm |
| Width | 68 mm |
Other features
| Material | Plastic, Steel |
|---|
