StarTech.com

iFrame
×
£69.99
Stock Available: 40
  • MULTI-USE FUNCTIONALITY: This versatile USB to serial RS422/485 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
  • CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup
  • COMPACT DESIGN: Designed with a small form factor, this serial RS422/485 converter is USB powered and requires no bulky power adapters or an outlet
  • EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
  • TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 921.6 Kbps; 256 Bytes FIFO; None/Odd/Even Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant

Add an RS422/485 serial port to your system through USB; features COM port retention

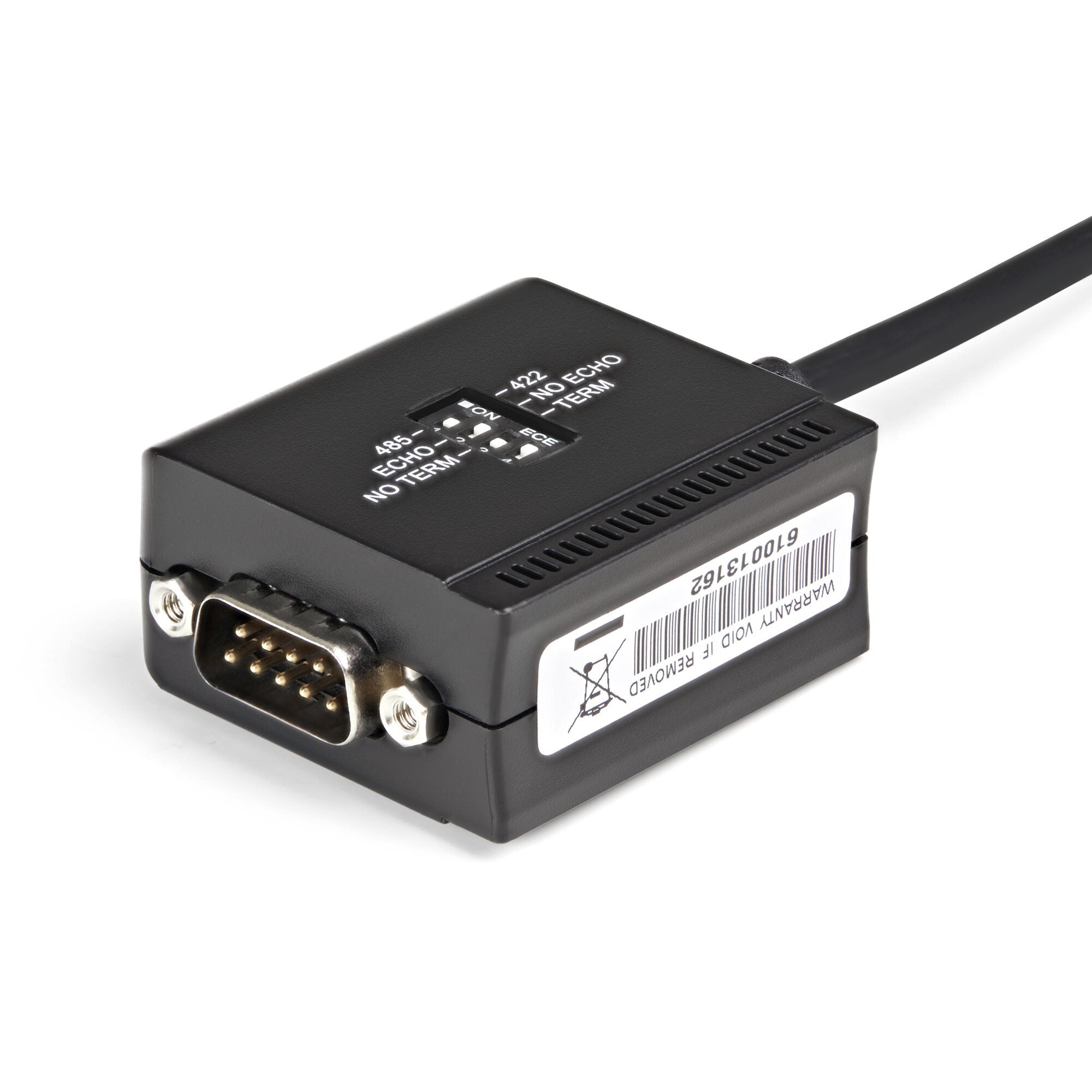

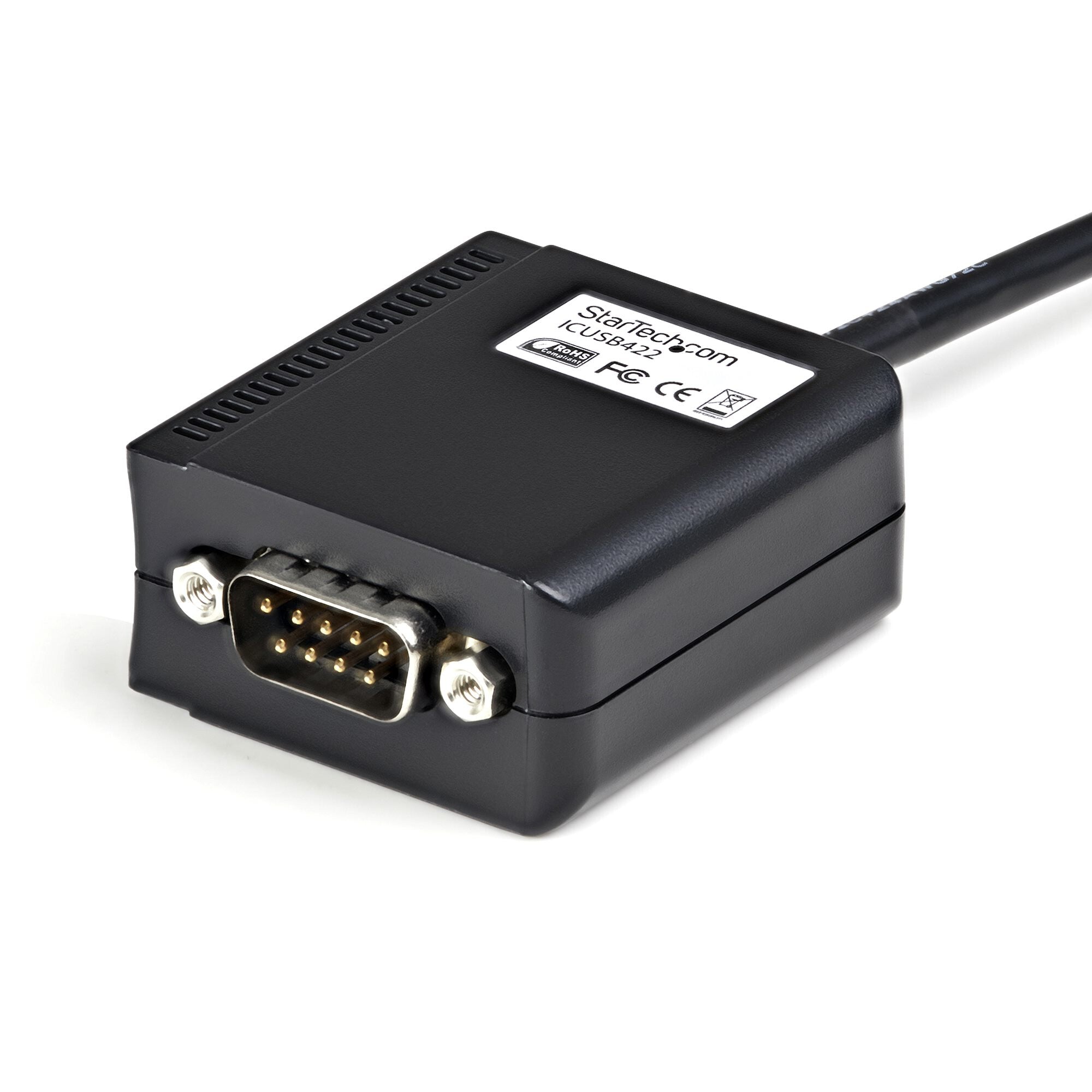

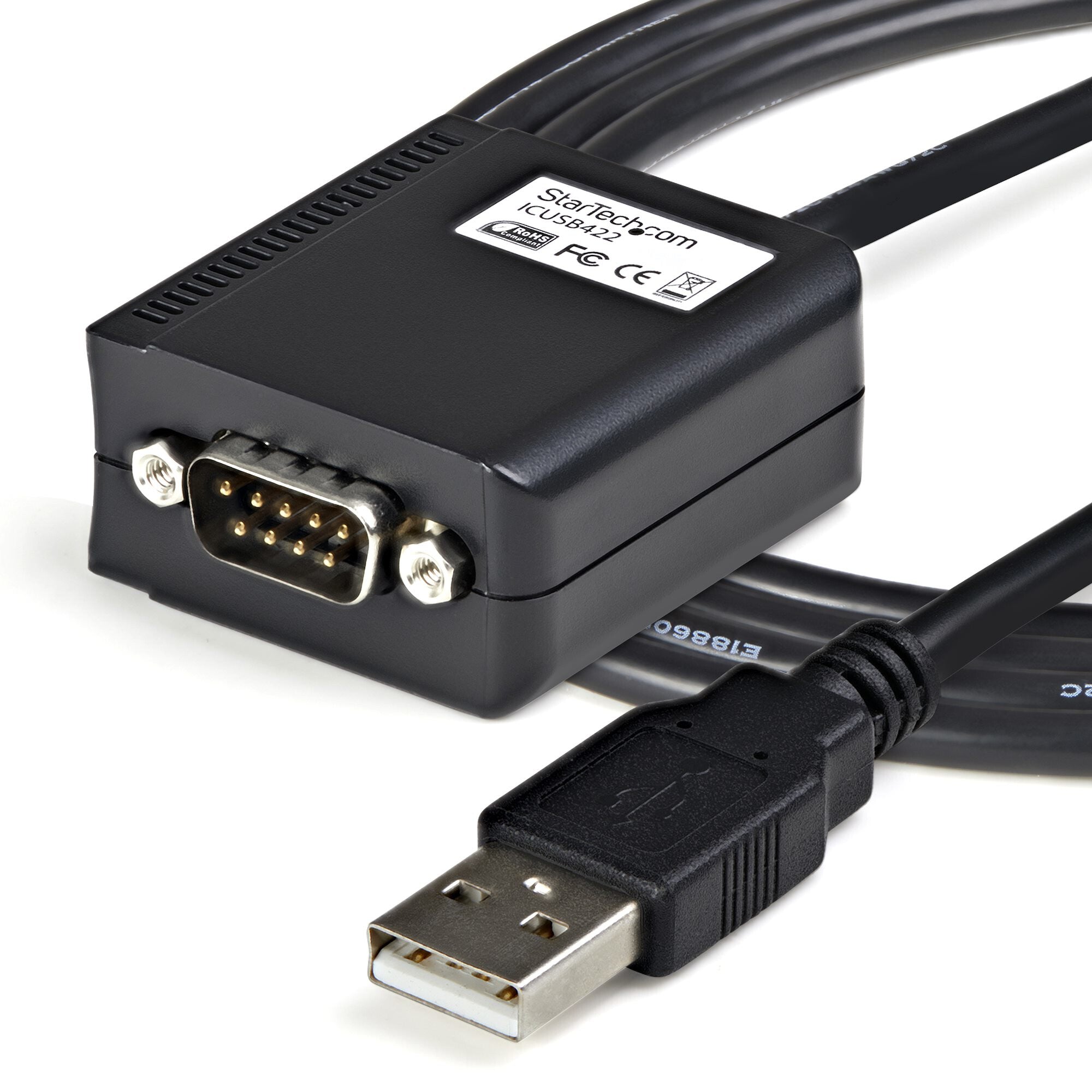

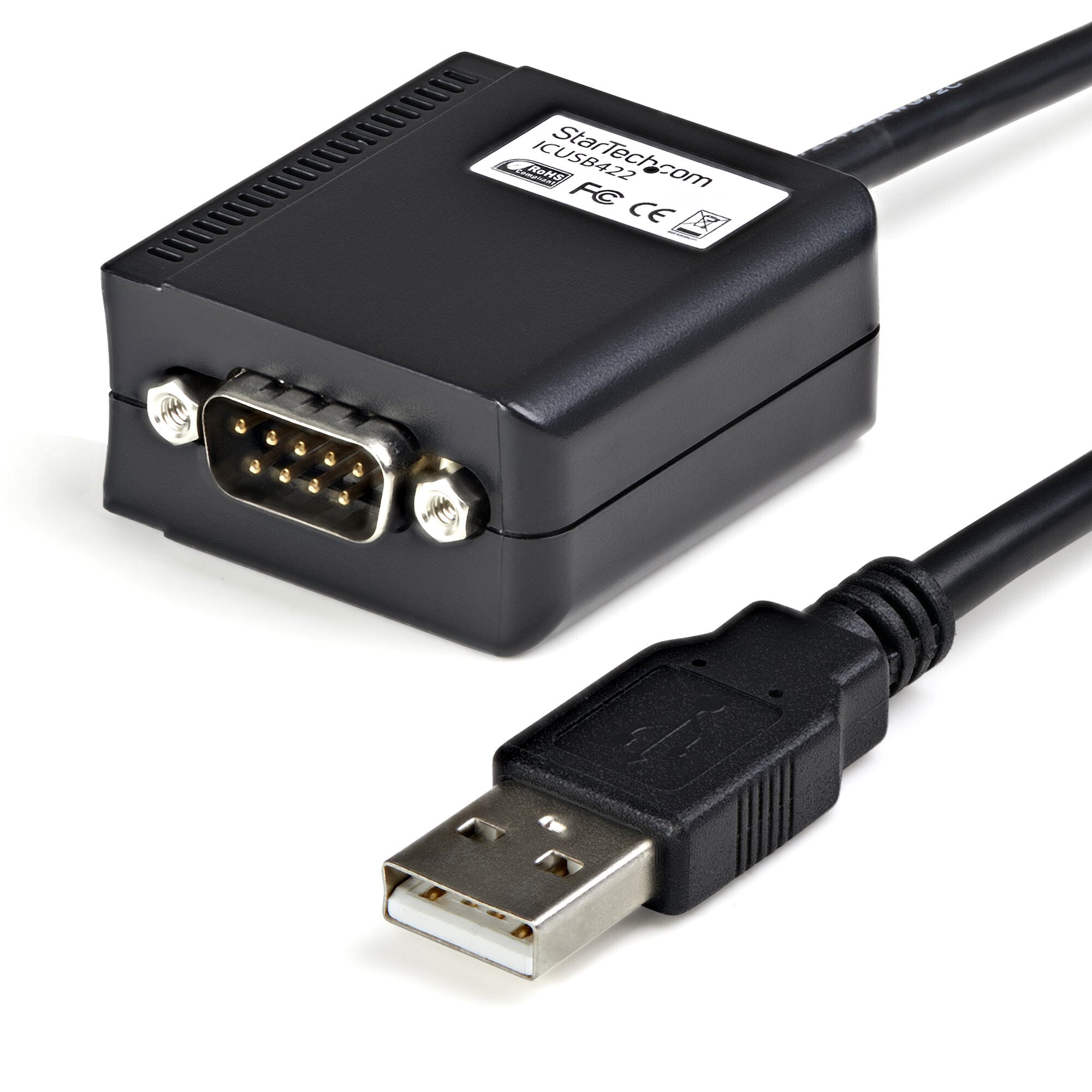

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.

The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.

Ports & interfaces
Connector 1 DB9 M
Connector 2 USB-A FM
Connector 2 gender Female
Connector 1 gender Male
Connector 2 form factor Straight
Connector 1 form factor Straight
Cable length 1.8 m
Performance
Product colour Black
Compatible operating systems Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux Kernel 3.0.x+
Weight & dimensions
Weight 100 g
Packaging data
Package width 145 mm
Package depth 209 mm
Package height 42 mm
Package weight 220 g
Logistics data
Products per master (outer) case 50 pc(s)
Master (outer) case width 448 mm
Master (outer) case length 532 mm
Master (outer) case height 332 mm
Other features
Minimum system requirements Win 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008(32/64bit)/ CE(4.2/5.2/6.0)
Mac 9.8/OS X
Linux 2.4.x +
Dimensions (WxDxH) 41.5 x 1778 x 22.1 mm
