Overview
- Receiver for ST12MHDLAN4K: Extend your HDMI over IP Extender Kit (ST12MHDLAN4K) with this 4K receiver; Ideal for IT teams and system integrators building scalable, cost-effective and future-ready A/V systems without splitters or fixed extenders
- Video Control App and RS232: Control video routing in a centralized way with the free iOS/Android app; Name sources/displays, set up video walls, and use RS232 passthrough to manage TVs or serial devices remotely
- Scalable HDMI over IP: Easily expand your A/V network with one-to-many or many-to-many video wall setups by simply adding transmitters and receivers; Requires adequate network bandwidth and multicast / jumbo frames support
- Flexible Deployment: Suitable for digital signage in retail, hospitality, corporate or any other environment, as well as mission-critical video wall setups in command and control rooms; Mounting brackets included
- The IT Pro's Choice: Backed by decades of connectivity expertise from legacy VGA to modern USB4 and AVoIP solutions; TAA compliant for government and enterprise procurement; Work with a single trusted partner for all your A/V connectivity needs
Use this 4K receiver with your HDMI extender over IP kit (ST12MHDLAN4K) to build scalable/cost-effective AVoIP solutions
This HDMI® over IP Receiver works with the HDMI over IP Extender Kit [%product id="ST12MHDLAN4K (sold separately). Designed for IT professionals, system integrators, and digital signage specialists, this solution delivers unmatched flexibility for scaling video distribution without the limitations of traditional HDMI splitters or fixed extenders.
Scalable HDMI Over IP
Easily expand your A/V distribution setup and build dynamic video walls using the ST12MHDLAN4K extender kit and additional receivers:

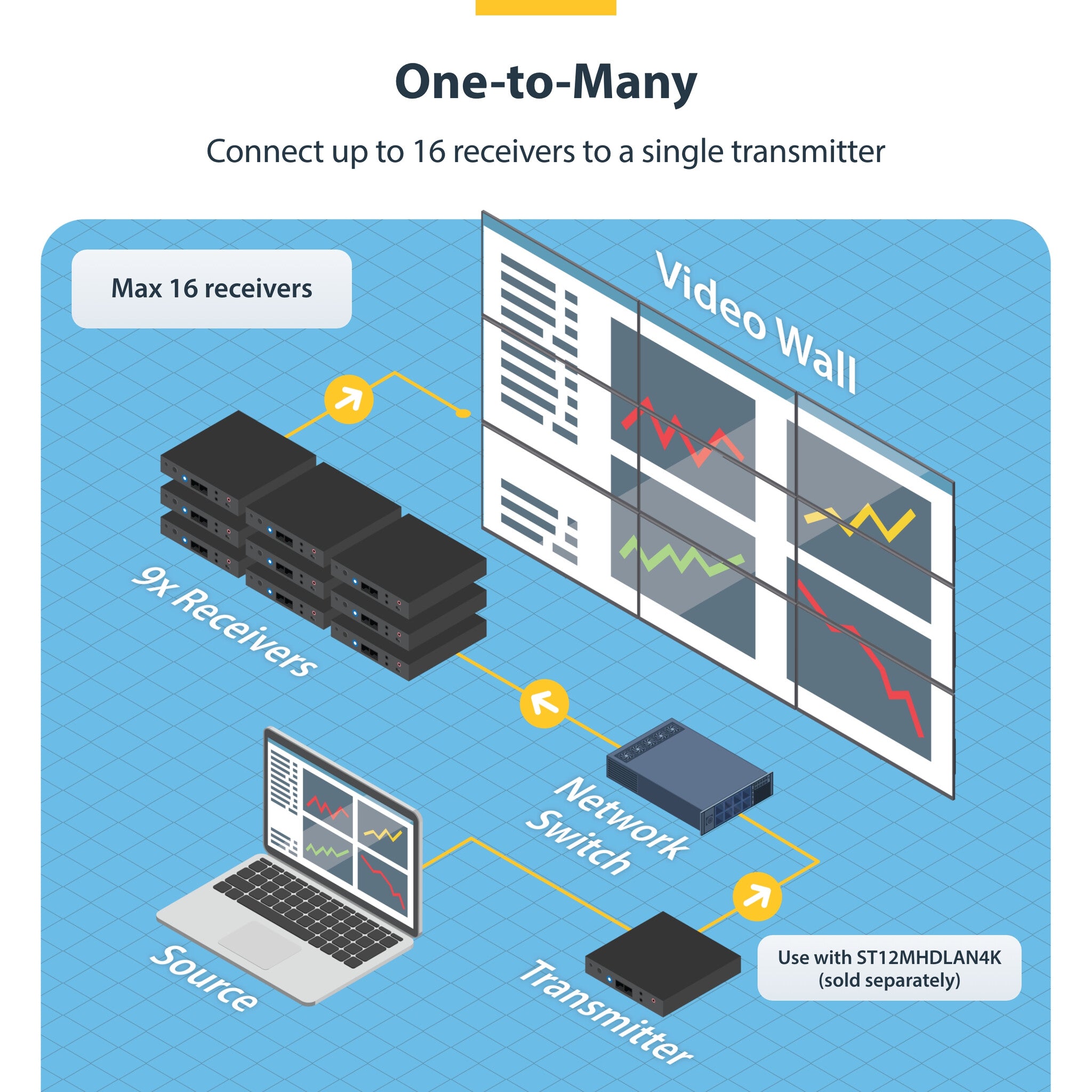

• One-to-Many : Connect up to 16 receivers to a single transmitter, ideal for broadcasting HDMI over IP to multiple displays

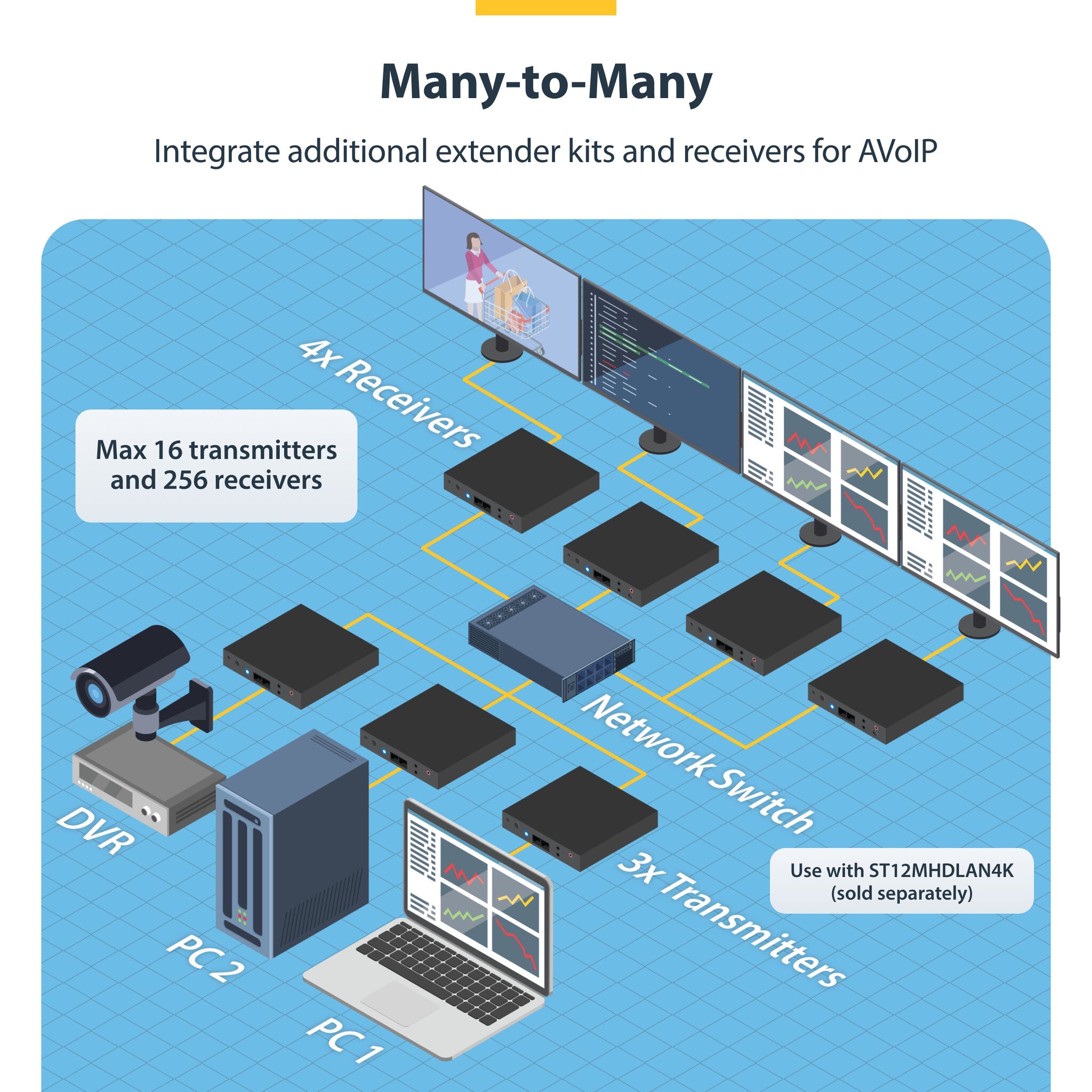

• Many-to-Many : Integrate up to 16 [%product id="ST12MHDLAN4K extender kits and additional ST12MHDLAN4R receivers with a maximum of 16 transmitters and 256 receivers.

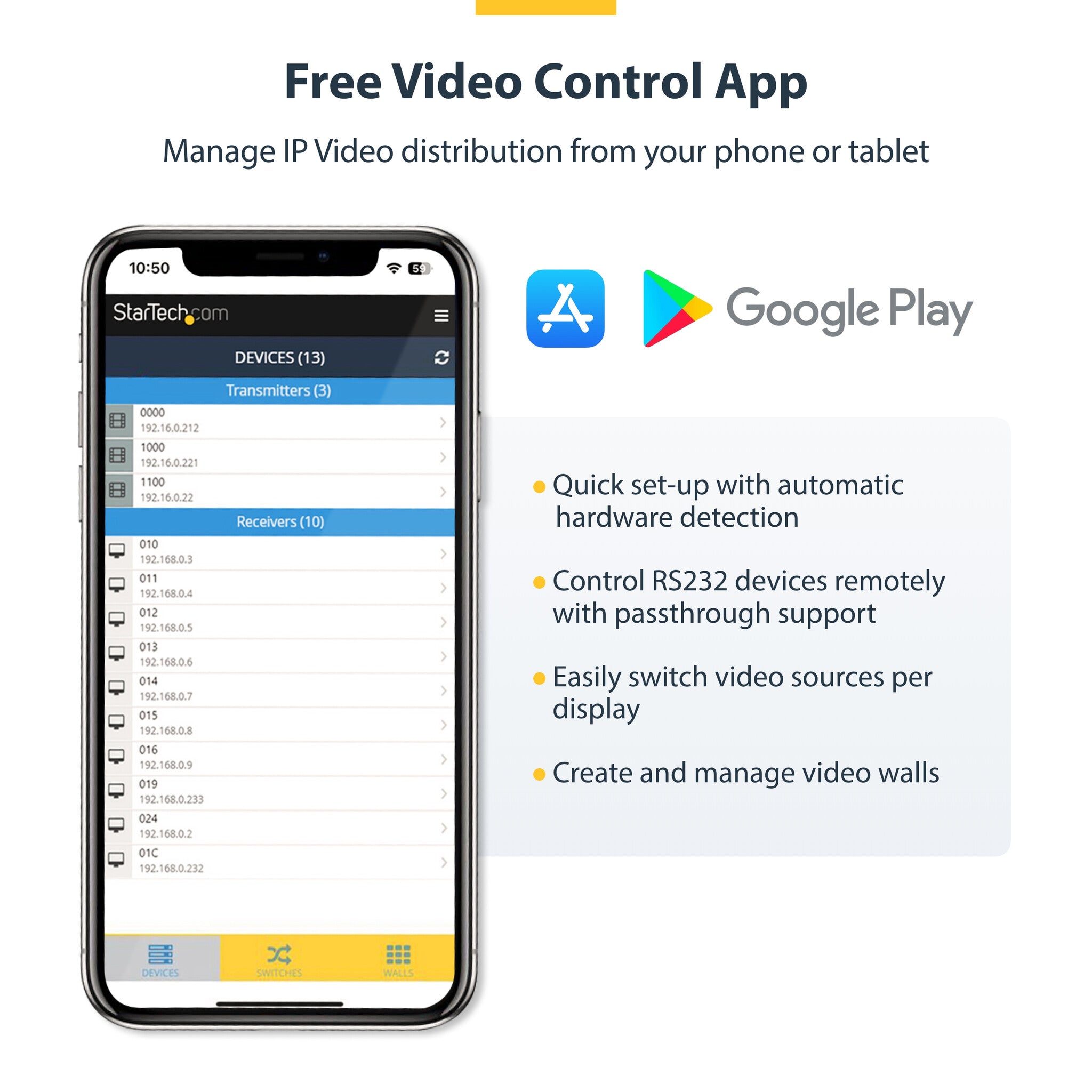

Centralized Video Control App
The included iOS/Android Video Control App empowers administrators to name sources and displays, switch inputs, and configure video walls, all from a mobile device. With RS232 passthrough, TVs or serial-controlled devices can be managed remotely through the same network.
Flexible Installations for Any Environment
Perfect for digital signage in retail, hospitality, and corporate settings, as well as command centers or other mission-critical environments. The kit includes mounting hardware for clean shelf or rack installations and supports both static and dynamic signage needs.
Note: For optimal performance, a managed network switch with IGMP is recommended when using more than one transmitter or more than four receivers. Non-managed switches may impact the performance of other devices on your network. Jumbo frames support must be enabled to stream 4K video effectively.
Specifications
Features
| Type | AV receiver |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 30 Hz |
| Audio system | stereo |
| Material | Aluminium |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Daisy chain | Yes |
| Supported video modes | 720p, 1080p, 2160p |
| Product colour | Black |

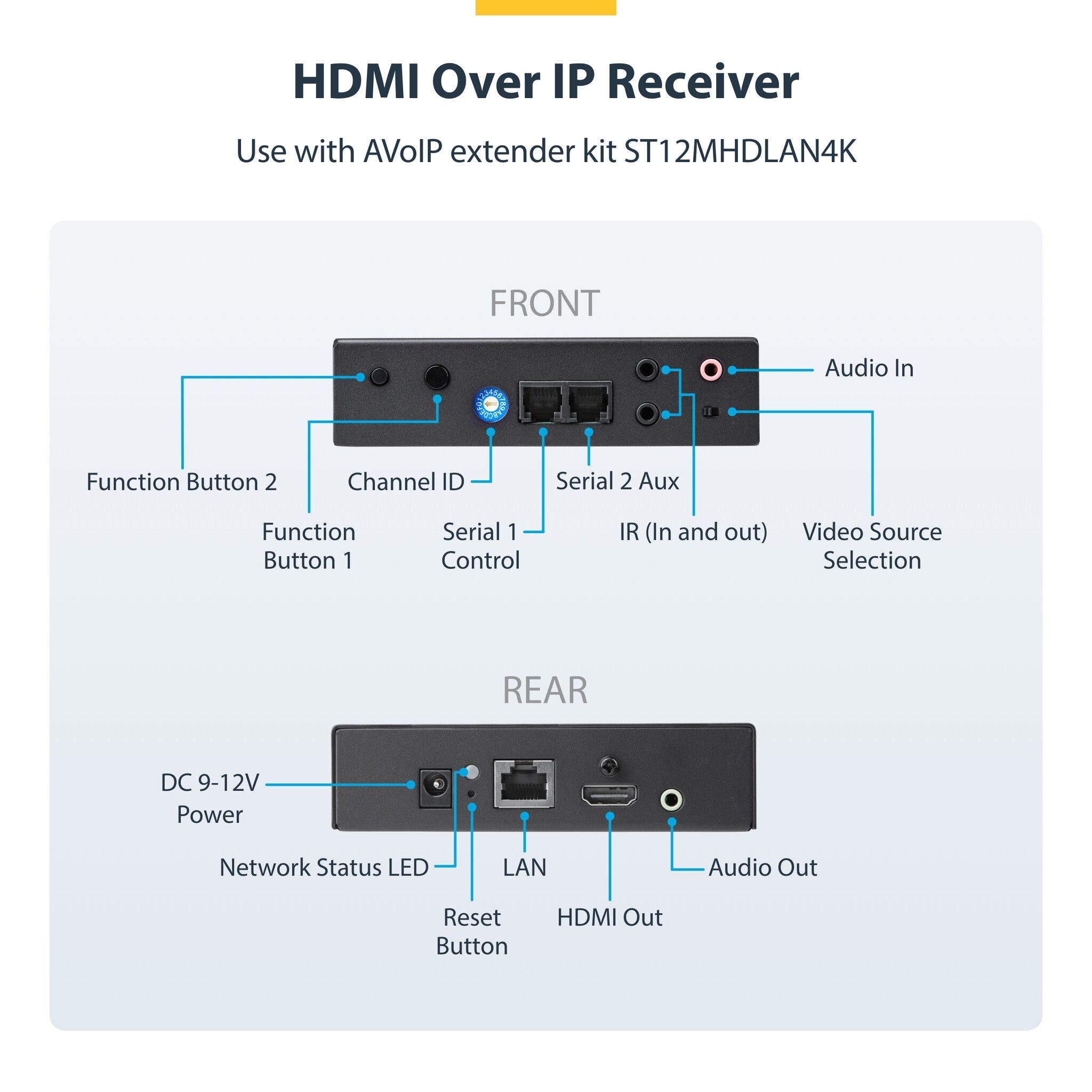

Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| RJ-45 output ports | 1 |
| Number of HDMI outputs | 1 |
| RJ-11 ports quantity | 2 |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| Audio output | 3.5mm |
| Audio input | 3.5mm |
| DC-in jack | Yes |
Show all 39 specificationsShow fewer specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80% |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Width | 117 mm |
|---|---|
| Depth | 131 mm |
| Height | 30 mm |
| Weight | 594 g |

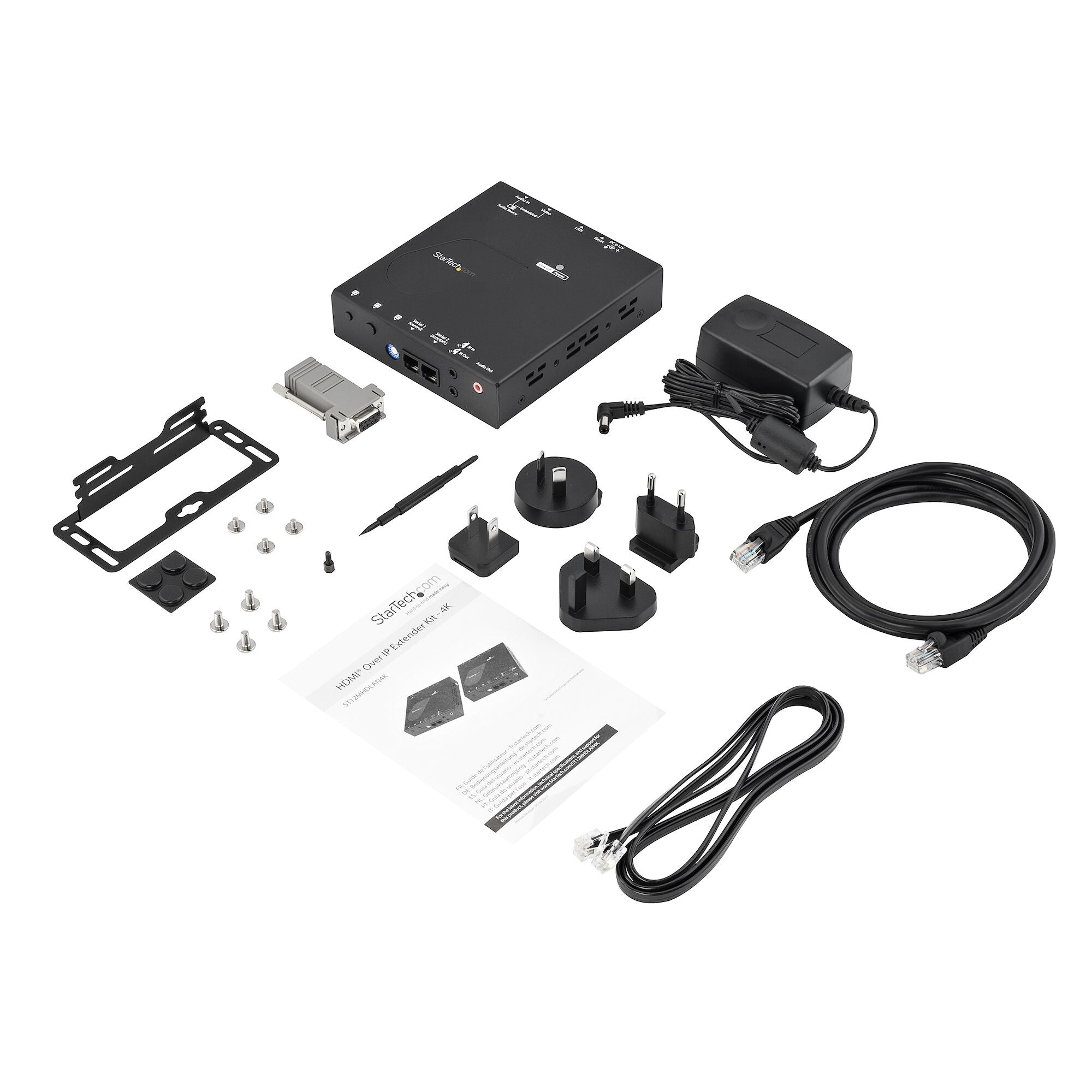

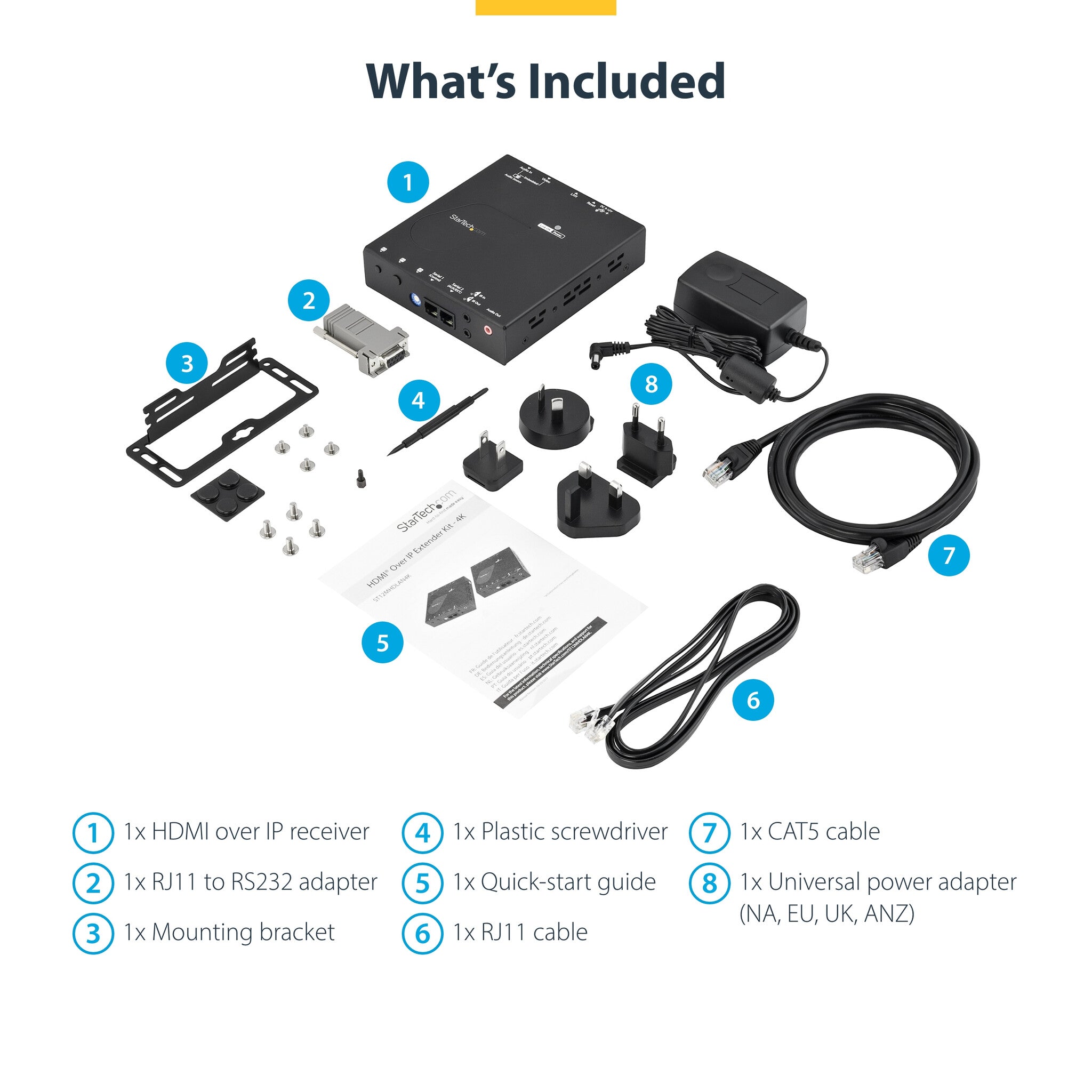

Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
Technical details
| Compliance certificates | CE, RoHS |
|---|---|
| Sustainability compliance | Yes |
