StarTech.com 4-Port HDMI Splitter - 4K 60Hz
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £25.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
- EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
- AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
- LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays
- EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

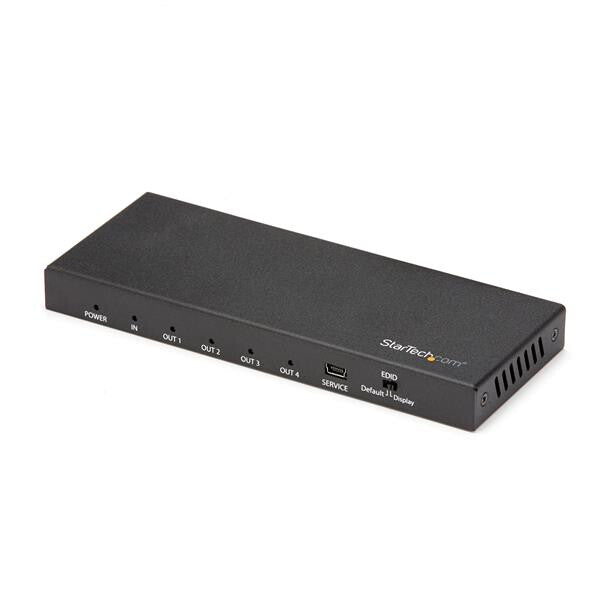

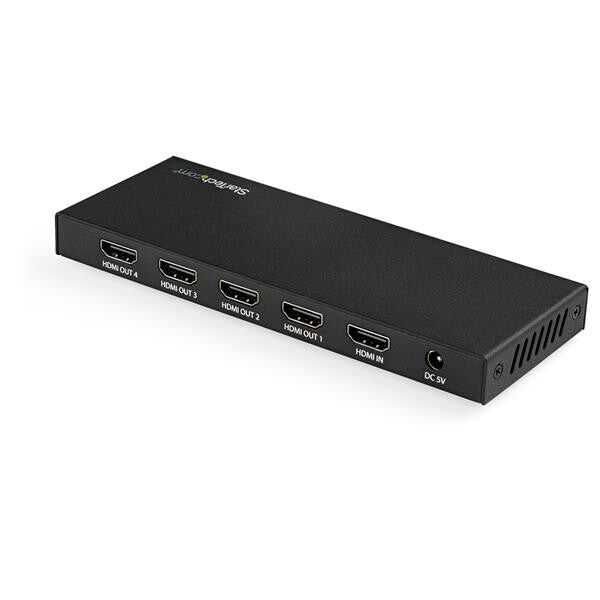

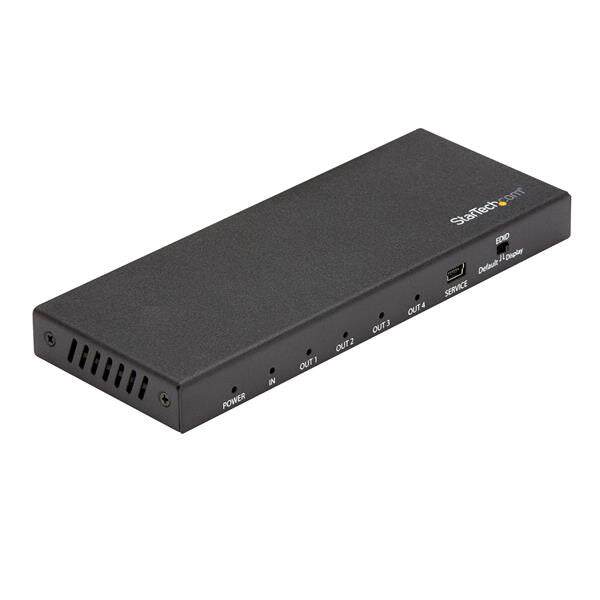

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

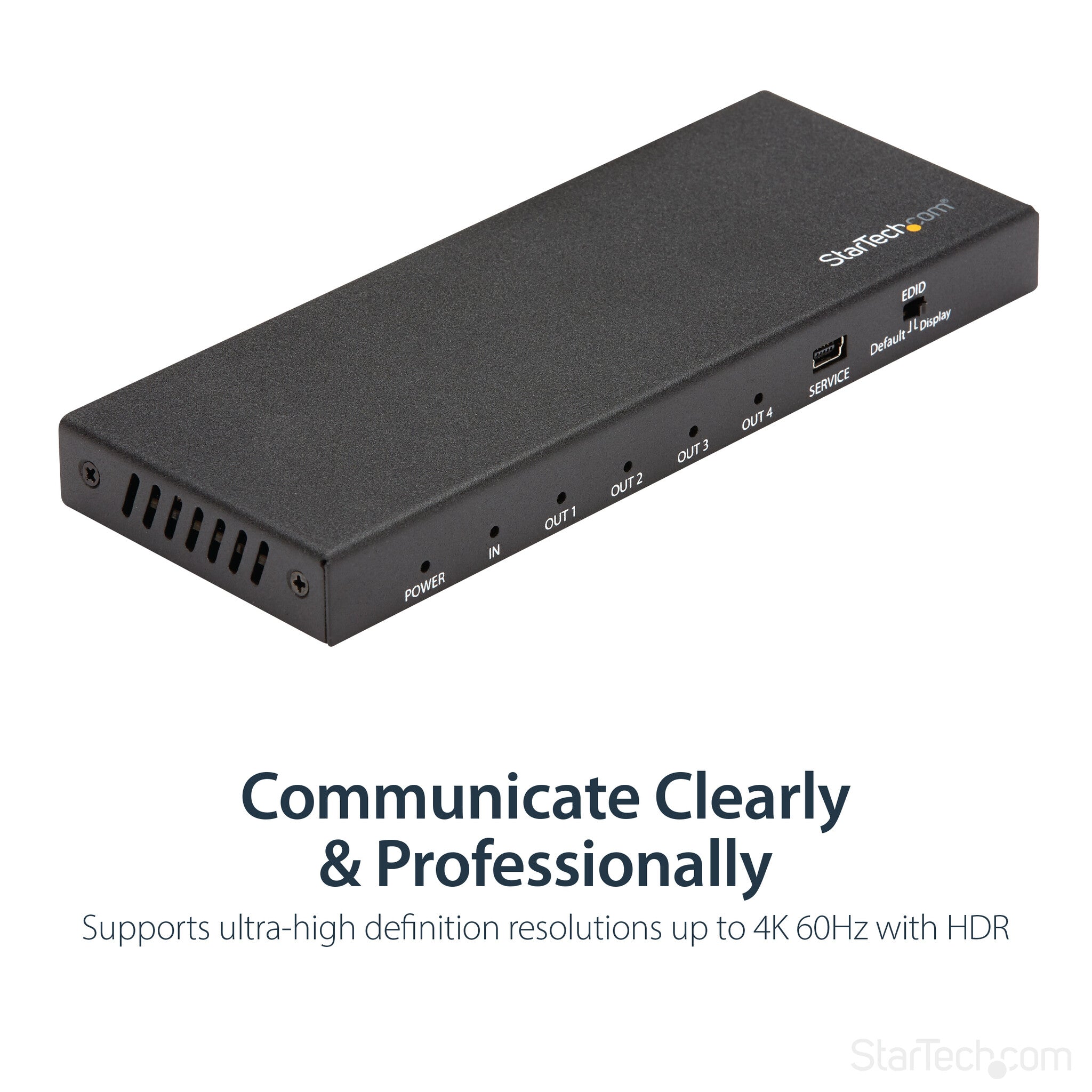

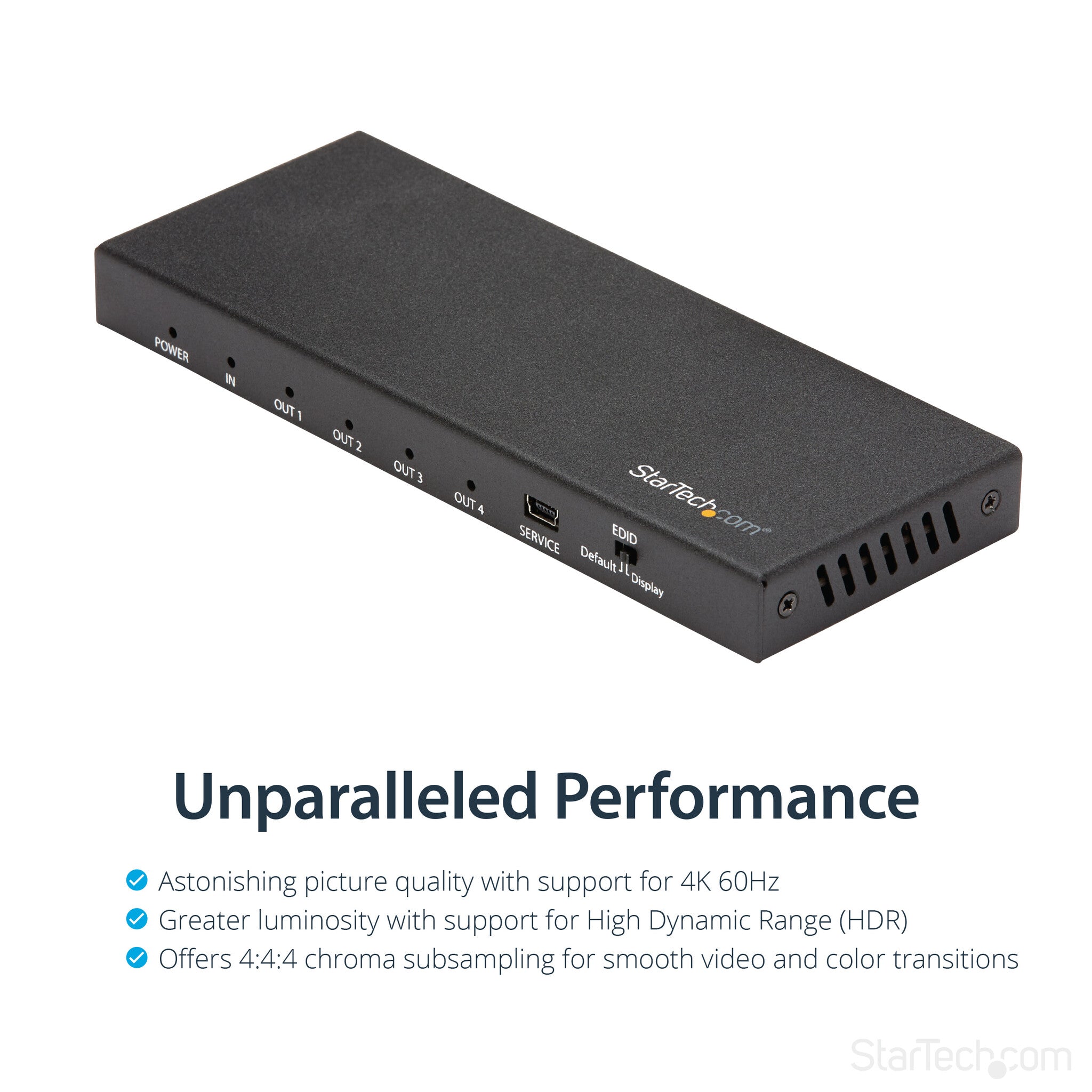

True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible

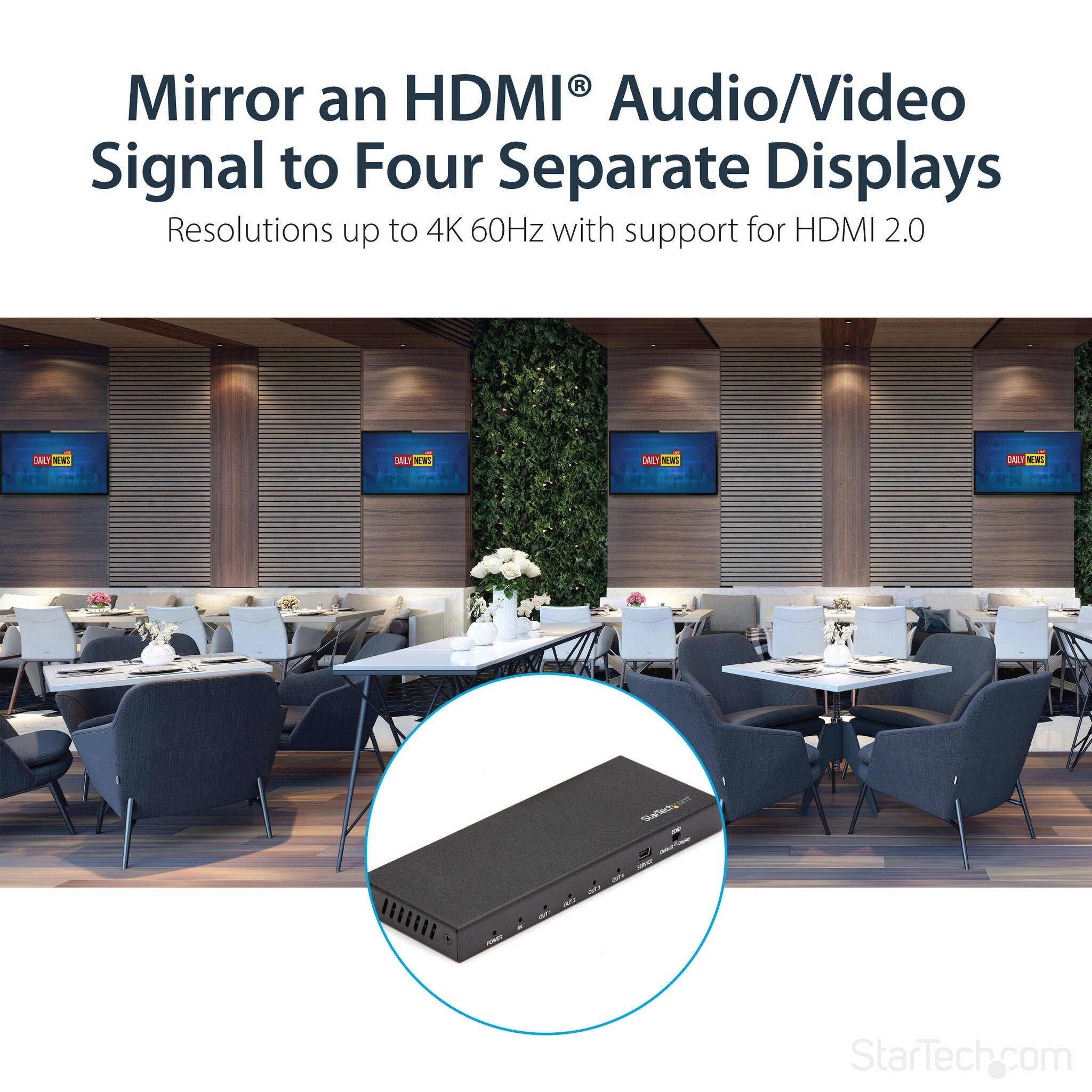

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

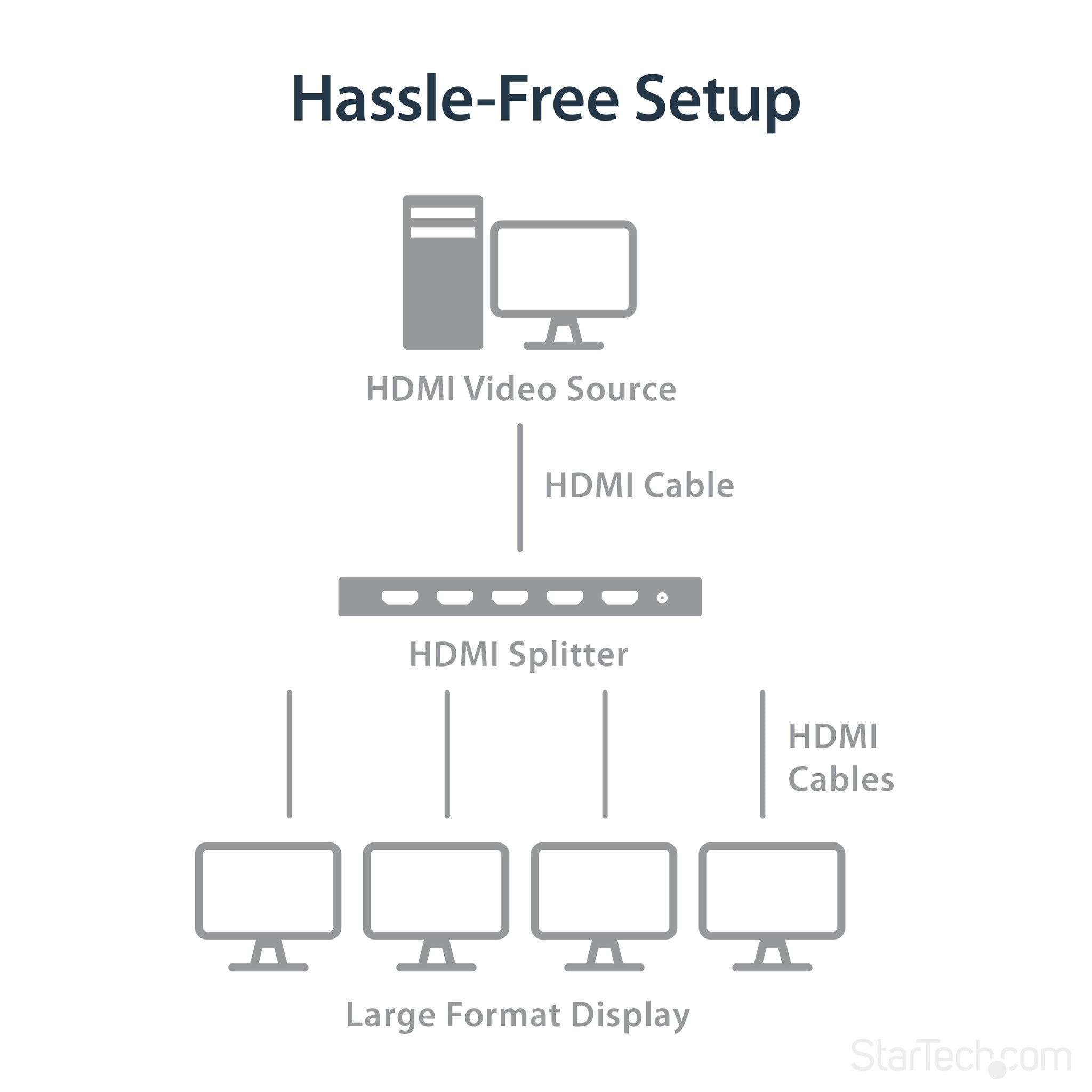

Easy Installation
For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specifications
Ports & interfaces
| Video ports quantity | 4 |
|---|---|
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
Features
| Product colour | Black |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| LED indicators | Yes |
| Supported video modes | 720p, 1080p |
| Plug and Play | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Power LED | Yes |
| Certification | CE, FCC, REACH |
Show all 33 specificationsShow fewer specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 0.2 A |
| Power consumption (typical) | 5 W |

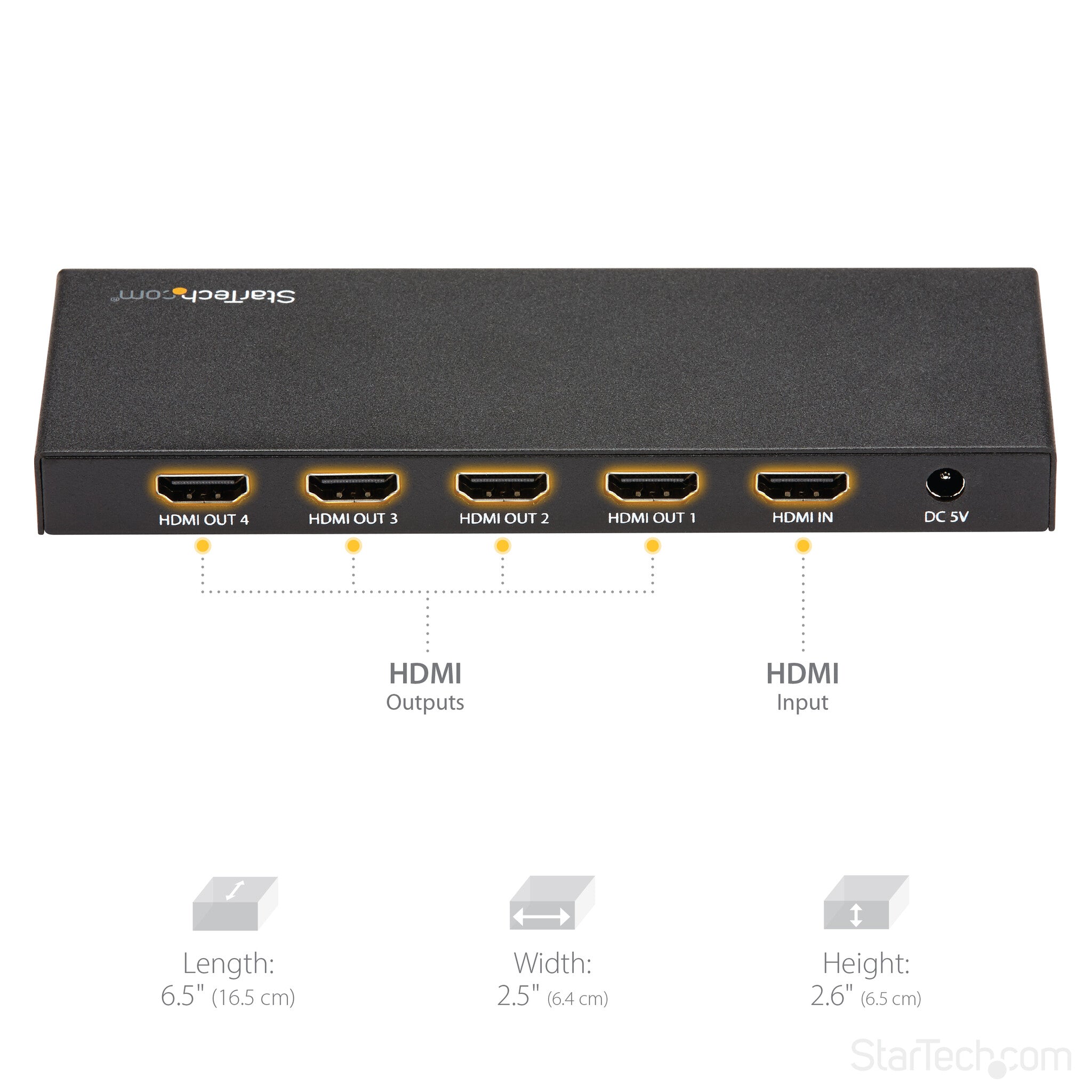

Weight & dimensions
| Width | 64 mm |
|---|---|
| Depth | 165 mm |
| Height | 65 mm |
| Weight | 506 g |

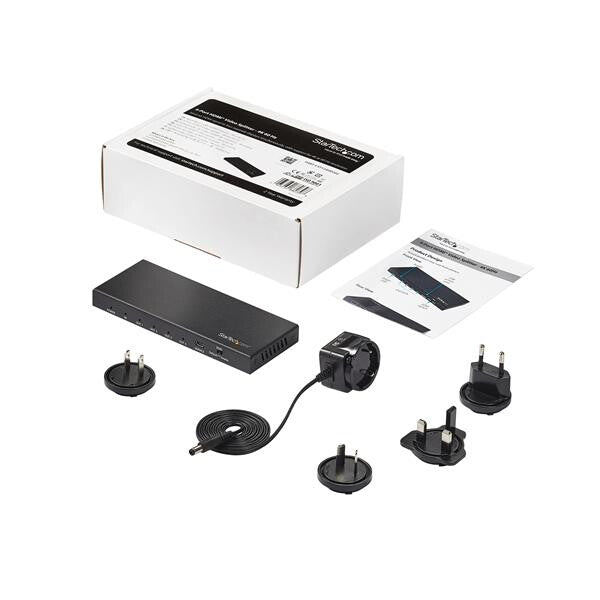

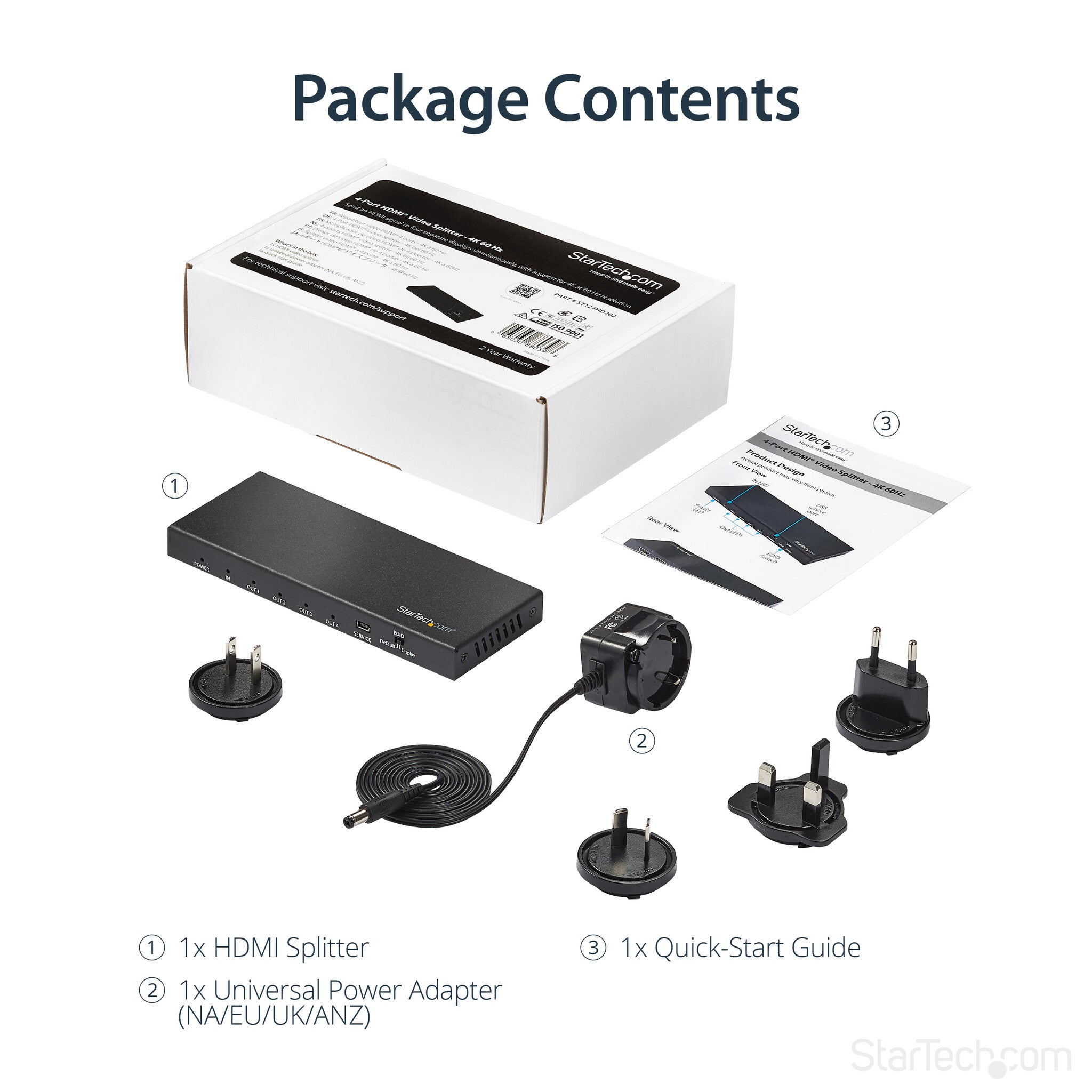

Packaging content
| User guide | Yes |
|---|---|
| Included power plug types | AU, EU, NA, UK |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Maximum cable length | 5 m |
|---|---|
| Supported audio channels | 7.1 |
| Compliance certificates | RoHS |
