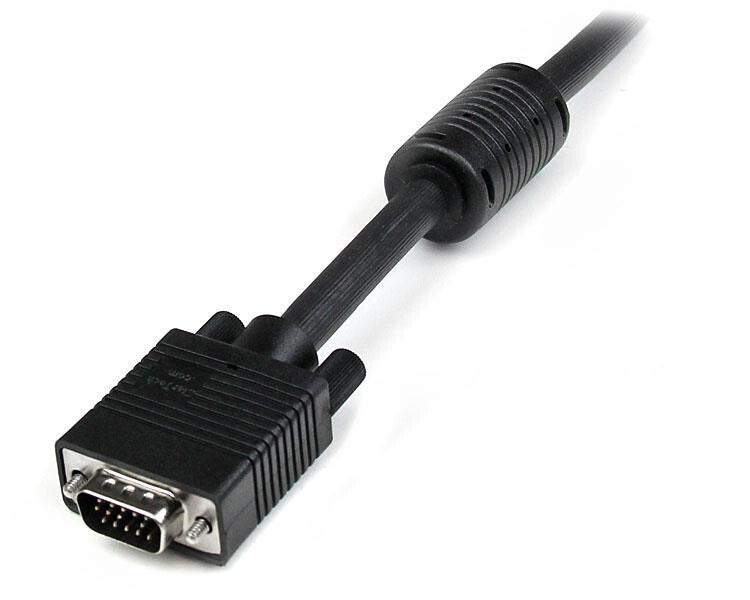

StarTech.com 2m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
iFrame
£12.99
Couldn't load pickup availability
- Triple coaxial + twisted-pair wire for crystal clear display
- Durably constructed cable, with high quality HD15 connectors
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
- High quality VGA connectors with molded PVC strain relief
Connect your VGA monitor with the highest quality connection available
The MXTMMHQ2M High Resolution VGA Cable (2-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
| Features | |
|---|---|
| Cable length | 2 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable rating | CMG (CM) |
| Number of conductors | 14 |
| Impedance | 75 Ω |
| Plug and Play | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, REACH |
| Weight & dimensions | |
|---|---|
| Weight | 275 g |
| Packaging data | |
|---|---|
| Package width | 199 mm |
| Package depth | 155 mm |
| Package height | 47 mm |
| Package weight | 300 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 372 mm |
| Master (outer) case length | 422 mm |
| Master (outer) case height | 272 mm |
| Products per master (outer) case | 50 pc(s) |
