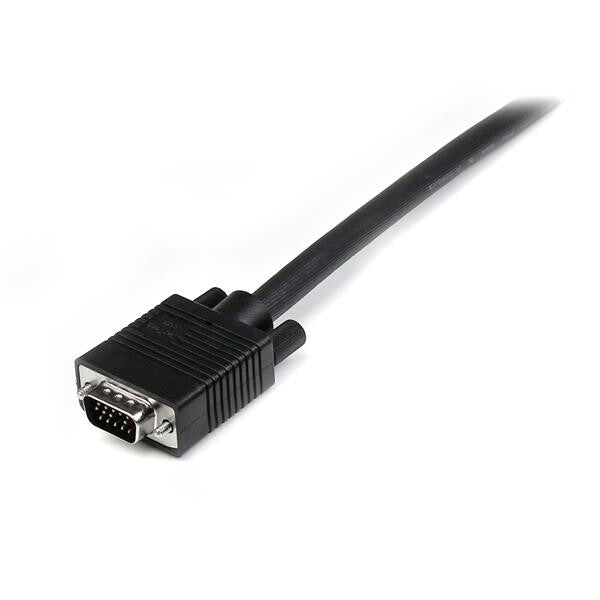

StarTech.com 25 ft Coax High Resolution Monitor VGA Cable - HD15 M/M
£25.99
Couldn't load pickup availability
- Triple-coaxial + twisted-pair wire for crystal clear display

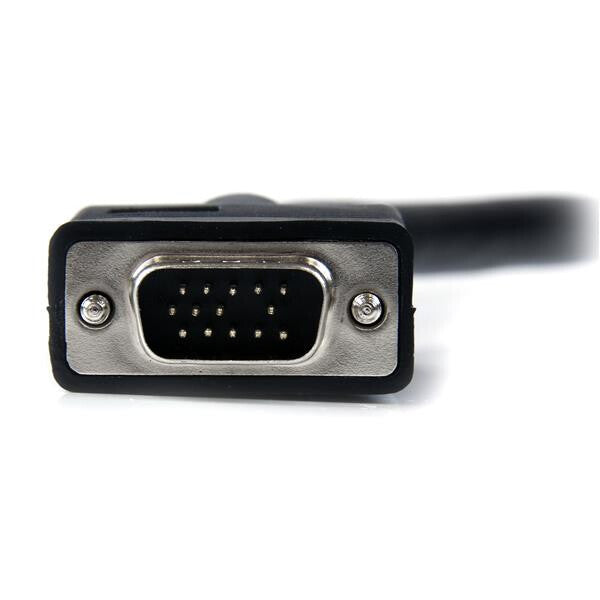

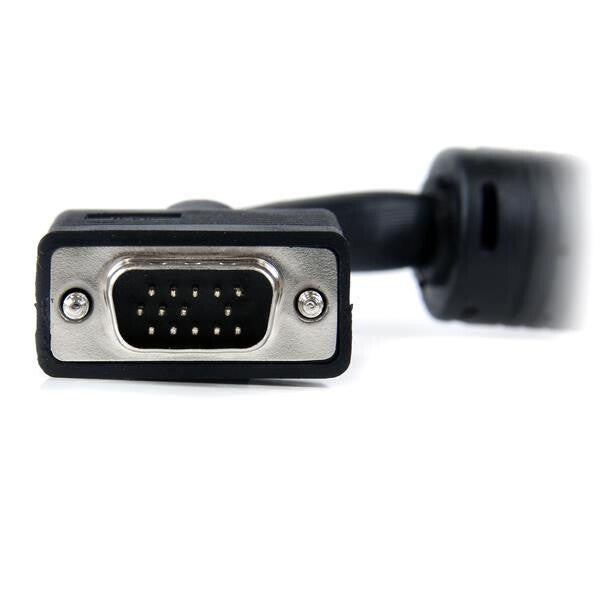

- Durably constructed cable, with high quality HD15 connectors
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor

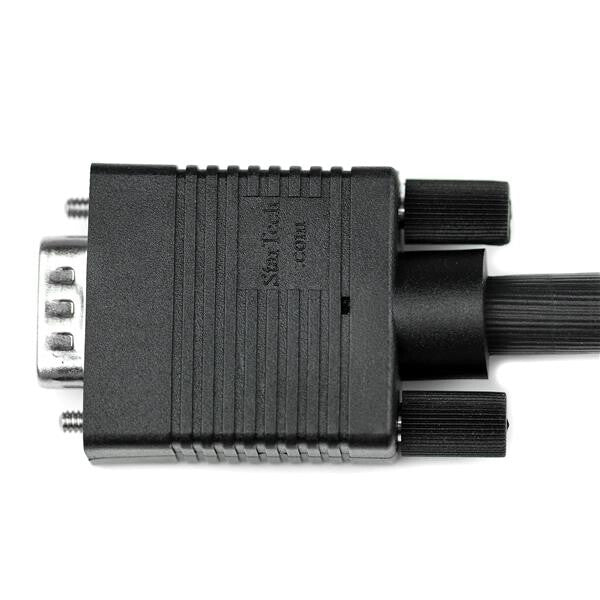

- High quality VGA connectors with molded PVC strain relief
Connect your VGA monitor with the highest quality connection available
The MXT101MMHQ25 High Resolution VGA Cable (25ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.

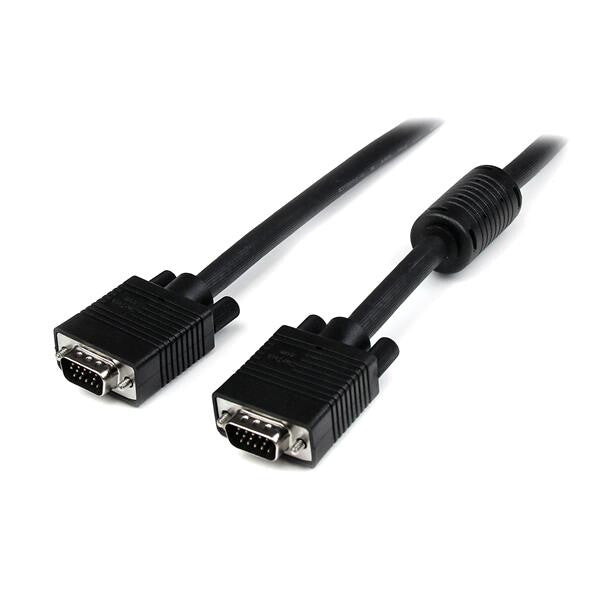

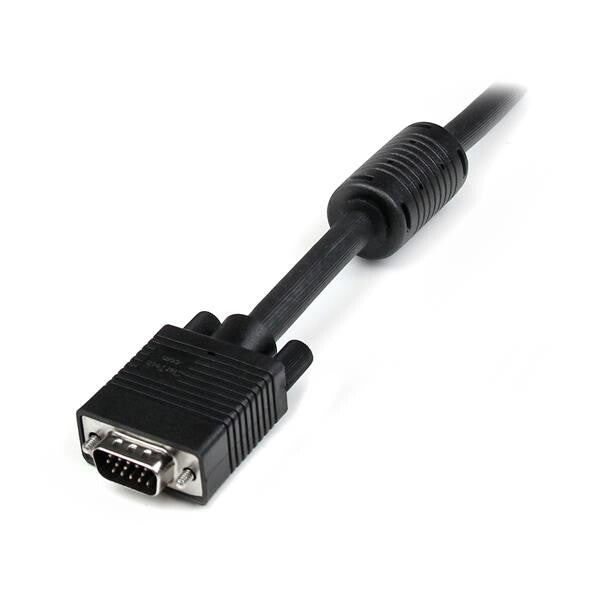

This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
| Features | |
|---|---|
| Cable length | 7.6 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable rating | CMG (CM) |
| Ferrite bead | Yes |
| Number of conductors | 14 |
| Impedance | 75 Ω |
| Plug and Play | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL2919 |
| Weight & dimensions | |
|---|---|
| Cable diameter | 9 mm |
| Weight | 818 g |
| Packaging data | |
|---|---|
| Package width | 188 mm |
| Package depth | 189 mm |
| Package height | 71 mm |
| Package weight | 820 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 421 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 282 mm |
| Products per master (outer) case | 20 pc(s) |
