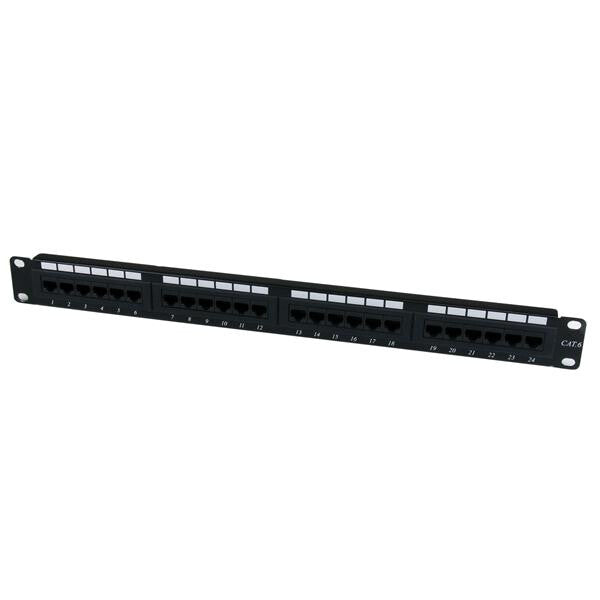

StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £23.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview

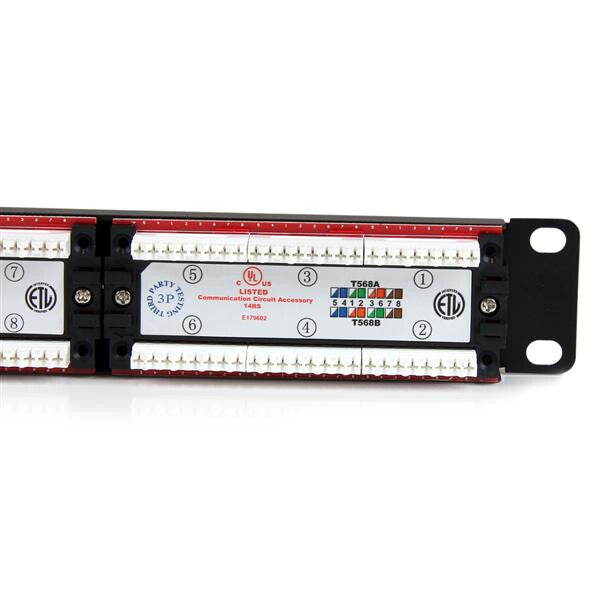

- Color coded for both T568A and T568B installations

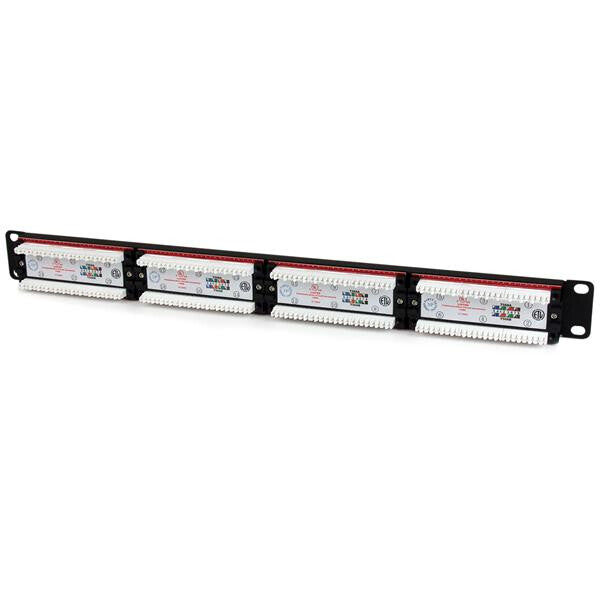

- Terminated using 110-type punch tool
- Supports both Cat5e and Cat6 cables
- Writable and erasable marking surfaces for each port
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
Organize up to 24 Cat6 patch cables
The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

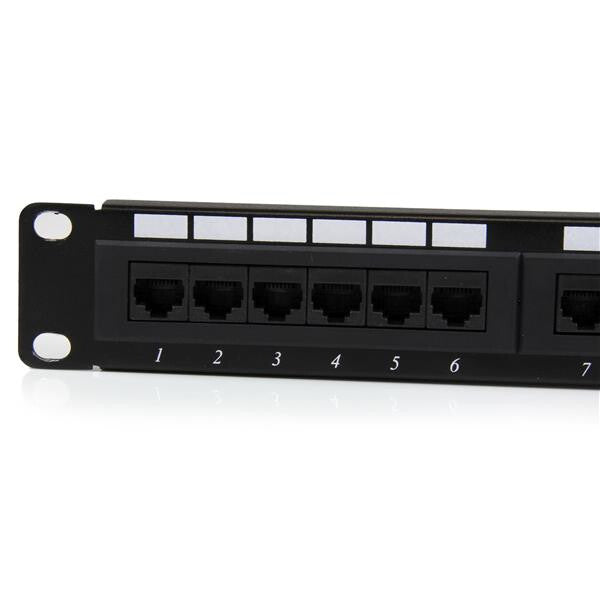

For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
Specifications
Network
| Ports quantity | 24 |
|---|---|
| Connector(s) | RJ-45 |
Design
| Product colour | Black |
|---|---|
| Mounting | Rack mounting |
| Rack capacity | 1U |
Show all 13 specificationsShow fewer specifications
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, ETl, UL |
Operational conditions
| Operating temperature (T-T) | -10 - 60 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 65% |
Weight & dimensions
| Width | 483 mm |
|---|---|
| Height | 34 mm |
| Depth | 44 mm |
| Weight | 581 g |
