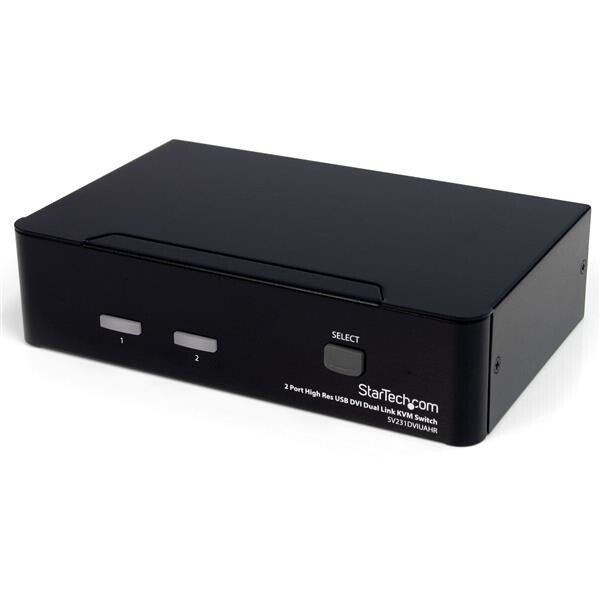

StarTech.com 2 Port High Resolution USB DVI Dual Link KVM Switch with Audio
Couldn't load pickup availability
- Black
- Number of computers controlled: 2
- Keyboard port type: USB Mouse port type: USB Video port type: DVI-I
- 2560 x 1600 pixels
- Housing material: Steel
- Hot keys
- 18 W
The SV231DVIUAHR 2-Port High Resolution Dual-Link DVI USB KVM Switch provides simple, yet comprehensive control of 2 directly-connected computers, as well as audio switching capability and support for high resolution applications (supports resolutions beyond 1080p: 2560x1600 @ 60Hz, up to 3840 x 2400 at lower refresh rates), offering a superior KVM switching solution that integrates perfectly into demanding imaging, medical, and multimedia environments.
This 2-port DVI USB KVM Switch is compatible with all USB-supported operating systems, and features a built-in USB 2.0 hub that allows you to share additional (up to 2) high speed USB devices between computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Dual Link DVI interface supports high resolutions of up to 2560x1600 allowing you to take full advantage of your graphics card capabilities
- USB 2.0 hub provides the convenience of sharing USB peripherals (external hard drive, webcam, etc.) between computers and saves the cost of purchasing duplicate peripherals
- Rugged solid steel features durable design for long-lasting performance, even in harsh environments
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Number of microphone inputs | 3 |
| Headphone outputs | 3 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |

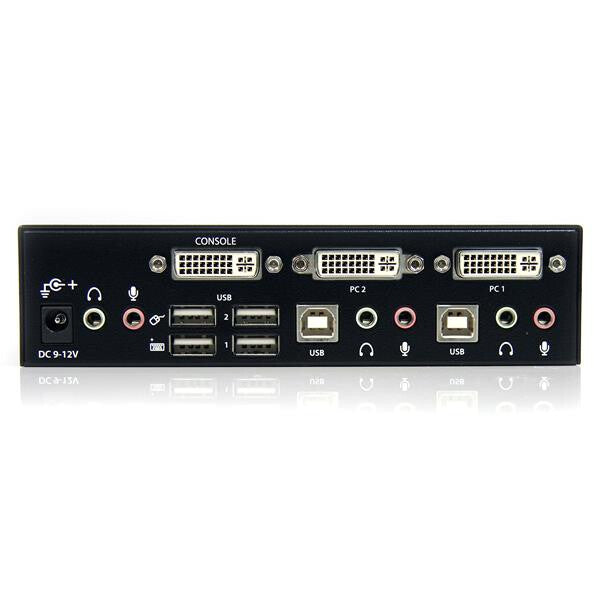

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 1 |
| Video port type | DVI-I |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 2 |
| Performance | |
|---|---|
| Daisy chain | No |
| Maximum resolution | 2560 x 1600 pixels |
| Design | |
|---|---|
| Certification | CE, FCC |
| Hot keys | Yes |
| Housing material | Steel |
| Product colour | Black |
| Rack mounting | No |
| Display | |
|---|---|
| On Screen Display (OSD) | No |
| Power | |
|---|---|
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Input current | 0.8 A |
| Input voltage | 110-240 V |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 640 g |
| Height | 40 mm |
| Depth | 159 mm |
| Width | 100 mm |
| Packaging data | |
|---|---|
| Package weight | 1.11 kg |
| Package height | 101 mm |
| Package depth | 250 mm |
| Package width | 186 mm |

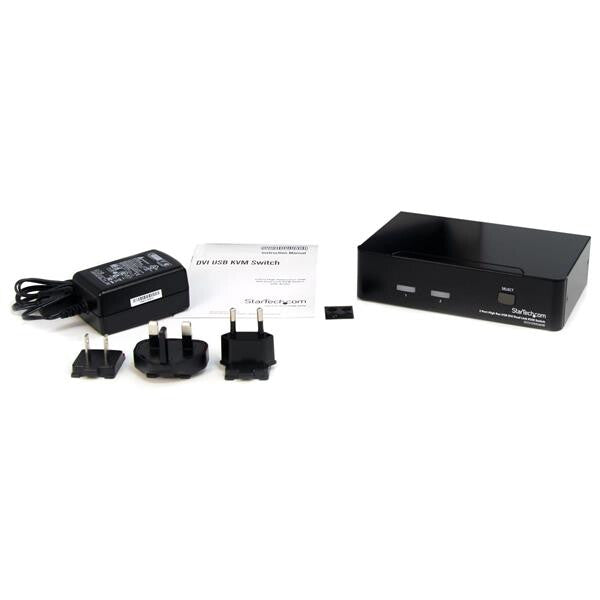

| Packaging content | |
|---|---|
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
|---|---|
| Audio support | Yes |
| IP control | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176200 |
