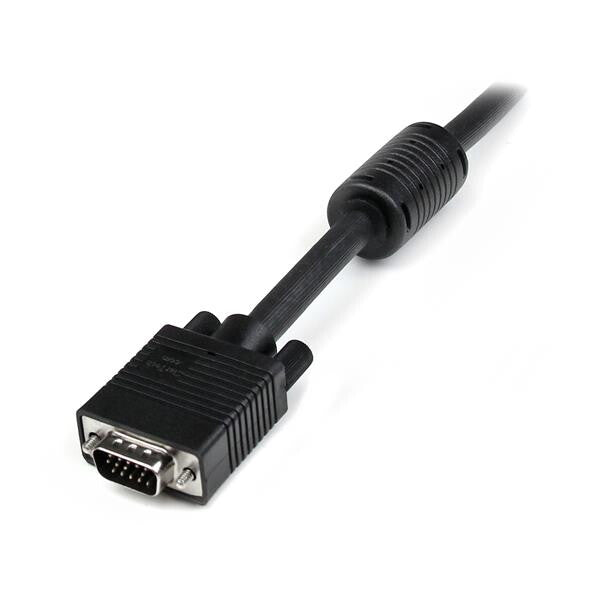

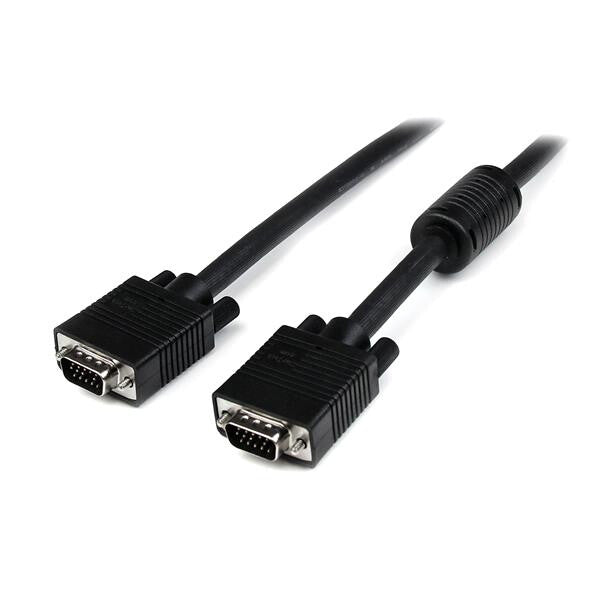

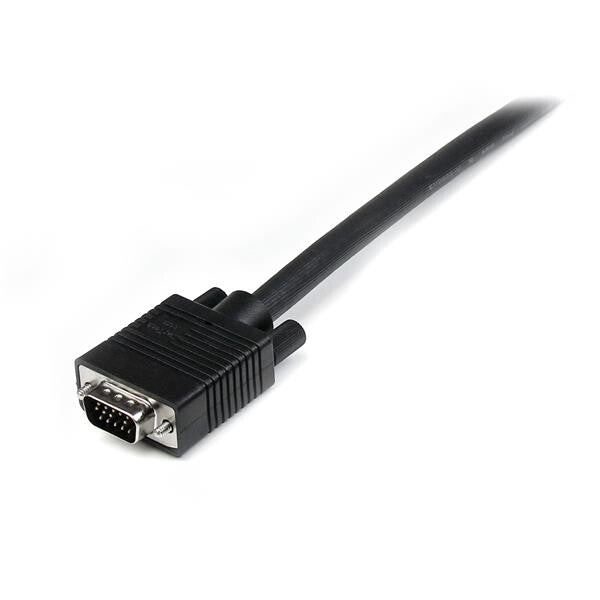

StarTech.com 15 ft Coax High Resolution Monitor VGA Cable - HD15 M/M
£24.99
Couldn't load pickup availability
- Triple-coaxial + twisted-pair wire for crystal clear display
- Durably constructed cable, with high quality HD15 connectors
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
- High quality VGA connectors with molded PVC strain relief
Connect your VGA monitor with the highest quality connection available
The MXT105MMHQ High Resolution VGA Cable (15ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
| Features | |
|---|---|
| Cable length | 4.6 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Product colour | Black |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector gender | Male/Male |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Certificates | |
|---|---|
| Certification | UL2919 |
| Weight & dimensions | |
|---|---|
| Weight | 547 g |
| Packaging data | |
|---|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 56 mm |
| Package weight | 600 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 379 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 281 mm |
| Products per master (outer) case | 30 pc(s) |
