StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £38.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Wired
- 200 Mbit/s 20000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Single-mode Fiber ports quantity: 1 SC
- Black
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable

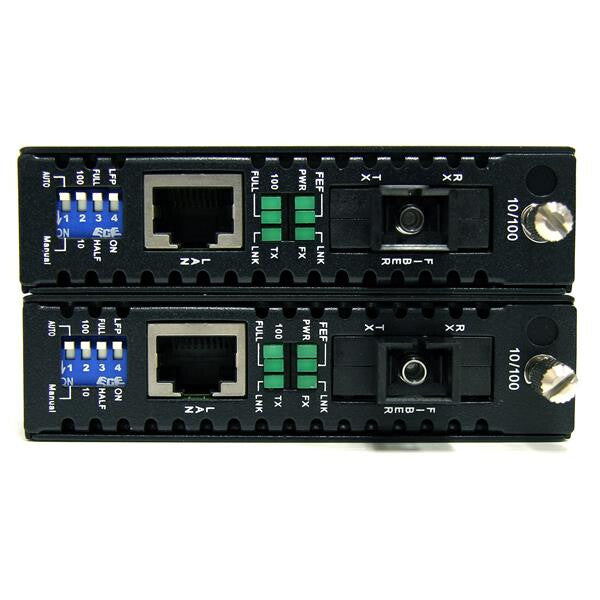

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

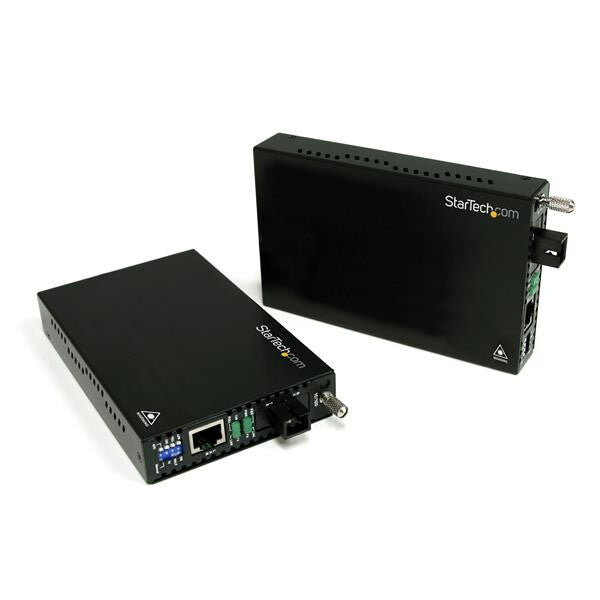

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

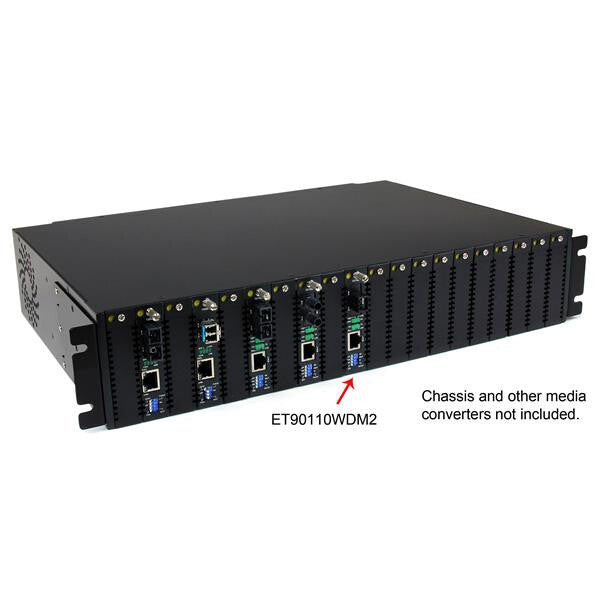

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
Network
| Duplex system | Full, Half |
|---|---|
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Converter output interface | 100Base-FX |
| Converter input interface | 100Base-TX, 10Base-T |
| Maximum data transfer rate | 200 Mbit/s |
Performance
| Fiber mode structure | Single-mode |
|---|---|
| Wavelength | 1310 nm |
| Maximum transfer distance | 20000 m |
Show all 31 specificationsShow fewer specifications
Features
| Product colour | Black |
|---|---|
| Plug and Play | Yes |
| Internal | No |
Ports & interfaces
| DC-in jack | Yes |
|---|---|
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
Power
| External power adapter | Yes |
|---|---|
| Output current | 1 A |
| Output voltage | 12 V |
Weight & dimensions
| Weight | 1.2 kg |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
Packaging content
| Manual | Yes |
|---|
Certificates
| Certification | CE, FCC |
|---|---|
| Compliance certificates | RoHS |
Other features
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
|---|---|
| Full duplex | Yes |
