£994.99

Stock Available: 0
  • Wired
  • 20000 Mbit/s
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • 10GBASE-ER, 10GBASE-EW, 10GBASE-LR, 10GBASE-LW, 10GBASE-R, 10GBASE-SR, 10GBASE-SW
  • Ethernet LAN (RJ-45) ports: 1
  • Multi-mode, Single-mode Fiber ports quantity: 1 SFP+
  • Black

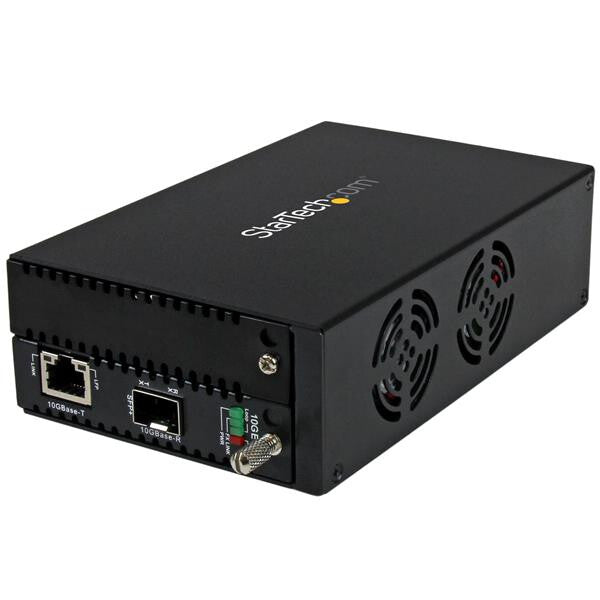

This 10GbE fiber media converter lets you scale your network using the 10Gb SFP+ transceiver that best suits your network type and distance requirements. It’s a cost-effective way to convert copper to fiber, or fiber to copper, and it integrates easily into a range of 10Gb network infrastructures.

The 10G fiber converter delivers fast and reliable network access at longer distances than copper-based networks, making it ideal for server rooms or workstations in remote areas or in other buildings.

Expand your high-speed network over longer distances
This high-performance fiber media converter integrates nicely into a variety of 10 Gigabit networks. And, because the card supports up to 10Gbps throughput, you can quickly bridge your traditional 10Gb copper (RJ45) based network across long distances using fiber-optic cable.

Now you can transfer large files and access high-bandwidth multimedia content in less time, even in remote locations.

Use the SFP+ transceiver that’s best for you
With an open SFP+ slot, the 10GbE media converter adapts to your network connection and distance requirements. Plus, because it’s compatible with most 10GbE SFP+ transceivers, it offers more possibilities for connecting devices and users to your network. With support for a wide range of transceivers, the network converter is ideal for dynamic, high-performance data centers.

Simple network management and diagnostics

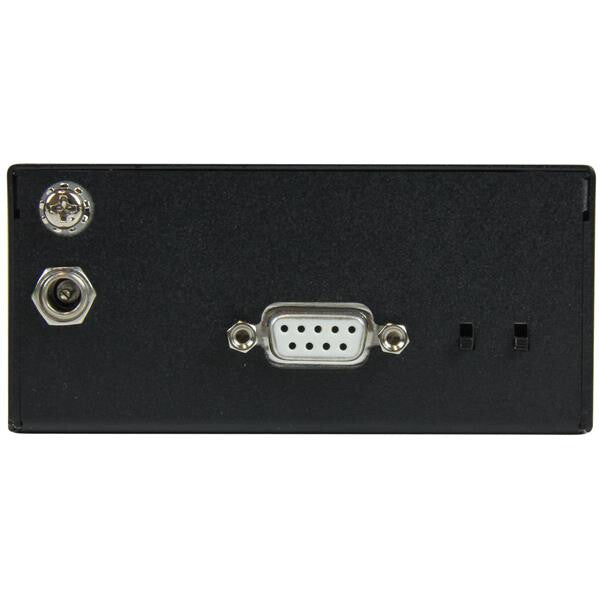

The 10 Gigabit fiber media converter offers built-in management functionality, so you can quickly, yet effectively manage and customize your network settings through the local serial console port.

Prepare your network for the future
If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP+ ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.

This versatile fiber media converter is the perfect way to add users and devices to your network, now or in the future, while simultaneously interfacing your copper and fiber network mediums.

The ET10GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Network
Duplex system Full
Auto MDI/MDI-X Yes
Flow control support No
Jumbo frames 9600
Jumbo frames support Yes
Fiber ethernet cabling technology 10GBASE-ER, 10GBASE-EW, 10GBASE-LR, 10GBASE-LW, 10GBASE-R, 10GBASE-SR, 10GBASE-SW
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u
Maximum data transfer rate 20000 Mbit/s
Performance
Mean time between failures (MTBF) 57000 h
Fiber mode structure Multi-mode, Single-mode
Wavelength-division multiplexing (WDM) No
Features
Housing material Steel
LED indicators Alarm, Link, Power
Product colour Black
Internal No
Ports & interfaces

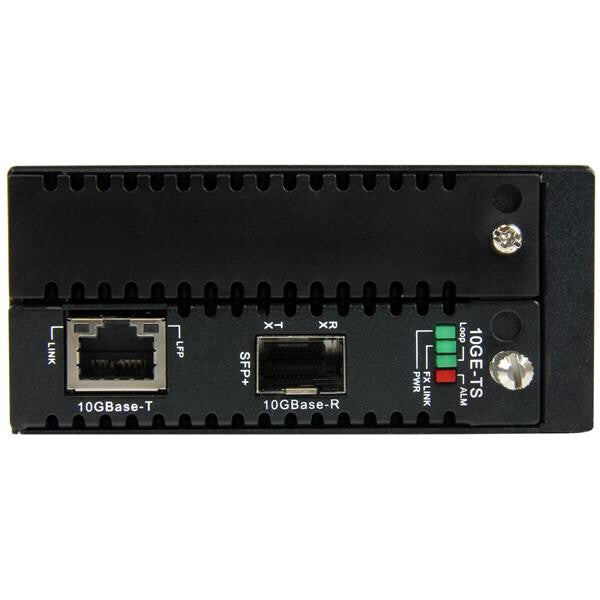

Fiber optic connector SFP+
Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Power
Power plug type Type M
External power adapter Yes
Power over Ethernet (PoE) No
Power consumption (max) 36 W
Output current 3 A
Output voltage 12 V
Input current 0.75 A
Input voltage 100 - 240 V
Weight & dimensions
Weight 680 g
Height 45 mm
Depth 152 mm
Width 97 mm
Operational conditions
Operating relative humidity (H-H) 5 - 85%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 50 °C

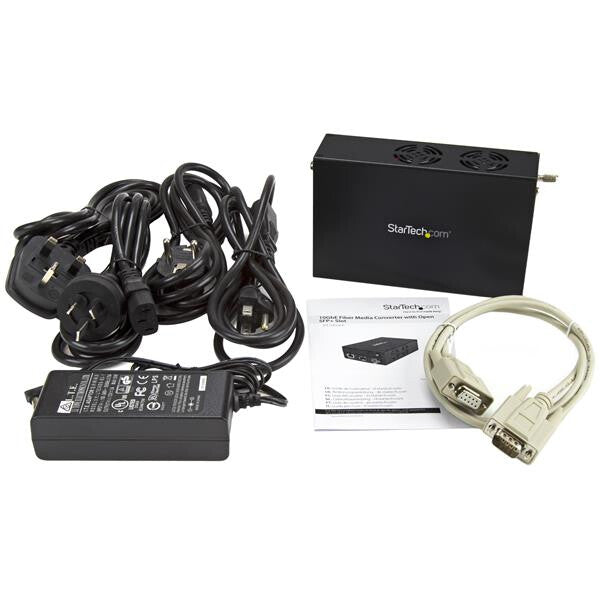

Packaging content
Quick installation guide Yes
AC adapter included Yes
Packaging data
Package weight 1.95 kg
Package height 79 mm
Package depth 333 mm
Package width 236 mm
Certificates
Certification CE, FCC
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
