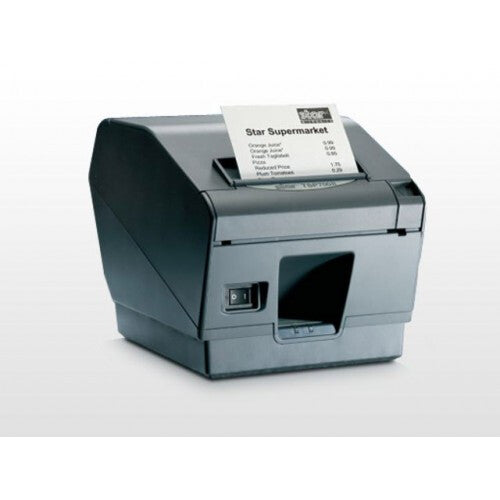

Star Micronics TSP743U II label printer Direct thermal 406 x 203 DPI 250 mm/sec
Couldn't load pickup availability
- Direct thermal
- 406 x 203 DPI
- Maximum printing width: 8 cm Print speed: 250 mm/sec
- Built-in barcodes: Code 39, Code 93, Code-128 Codabar Library, ITF, UPC-A, UPC-E
- USB port
- 1.75 kg
Building on the industry success of the TSP700 from Star Micronics, with a print speed of 48 receipts per minute (250mm/sec), the TSP700II is the best single station printer you can expect. The TSP700II now features a double resolution mode to increase sharpness to any graphic! Eye catching graphics for company logos and/or coupons are a print away.
Its improved and sleeker design features a new top cover which extends to the edge of the printer making it more difficult for dust and liquids to penetrate and harm the printer. In addition to the extended cover, sound and vibration dampening channels within the printer help reduce printing noise and also add an extra layer of protection from moisture or dust when used in harsher environments.
| Printing | |
|---|---|
| Maximum printing width | 8 cm |
| Print speed | 250 mm/sec |
| Maximum resolution | 406 x 203 DPI |
| Colour | No |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Media thickness | 0.06-0.15 mm |
| Supported paper width | 58, 80, 82.5 mm |
| Maximum label width | 8.25 cm |
| Maximum roll diameter | 10 cm |
| Autocutter durability | 2 million cuts |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Performance | |
|---|---|
| Certification | UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost |
| Cutter | Yes |
| Built-in barcodes | Code 39, Code 93, Code-128 Codabar Library, ITF, UPC-A, UPC-E |
| Design | |
|---|---|
| Product colour | Grey |
| Power | |
|---|---|
| AC adapter output voltage | 24 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 1.75 kg |
| Height | 148 mm |
| Depth | 213 mm |
| Width | 147 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
