Sparkle Technology Intel Arc B580 Luna OC 12 GB GDDR6
£214.99
Couldn't load pickup availability
- TORN Cooling 2.0

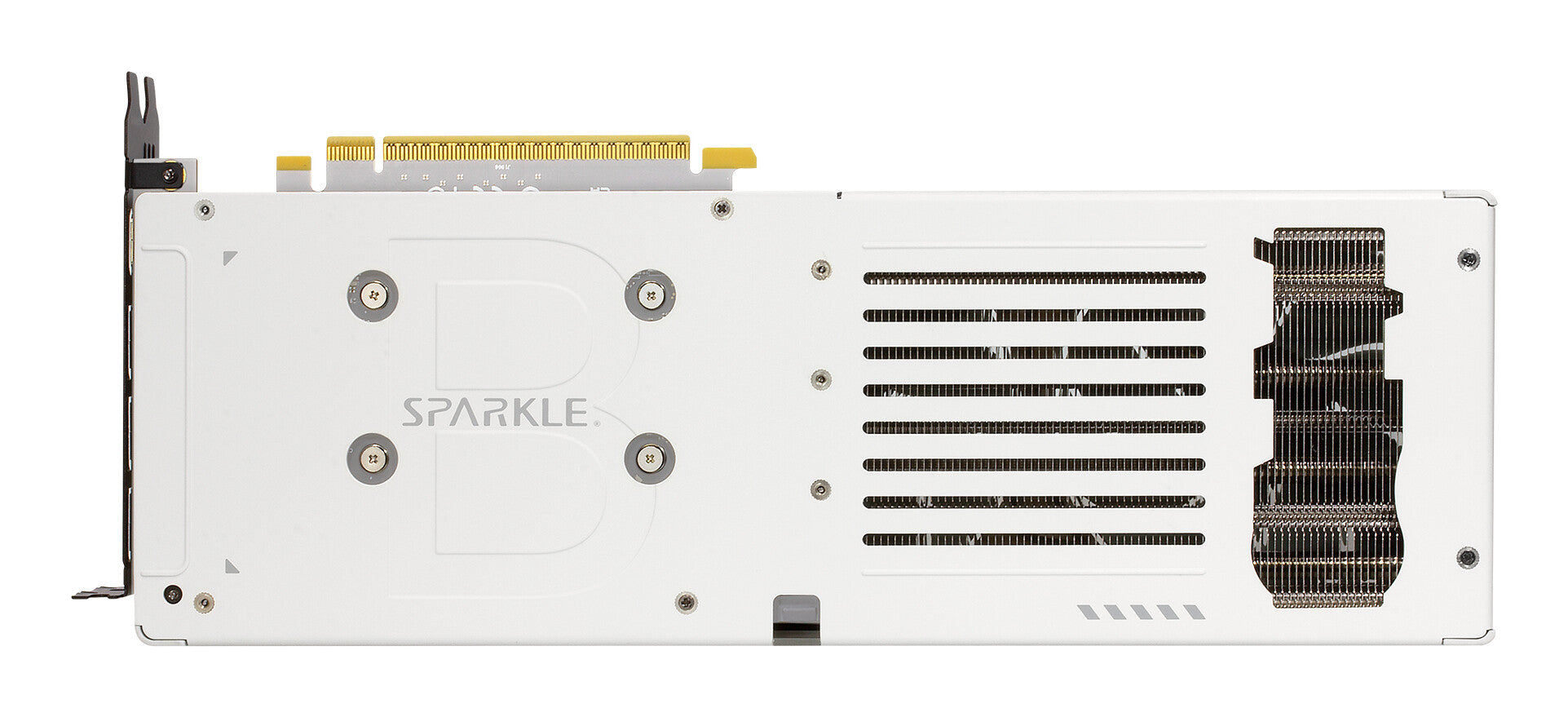

- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
- AV1 Encode / Decode
- VP9 Bitstream & Decoding
- Intel Deep Link Hyper Compute
- Intel Deep Link Hyper Encode
- Intel Deep Link Stream Assist

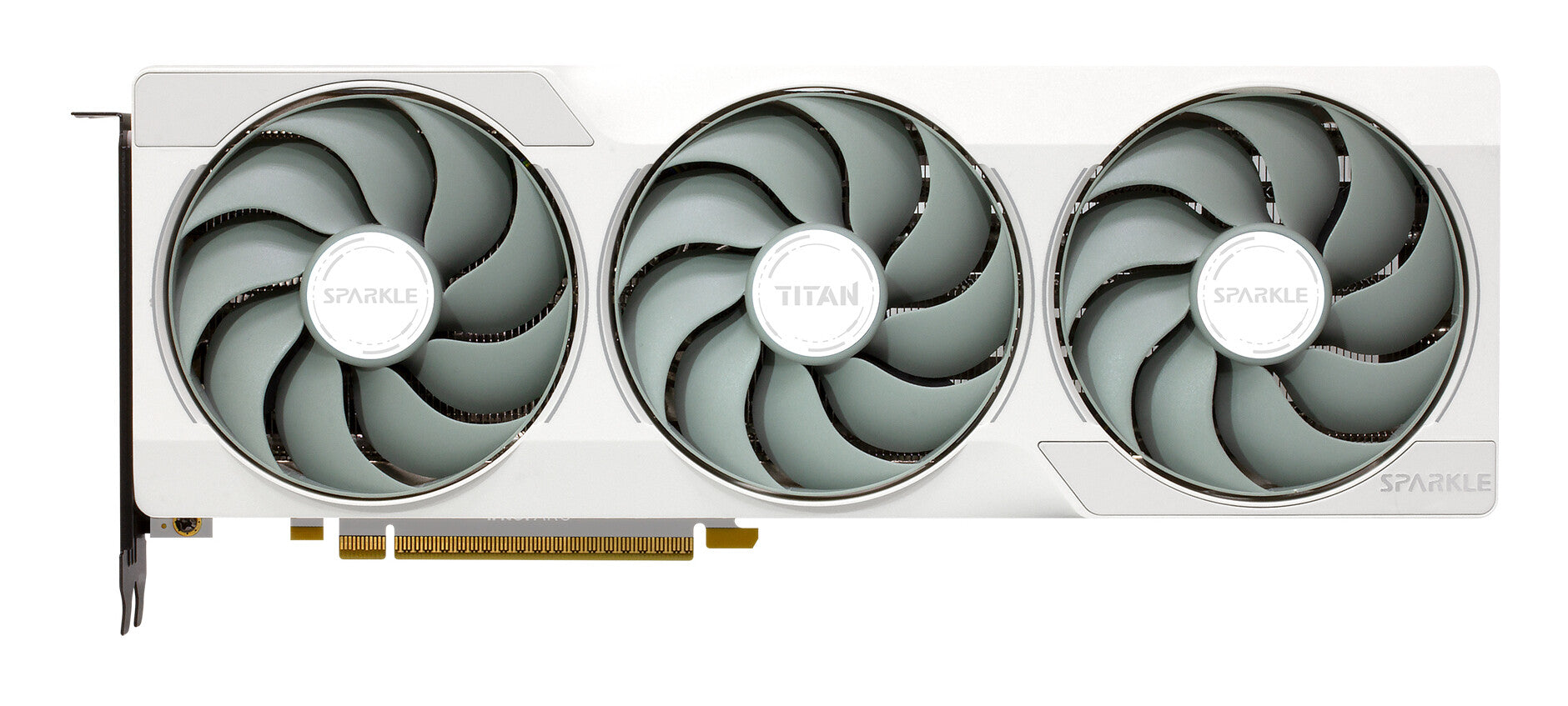

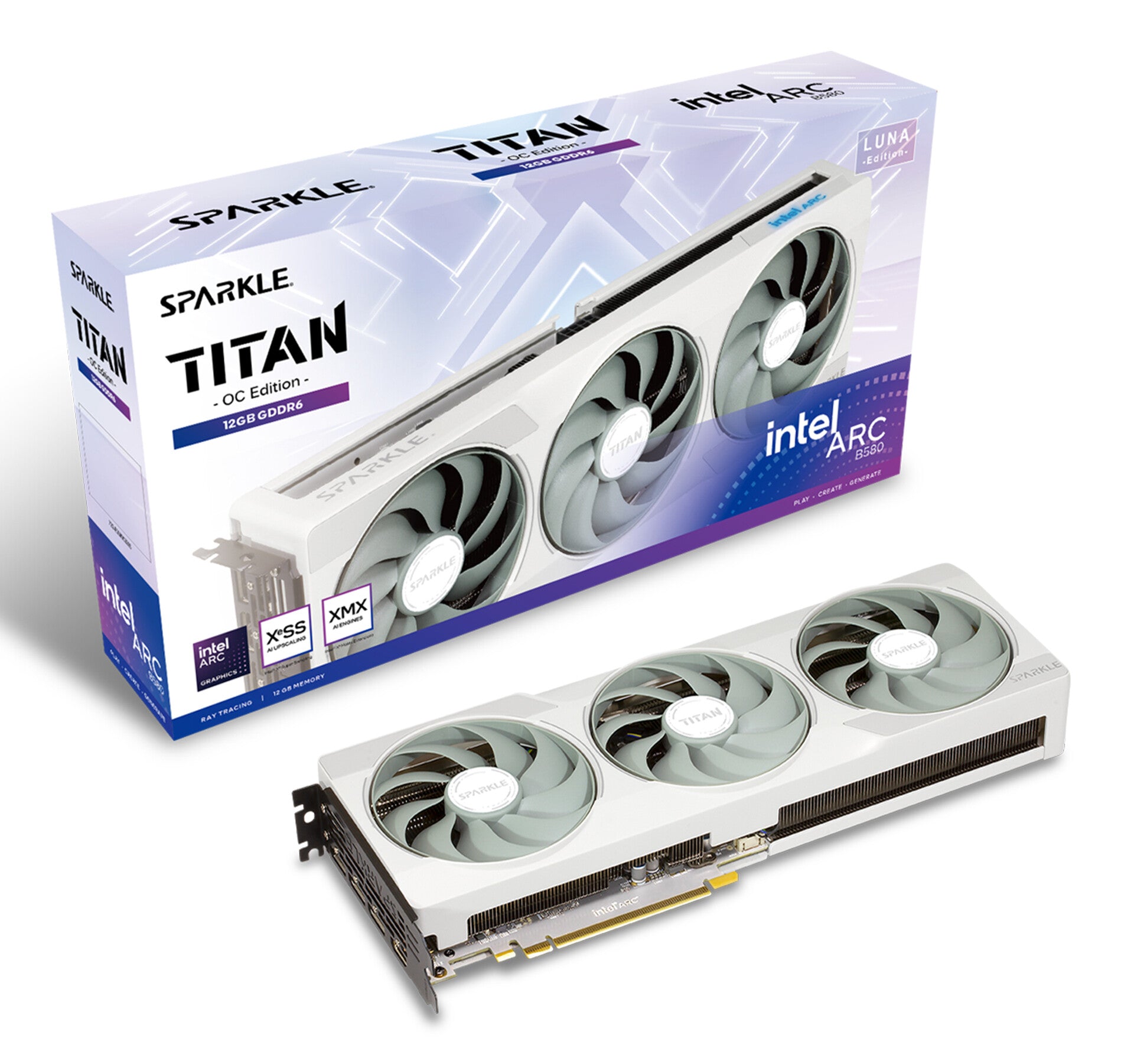

The SPARKLE Intel® Arc™ B580 TITAN Luna OC Graphics Card, offers high-resolution gaming with Intel
XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced
creation and editing through Intel AI Playground.

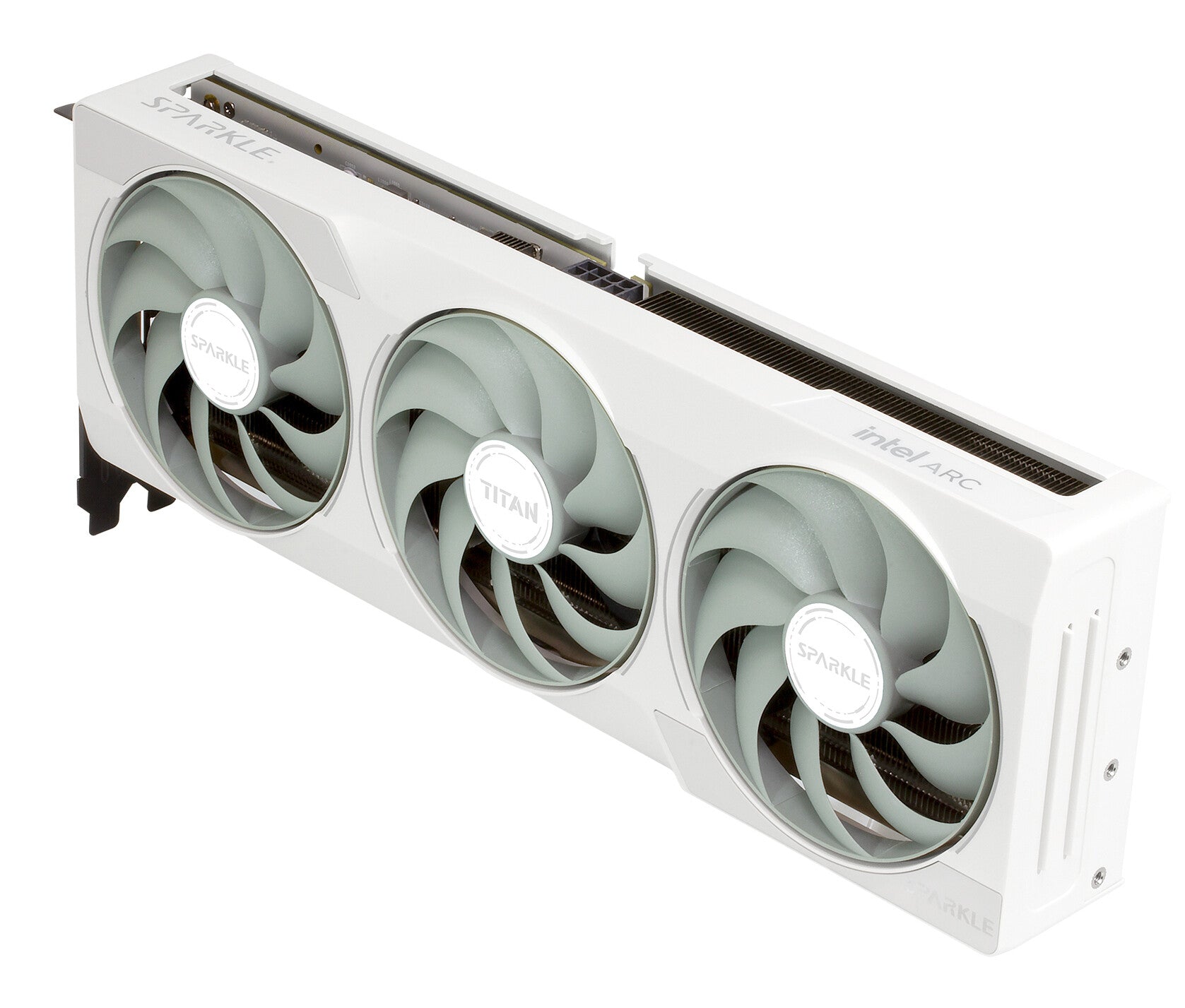

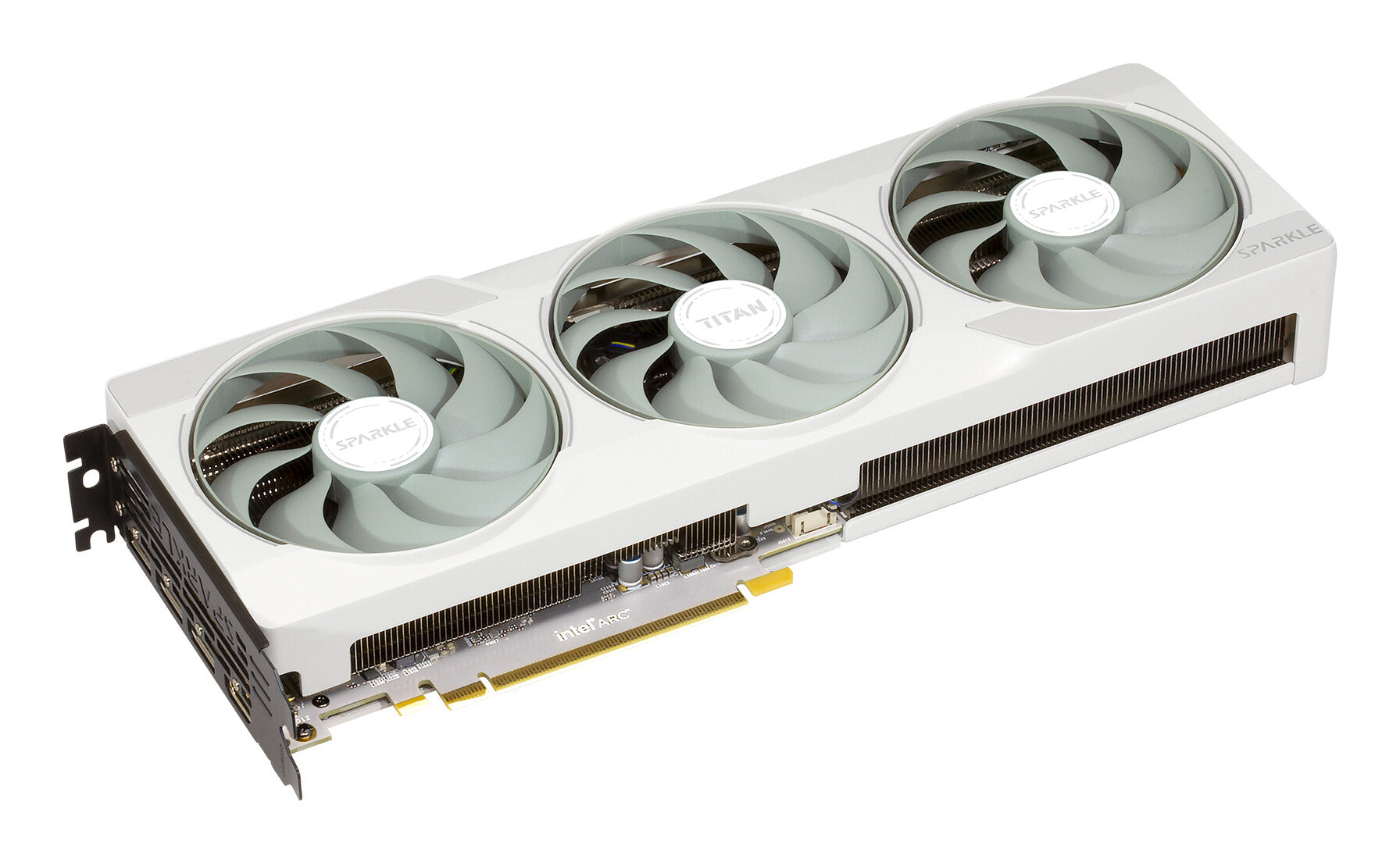

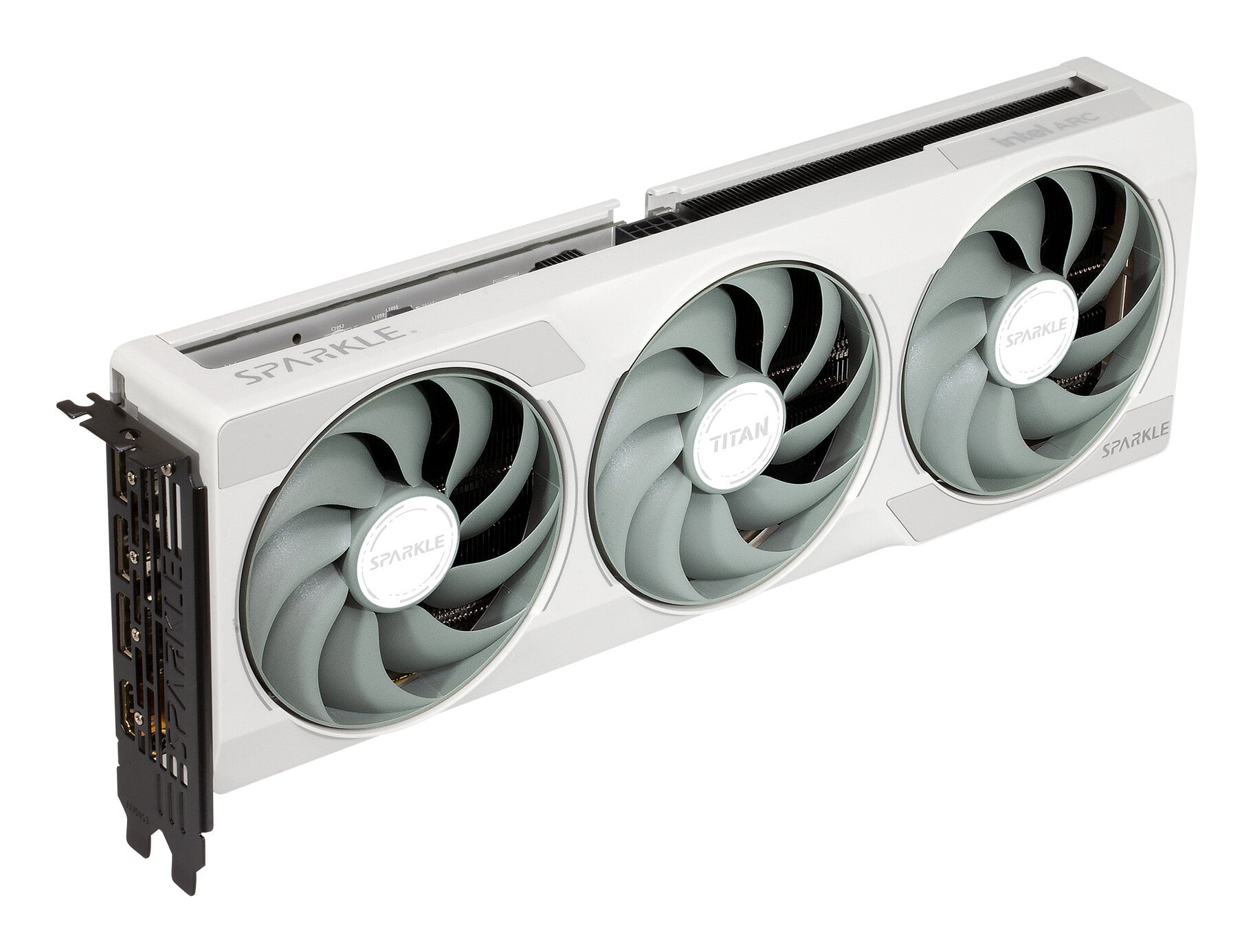

New TITAN series equipped TORN 2.0 Cooling with triple customized AXL fans, 2.2-slot design and fullmetal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Ray accelerators | 20 |
| Processor frequency | 2740 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Arc B580 |
| Graphics processor family | Intel |
| Memory | |
|---|---|
| Memory bandwidth (max) | 456 GB/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|

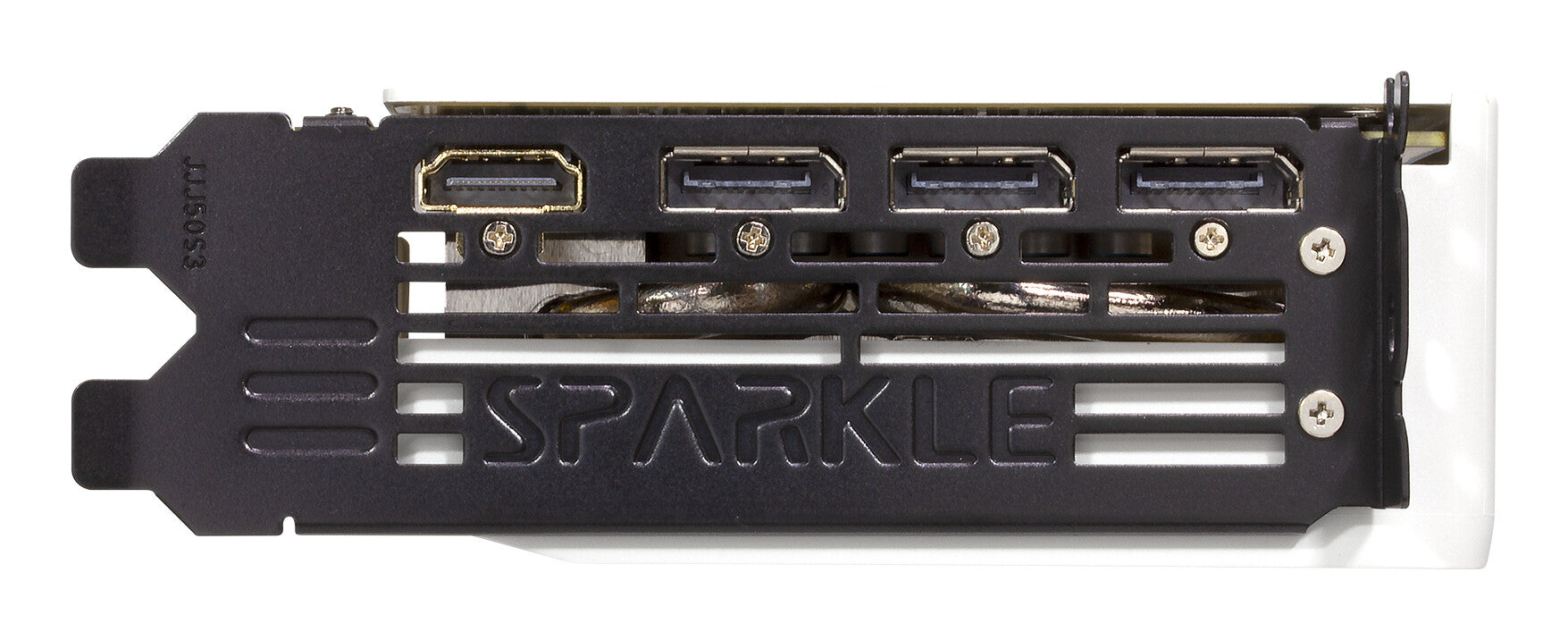

| DisplayPort version | 2.1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| Xe-cores | 20 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 160 |
| NPU performance up to | 233 TOPs |
| Dual Link DVI | No |
| OpenCL version | 3.0 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of slots | 2.2 |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power supply location | Top |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (typical) | 200 W |
| Minimum system power supply | 600 W |
| System requirements | |
|---|---|
| Minimum RAM | 8000 MB |
| Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Height | 117 mm |
| Depth | 44 mm |
| Length | 315 mm |
| Weight | 954 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| HDMI | Yes |
