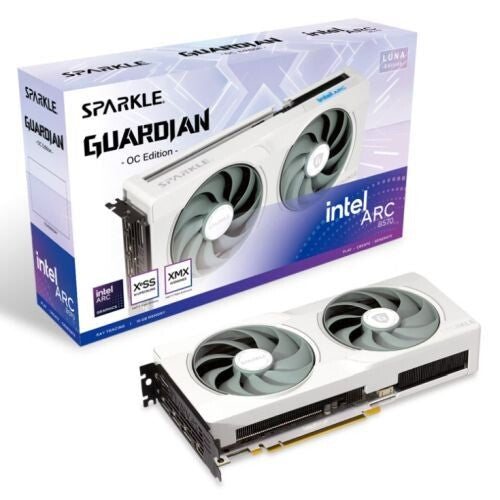

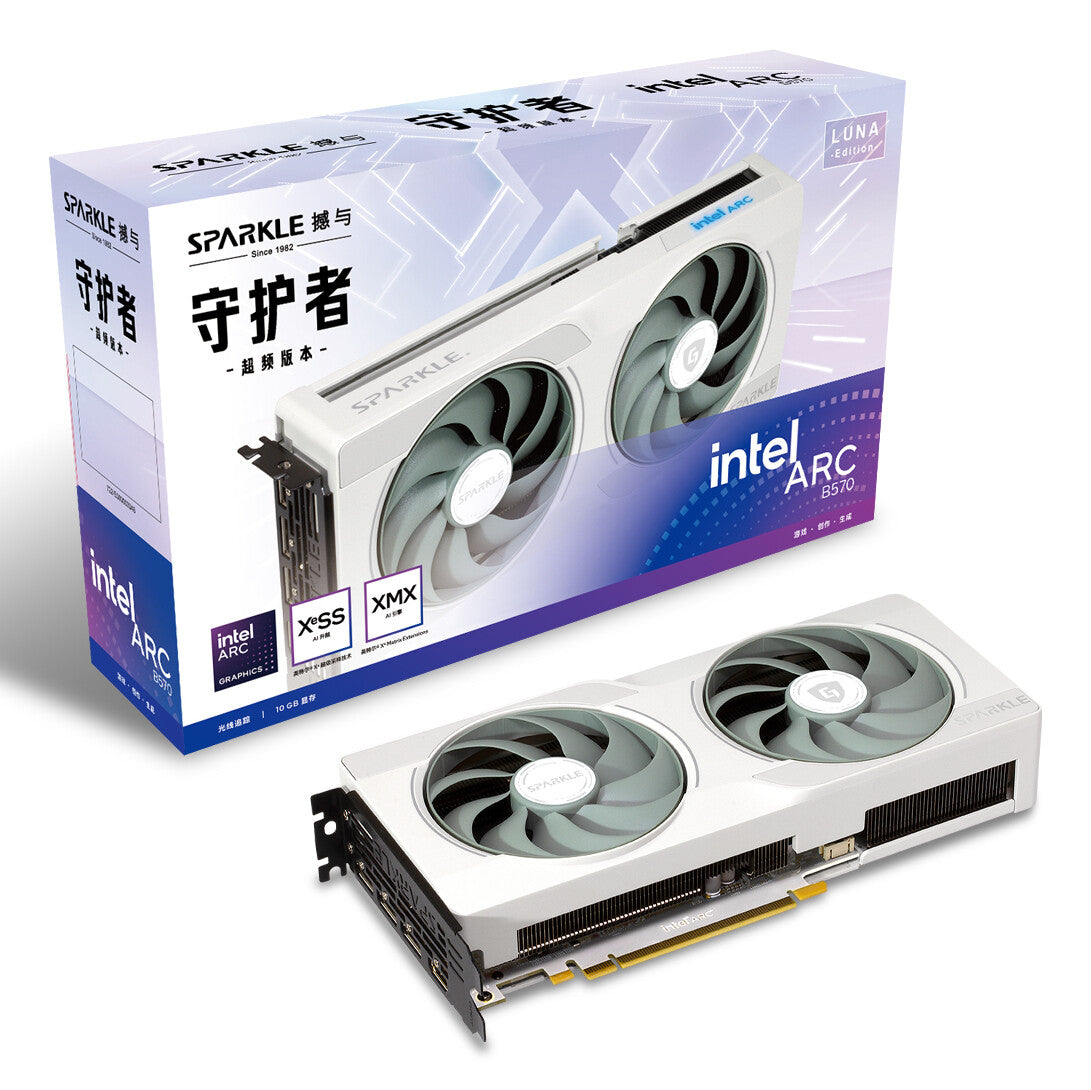

Sparkle Intel Arc B570 GUARDIAN Luna OC, 10GB DDR6 Graphics Card - White
iFrame
£233.99
Couldn't load pickup availability
- Intel Arc B570 10 GB GDDR6
- 7680 x 4320 pixels 160 bit PCI Express x8 4.0

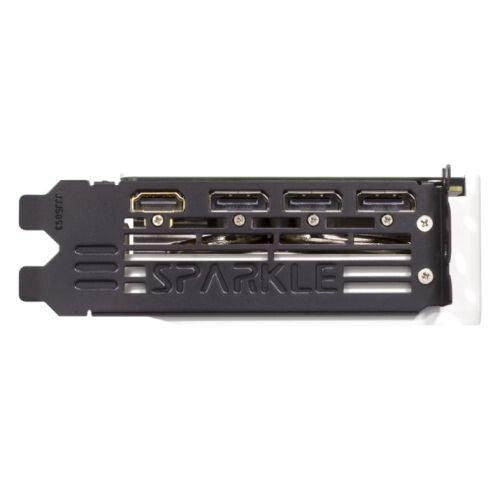

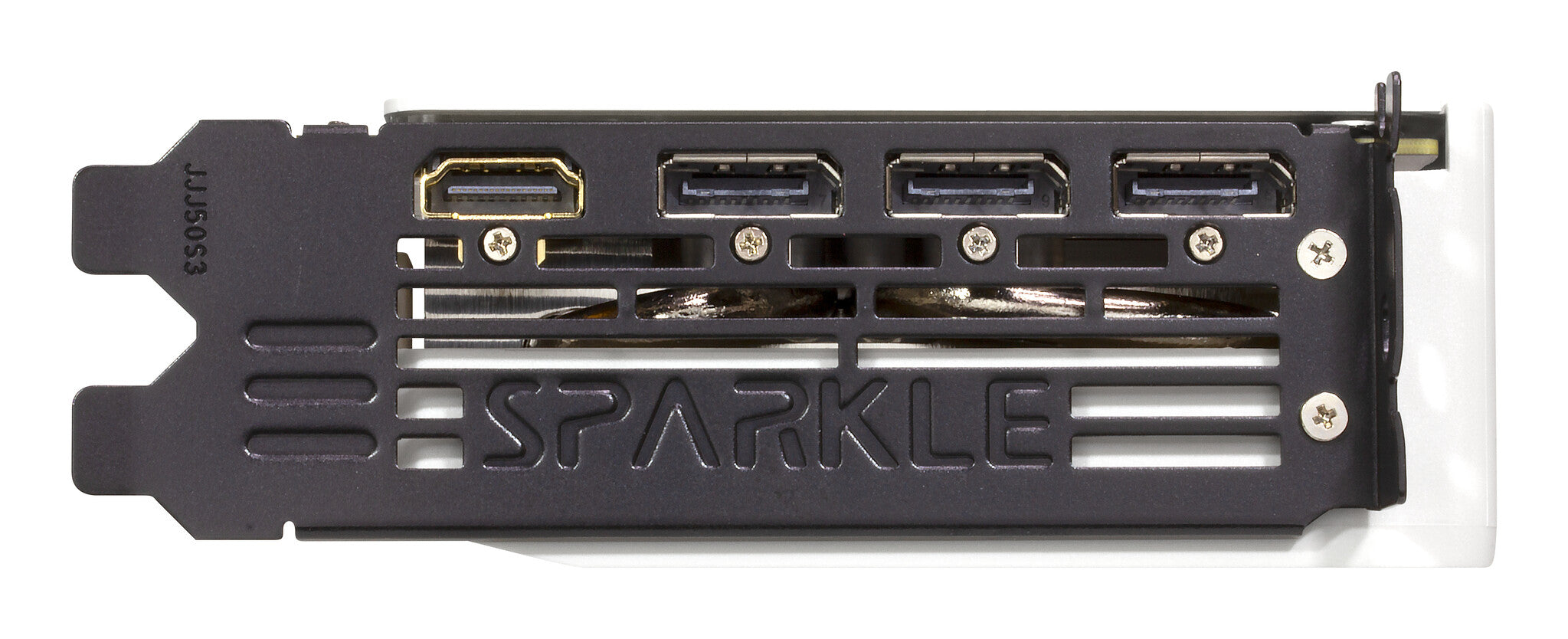

- HDMI ports quantity: 1 DisplayPorts quantity: 3
- DirectX version: 12 Ultimate OpenGL version: 4.6
- 170 W 1x 8-pin
- Boost Clock: 2660 MHz
- Xe-Core: 18
- Ray Tracing Units: 18
- Intel® XMX Engines: 144
- GPU Peak Tops (Int8): 203
- Memory Size: 10GB GDDR6
- Graphics Memory Interface: 160-bit
- Graphics Memory Bandwidth: 380 GB/s
- Max Res.: Up to 8K at 120Hz HDR with DSC
- PCI Express Configurations: PCI Express 4.0 x8
- TBP: 170 Watt
- Lighting: Blue Breathing Light

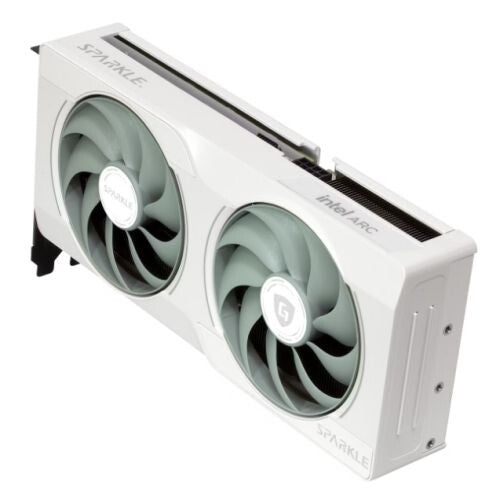

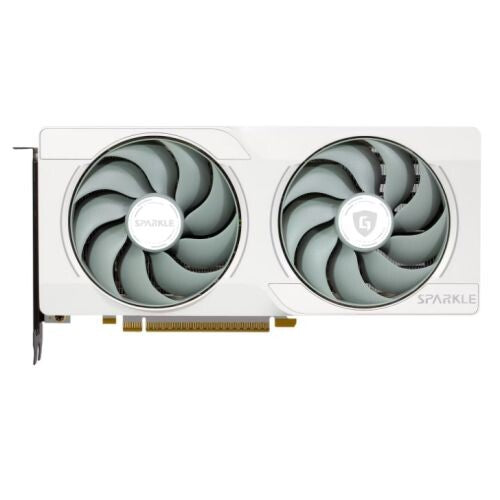

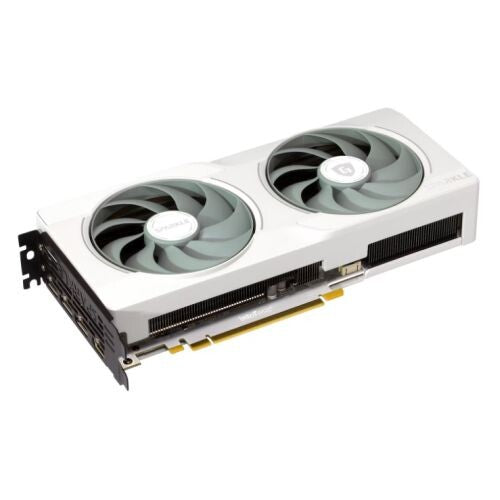

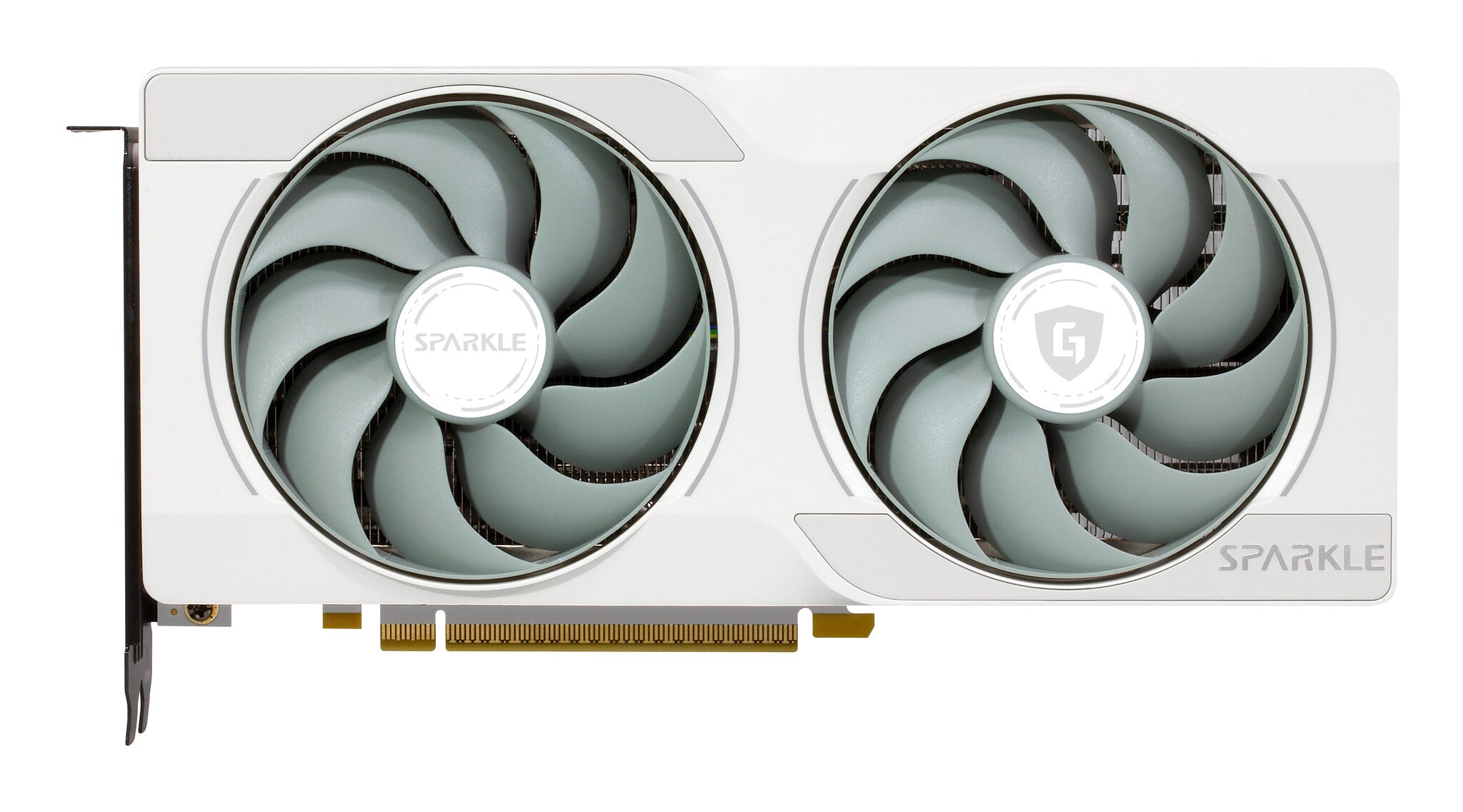

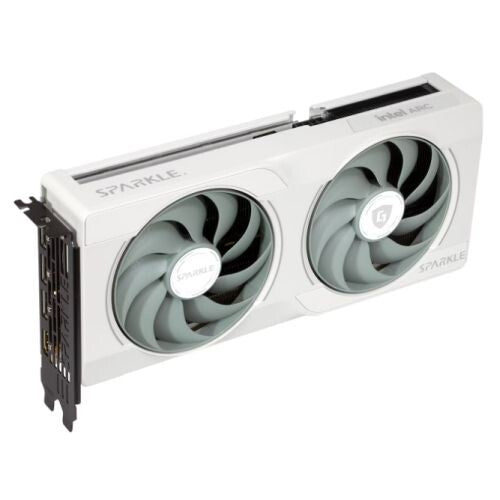

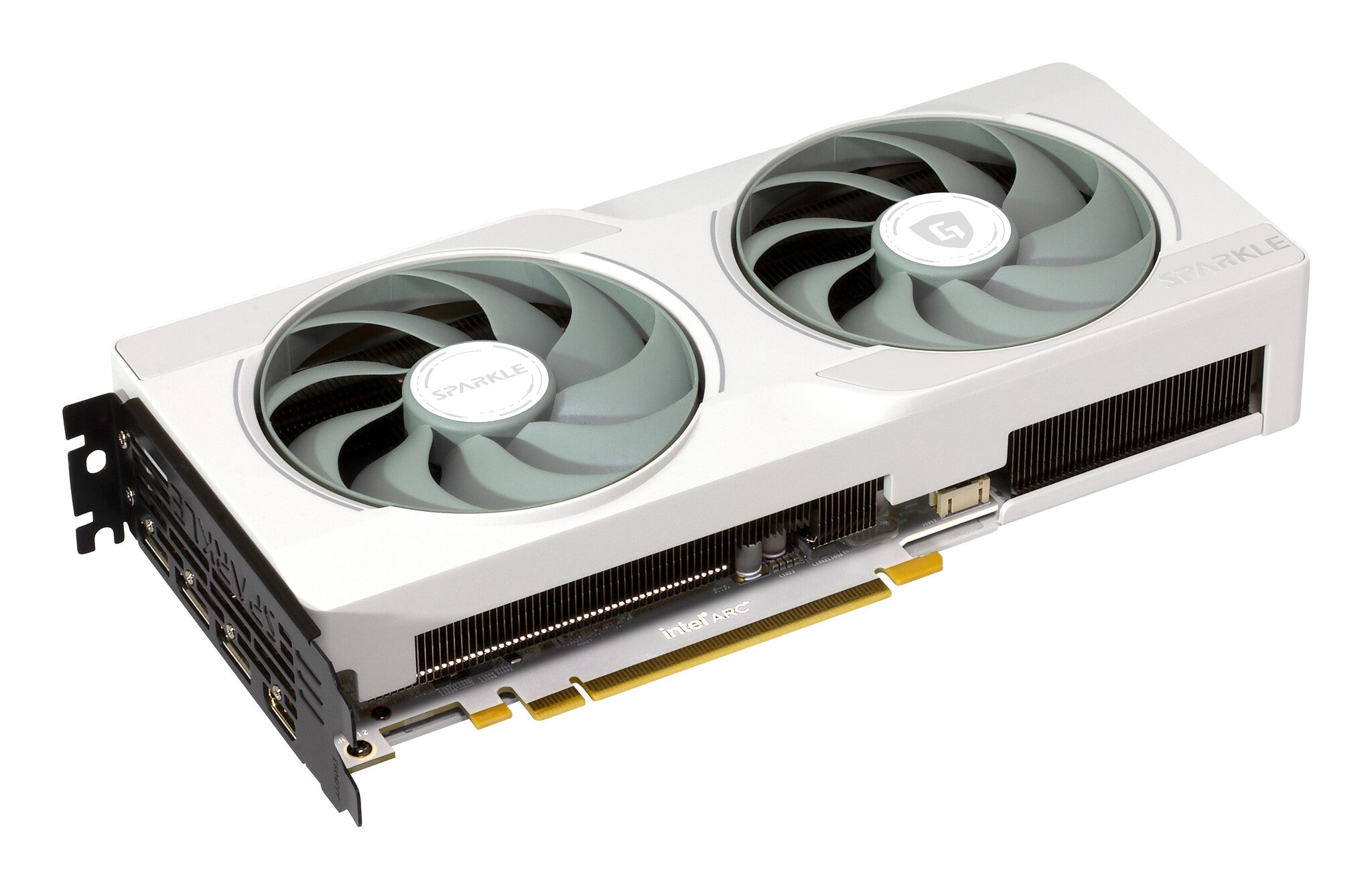

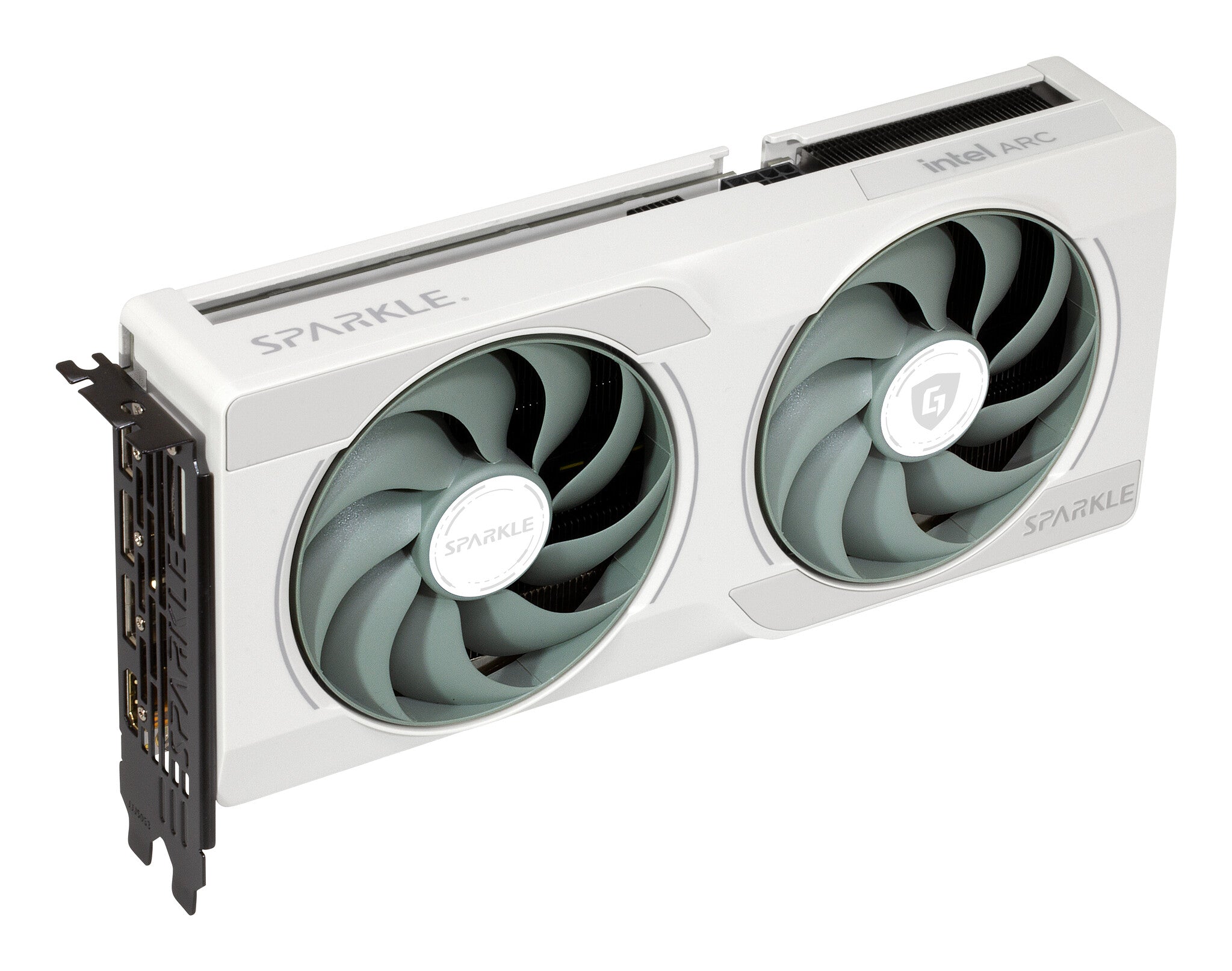

The SPARKLE Intel® ArcTM B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
Key Features
- TORN Cooling 2.0

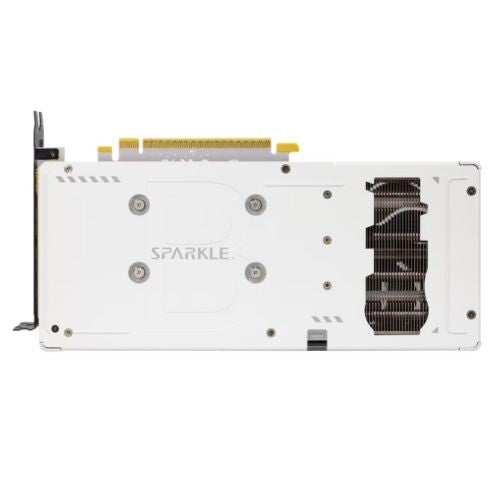

- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
- AV1 Encode / Decode
- VP9 Bitstream & Decoding
- Intel Deep Link Hyper Compute
- Intel Deep Link Hyper Encode
- Intel Deep Link Stream Assist.
| Processor | |
|---|---|
| Processor frequency | 2660 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Arc B570 |
| Graphics processor family | Intel |
| Memory | |
|---|---|
| Memory bandwidth (max) | 380 GB/s |
| Memory bus | 160 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 10 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| Xe-cores | 18 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 144 |
| Dual Link DVI | No |
| OpenCL version | 3.0 |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Illumination | Yes |
| Illumination colour | Blue |
| Number of slots | 2.2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Power consumption (typical) | 170 W |
| Minimum system power supply | 600 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 105 mm |
| Length | 245 mm |
| Weight | 796 g |
| Packaging data | |
|---|---|
| Package type | Box |
