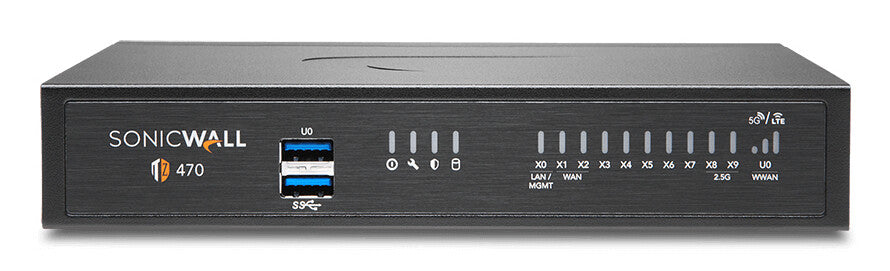

SonicWall TZ470 hardware firewall Desktop 3.5 Gbit/s
Couldn't load pickup availability
- Desktop
- 68.03 BTU/h
- DDoS protection
- Wired Ethernet LAN data rates: 1000 Mbit/s Console port: RJ-45
- 19.95 W
TZ SERIES NEXT-GENERATION FIREWALL (NGFW)
Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.
‘Single-pane-of-glass’ Management & Reporting
Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.
SD-WAN and Zero-Touch Deployment Capabilities
SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.
Deep Memory Inspection
Block even the most advanced attacks with Real-Time Deep Memory Inspection (RTDMI™) and Capture Advanced Threat Protection (ATP).
SSL/TLS Decryption and Inspection
Leverage industry-leading decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1.3 support.
Superior Performance and Features
Get advanced threat protection at lightning speeds without compromising on performance. The latest generation of TZ firewalls offer expandable storage, redundant power, SonicExpress App onboarding, and more.
Integrated Security Solution
Choose optional PoE and Wi-Fi options with deep integration of SonicOS operating system to deliver an integrated gateway security solution.
| Data transmission | |
|---|---|
| Firewall throughput | 3.5 Gbit/s |
| IPSec VPN throughput | 1.5 Gbit/s |
| IPS/IDS throughput | 2000 Mbit/s |
| Threat protection throughput | 1500 Mbit/s |
| SSL inspection throughput | 600 Mbit/s |
| Maximum firewall connections per second | 12000 |
| Maximum firewall connections | 1000000 |
| Performance | |
|---|---|
| Heat dissipation | 68.03 BTU/h |
| Network | |
|---|---|
| VPN tunnels quantity | 150 |
| Local user database | 250 |
| Quality of Service (QoS) support | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| DDoS protection | Yes |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
| Management features | |
|---|---|
| LED indicators | Yes |
| Management platform | SonicOS 7.0 |
| URL filtering | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| Console port | RJ-45 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Number of console ports | 1 |
| SFP+ module slots quantity | 2 |
| WAN connection | Ethernet (RJ-45) |
| Design | |
|---|---|
| Form factor | Desktop |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Input current | 3 A |
| Power consumption (max) | 19.95 W |
| Power supply | 36 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 35 mm |
| Depth | 135 mm |
| Height | 190 mm |
| Weight | 830 g |
| Packaging data | |
|---|---|
| Package weight | 1.43 kg |
