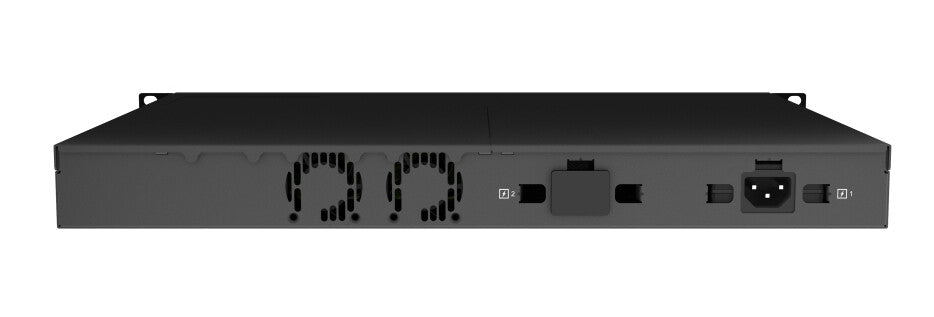

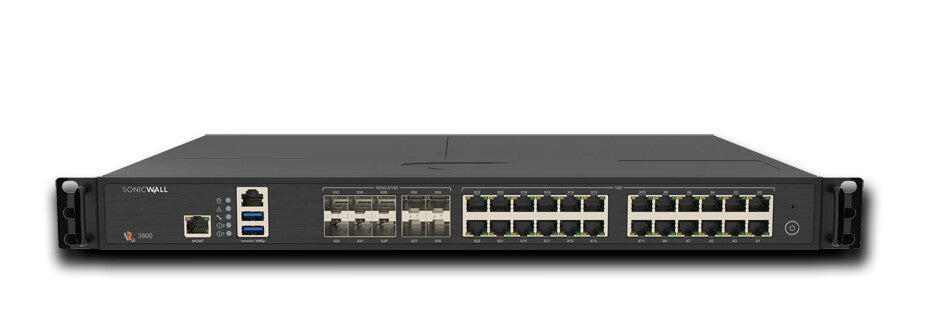

SonicWall NSa 3800 hardware firewall 1U 12 Gbit/s
Couldn't load pickup availability
- 1 RU – form factor
- 24 x 1 GbE interfaces
- 10 x 10 GbE interfaces
- Redundant power supply
- Multi-gigabit threat and malware analysis throughput
- Superior TLS performance (sessions and throughput)
- Latest generation 8 SonicOS support
- Secure SD-WAN capability
The SonicWall Network Security Appliance (NSa) 3800 next-generation firewall (NGFW) offers medium to large sized enterprises industry-leading performance at the lowest total cost of ownership in its class.
The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.
Gen 8 NSa Series, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, the firewall solutions support network and hardware redundancy with high availability and dual power adapters including one for redundancy.
| Data transmission | |
|---|---|
| VoIP | Yes |
| Maximum firewall connections per second | 90000 |
| Maximum connections (SPI) | 3000000 |
| Maximum connections (DPI) | 1200000 |
| SSL inspection throughput | 3000 Mbit/s |
| Threat protection throughput | 8 Mbit/s |
| IPS/IDS throughput | 8 Mbit/s |
| IPSec VPN throughput | 8 Gbit/s |
| Firewall throughput | 12 Gbit/s |
| Performance | |
|---|---|
| Compatible operating systems | Microsoft® Windows 10 and Windows 11, LinuxApple® iOS, Mac OS X, Google® Android™ |
| Heat dissipation | 341 BTU/h |
| Network | |
|---|---|
| Number of LAN Access Points (max) | 512 |
| Quality of Service (QoS) support | Yes |
| Number of VLANs | 256 |
| Static route | Yes |
| Local user database | 1000 |
| Number of users | 40000 user(s) |
| Security | |
|---|---|
| VPN support | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
| Content filtering | Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX,Java, Cookies for privacy, allow/forbid |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, TLS |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Routing protocols | BGP, OSPF, RIP, RIP-1, RIP-2 |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 10 |
| Number of console ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 24 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Connectivity technology | Wired |
| Storage | |
|---|---|
| Flash memory | 512 MB |
| Total storage capacity | 128 GB |
| Design | |
|---|---|
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power supply | 150 W |
| Redundant power supply (RPS) support | Yes |
| Power consumption (max) | 102.3 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Weight & dimensions | |
|---|---|
| Weight | 4.6 kg |
| Height | 45 mm |
| Depth | 325 mm |
| Width | 430 mm |
| Packaging data | |
|---|---|
| Package weight | 7.2 kg |
| Package depth | 185 mm |
| Package height | 475 mm |
| Package width | 575 mm |
| Other features | |
|---|---|
| Authentication method | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
