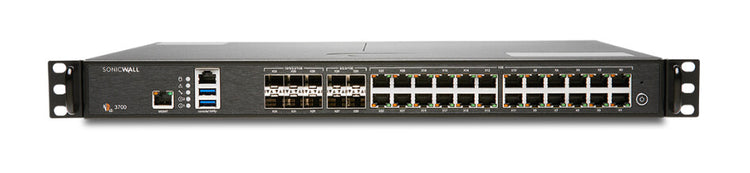

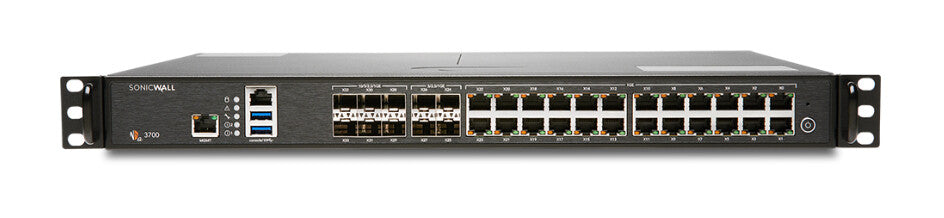

SonicWall NSa 3700 Secure Upgrade Advanced Edition 3 year (includes 1 year CSE) hardware firewall 1U 5.5 Gbit/s
£9,922.99
Couldn't load pickup availability
- 1U Firewall throughput: 5500 Mbit/s
- 123.78 BTU/h
- 50 user(s)
- Wired Ethernet LAN data rates: 1000 Mbit/s
- Total storage capacity: 128 GB
- 36.3 W
SonicWall NSa 3700 Secure Upgrade Advanced Edition 3 year (includes 1 year CSE)
SonicWall NSa 3700 hardware with 3 year Advanced Protection Service Suite (APSS) and 1 year CSE. APSS includes Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 Support with firmware updates and cloud management with 7-day alerting, advanced reporting & analytics, CSE for 1 year SIA - Basic (25 User) and 1 year SPA - Advanced (8 Users)
| Data transmission | |
|---|---|
| Firewall throughput | 5.5 Gbit/s |
| IPSec VPN throughput | 2.2 Gbit/s |
| IPS/IDS throughput | 3800 Mbit/s |
| Threat protection throughput | 3500 Mbit/s |
| SSL inspection throughput | 4200 Mbit/s |
| Maximum connections (DPI) | 750000 |
| Maximum connections (SPI) | 2000000 |
| Maximum firewall connections per second | 22000 |
| VoIP | Yes |
| Performance | |
|---|---|
| TLS interception | 850 MB/s |
| Heat dissipation | 123.78 BTU/h |
| Compatible operating systems | SonicOS 7.0.1 |
| Network | |
|---|---|
| Concurrent SSL/VPN connections (maximum) | 500 |
| Number of users | 50 user(s) |
| VPN tunnels quantity | 3000 |
| Local user database | 1000 |
| Quality of Service (QoS) support | Yes |
| Number of VLANs | 256 |
| Number of LAN Access Points (max) | 512 |
| Security | |
|---|---|
| Security algorithms | 128-bit AES, DES, 3DES, 192-bit AES, 256-bit AES, MD5, SHA-1 |
| Protocols | |
|---|---|
| Management protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Routing protocols | BGP, RIP, OSPF |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| 10G Ethernet (copper) ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 24 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Number of console ports | 1 |
| SFP+ module slots quantity | 10 |
| Storage | |
|---|---|
| Total storage capacity | 128 GB |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Number of fans | 2 fan(s) |
| Built-in fan | Yes |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 36.3 W |
| Power supply | 90 W |
| Certificates | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS, C-TICK, VCCI, KCC, cUL, UL, CB, WEEE, REACH, BSMI |
| Certification | FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 430 mm |
| Depth | 325 mm |
| Height | 45 mm |
| Weight | 4.6 kg |
| Other features | |
|---|---|
| Firewall throughput | 5500 Mbit/s |
