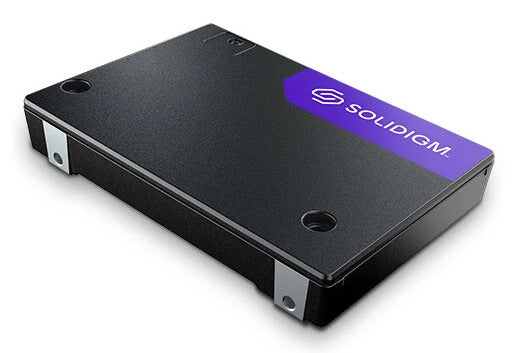

Solidigm D7-PS1030 12.8 TB U.2 PCI Express 5.0 NVMe 3D TLC NAND
Couldn't load pickup availability
- 12.8 TB U.2 PCI Express 5.0
- 2750000 IOPS
- 800000 IOPS
- 3D TLC NAND NVMe
- Component for: Server/workstation
Next-Gen Performance and Efficiency, Elevated for Mid-Endurance
Combining class-leading performance and performance optimizations for real-world IO conditions, the Solidigm D7-PS1030 accelerates write-centric workloads such as OLTP, meta data logging, HPC, and more.
PCIe 5.0 Performance Done Right
With powerful PCIe 5.0 performance, Solidigm D7-PS1030 accelerates a wide range of write-centric and mixed workloads, from cloud and enterprise applications to modern AI/ML pipelines.
Storage Optimized for the AI Era
Artificial Intelligence is everywhere and it’s creating higher demands for data infrastructure efficiency and performance. The leading combination of high capacity and high-performance drives help Solidigm partners to save power and space. Step up your AI workloads with the Solidigm SSD portfolio optimized for the AI era.
Fast and Flexible
Experience the class-leading performance of Solidigm D7-PS1030, accelerating a broad range of write-centric workloads, on a PCIe 5.0 or PCIe 4.0 solution.
| Features | |
|---|---|
| Use conditions | Server/Enterprise |
| Mean time between failures (MTBF) | 2500000 h |
| Drive writes per day (DWPD) | 3 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^18 bits read |
| PCI Express interface data lanes | x4 |
| Sequential latency - write (up to) | 7 µs |
| Sequential latency - read (up to) | 60 µs |
| Random latency - write (up to) | 7 µs |
| Random latency - read (up to) | 60 µs |
| Random write (4KB) | 800000 IOPS |
| Random read (4KB) | 2750000 IOPS |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| NVMe | Yes |
| Interface | PCI Express 5.0 |
| SSD form factor | U.2 |
| SSD capacity | 12.8 TB |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| Power consumption (max) | 23 W |
| Weight & dimensions | |
|---|---|
| Weight | 165 g |
| Operational conditions | |
|---|---|
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Operating temperature (T-T) | 0 - 77 °C |
| Other features | |
|---|---|
| Sequential reading | 14500 MB/s |
| Sequential writing speed | 9300 MB/s |
