SilverNet SIL MICRO PCP bridge/repeater Network bridge 100 Mbit/s Black, White
Couldn't load pickup availability
- Point-to-Point Outdoor Wireless Bridge Up to 2KM
- Point-to-MultiPoint Client
- 100Mbps throughput
- Integrated 14dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (Transmit Power Control)
- PoE 802.3af
- Software Upgradeable to 240Mbps or 500Mbps
Nominated for 'Security Product of the Year 2012', due to it's high MTBF and robust design, the MICRO has always been a great choice for harsh environments that need high reliability. The simplicity of installation and full integration into our Free NMS 'SilverView' make this the go-to product for professional CCTV and network installers.
Clients can quickly build up stable Point to Point or Point to MultiPoint outdoor wireless broadband access systems for "Last mile access" at low cost. The MICRO range is used in CCTV and data networks extensively where reliability and ease of installation is paramount.

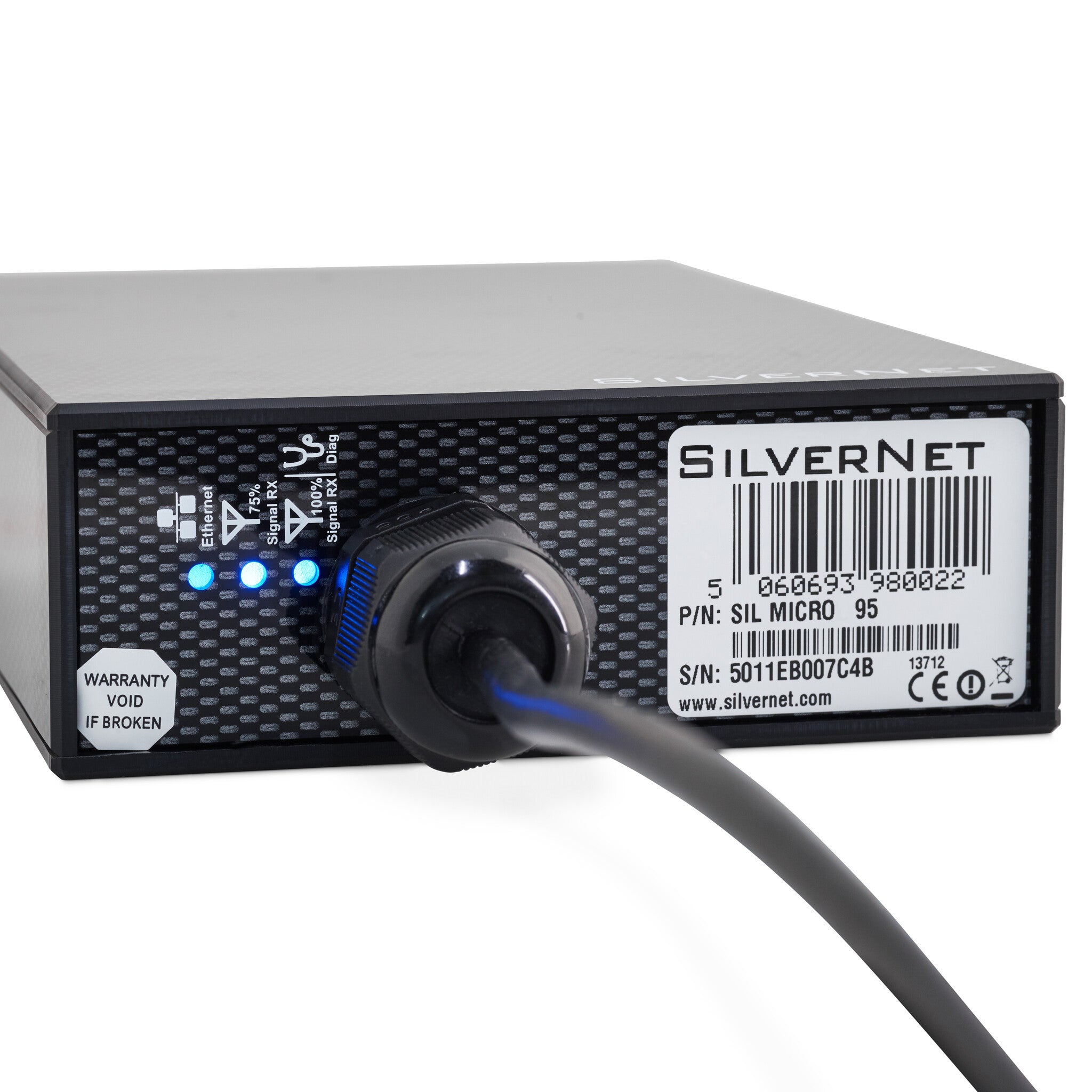

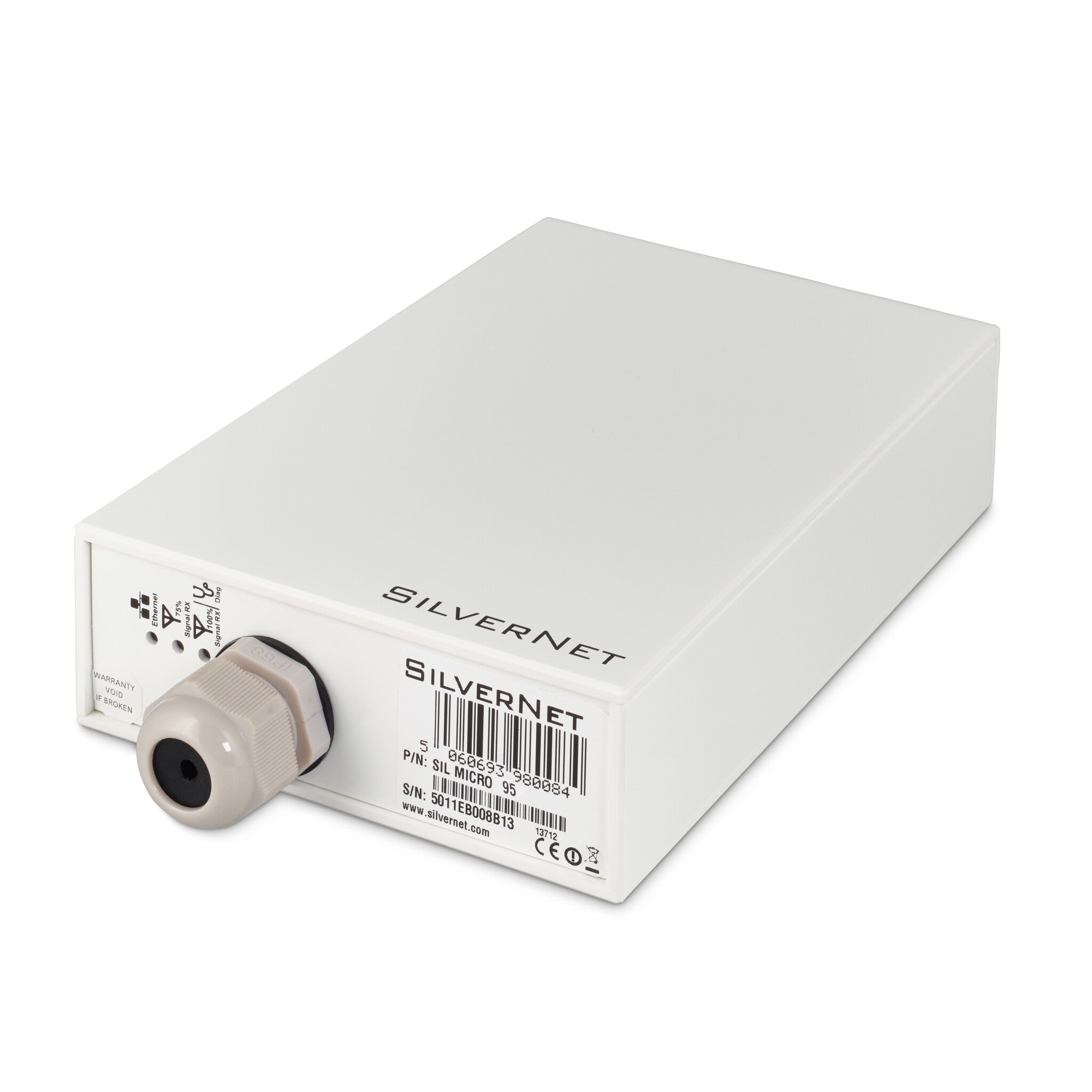

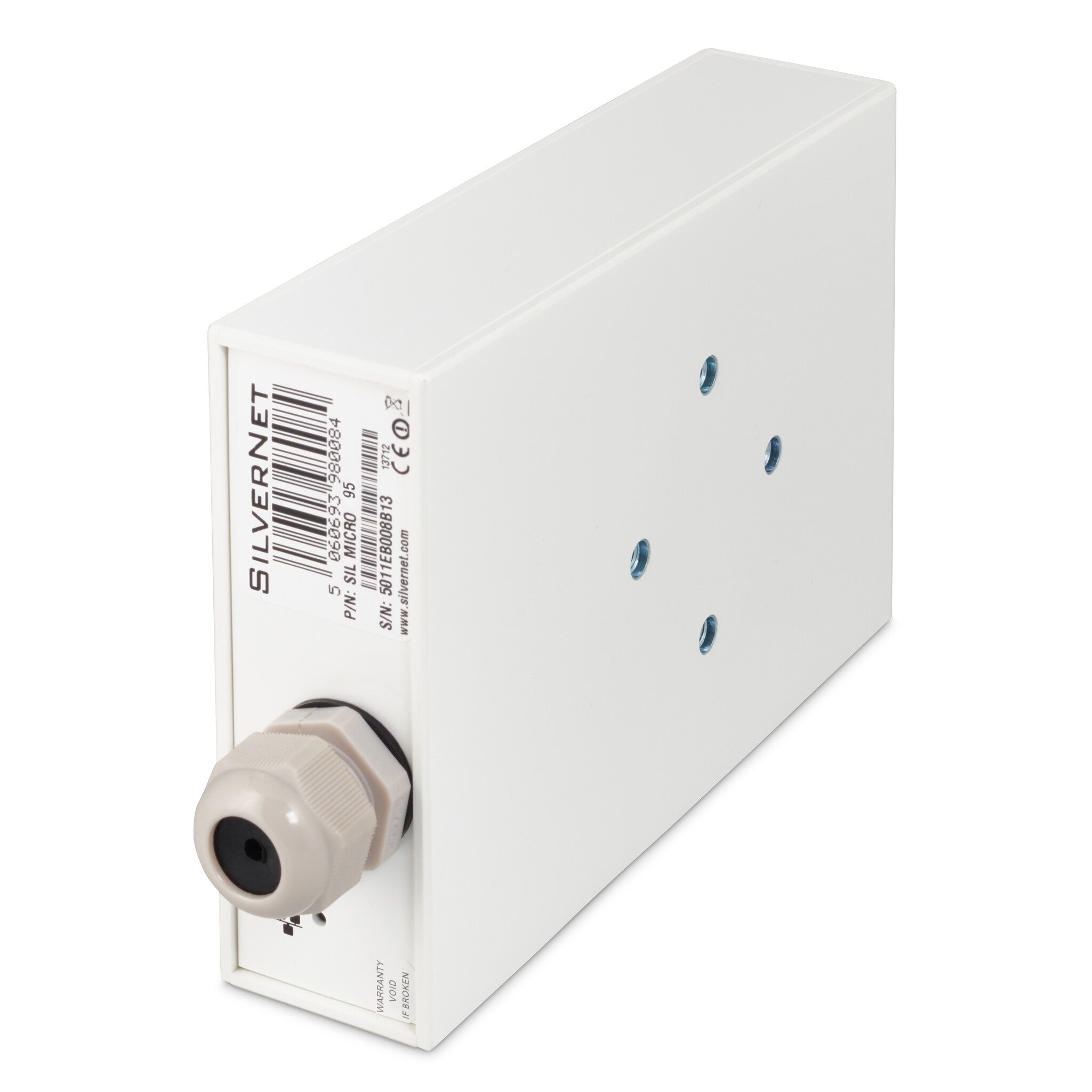

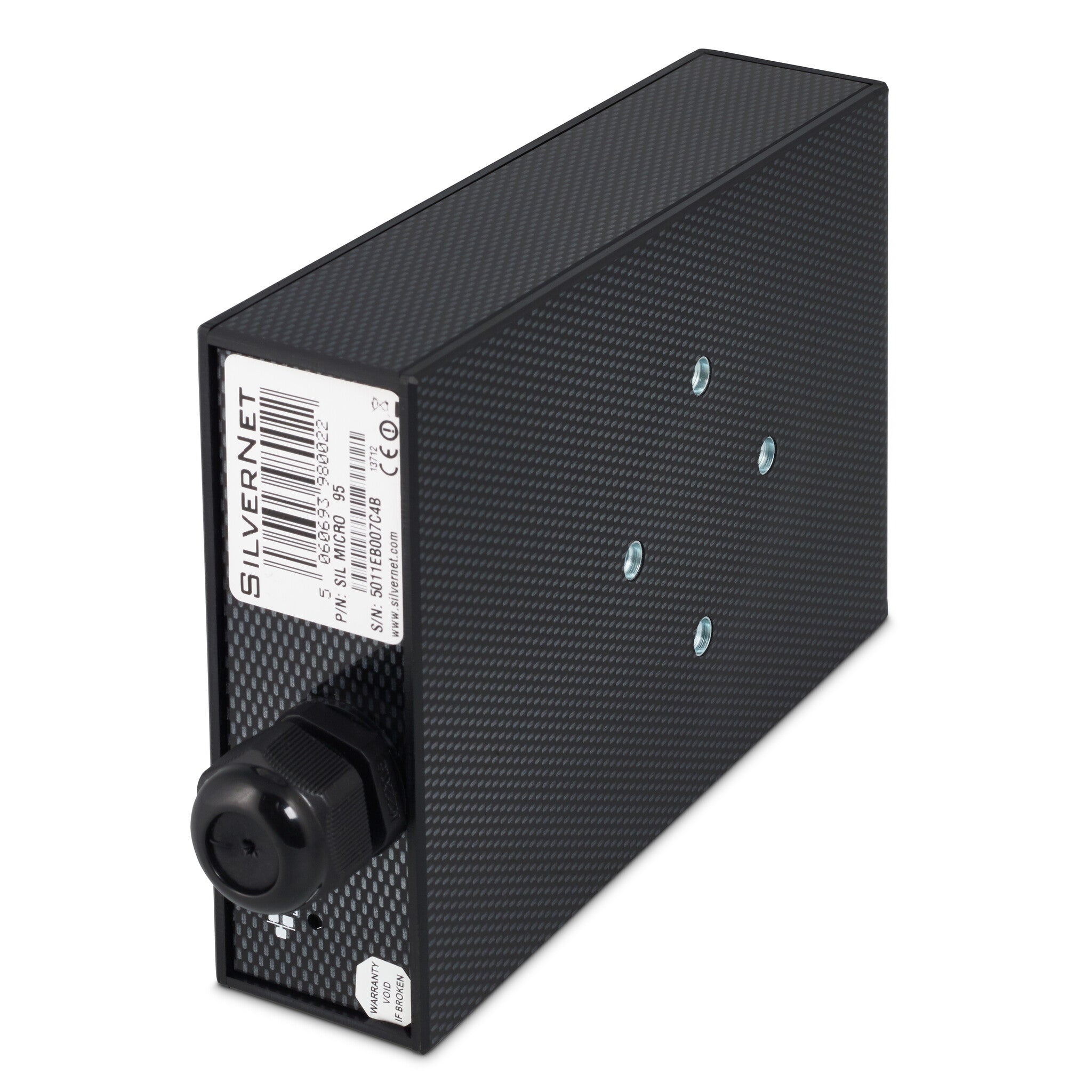

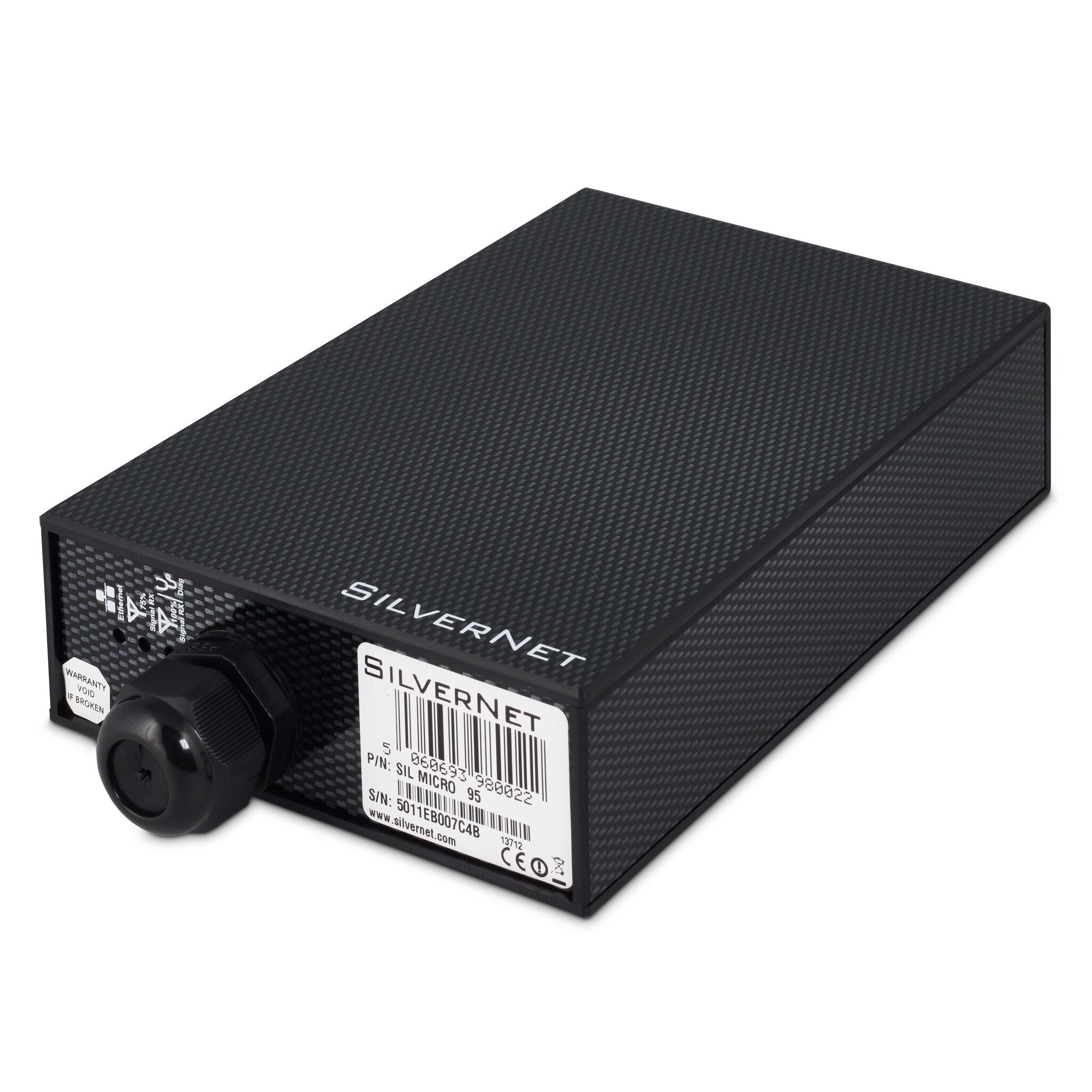

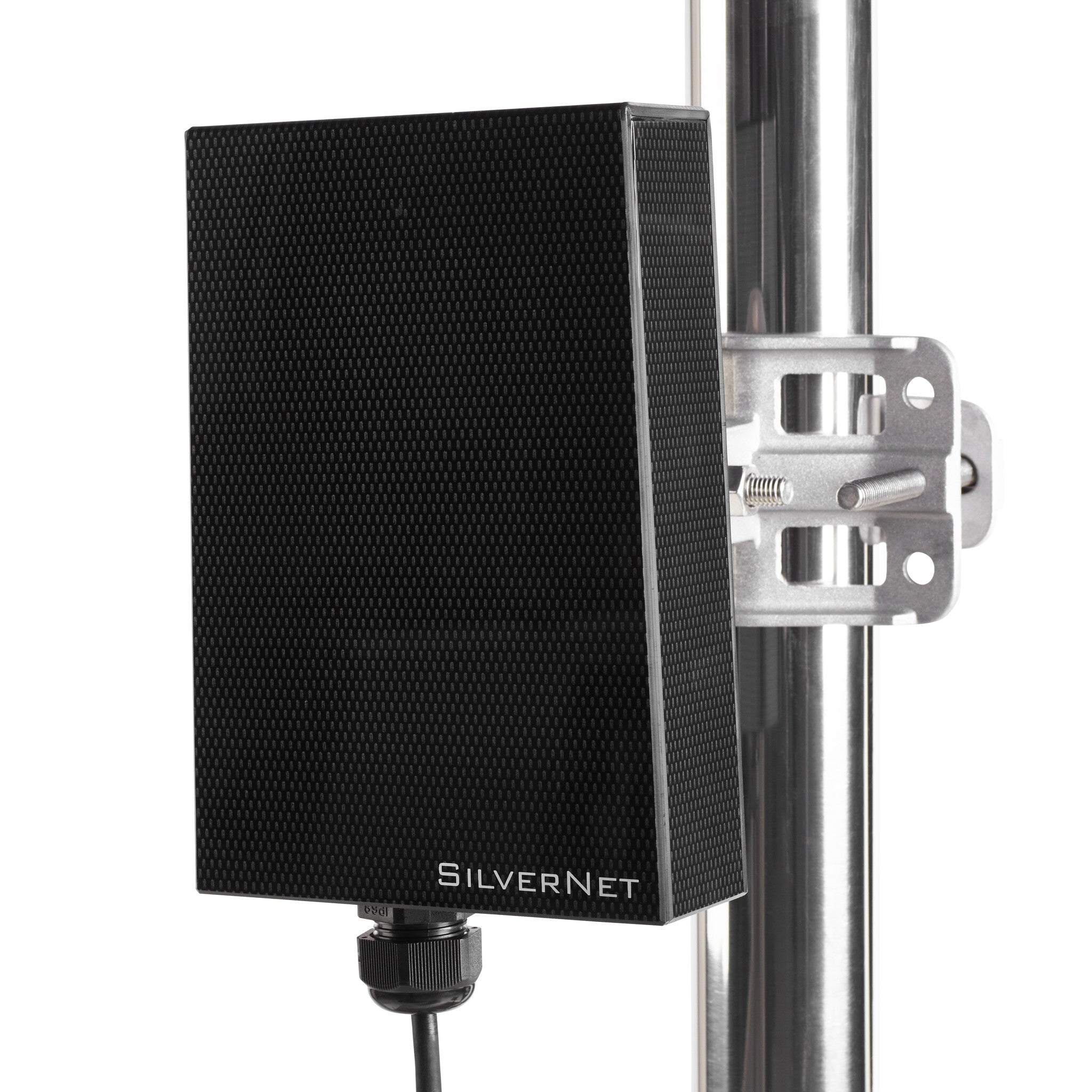

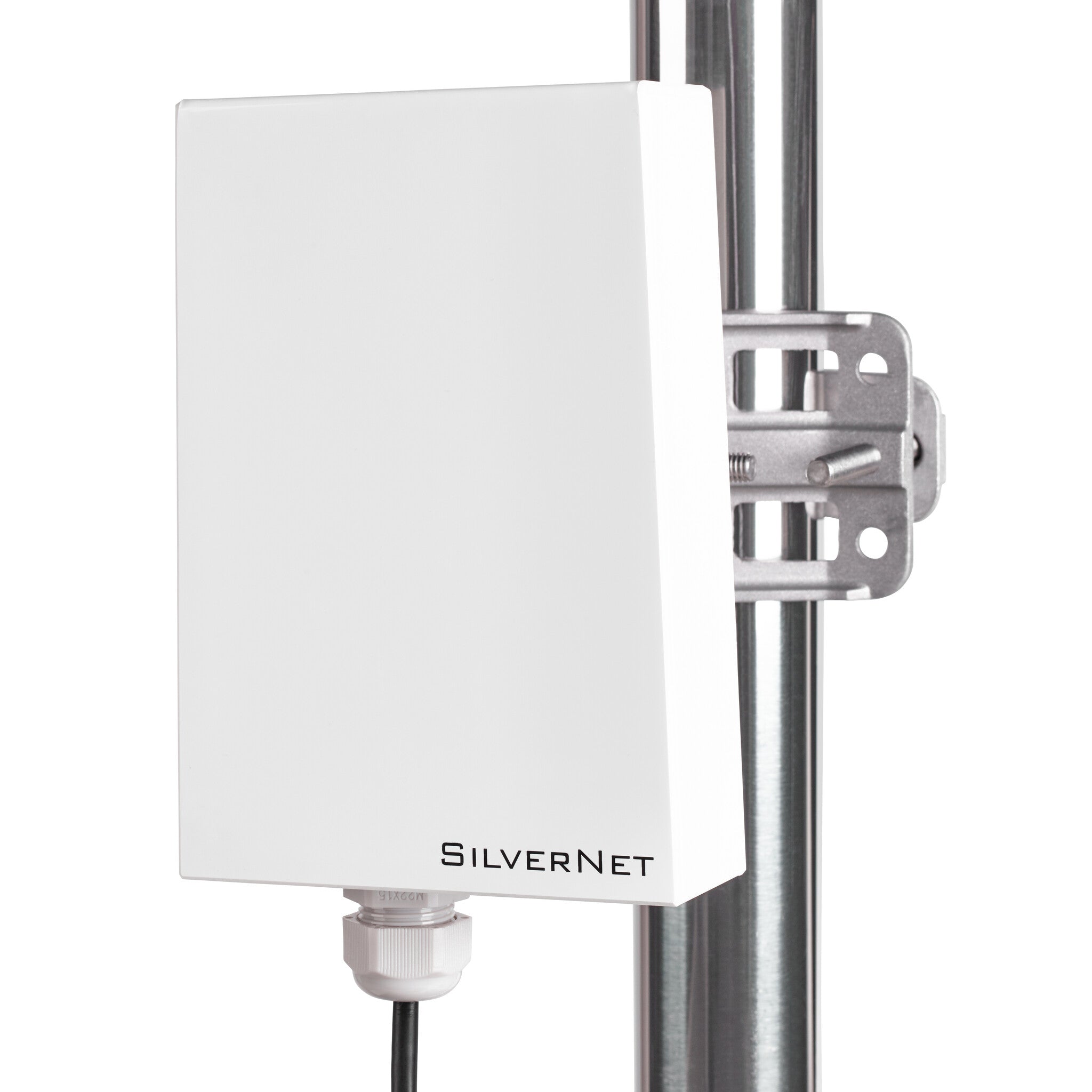

The amazingly small form factor of the MICRO will benefit locations where the radio needs to be unobtrusive. (17.9 x 12 x 4.5 cm). Available in Standard White or Carbon Black to fit into street scenery. Other colours available on special order.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
| Data transmission | |
|---|---|
| Supported data transfer rates | 100, 240, 500Mbps |
| Maximum transfer distance | 2000 m |
| Maximum data transfer rate | 100 Mbit/s |
| Antenna | |
|---|---|
| Antennas quantity | 1 |
| Antenna gain level (max) | 14 dBi |
| Antenna design | Internal |
| Wireless LAN features | |
|---|---|
| Outdoor range | 2000m |
| Indoor range | 2000m |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Signal strength | -40 dBm |
| Transmission gain | 0 - 14 dB |
| Frequency band | 5.1 - 5.8 GHz |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Single-band (5 GHz) |
| Wi-Fi | Yes |
| Network | |
|---|---|
| Static IP | Yes |
| Dynamic IP | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
|---|---|
| Authentication method | WPA2 AES |
| MAC address filtering | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2 |
| Management features | |
|---|---|
| DHCP client | Yes |
| Web-based management | Yes |
| Management protocols | SNMP V2 |
| Features | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP66 |
| Automatic Transmit Power Control (ATPC) | Yes |

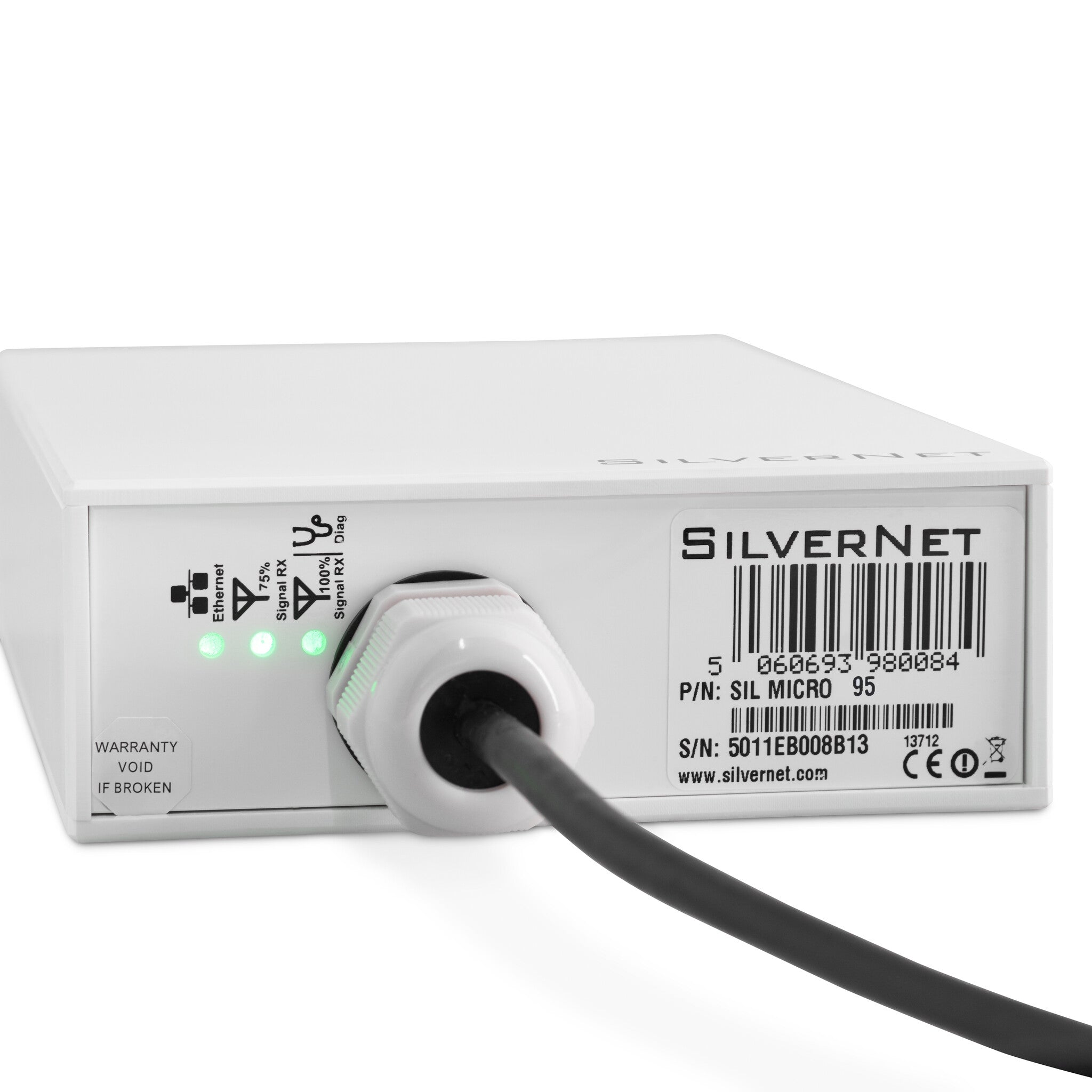

| LED indicators | LAN, Signal strength |
| Remote control function | Yes |
| Product colour | Black, White |
| Product type | Network bridge |
| System requirements | |
|---|---|
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Power | |
|---|---|
| Power plug type | Type G |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| AC input voltage | 100-240 V |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Weight & dimensions | |
|---|---|
| Weight | 500 g |
| Height | 170 mm |
| Depth | 48 mm |
| Width | 123 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |

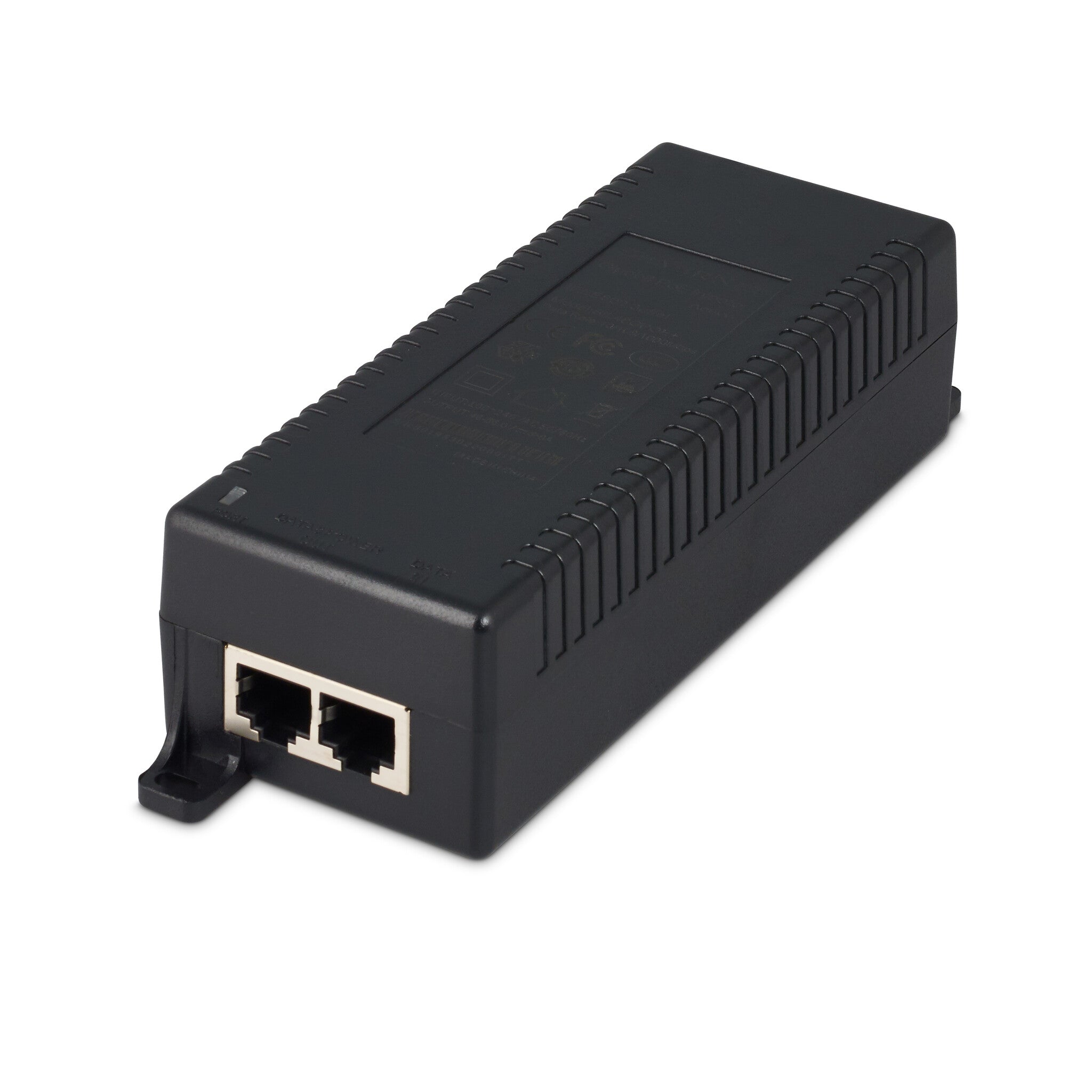

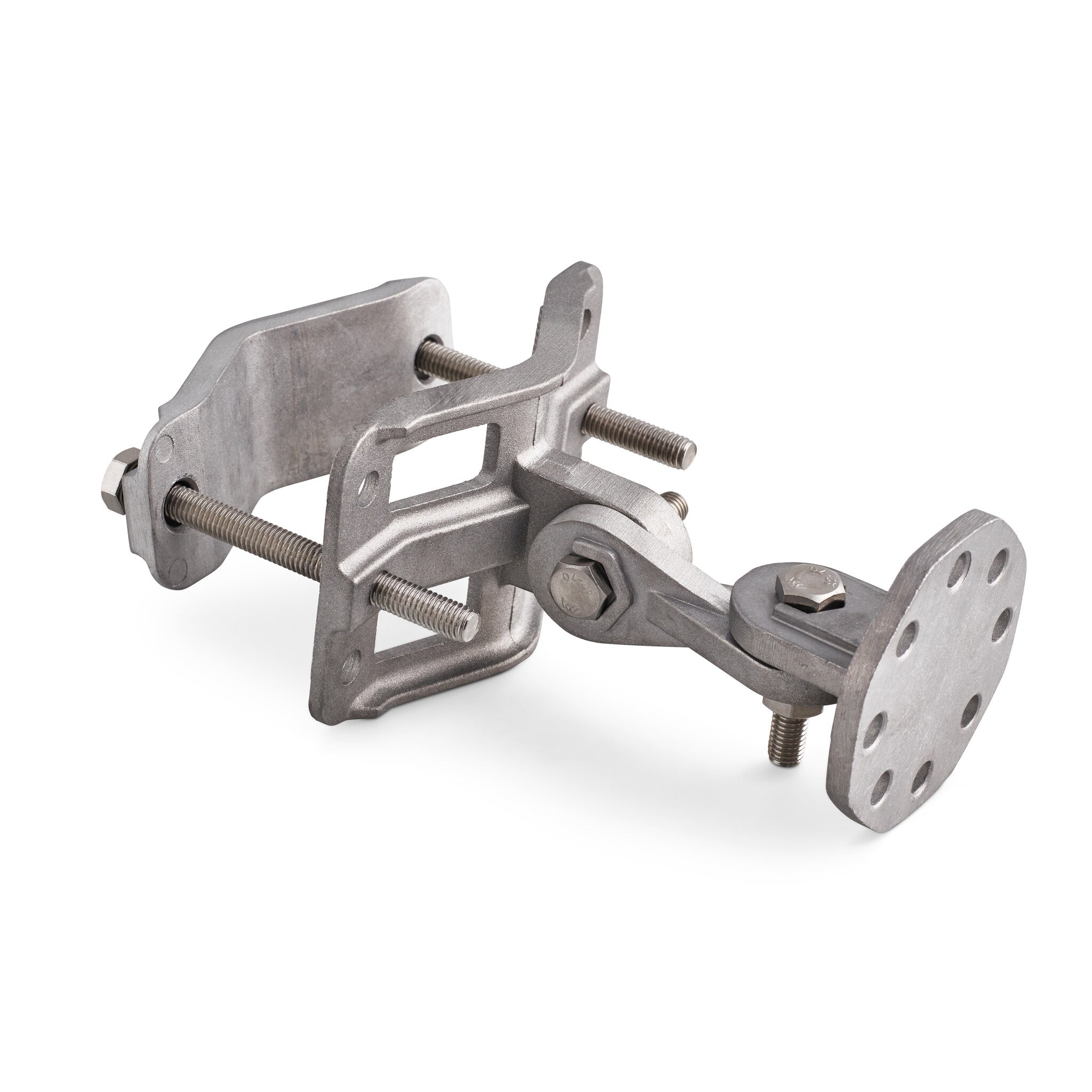

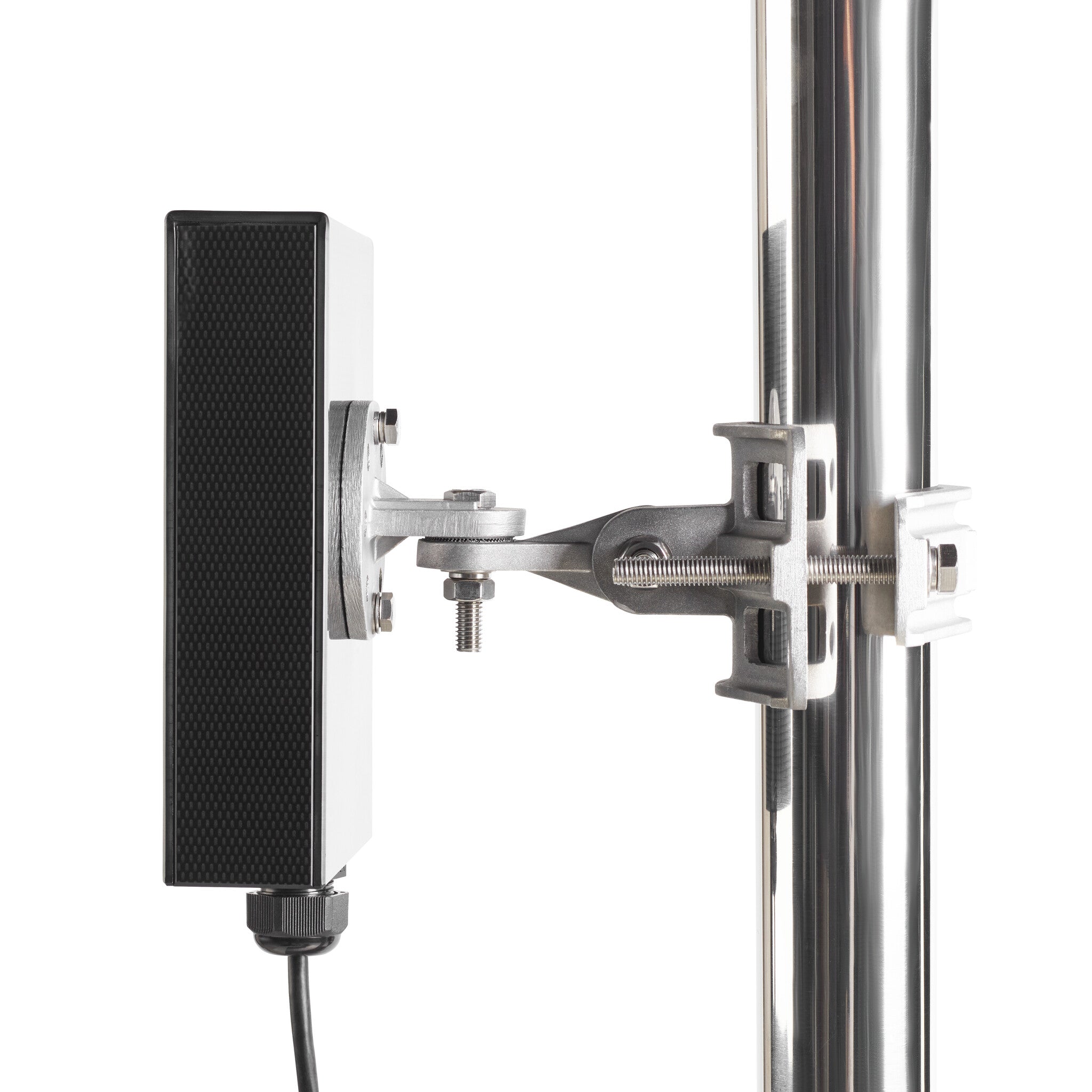

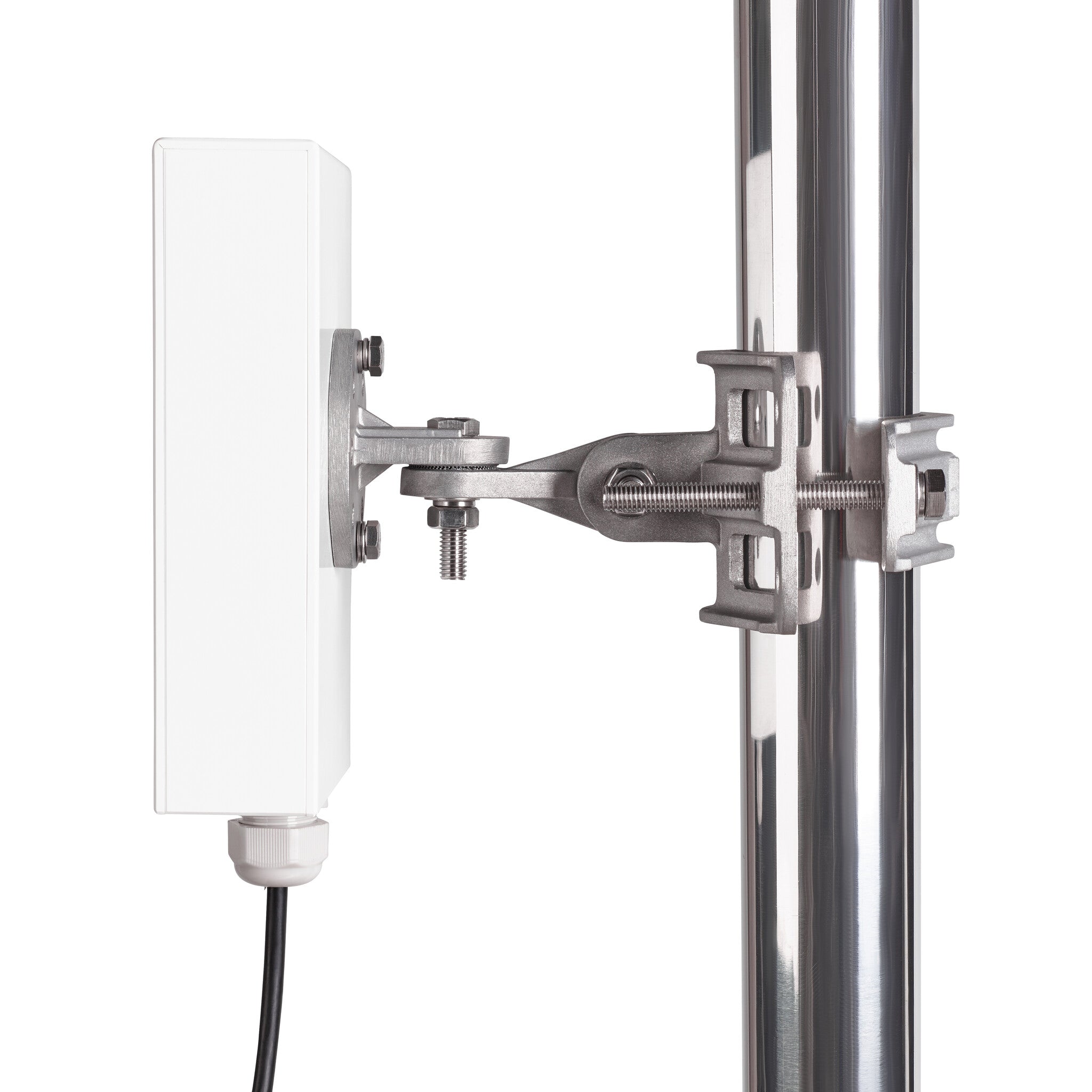

| Packaging content | Complete radio link. Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
| Packaging data | |
|---|---|
| Package width | 285 mm |
| Package depth | 320 mm |
| Package height | 115 mm |
| Package weight | 3.02 kg |
| Quantity per pack | 2 pc(s) |
| Package type | Box |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
