SilverNet · MPN: SIL iSITE Connect
£271.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £90.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • Internal memory128 MB
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • NXP Industrial Grade Processor
  • Global 4G LTE CAT4/3G Network with Dual SIM Cards for backup between multiple Carrier Networks
  • Flexible modular design providing Ethernet and Cellular
  • Rugged Enclosure with IP30 protection
  • Supports 802.11 b/g/n
  • Supports SNMP, Modbus Bridging, RIP, OSPF
  • 2 x 10/100 BaseT ethernet LAN or 1 x WAN 1 x LAN ports
  • Automatic Failover between Ethernet and Cellular
  • Supports VPN Tunnels IPsec, iSITE VPN, GRE, L2TP, PPTP, DMVPN
  • Supports AAA (Radius, TACACS+, LDAP)
  • Embeds hardware watchdog to automatically recover from various failures, ensuring highest level of reliability
  • 2 Year Warranty as standard

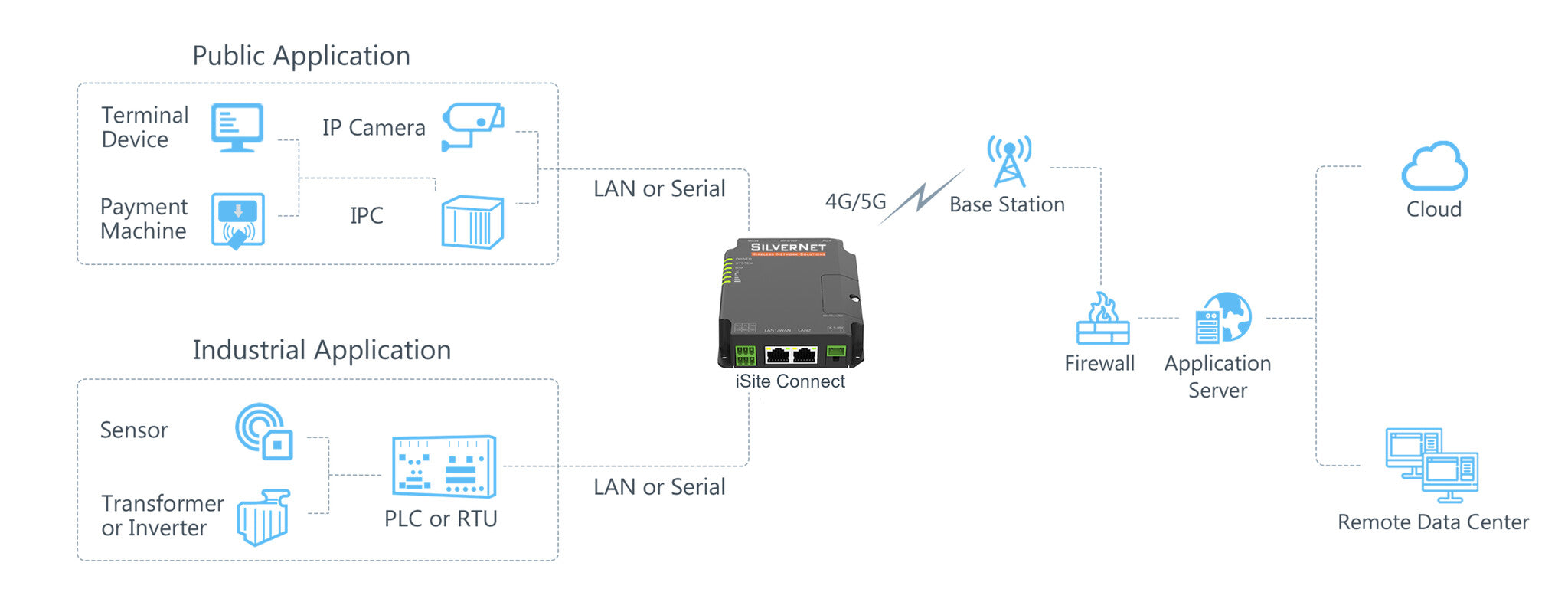

The SIL iSITE Connect is a cost effective, industrial mobile router with embedded intelligent features that are designed for diverse M2M/IoT applications.

UUtilizing WCDMA, 4G LTE carrier support, and drop-in connectivity, the iSITE range stands out for operators aiming to maximize uptime and reliability.

The iSITE range is highly versatile in various IoT/M2M applications, thanks to its straightforward deployment and comprehensive remote device management through SilverNet's 'iSITE Hub'.

Moreover, by integrating with SilverNet's 'iSITE VPN', secure tunnels to private networks can be established, enhancing security and privacy.

The iSITE Connect uses an embedded cellular modem and contains dual SIM slots for network failover. Thus, the iSITE Connect provides 3G/4G cellular network connectivity with up to 150 Mbps download capacity and up to 50 Mbps uplink.

With 2 fast Ethernet ports and Wi Fi 802.11b/g/n supported, these capabilities can deliver users uninterrupted internet access.

Specifications

WAN connection

WAN connection typeRJ-45
3G/4G USB modem compatibilityNo
SIM card slotYes
DSL WANNo
Ethernet WANYes

Wireless LAN features

Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)150 Mbit/s
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi bandSingle-band (2.4 GHz)
Show all 81 specificationsShow fewer specifications

Network

VPN PassthroughYes
Static routeYes
Policy-based routingYes
Dynamic DNS (DDNS)Yes
Automatic channel selectionYes
Load balancing systemYes
Port forwardingYes
Multicast supportYes
Flow control supportYes
Auto-sensingYes
Full duplexYes
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Cabling technology10/100Base-T(X)
Ethernet LAN data rates10,100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Ethernet LANYes

Mobile network

SIM card typeMicroSIM
Dual SIM supportYes
Mobile network generation4G

Ports & interfaces

RS-232 ports1
RS-485 ports1
Terminal block portYes
USB portNo
Ethernet LAN (RJ-45) ports2

Management features

Reset buttonYes
Quality of Service (QoS) supportYes
Bandwidth controlYes
Web-based managementYes

Security

DMZ supportYes
System event logYes
IP address filteringYes
MAC address filteringYes
FilteringYes
DDoS protectionYes
DoS attack preventionYes
Access Control List (ACL)Yes
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP

Protocols

Supported network protocolsIPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH
Management protocolsWeb, CLI, SMS, On-demand dial up, SNMP v1/v2/v3
Routing protocolsOSPF, RIP-1, RIP-2, VRRP
DHCP serverYes
DHCP clientYes

Design

LED indicatorsActivity, LAN, Power, System, VPN, WLAN
International Protection (IP) codeIP30
Wall mountableYes
Housing materialAluminium
Product colourBlack
Product typePortable router

Packaging content

Antenna includedYes
AC adapter includedYes

Certificates

CertificationCE, FCC, RCMRoHSIEC 61000-4-2 Level 3IEC 61000-4-3 Level 2IEC 61000-4-4 Level 3IEC 61000-4-5 Level 3IEC 61000-4-6 Level 3IEC 61000-4-8 Level 4IEC 61000-4-11 Level 3EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328EN62368-1

Antenna

Antennas quantity3
Antenna connector typeRJ-SMA
Antenna designExternal

Features

Electromagnetic compatibilityEN 55032, EN 55035
Firmware upgradeableYes
Watch Dog functionYes
Flash memory128 MB
Internal memory128 MB
Processor frequency528 MHz
Processor architectureARM Cortex A7
Built-in processorYes

Power

Power consumption (typical)1.9 W
Power source typeDC

Operational conditions

Isolation1.5 kV
Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width110 mm
Depth90 mm
Height26 mm
Weight220 g
