SilverNet · MPN: SIL-BASE
£745.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £248.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Point-to-MultiPoint BASE/AP Up to 5KM
  • up to 2.5Gbps Throughput
  • TDMA - Enhanced MultiPoint
  • 26dBm OUTPUT POWER MAX
  • Designed for Outdoor applications
  • SNMP
  • AES Encryption up to 256bit
  • MIMO with spatial multiplexing
  • DFS (Dynamic Frequency Selection)
  • TPC (transmit Power Control)
  • PoE 802.3afAES Encryption up to 256bit SAE
  • Alignment Beeper
  • PoE 802.3af/SFP/DC 9-56V
  • Spectrum Analyser

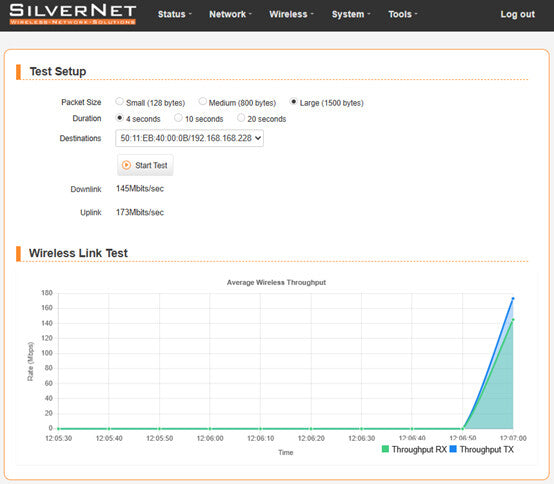

  • Built-in throughput Tester
  • SilverView Monitoring software Included

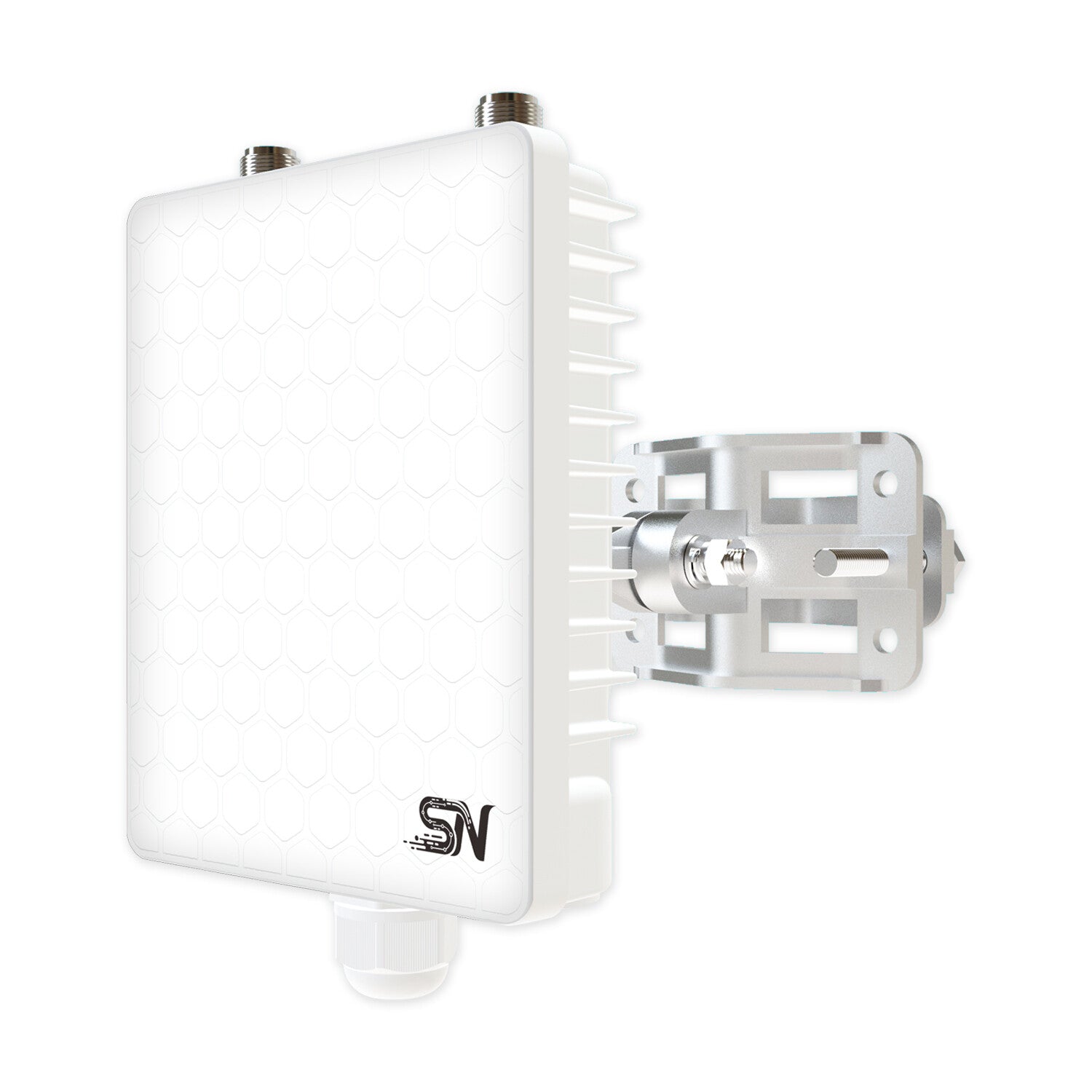

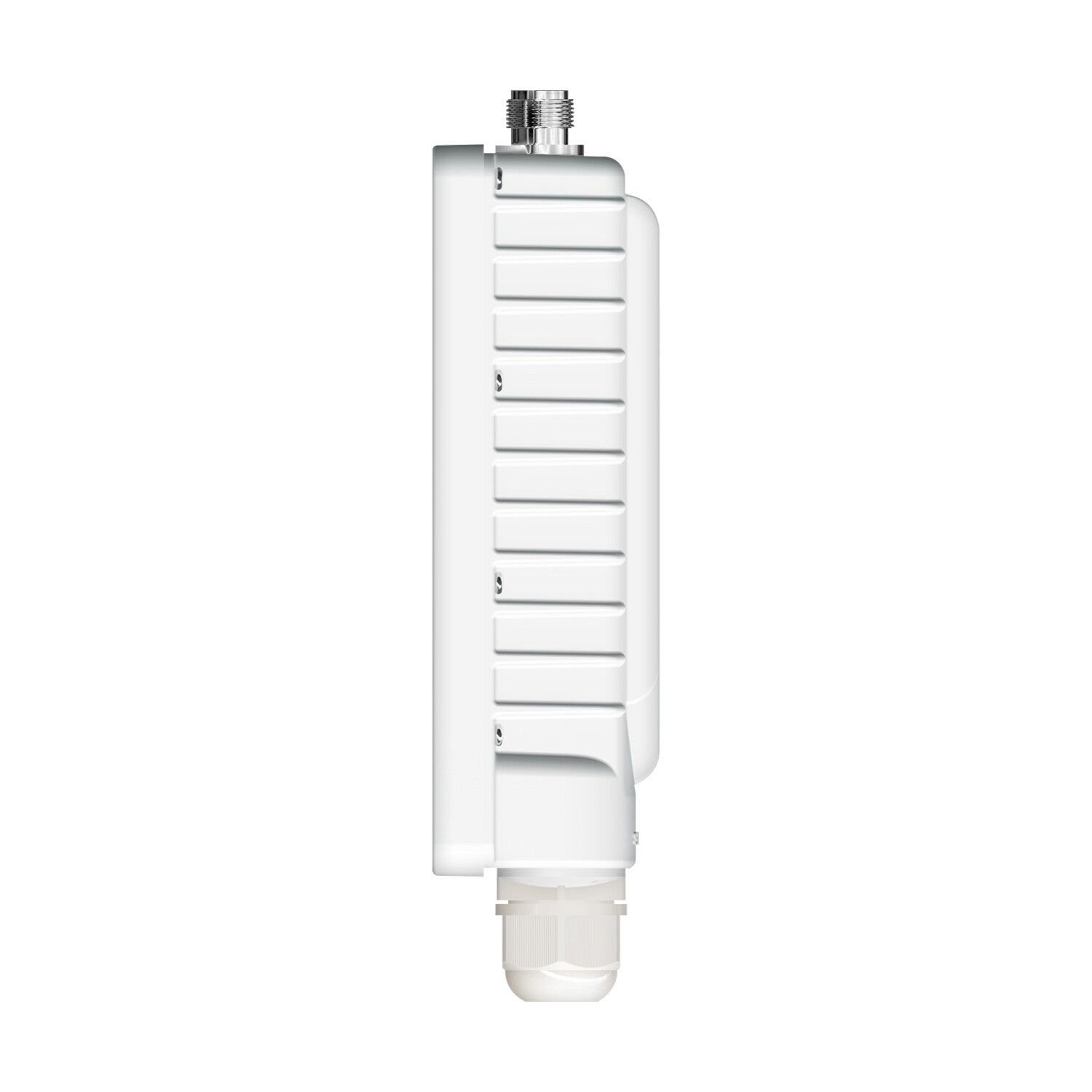

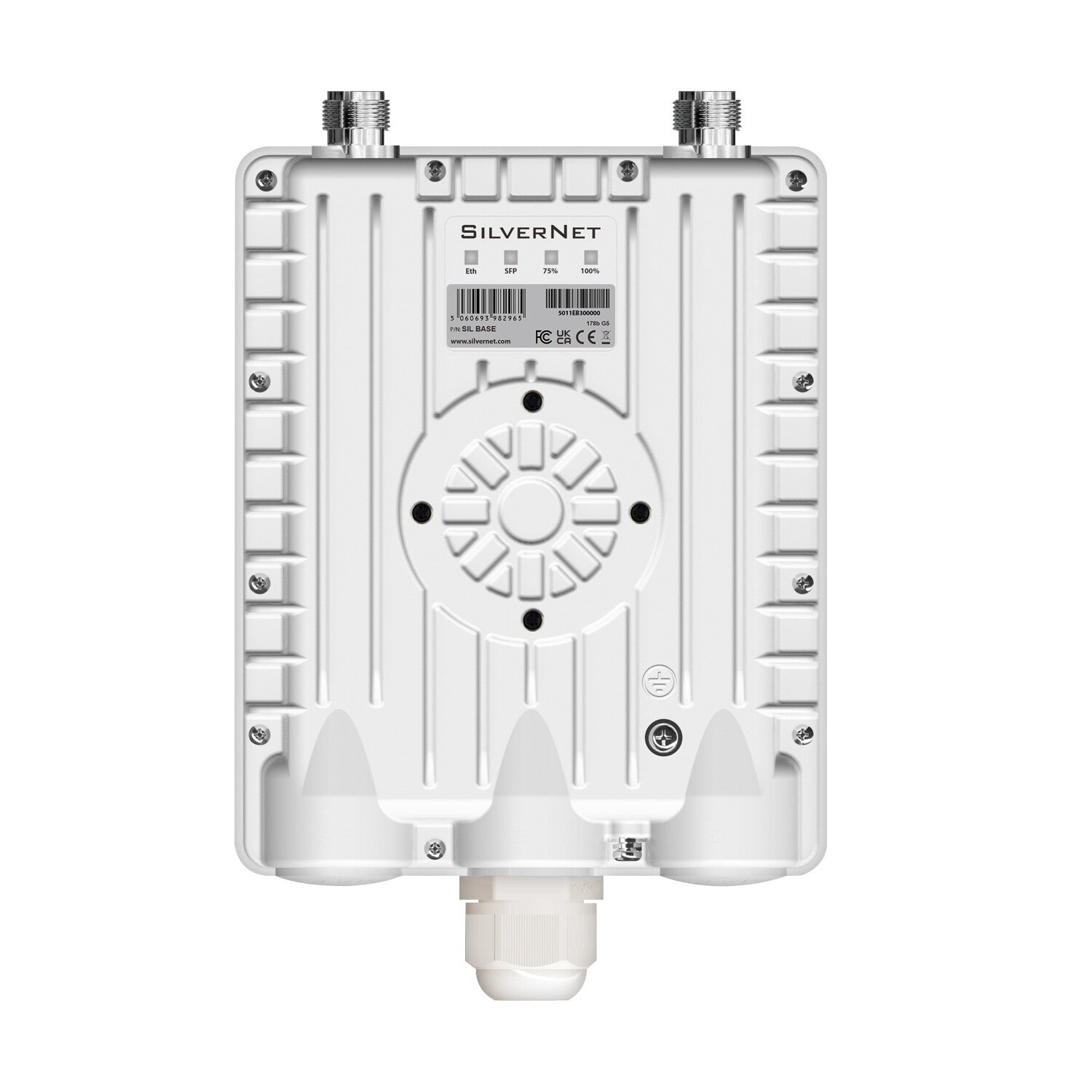

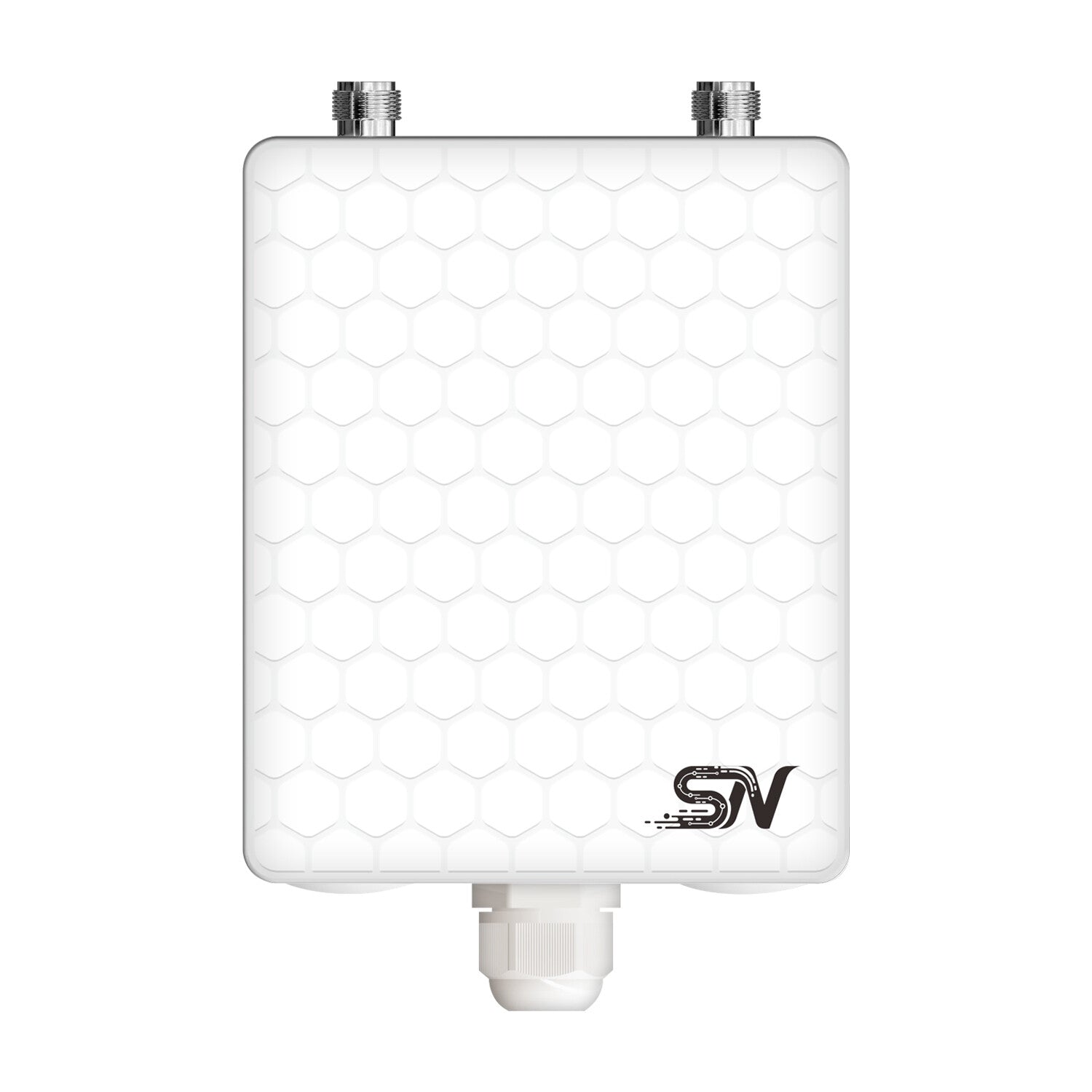

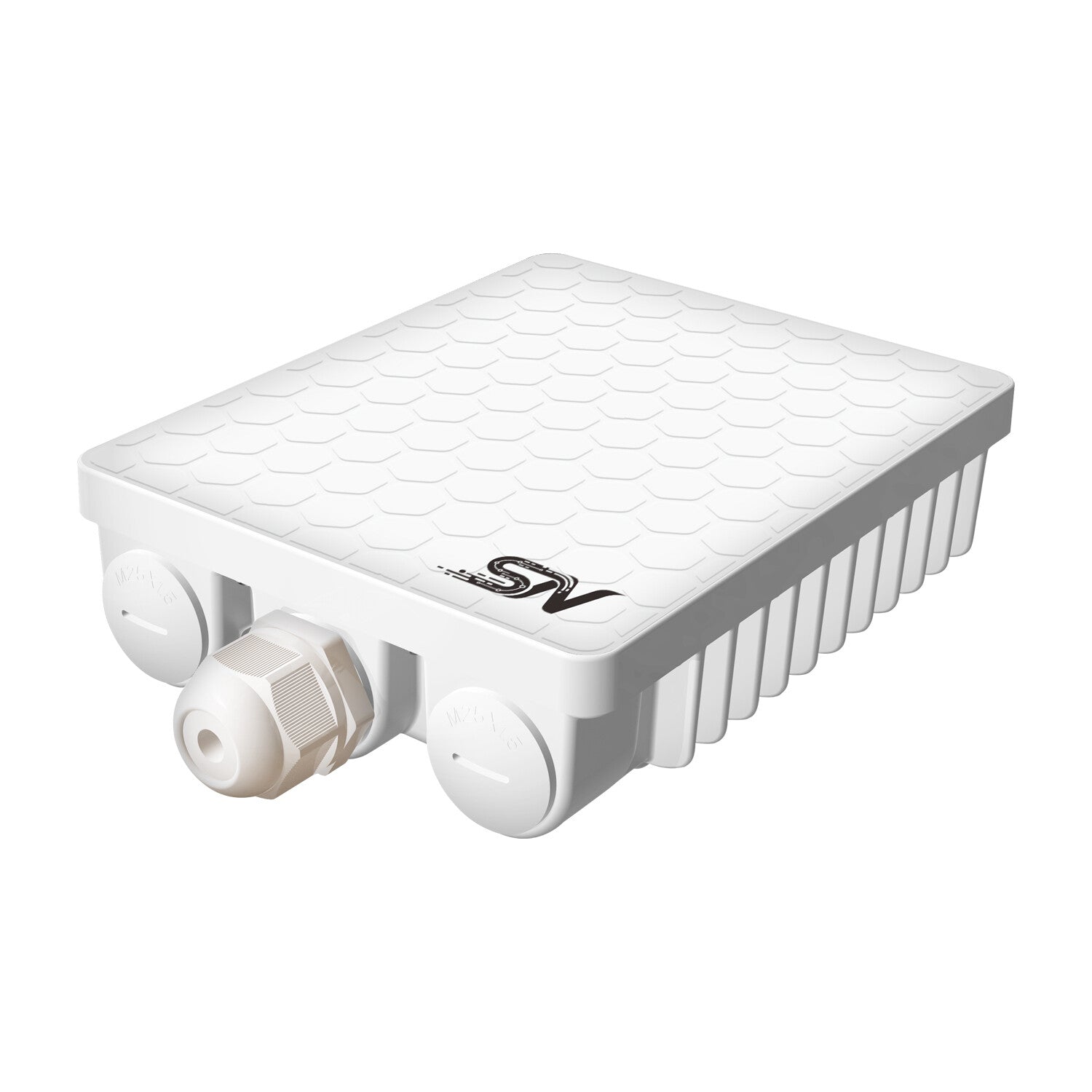

The SIL‑BASE Gen 5 is a powerful, flexible wireless access point designed for high‑performance Point‑to‑Multipoint (PtMP) networks. Delivering full‑duplex throughput of up to 2.5 Gbps of usable bandwidth in each direction, it provides exceptional capacity for wide‑area distribution networks, business campuses, industrial sites, CCTV backbones, and ISP‑grade deployments.

Operating across a broad 5.125–6.425 GHz frequency range, the SIL‑BASE offers excellent channel flexibility and resilience in both low‑noise and high‑density environments. As the central access point in a multipoint system, it is designed to be paired with Omni or Sector antennas to deliver either 360‑degree coverage or focused long‑range sectorised distribution.

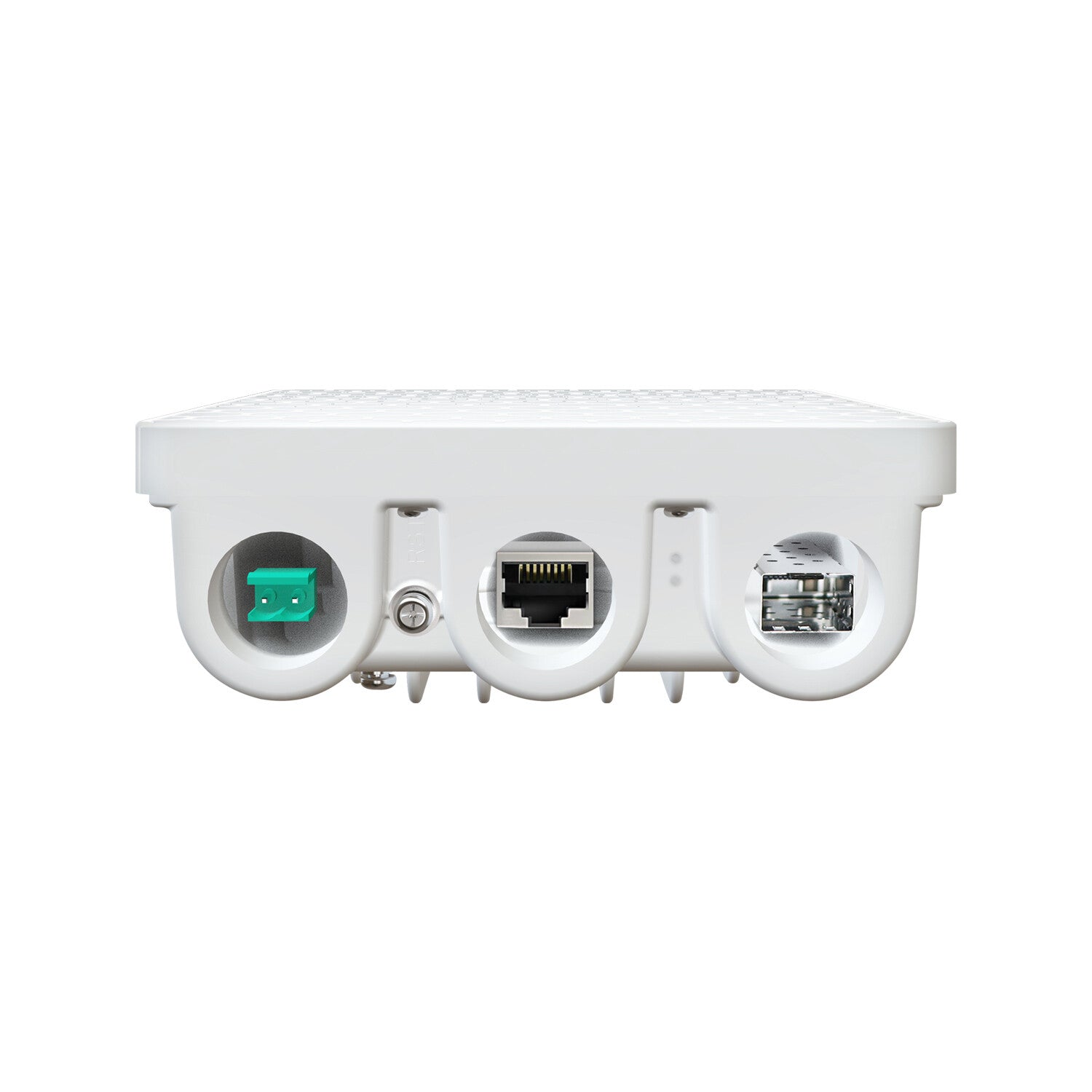

Connectivity is comprehensive and installer‑friendly, featuring 1 × RJ45, 1 × SFP+, and 1 × DC input (9–56 V), ensuring seamless integration into a wide range of network and power infrastructures. The SIL‑BASE also includes AES+ 256 SAE encryption, WEB‑based management, and PoE, making installation secure, efficient, and straightforward.

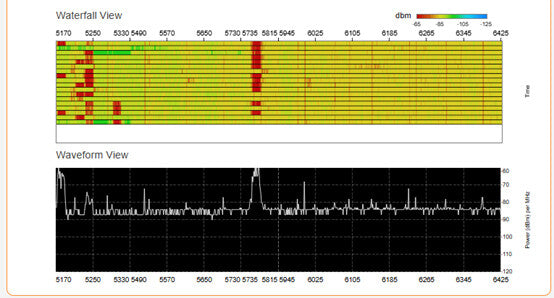

Advanced radio features such as TDMA, a built‑in spectrum analyser, and an integrated throughput tester ensure stable, predictable performance even in busy multipoint environments. When paired with SIL‑LITE or SIL‑MICRO client radios, the SIL‑BASE forms the core of a robust, scalable, and high‑capacity PRO G5 multipoint system.

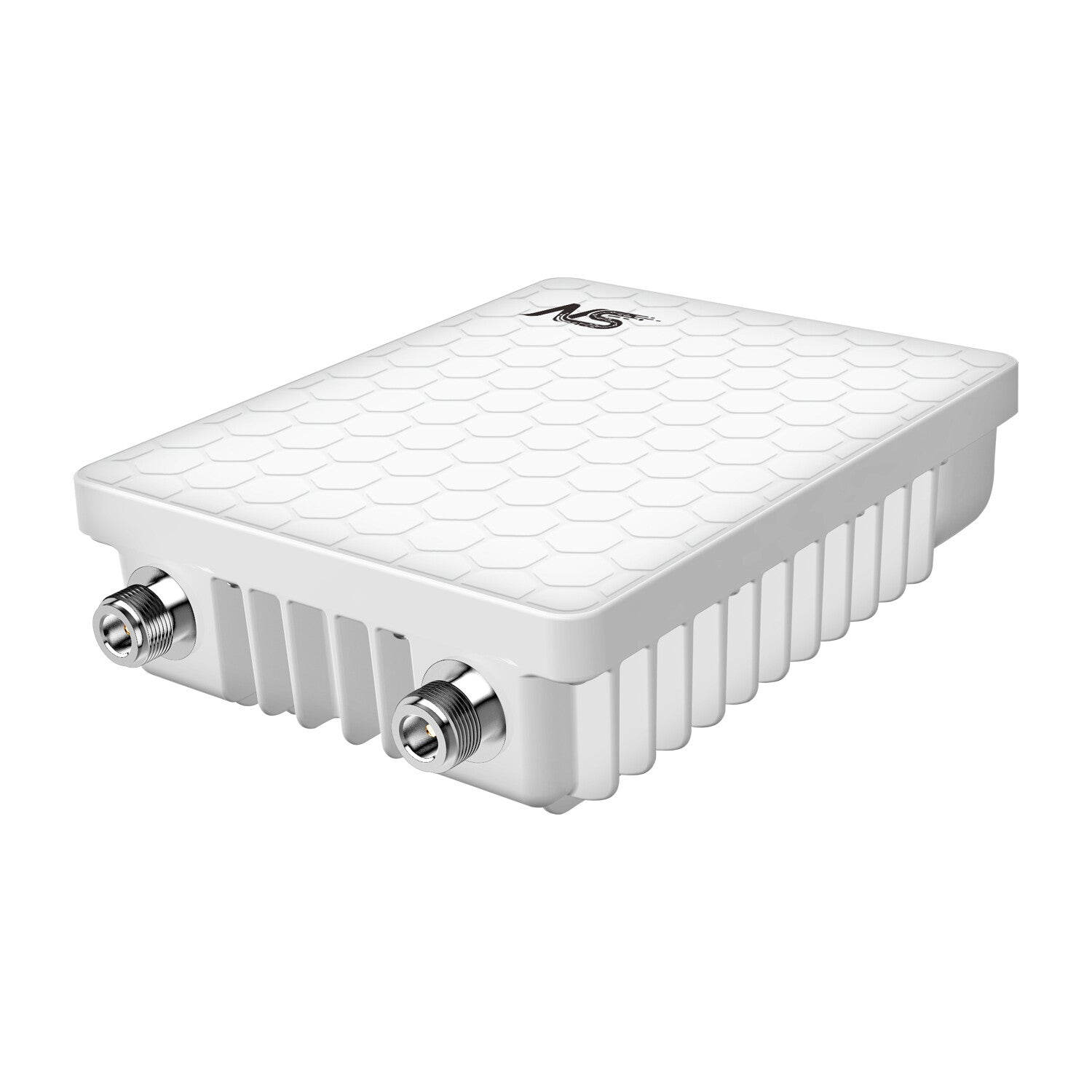

The PRO BASE Gen 5 is designed to work seamlessly with SilverNet’s range of high‑performance external antennas. Using standard antenna cables, the unit can be paired with:

- Dish antennas for ultra‑long‑range, high‑capacity Point‑to‑Point links
- Grid antennas for long‑distance rural or industrial connectivity
- Sector antennas for wide‑area Point‑to‑Multipoint coverage
- Omni antennas for 360‑degree access in campus, urban, or public‑space deployments

This flexibility allows the SIL‑BASE Gen 5 to be tailored precisely to the environment — from long‑range backhaul links to multi‑client distribution networks.

As part of the SilverNet PRO G5 Range, the SIL‑BASE is engineered to replace costly leased lines with a reliable, high‑performance wireless alternative. When used with SilverView, SilverNet’s FREE network monitoring and management software, the SIL‑BASE becomes a powerful, easy‑to‑manage access point that simplifies deployment, monitoring, and long‑term maintenance.

The SIL‑BASE Gen 5 includes a 2‑year parts and labour warranty, extendable to 5 years for enhanced long‑term protection.

Specifications

Data transmission

Maximum data transfer rate2500 Mbit/s
Maximum transfer distance5000 m

Antenna

Antenna designExternal
Antenna connector typeN-type
Show all 54 specificationsShow fewer specifications

Wireless LAN features

Wi-FiYes
Wi-Fi bandSingle-band (5 GHz)
Top Wi-Fi standardWi-Fi 7 (802.11be)
WLAN data transfer rate (max)2500 Mbit/s
Frequency band5.150 - 6.425 GHz
Output power (dBm)26
Outdoor range5000

Network

Ethernet LANYes
Ethernet LAN interface type2.5 Gigabit Ethernet
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11n
Full duplexYes
Dynamic IPYes
Static IPYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Power over Ethernet plus (PoE+) ports quantity1
DC-in jackYes

Security

Security algorithms256-bit AES, SNMPv2, SNMPv3, SSH
MAC address filteringYes

Management features

Web-based managementYes
DHCP clientYes

Features

Product typeNetwork bridge

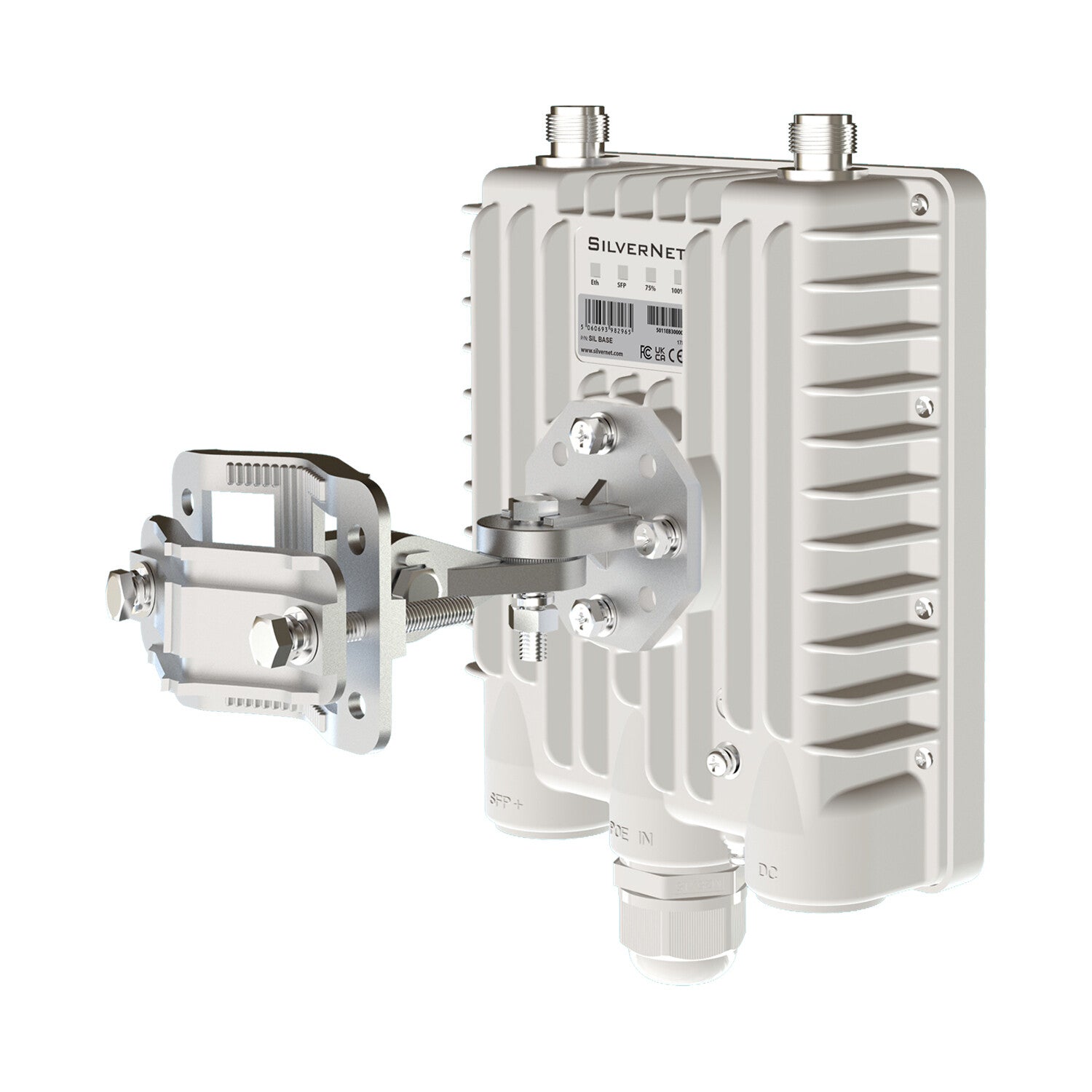

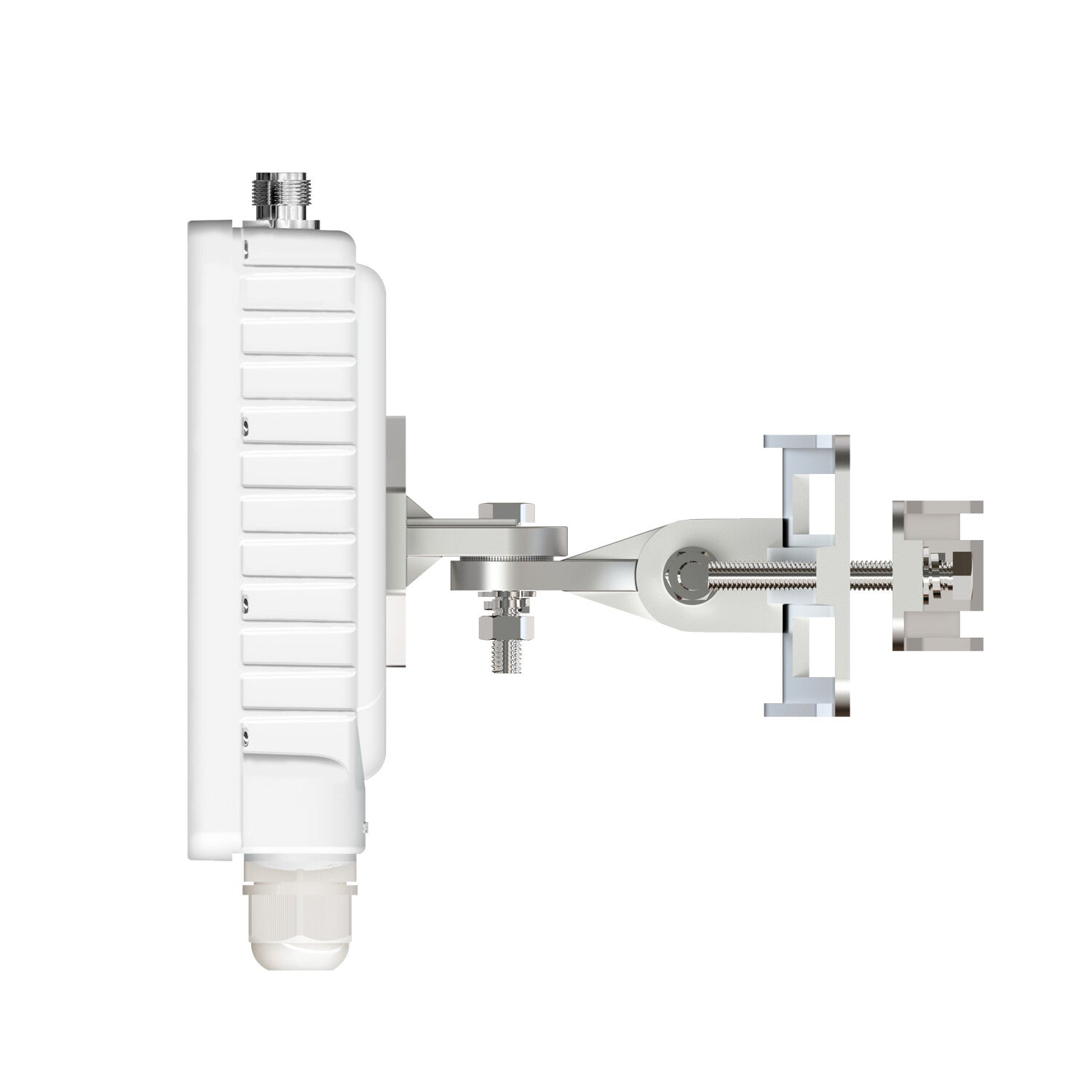

Mounting typeWall/Pole
Product colourWhite
LED indicatorsLAN, Power, Signal strength
Automatic Transmit Power Control (ATPC)Yes
Wi-Fi Multimedia (WMM)/(WME)Yes
Network Time Protocol (NTP) clientYes
Quality of Service (QoS) supportYes
Surge protectionYes
International Protection (IP) codeIP67
Reset buttonYes
Mean time between failures (MTBF)60000 h

Power

Power source typeDC, PoE
AC input voltage100-240 V
Power supply15.4 W
DC input voltage9-56 V
Power consumption (max)16 W
Power consumption (typical)6 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) voltage48 V
Power plug typeType G

Operational conditions

Operating temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage temperature (T-T)-40 - 80 °C

Certificates

CertificationCE, FCC

Weight & dimensions

Width140 mm
Depth52 mm
Height170 mm
Weight790 g

Other features

Warranty period2 year(s)
