SilverNet MAX 500-PCP Network bridge 500 Mbit/s White
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £745.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Point-to-Point Outdoor Wireless Bridge Up to 60KM
- Point-to-MultiPoint Client
- 500Mbps throughput
- Integrated Dual 25dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (transmit Power Control)
- PoE 802.3af

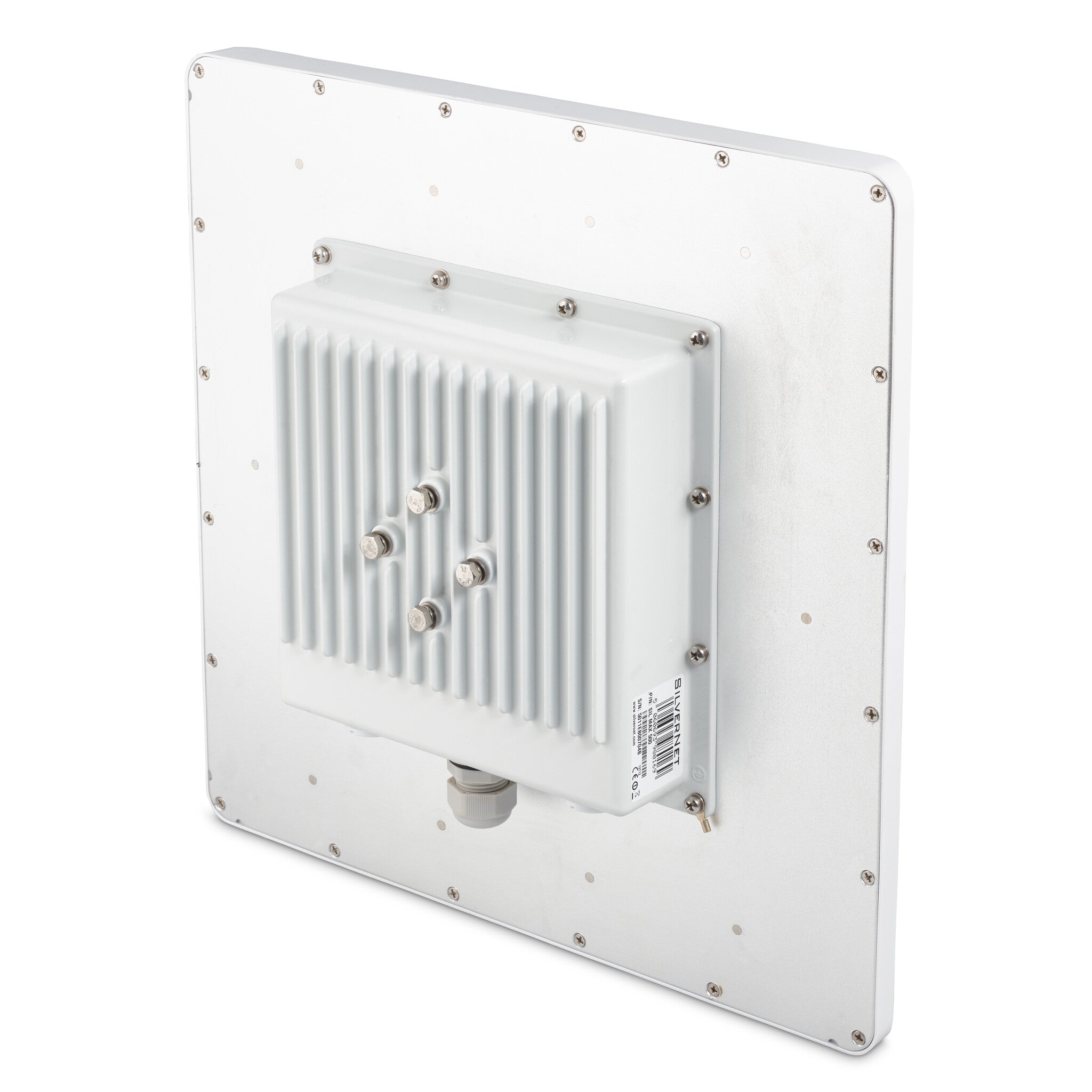

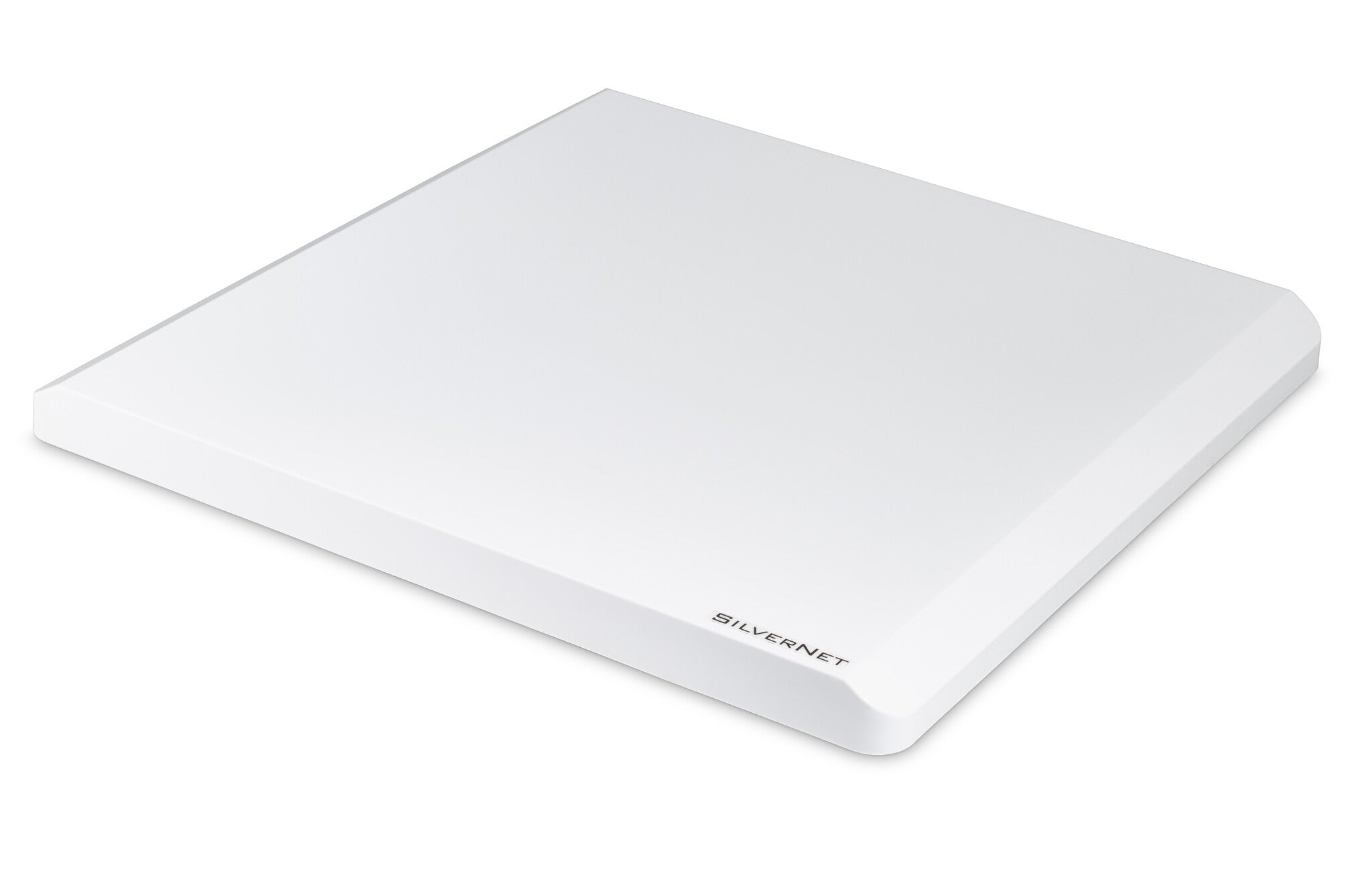

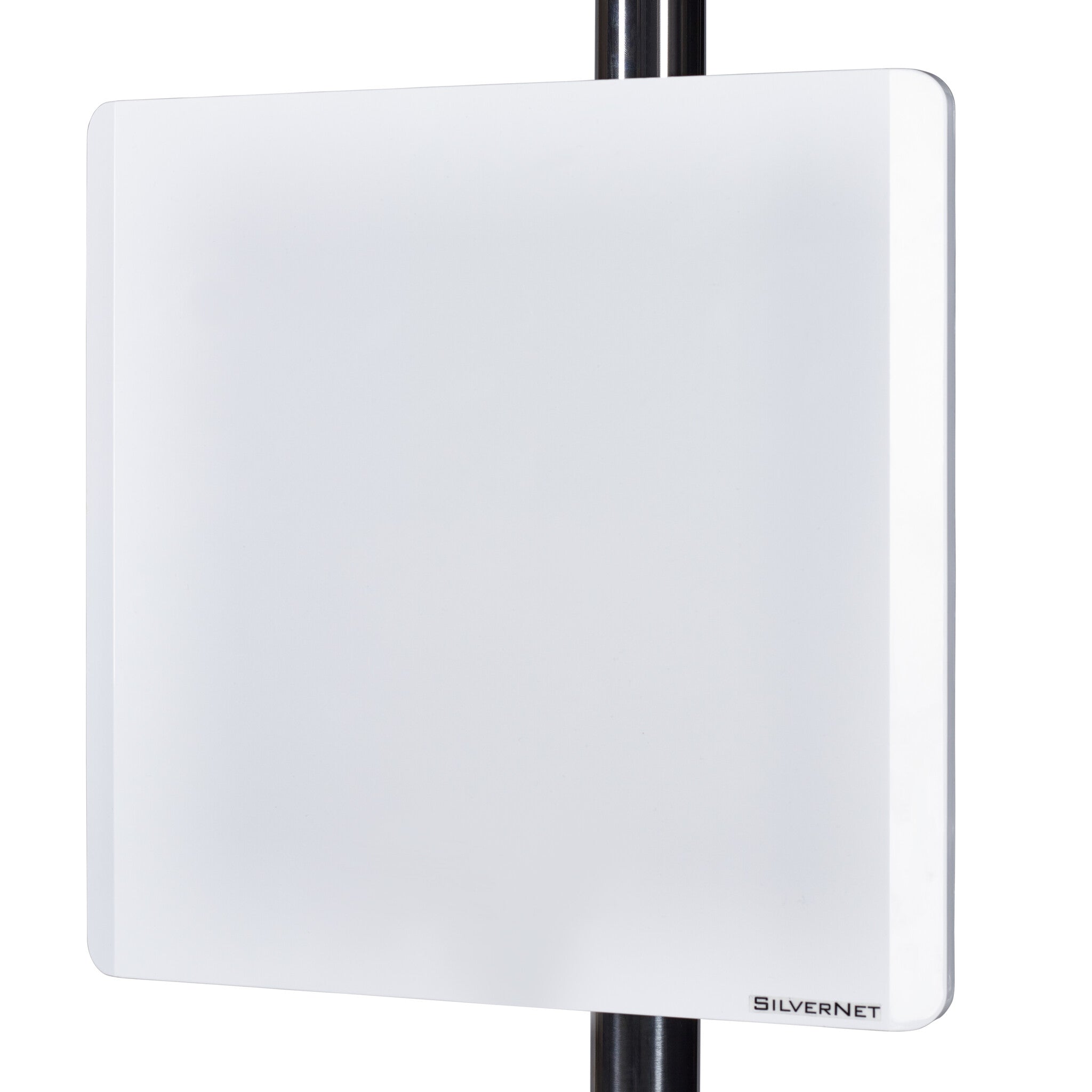

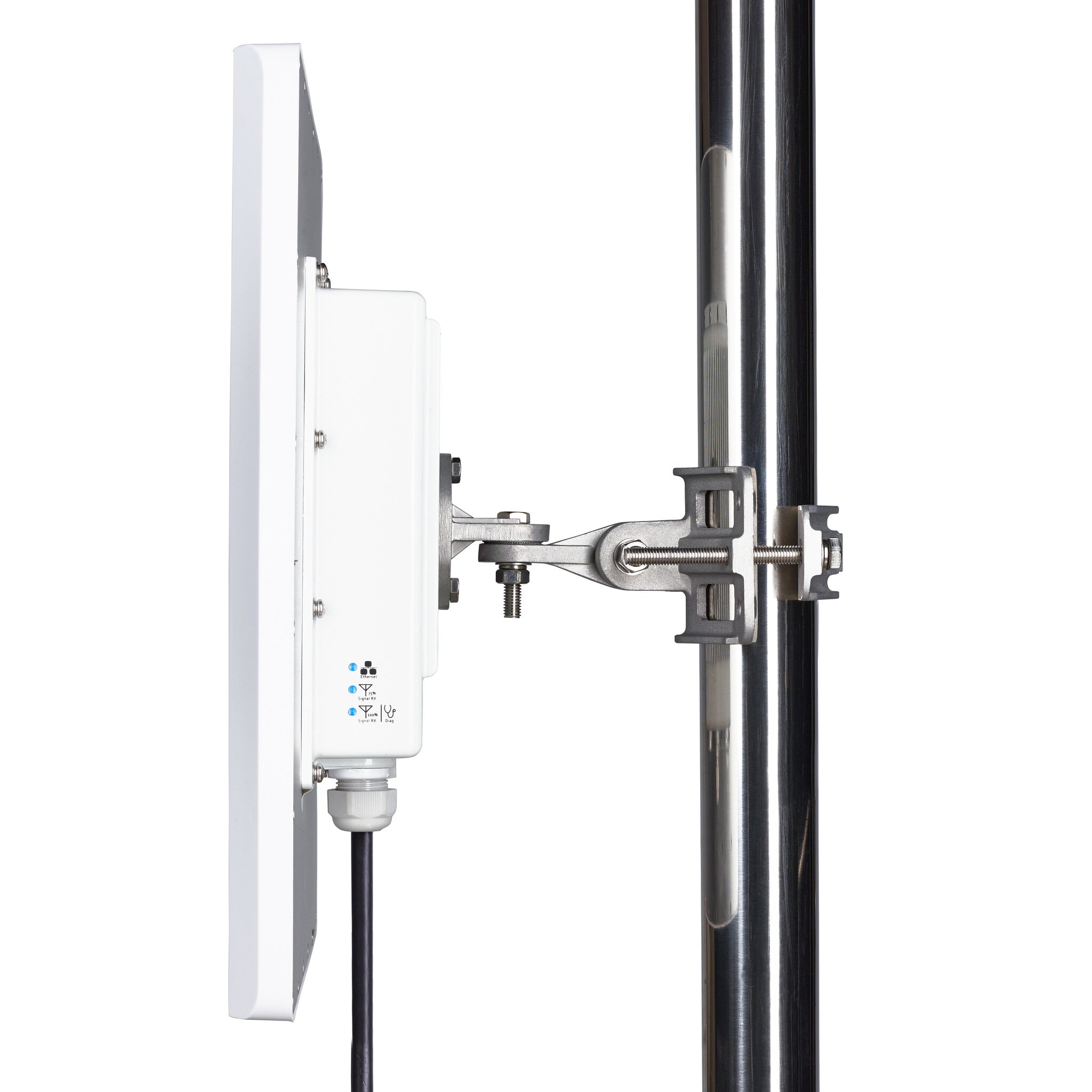

The SIL MAX 500-PCP outdoor wireless bridge can transmit data at speeds up to 500Mbps over distances up to 20km. Encased in a durable metal housing with built-in lightning protection, it is perfect for harsh environments where a stable and reliable connection is essential.
Pre-configured and equipped with all the features of the standard SIL MAX PCP and SIL MAX 240-PCP, the SIL MAX 500-PCP is great for when additional bandwidth if needed.
As part of the SilverNet PRO Range, this device is among a family of leading wireless outdoor bridge solutions optimized for long-distance transmissions and designed to be compact and rugged. The PRO Range offers a cost-effective alternative to expensive lease lines, ensuring the construction of a reliable wireless system.
With the addition of our free "SilverView" network monitoring software, the SIL MAX 500-PCP provides an outstanding, feature-rich solution.
Specifications
Data transmission
| Supported data transfer rates | 95, 240, 500, 1000Mbps |
|---|---|
| Maximum transfer distance | 60000 m |
| Maximum data transfer rate | 500 Mbit/s |
Antenna
| Antennas quantity | 1 |
|---|---|
| Pan/tilt-axis range | 180° |
| Antenna gain level (max) | 23 dBi |
| Antenna design | Internal |
Show all 77 specificationsShow fewer specifications
Wireless LAN features
| Outdoor range | 60000m |
|---|---|
| Indoor range | 60000m |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Signal strength | -40 dBm |
| Transmission gain | 0 - 23 dB |
| Frequency band | 5.1 - 5.8 GHz |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Single-band (5 GHz) |
| Wi-Fi | Yes |
Network
| Static IP | Yes |
|---|---|
| Dynamic IP | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Connectivity technology | Wired & Wireless |
Security
| Authentication method | WPA2 AES |
|---|---|
| MAC address filtering | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH |
Management features
| DHCP client | Yes |
|---|---|
| Web-based management | Yes |
| Management protocols | SNMP V2 |
Features
| Mean time between failures (MTBF) | 60000 h |
|---|---|
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Automatic Transmit Power Control (ATPC) | Yes |

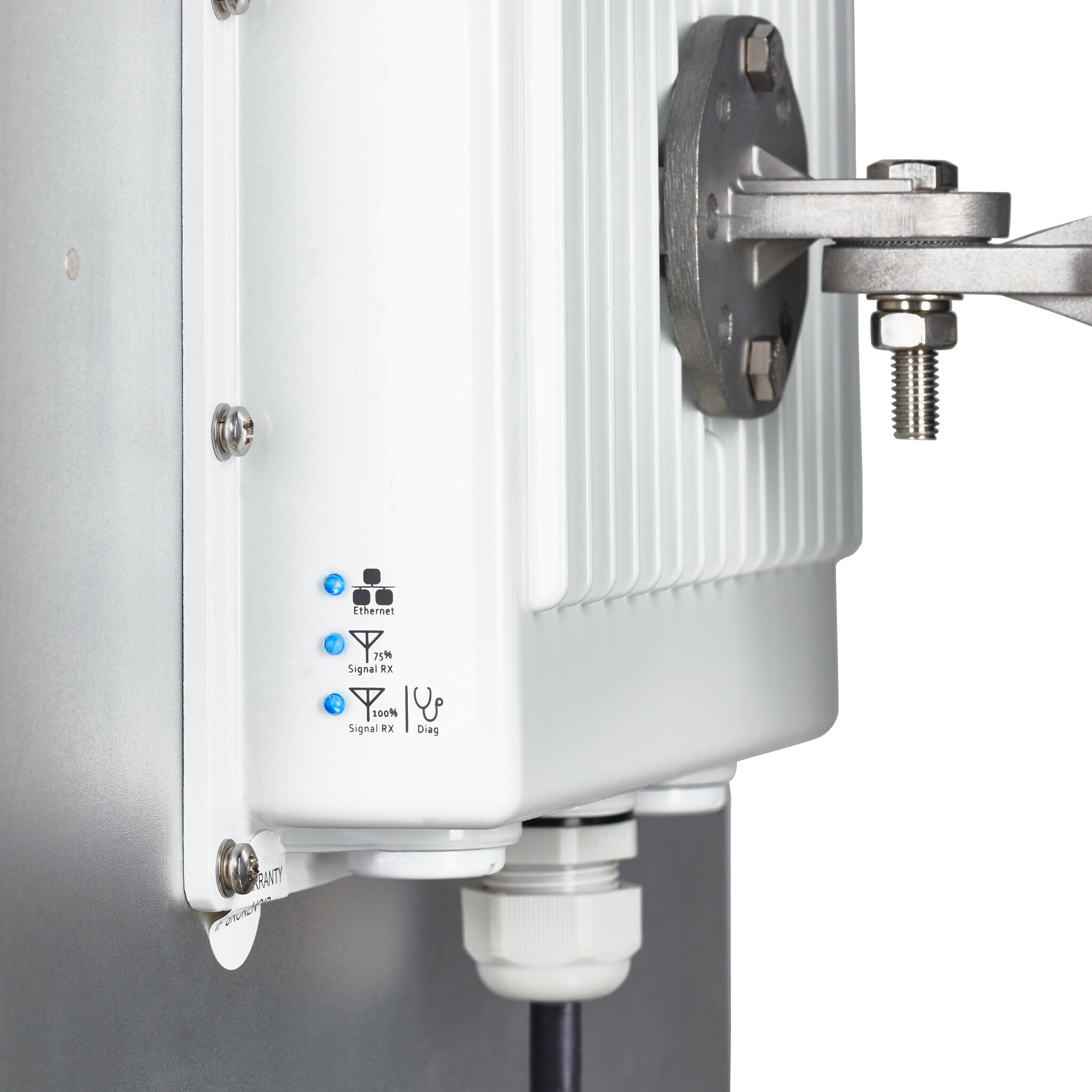

| LED indicators | LAN, Signal strength |
| Remote control function | Yes |
| Product colour | White |
| Product type | Network bridge |
System requirements
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
|---|---|
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
Power
| Power plug type | Type G |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| AC input voltage | 100-240 V |
| Power source type | DC, PoE |
Operational conditions
| Storage relative humidity (H-H) | 0 - 95% |
|---|---|
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
Certificates
| Certification | CE, FCC |
|---|
Weight & dimensions
| Weight | 2.5 kg |
|---|---|
| Height | 90 mm |
| Depth | 370 mm |
| Width | 370 mm |
| Antenna diameter | 51 cm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |
| Grounding | Yes |

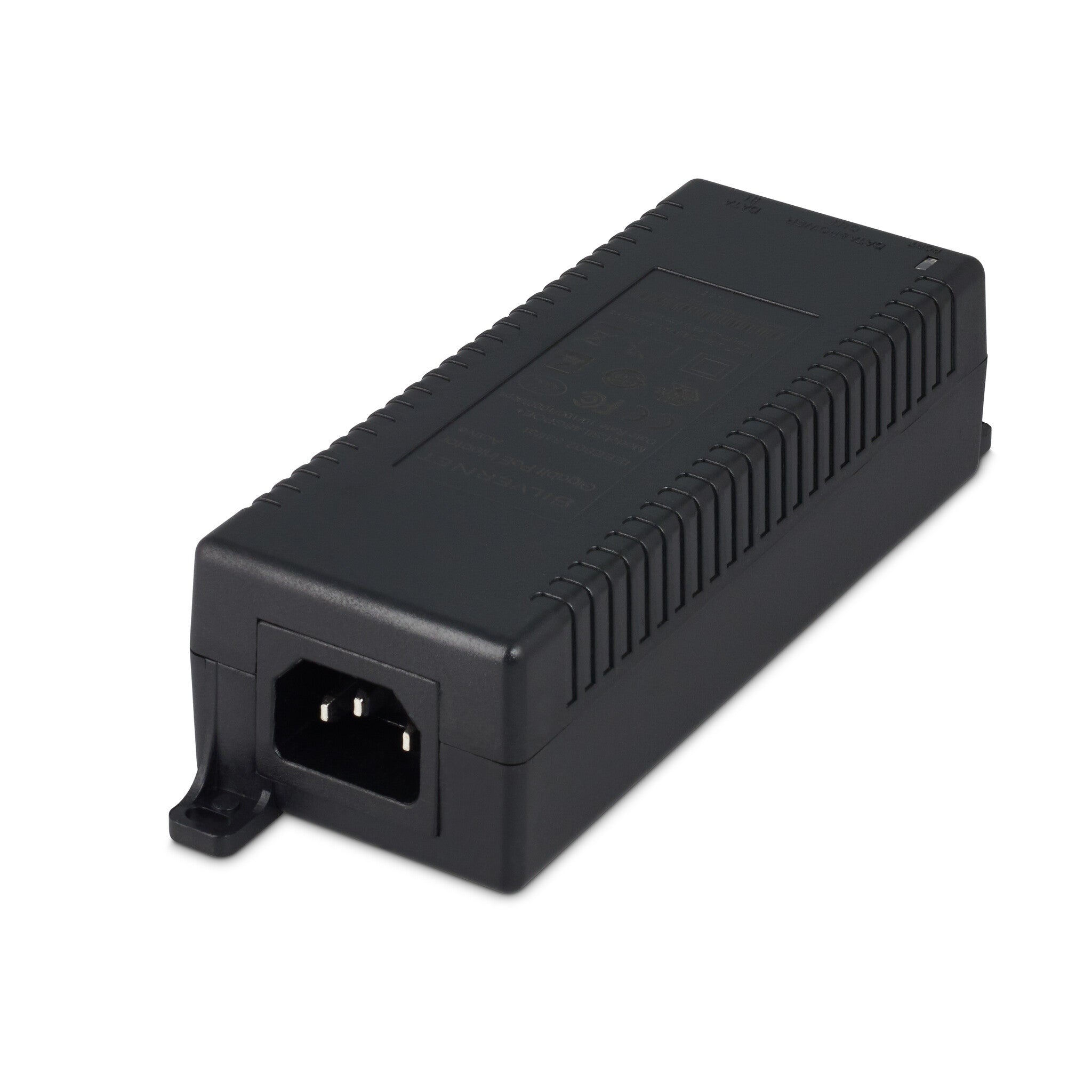

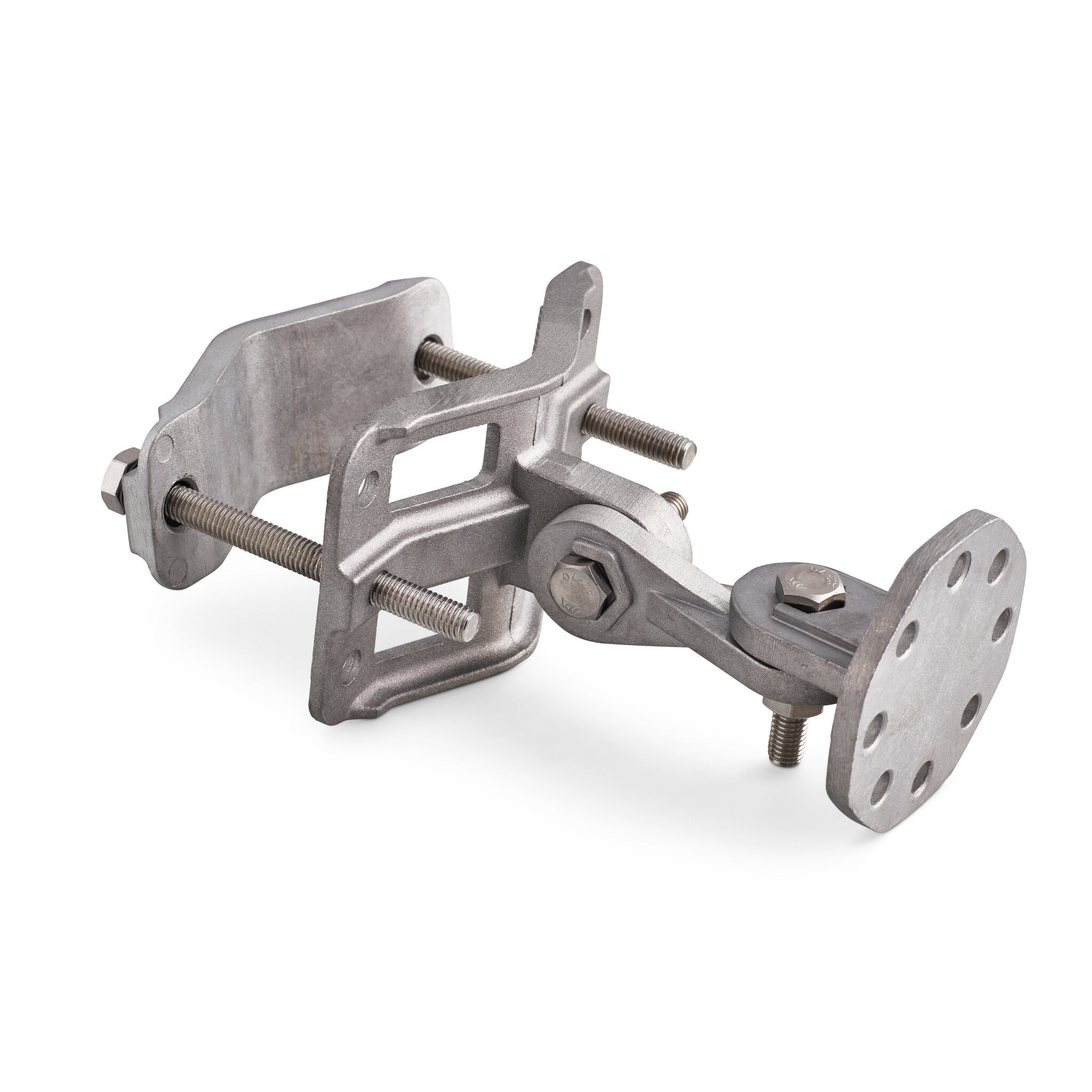

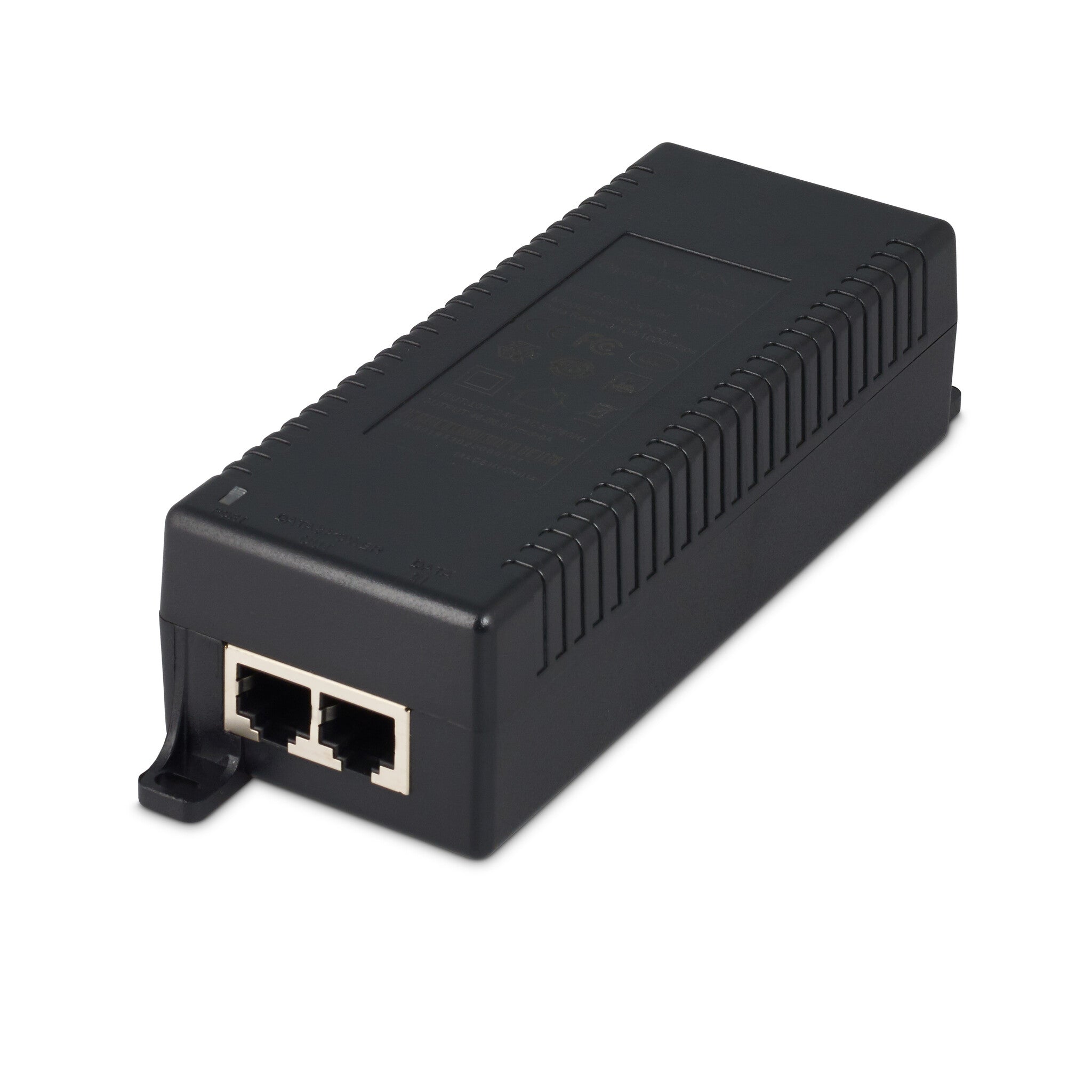

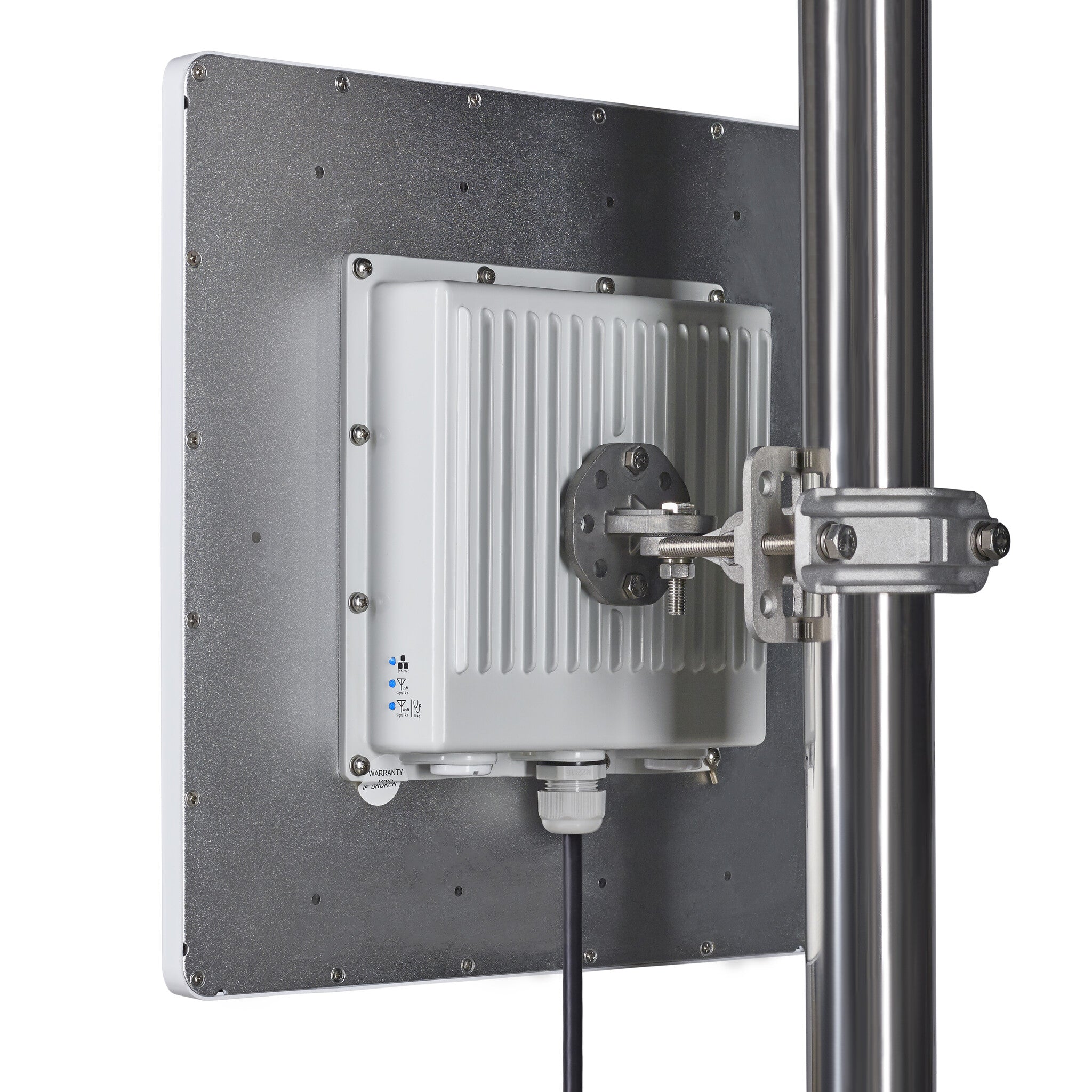

| Packaging content | Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
