SilverNet MAX 240-PCP Network bridge 240 Mbit/s White
Couldn't load pickup availability
- Point-to-Point Outdoor Wireless Bridge Up to 20KM
- Point-to-MultiPoint Client
- 240Mbps throughput
- Integrated Dual 25dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (transmit Power Control)
- PoE 802.3af
- Upgradable to 500Mbps

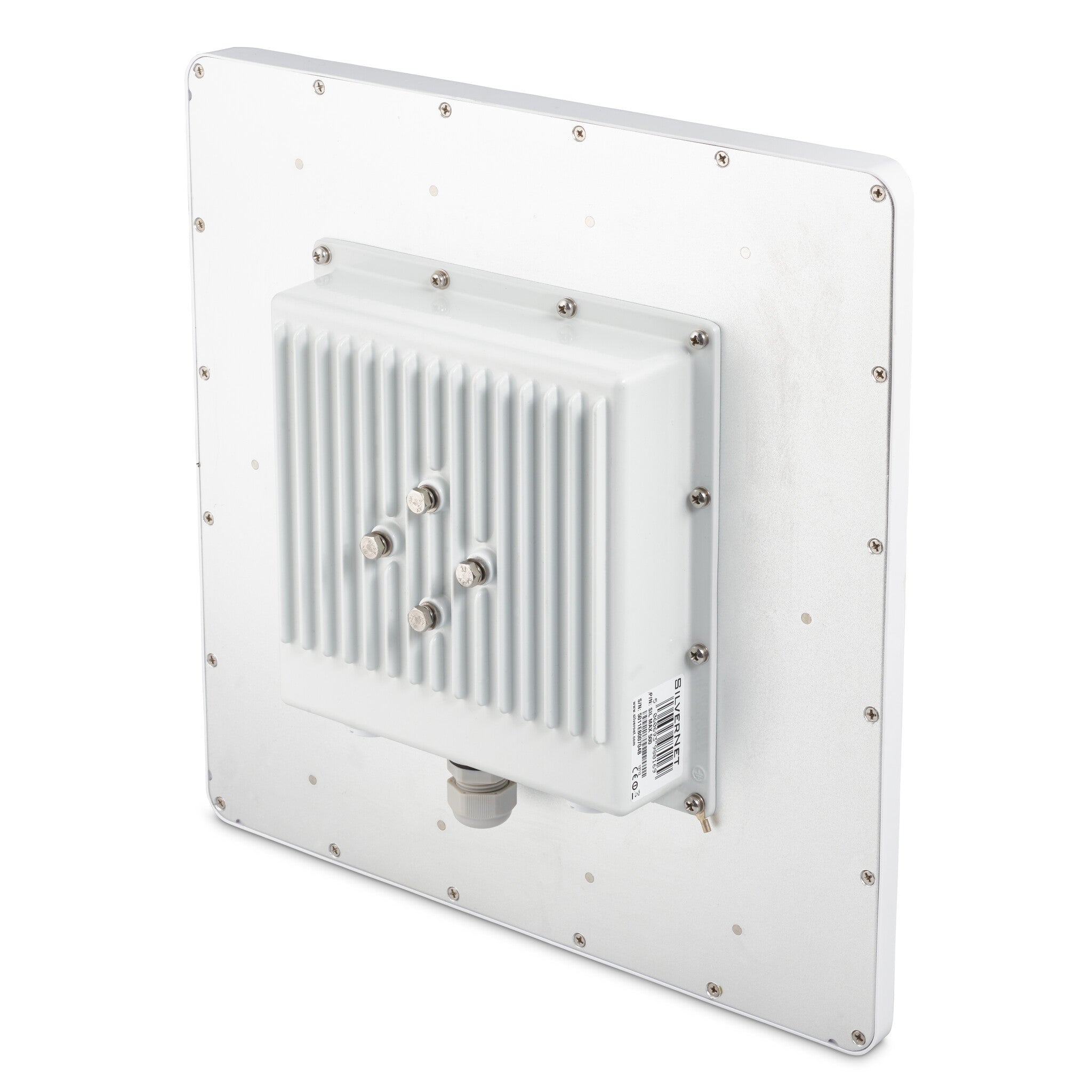

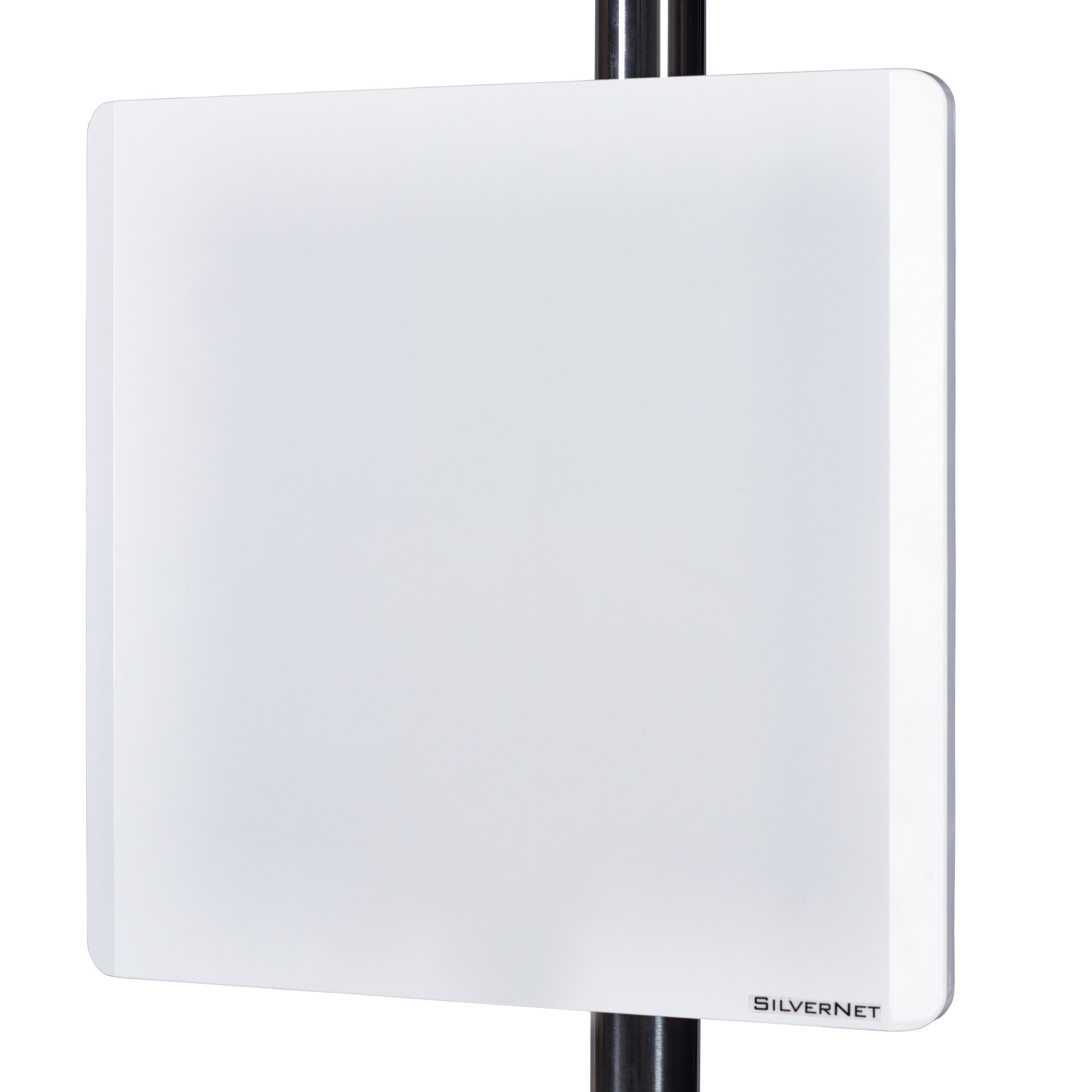

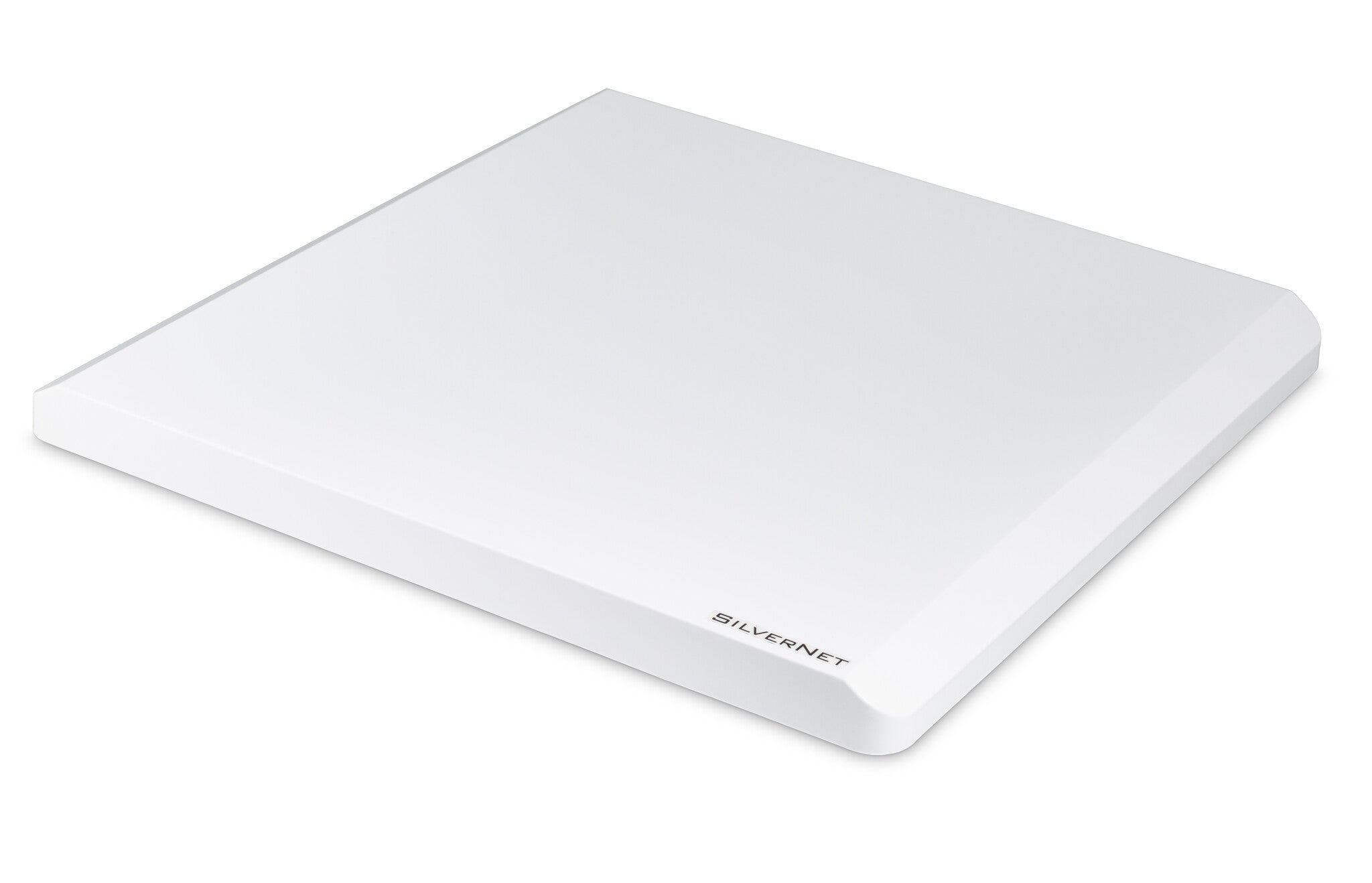

The SIL MAX 240-PCP outdoor wireless bridge can transmit up to 240Mbps at distances up to 20km. With its metal enclosure and built in lightening protection, the SIL MAX 240-PCP is ideal for those harsher environments where a reliable and stable connection is paramount.
The SIL MAX 240-PCP comes pre-configured with all the features of the standard SIL MAX PCP and is upgradable to 500Mbps to give the user that extra bandwidth if needed.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
| Data transmission | |
|---|---|
| Supported data transfer rates | 95, 240, 500Mbps |
| Maximum transfer distance | 60000 m |
| Maximum data transfer rate | 240 Mbit/s |
| Antenna | |
|---|---|
| Antennas quantity | 1 |
| Pan/tilt-axis range | 180° |
| Antenna gain level (max) | 23 dBi |
| Antenna design | Internal |
| Wireless LAN features | |
|---|---|
| Outdoor range | 60000m |
| Indoor range | 60000m |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Signal strength | -40 dBm |
| Transmission gain | 0 - 23 dB |
| Frequency band | 5.1 - 5.8 GHz |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Single-band (5 GHz) |
| Wi-Fi | Yes |
| Network | |
|---|---|
| Static IP | Yes |
| Dynamic IP | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
|---|---|
| Authentication method | WPA2 AES |
| MAC address filtering | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMPv2, SSH |
| Management features | |
|---|---|
| DHCP client | Yes |
| Web-based management | Yes |
| Management protocols | SNMP V2 |
| Features | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Surge protection | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Automatic Transmit Power Control (ATPC) | Yes |

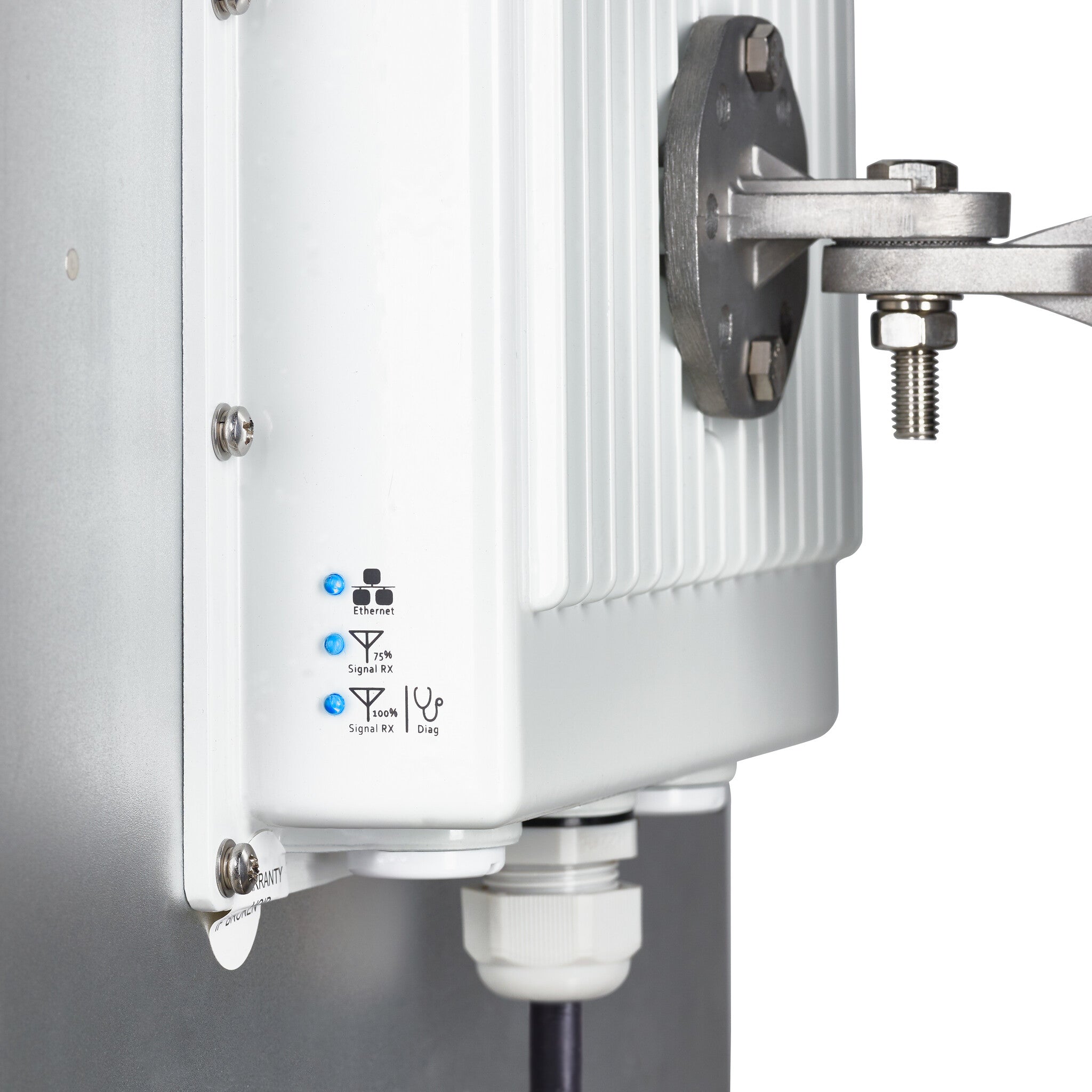

| LED indicators | LAN, Signal strength |
| Remote control function | Yes |
| Product colour | White |
| Product type | Network bridge |
| System requirements | |
|---|---|
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Power | |
|---|---|
| Power plug type | Type G |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| AC input voltage | 100-240 V |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Weight & dimensions | |
|---|---|
| Weight | 2.5 kg |
| Height | 90 mm |
| Depth | 370 mm |
| Width | 370 mm |
| Antenna diameter | 51 cm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |

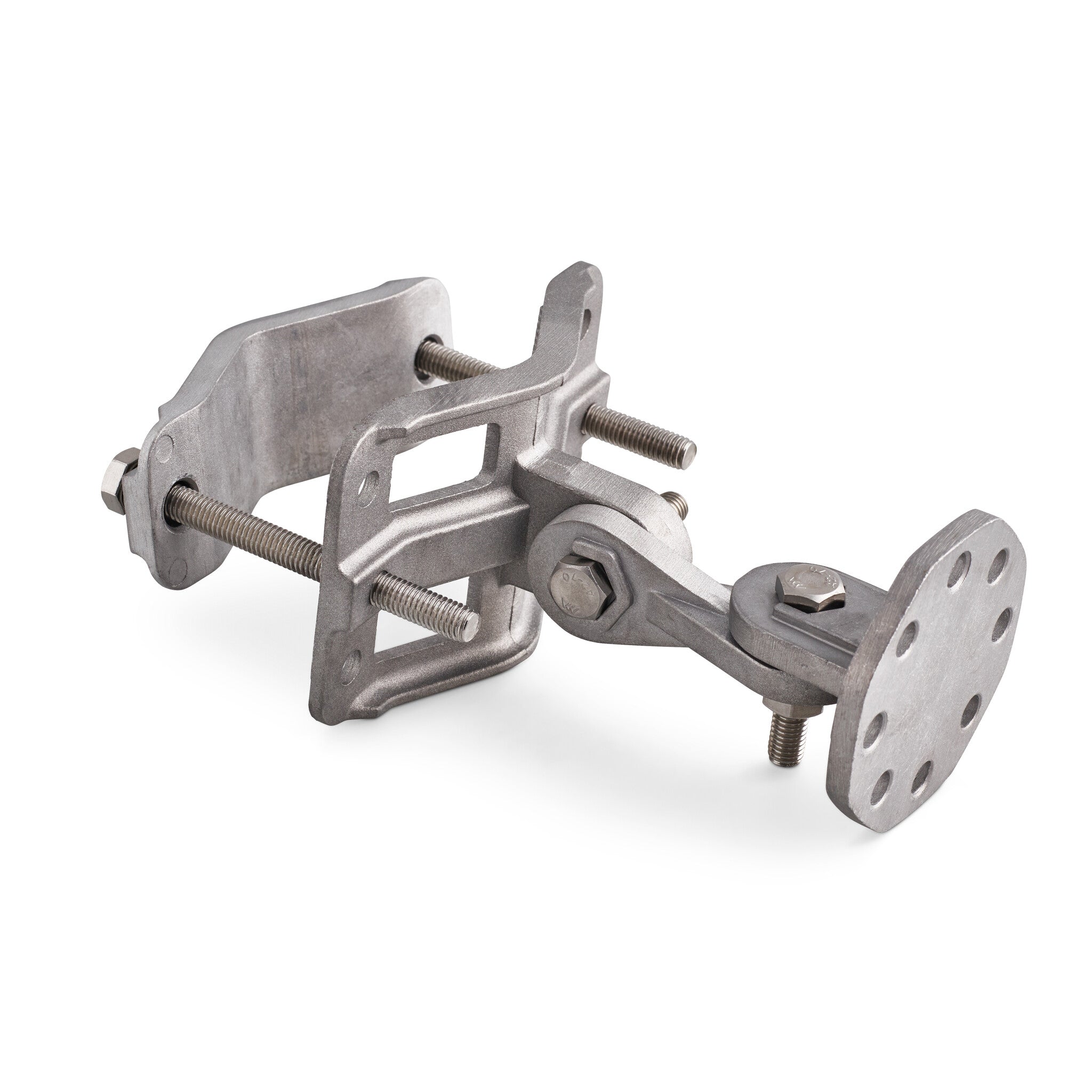

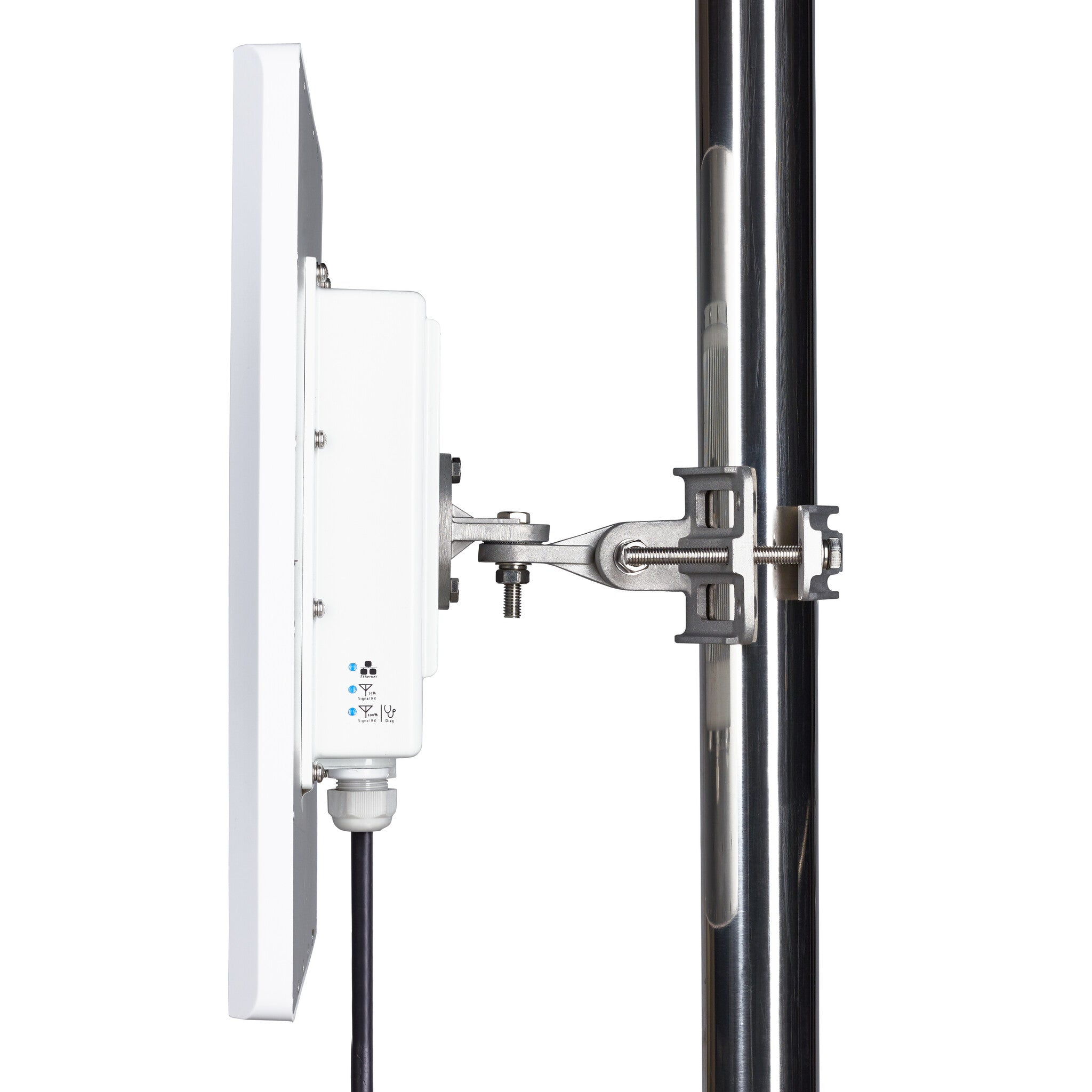

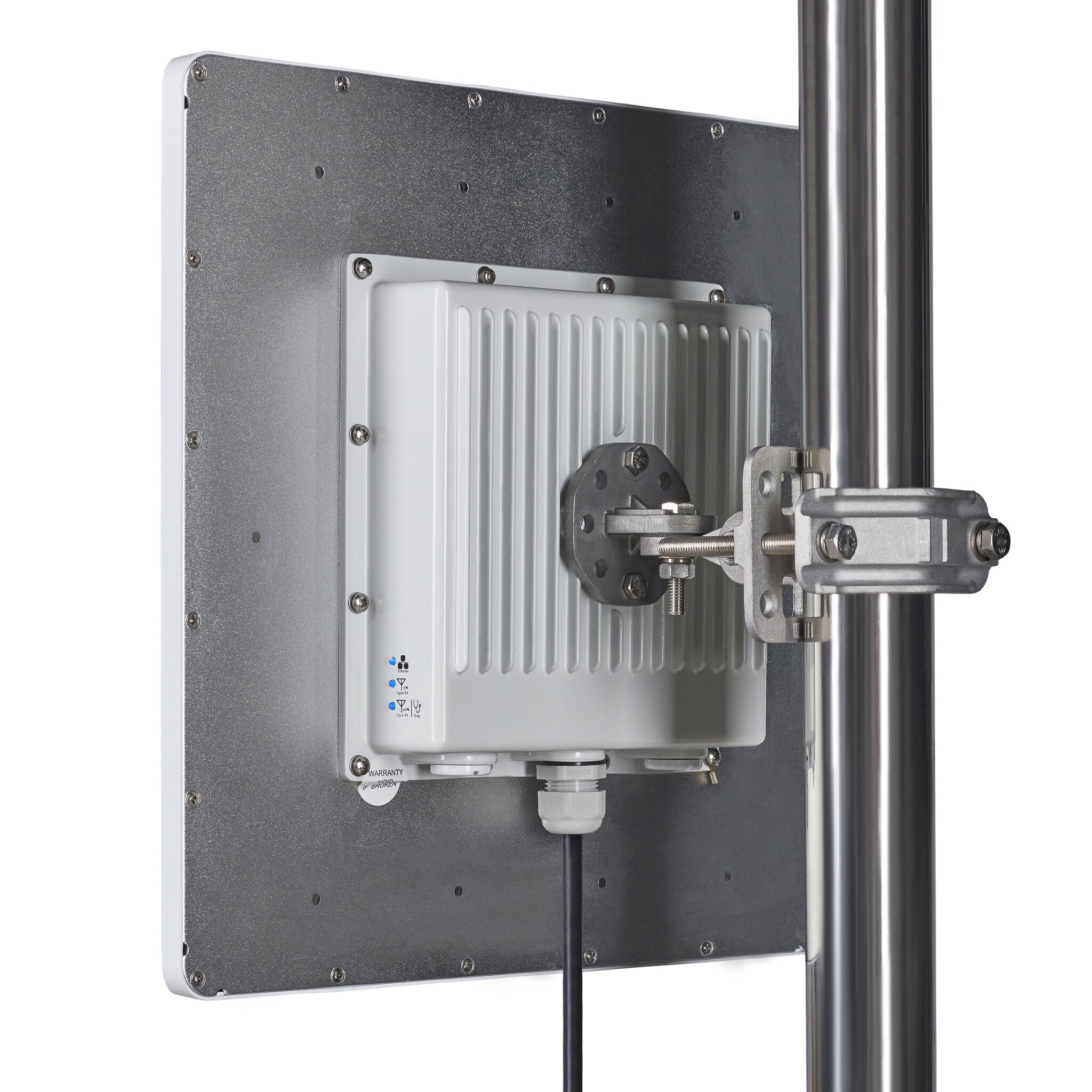

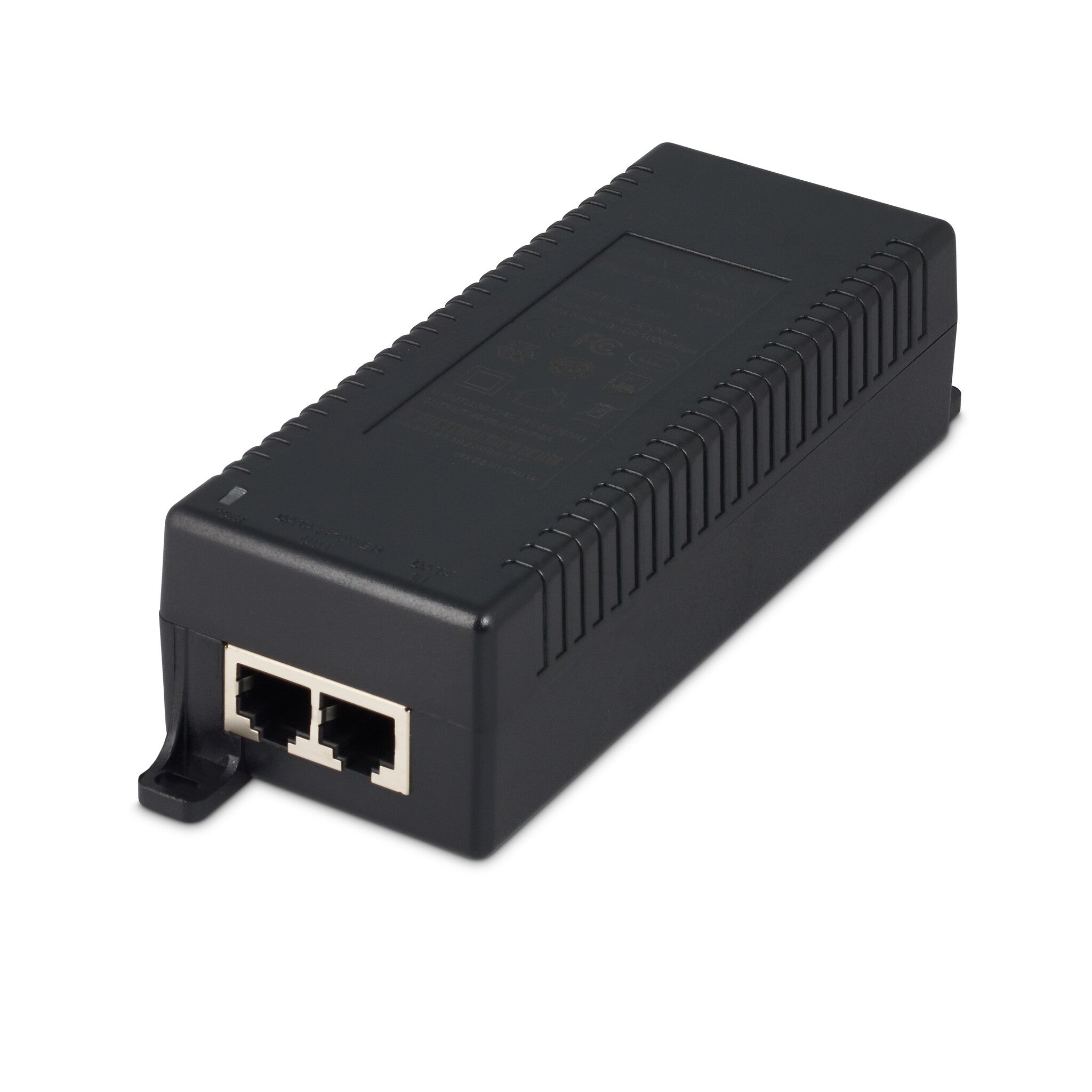

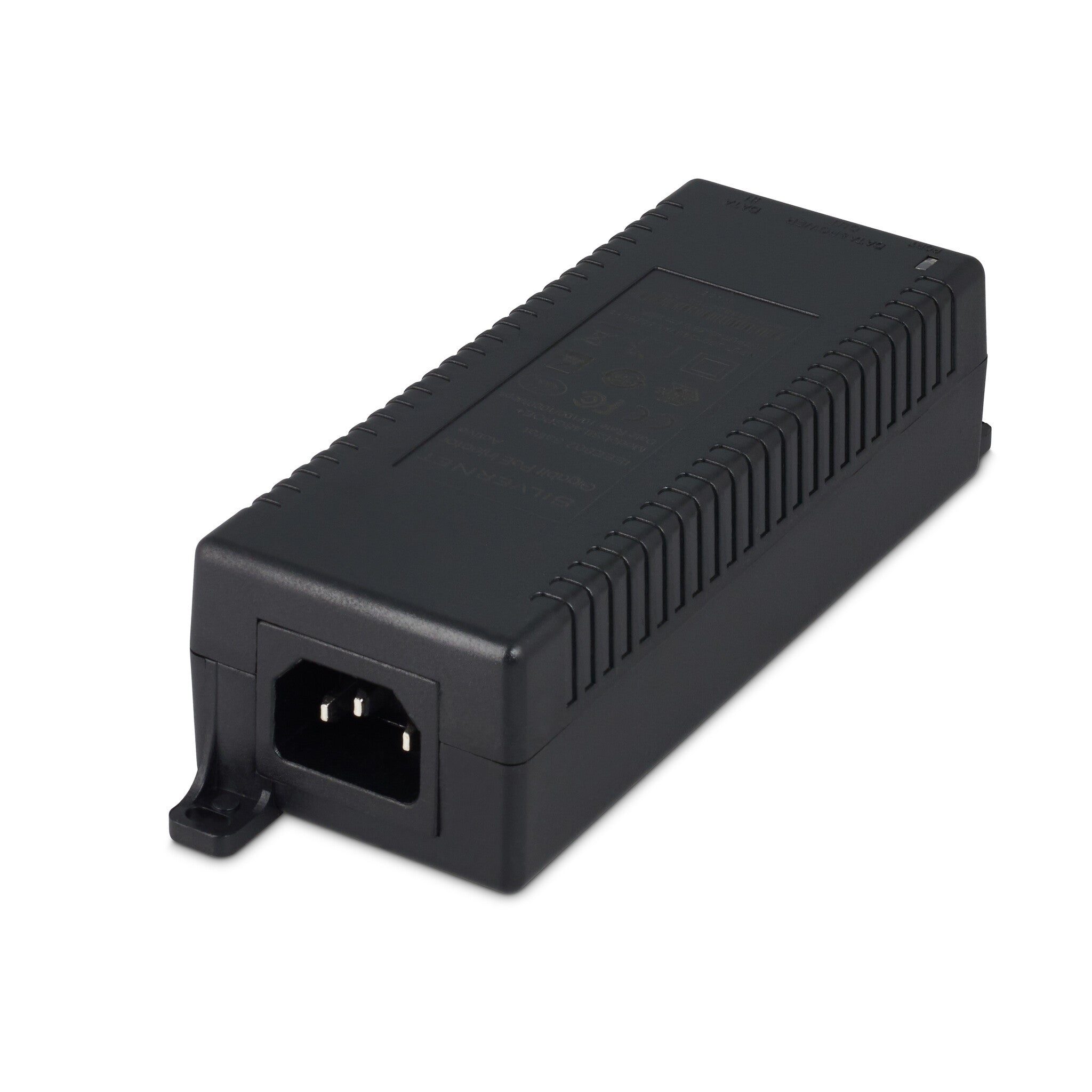

| Packaging content | Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
| Packaging data | |
|---|---|
| Package width | 305 mm |
| Package depth | 445 mm |
| Package height | 460 mm |
| Package weight | 9.37 kg |
| Quantity per pack | 2 pc(s) |
| Package type | Box |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
