SilverNet · MPN: SIL LITE 500-PCP
£2,088.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £696.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Point-to-Point Outdoor Wireless Bridge Up to 6KM
  • Point-to-MultiPoint Client
  • 500Mbps throughput
  • Integrated 18dBi Antenna
  • Designed for Outdoor applications
  • SNMP
  • AES Encryption up to 256bit
  • MIMO with spatial multiplexing
  • DFS (Dynamic Frequency Selection)
  • TPC (transmit Power Control)
  • PoE 802.3af

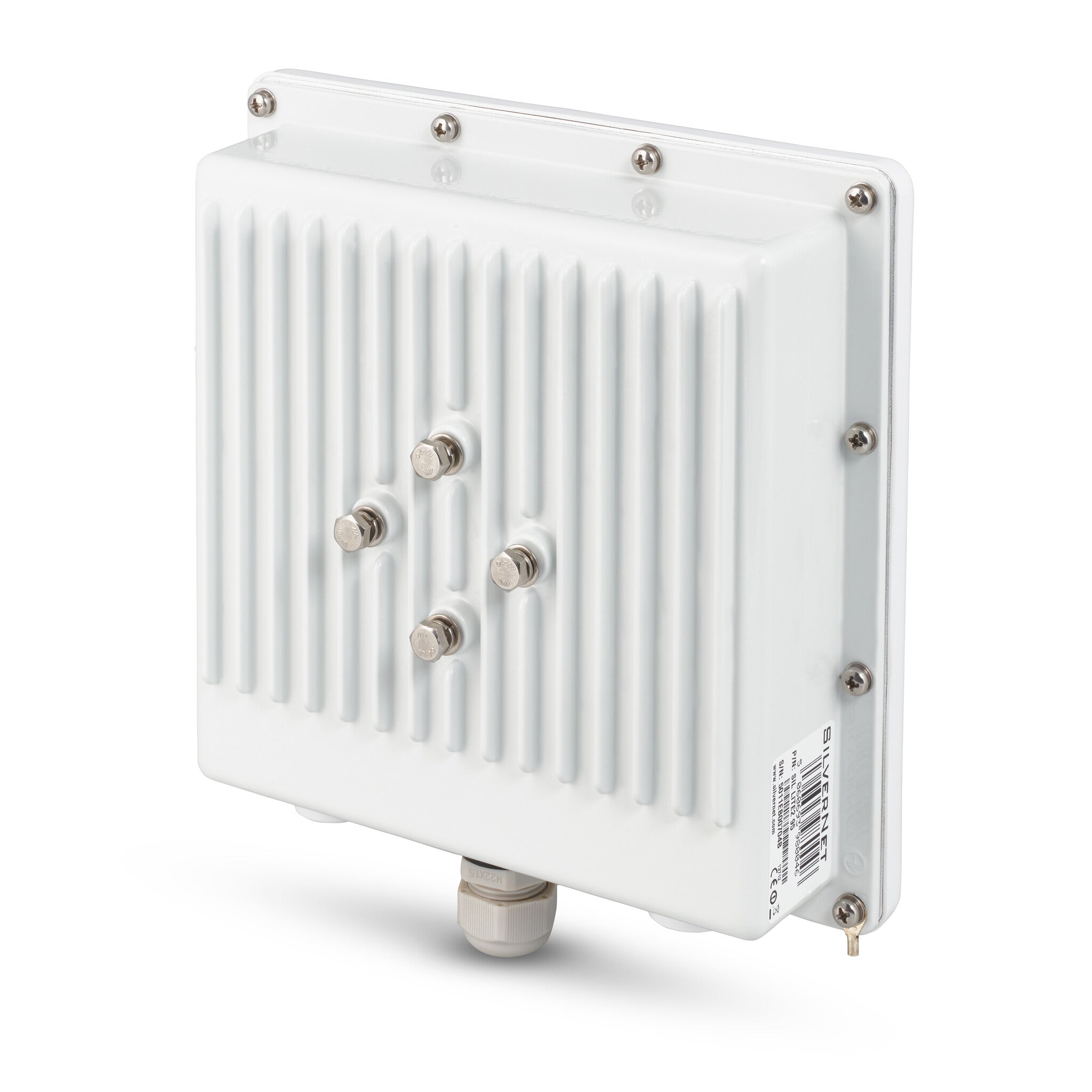

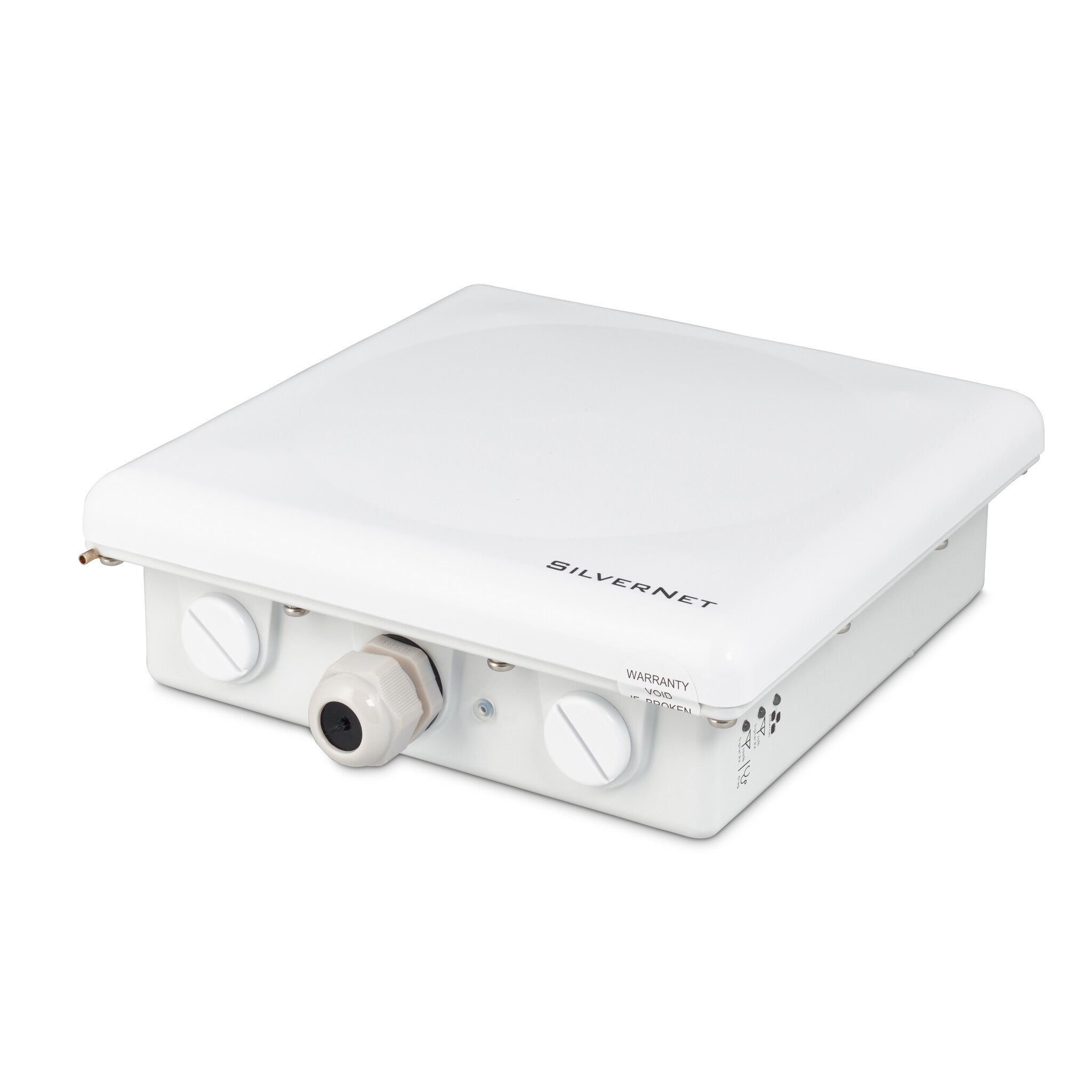

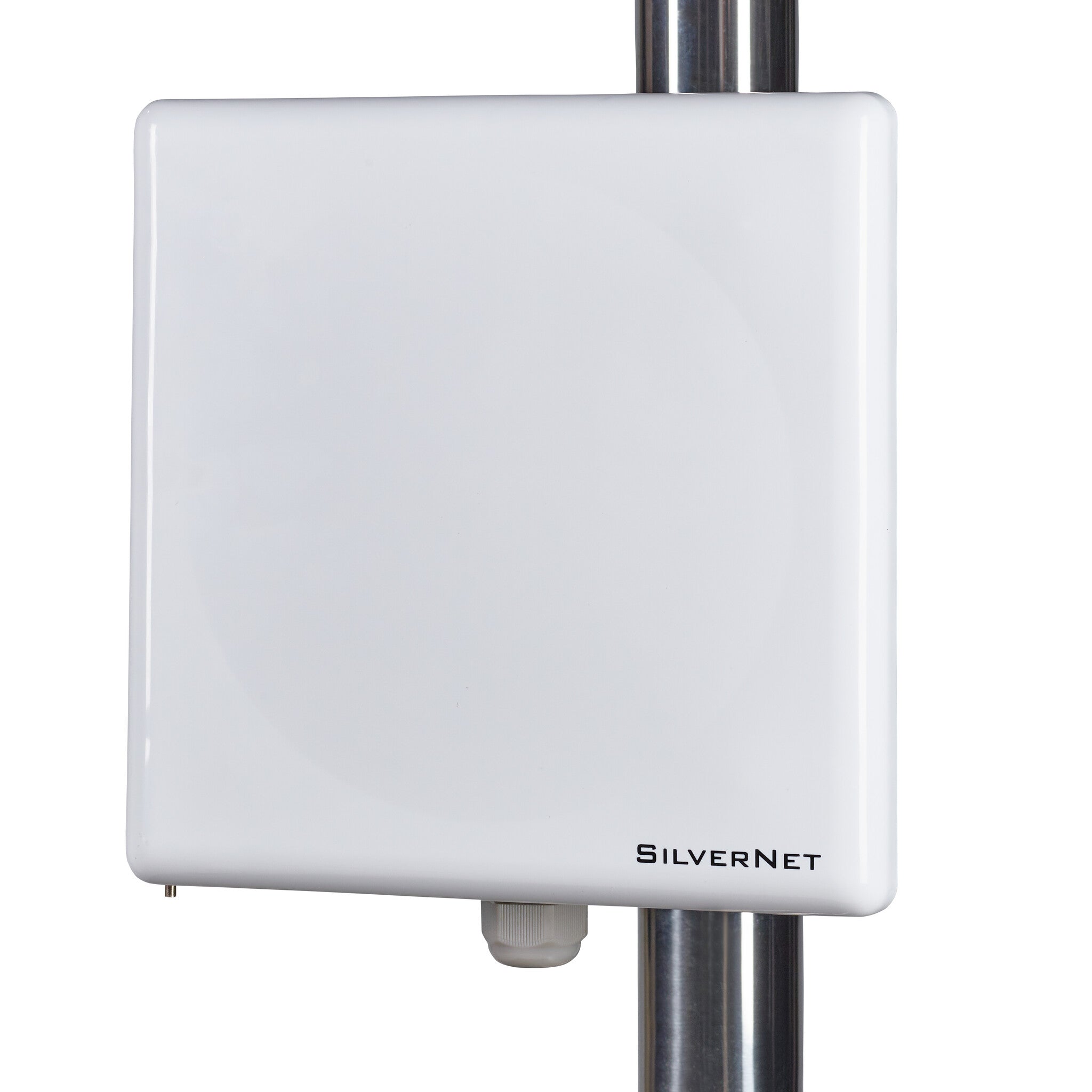

The SIL LITE 500-PCP is an outdoor wireless link capable of transmitting up to 500Mbps over distances of up to 6km. Housed in a robust metal enclosure, it is designed to resist external electromagnetic interference and includes built-in surge protection to guard against lightning strikes and power surges.

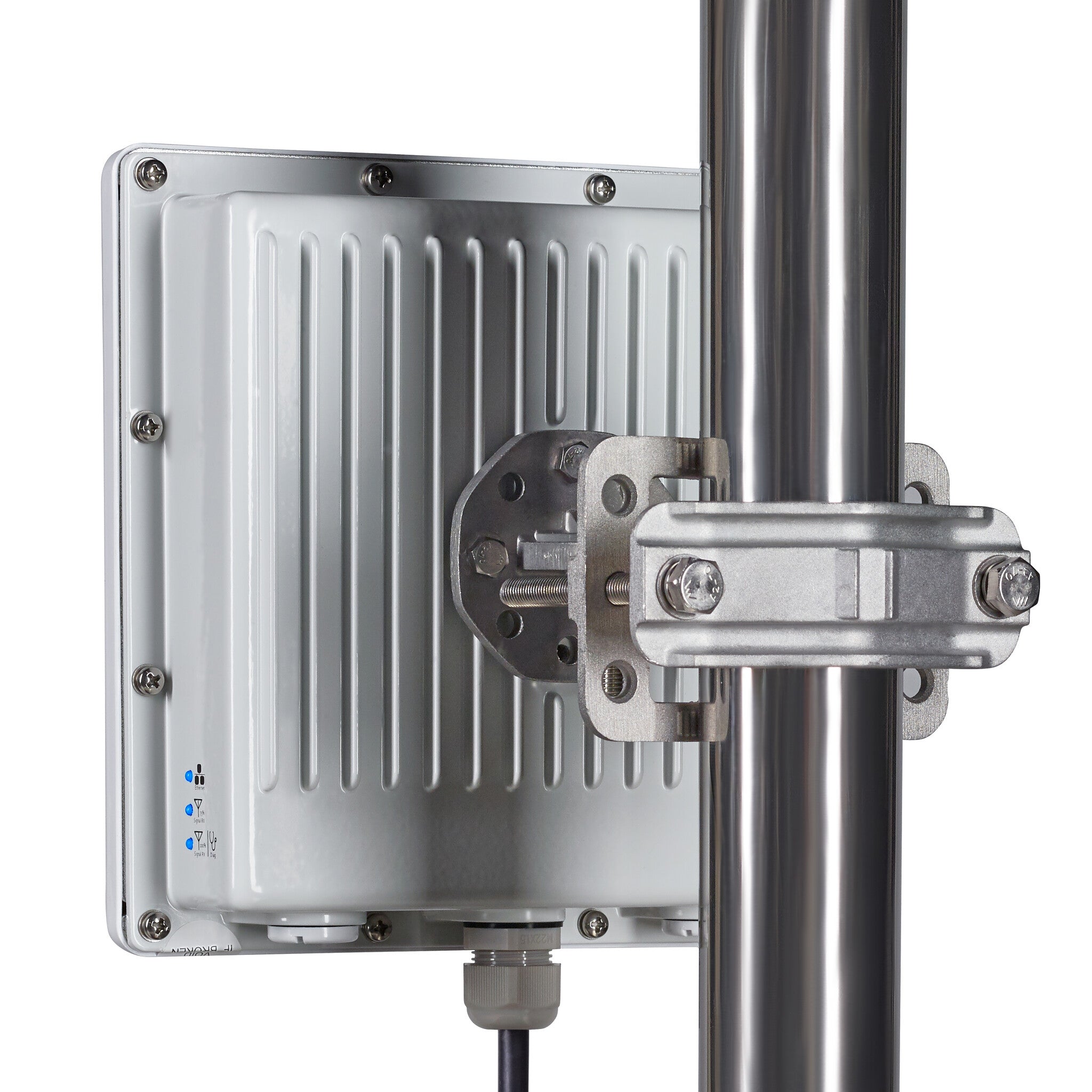

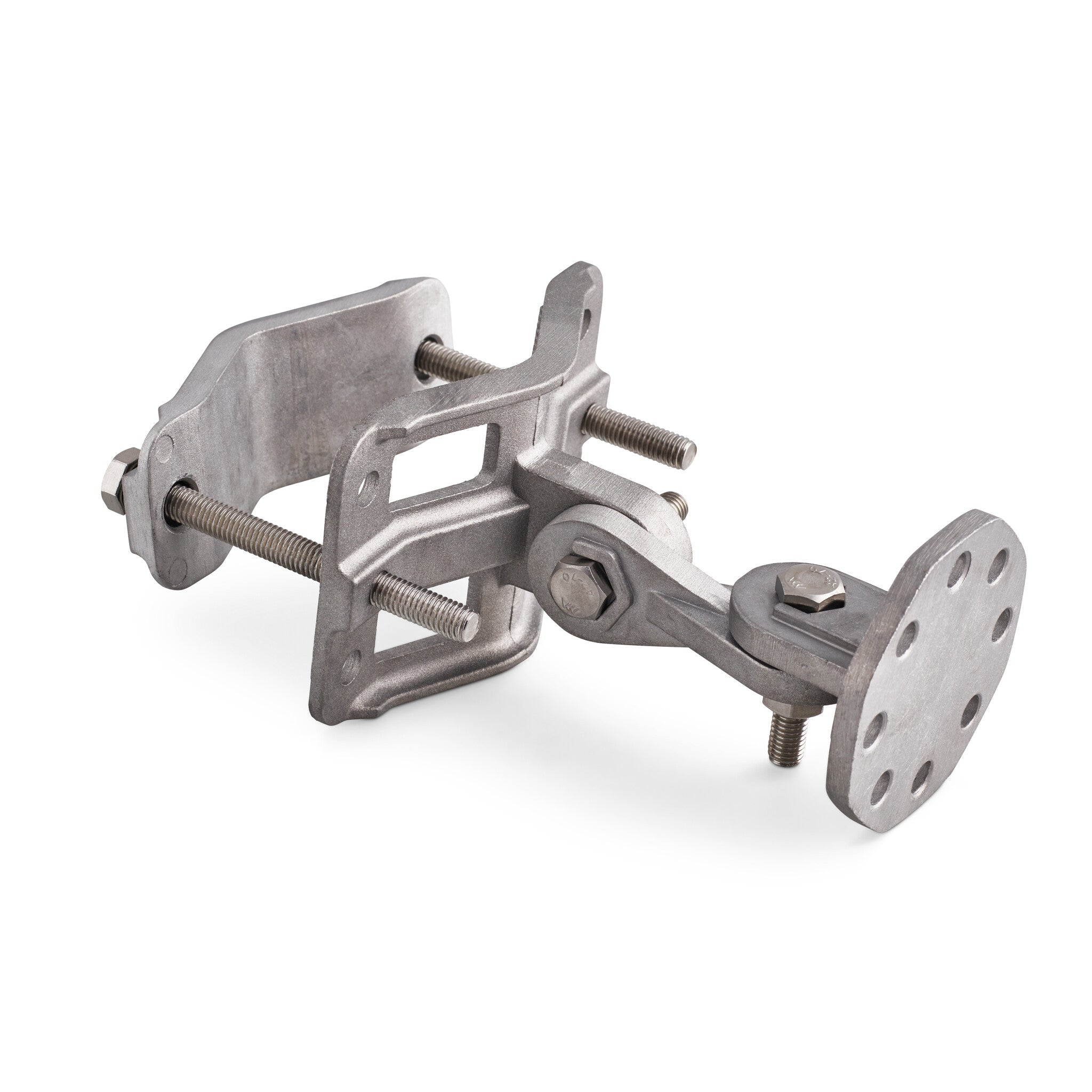

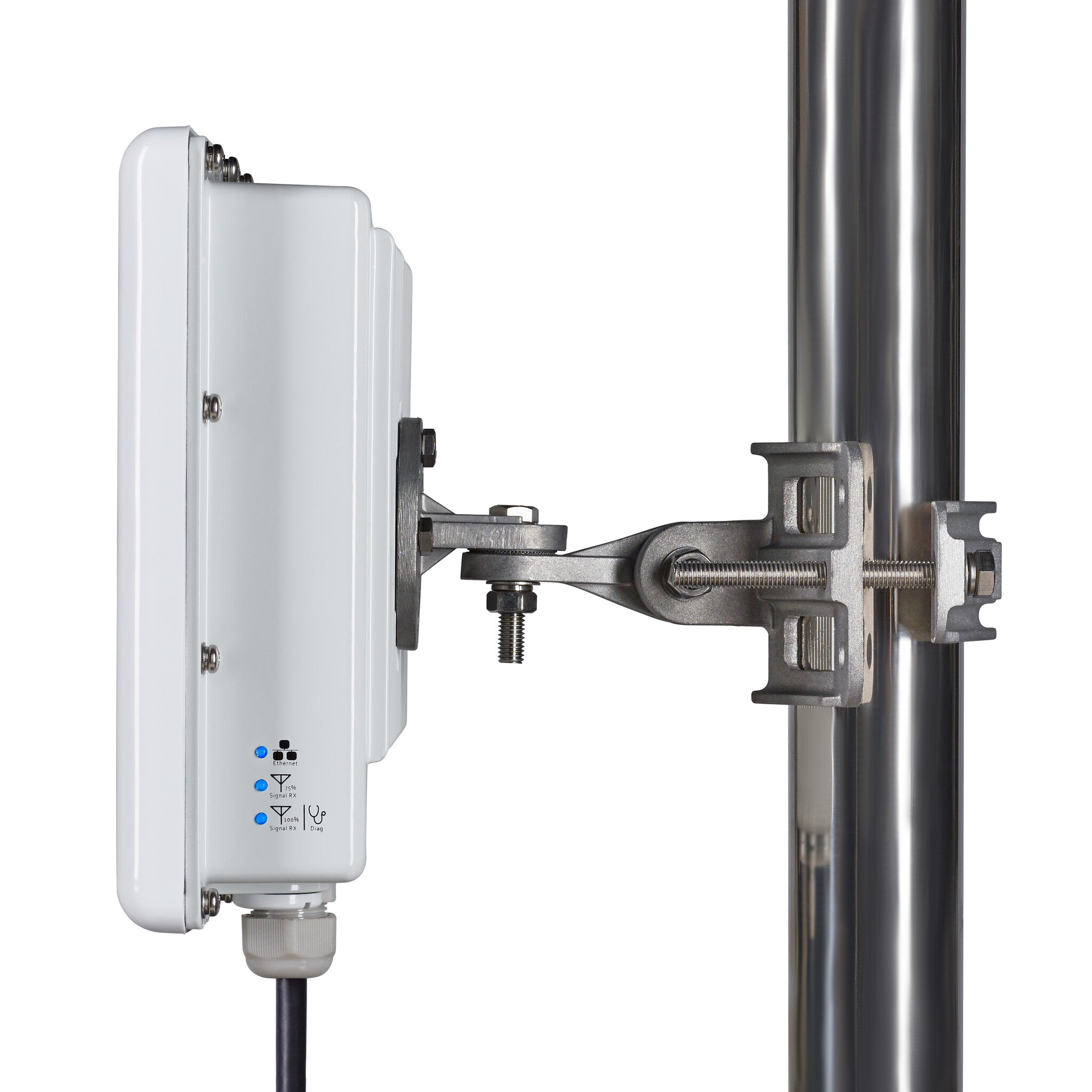

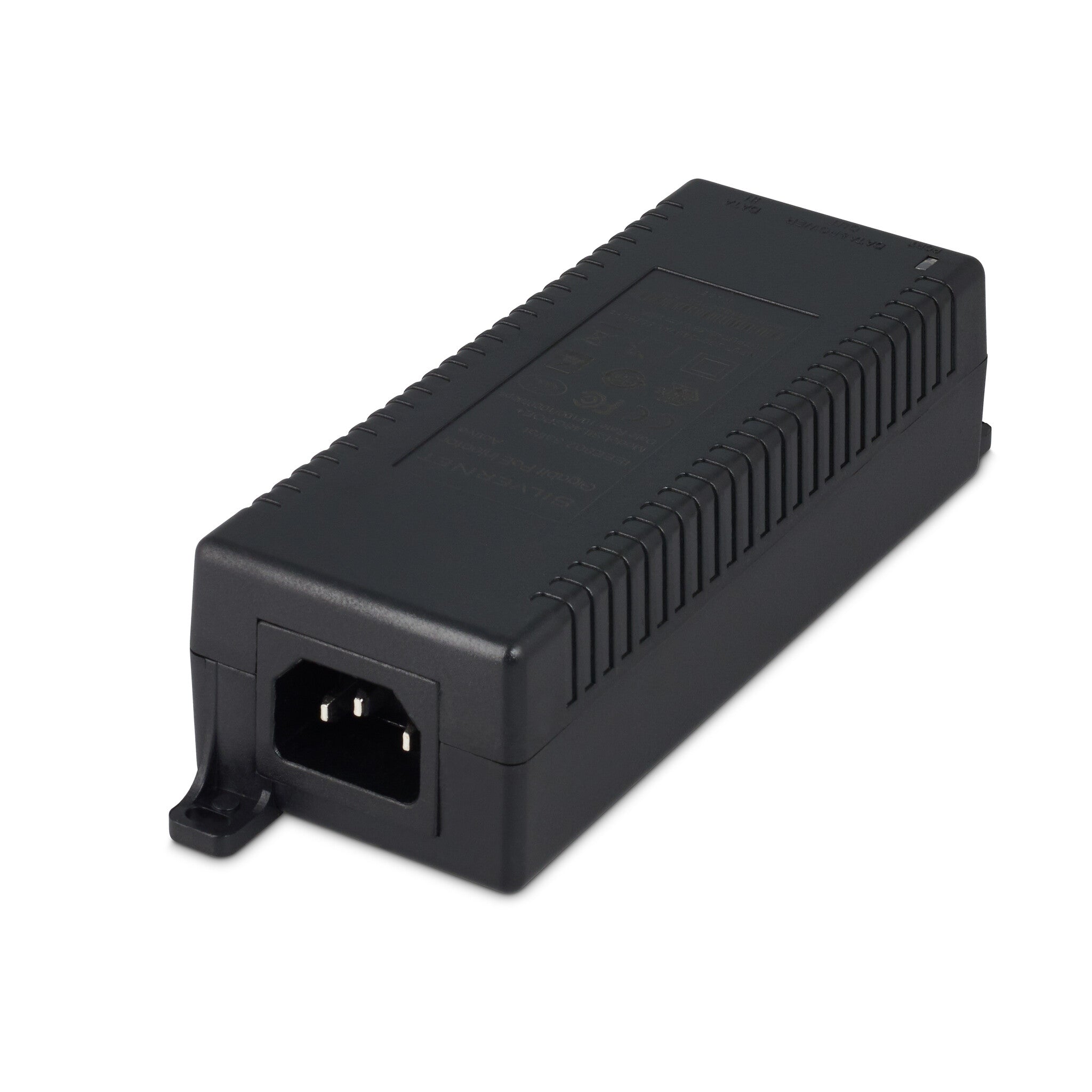

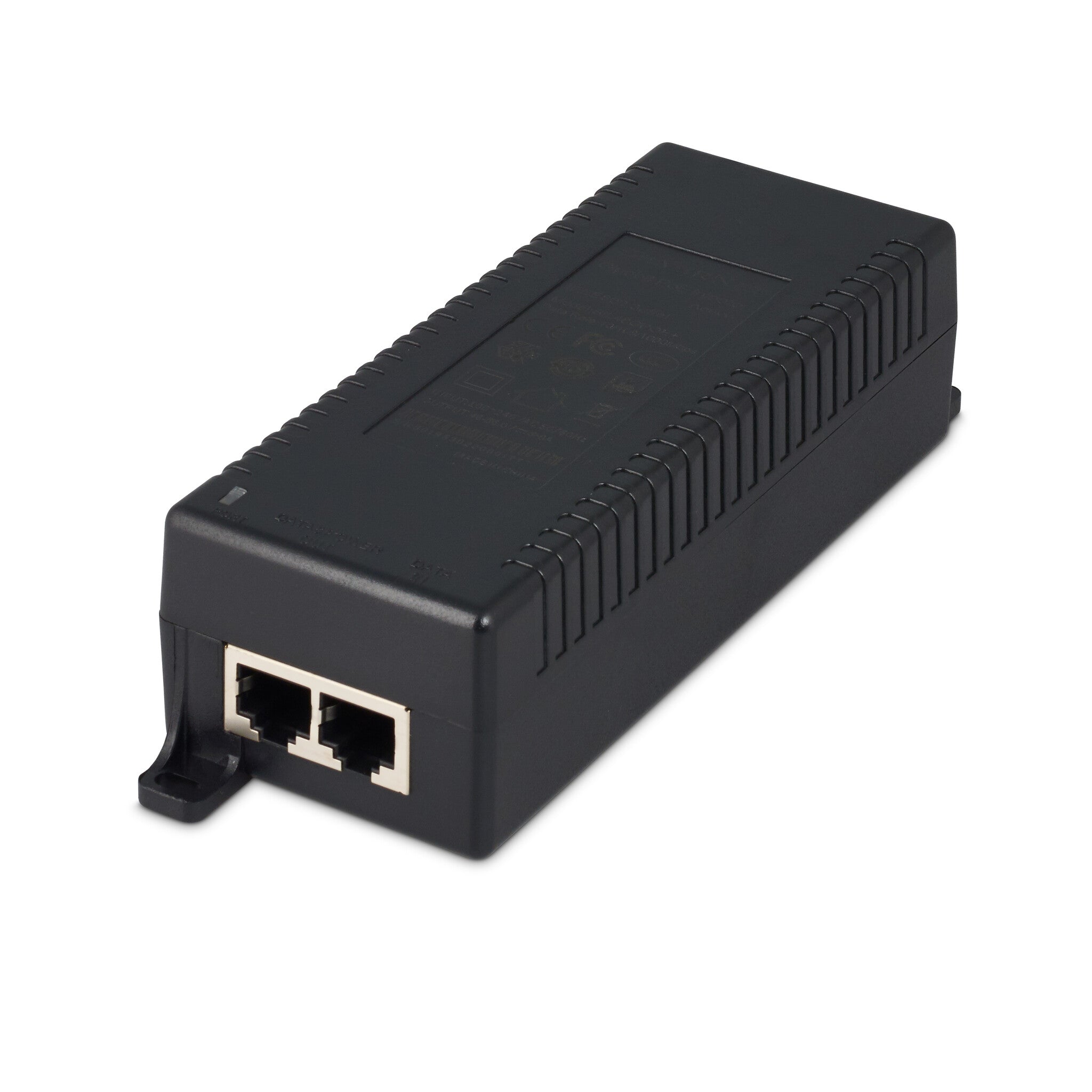

This device comes as a pre-configured pair, complete with PoE injectors and heavy-duty 3-axis tilt-and-swivel brackets. It features a built-in dual-polarized 18dBi antenna and includes all the capabilities of the standard LITE PCP and LITE 240-PCP.

Part of the SilverNet PRO Range, the SIL LITE 500-PCP is part of a series of high-performance wireless outdoor bridge solutions optimized for long-distance transmissions. The PRO Range is designed to be compact and rugged, offering a cost-effective alternative to expensive lease lines for constructing reliable wireless systems.

With the addition of our free "SilverView" network monitoring software, this device provides an outstanding, feature-rich solution.

Specifications

Data transmission

Supported data transfer rates240 - 500Mbps
Maximum transfer distance6000 m
Maximum data transfer rate500 Mbit/s

Antenna

Antennas quantity1
Pan/tilt-axis range180°
Antenna gain level (max)18 dBi
Antenna designInternal
Show all 76 specificationsShow fewer specifications

Wireless LAN features

Outdoor range6000m
Indoor range6000m
Receiver sensitivity-82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
Output power (dBm)26
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Channels quantity25 channels
Signal strength-40 dBm
Transmission gain0 - 18 dB
Frequency band5.1 - 5.8 GHz
WLAN data transfer rate (max)1300 Mbit/s
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandSingle-band (5 GHz)
Wi-FiYes

Network

Static IPYes
Dynamic IPYes
Auto MDI/MDI-XYes
Full duplexYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Ethernet LANYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Connectivity technologyWired & Wireless

Security

Authentication methodWPA2 AES
MAC address filteringYes
Security algorithms256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH

Management features

DHCP clientYes
Web-based managementYes
Management protocolsSNMP V2

Features

Mean time between failures (MTBF)60000 h
Surge protectionYes
Network Time Protocol (NTP) clientYes
Quality of Service (QoS) supportYes
Wall mountableYes
Reset buttonYes
International Protection (IP) codeIP67
Automatic Transmit Power Control (ATPC)Yes
LED indicatorsLAN, Signal strength
Remote control functionYes
Product colourWhite
Product typeNetwork bridge

System requirements

Compatible operating systemsMicrosoft Windows, Mac OS, Linux Distributions
Minimum system requirementsInternet Explorer, Google Chrome, Mozilla Firefox

Power

Power plug typeType G
Power over Ethernet (PoE) voltage48 V
Power over Ethernet (PoE)Yes
Power consumption (typical)6 W
Power consumption (max)16 W
DC input voltage24-48/48-56 V
Power supply15.4 W
AC input voltage100-240 V
Power source typeDC, PoE

Operational conditions

Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-40 - 90 °C
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-20 - 70 °C

Certificates

CertificationCE, FCC

Weight & dimensions

Weight1.6 kg
Height77 mm
Depth215 mm
Width215 mm
Antenna diameter30 cm

Packaging content

Quick installation guideYes
Antenna includedYes
Power supply includedYes
Mounting bracket(s) includedYes
PoE+ Injector(s)Yes
Packaging contentIncludes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets.
