SilverNet LITE 500 Network bridge 500 Mbit/s White
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £358.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Point-to-Point Outdoor Wireless Bridge Up to 6KM
- Point-to-MultiPoint Client
- Up to 500Mbps
- Integrated 18dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (transmit Power Control)
- PoE 802.3af

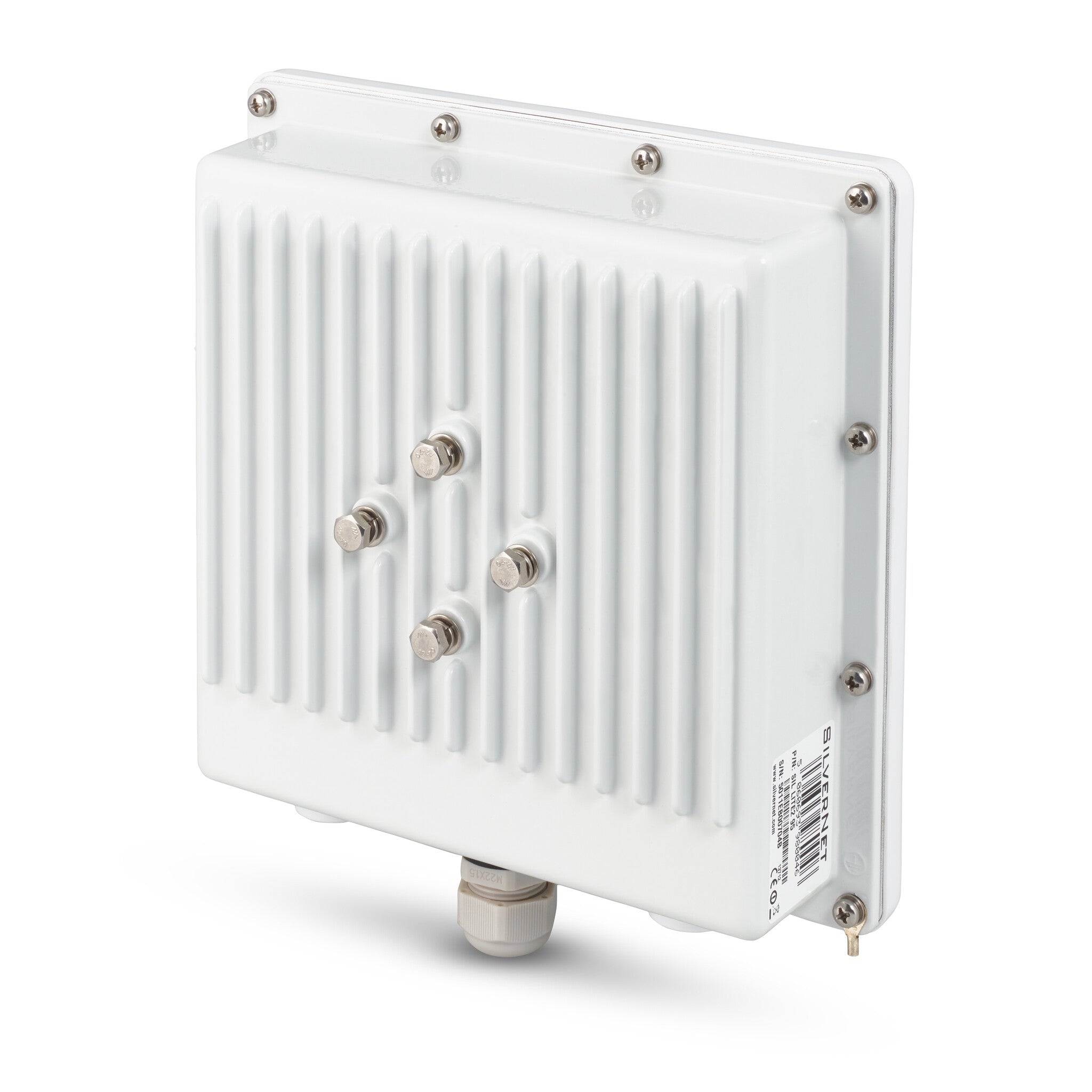

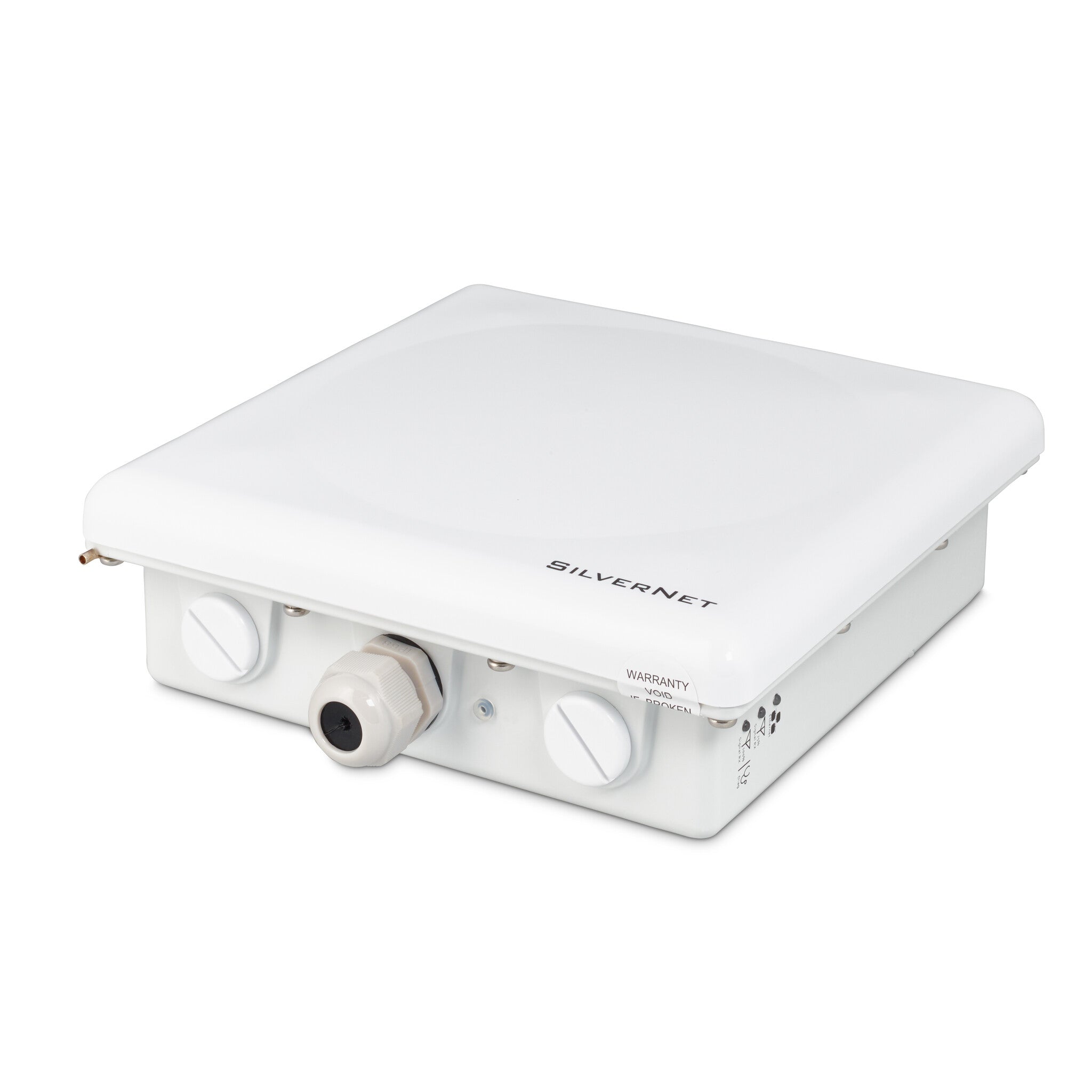

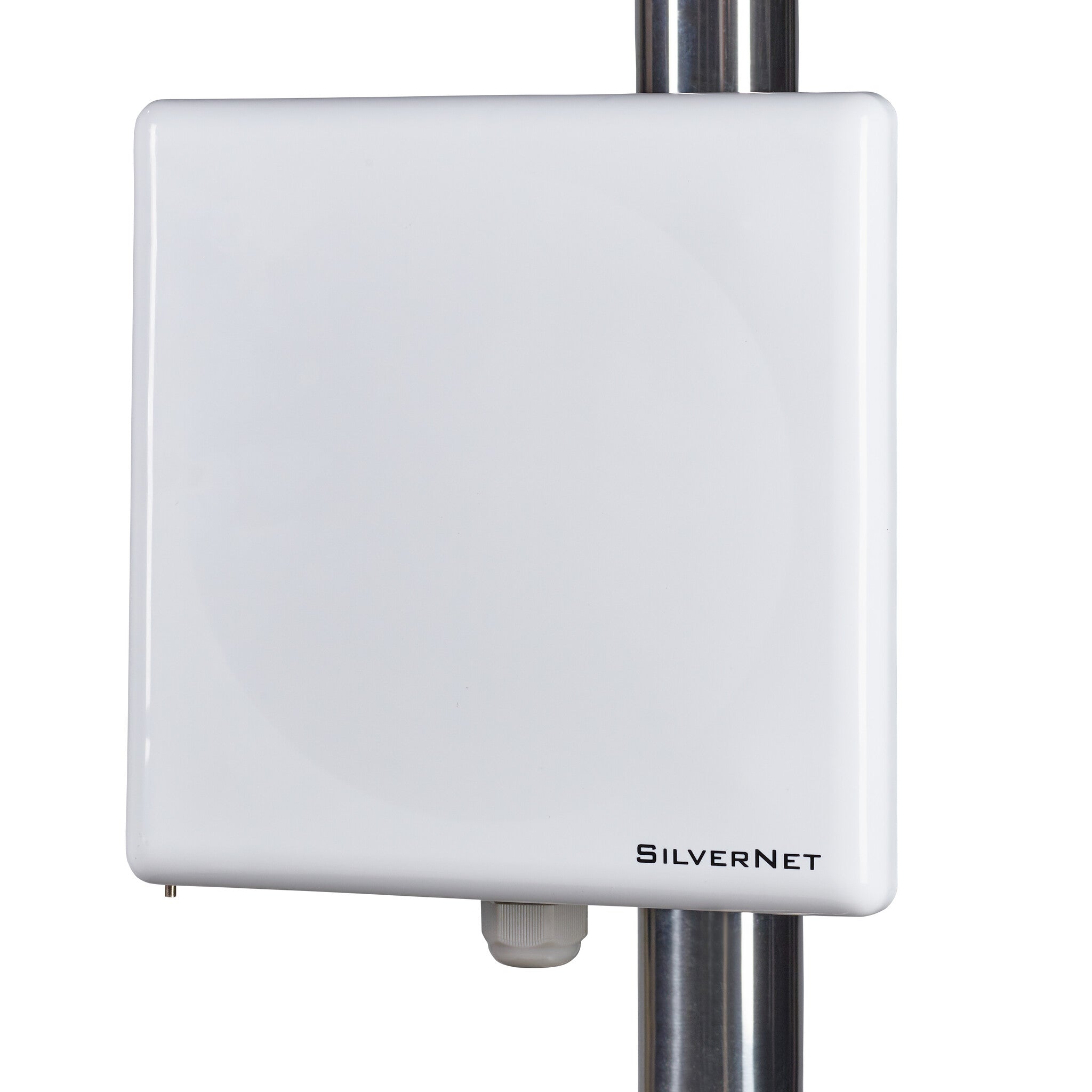

The SIL LITE 500 is an outdoor single radio capable of transmitting up to 500Mbps over distances of up to 6km. It can be used for a Point to Point or Point to MultiPoint network. Housed in a robust metal enclosure, it is designed to resist external electromagnetic interference and includes built-in surge protection to guard against lightning strikes and power surges.

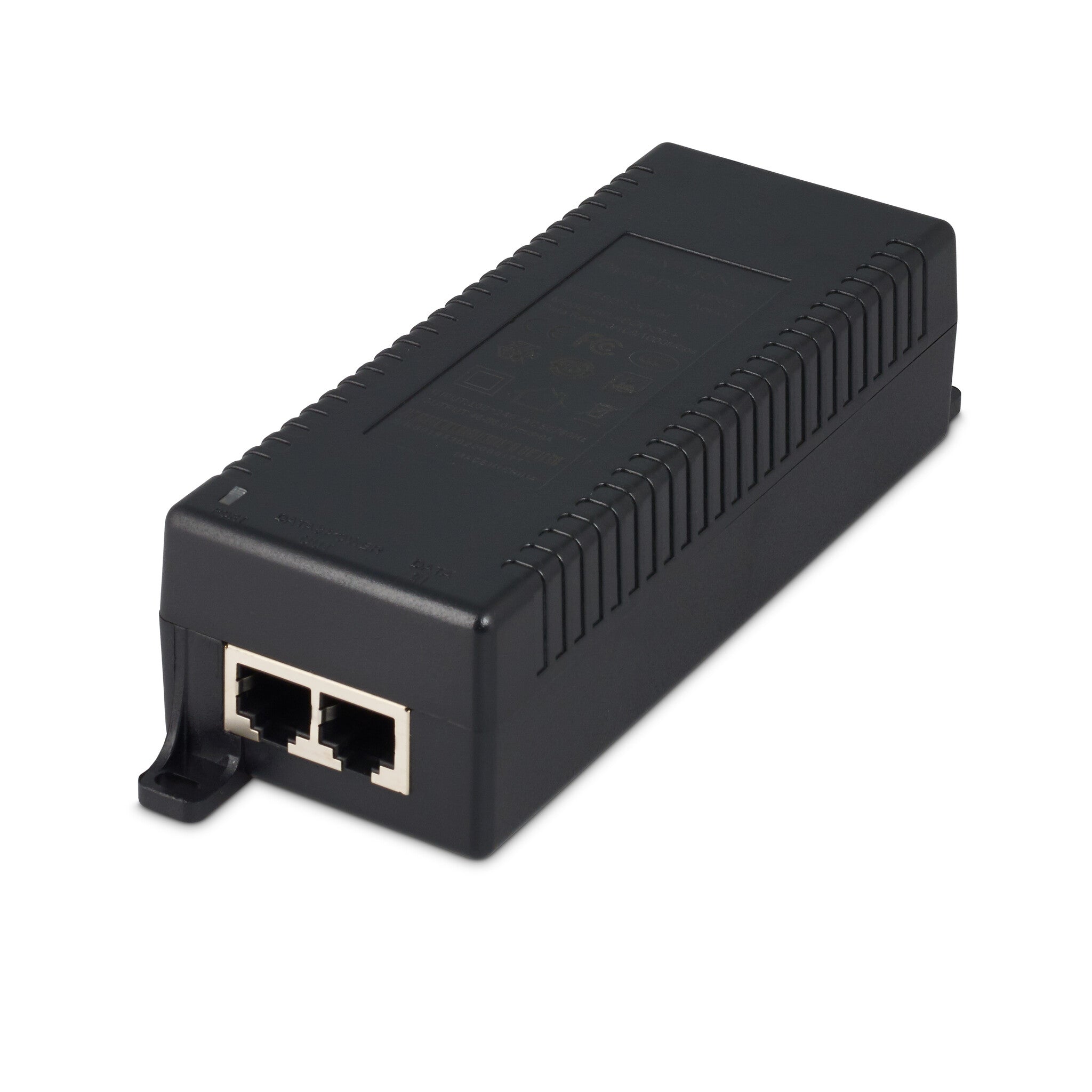

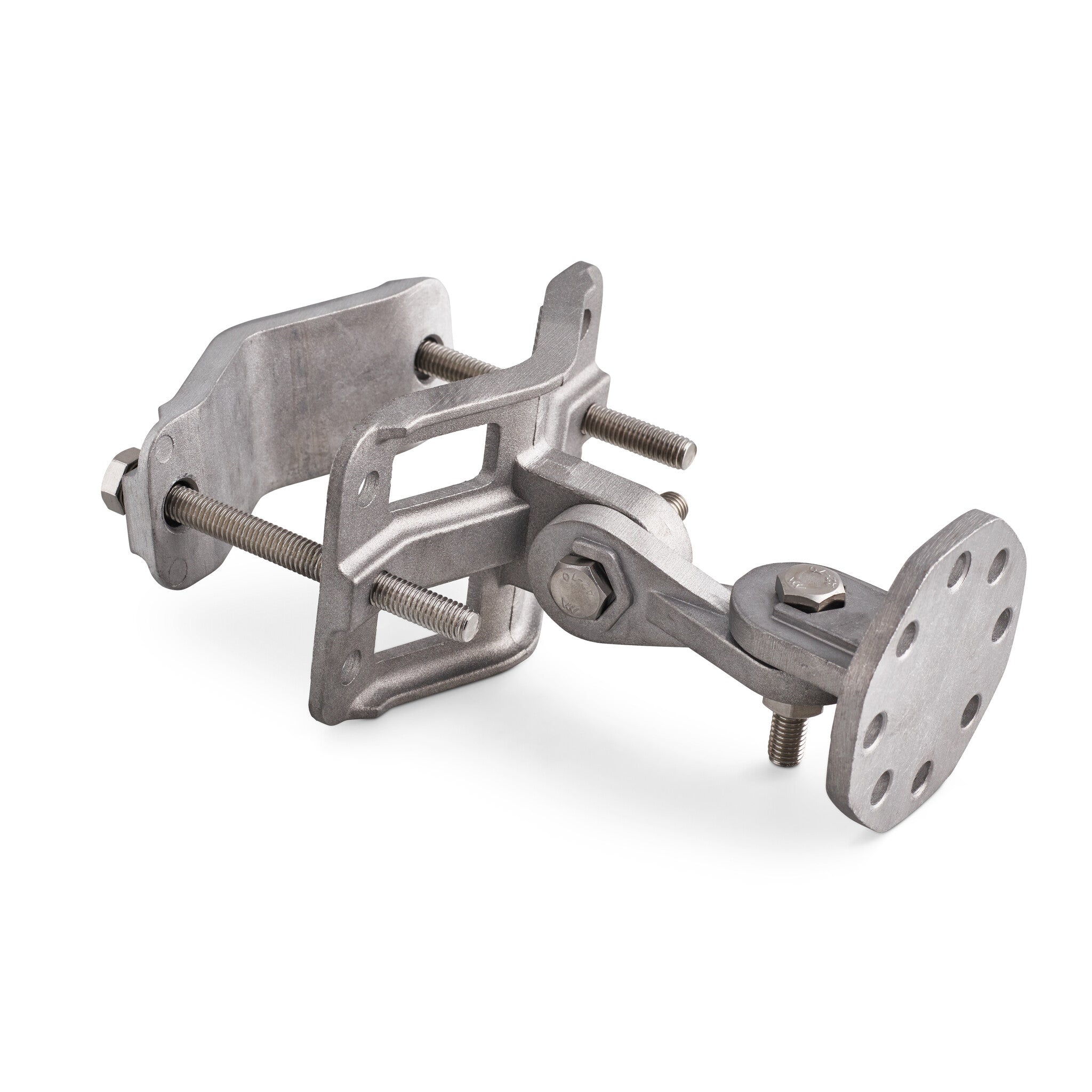

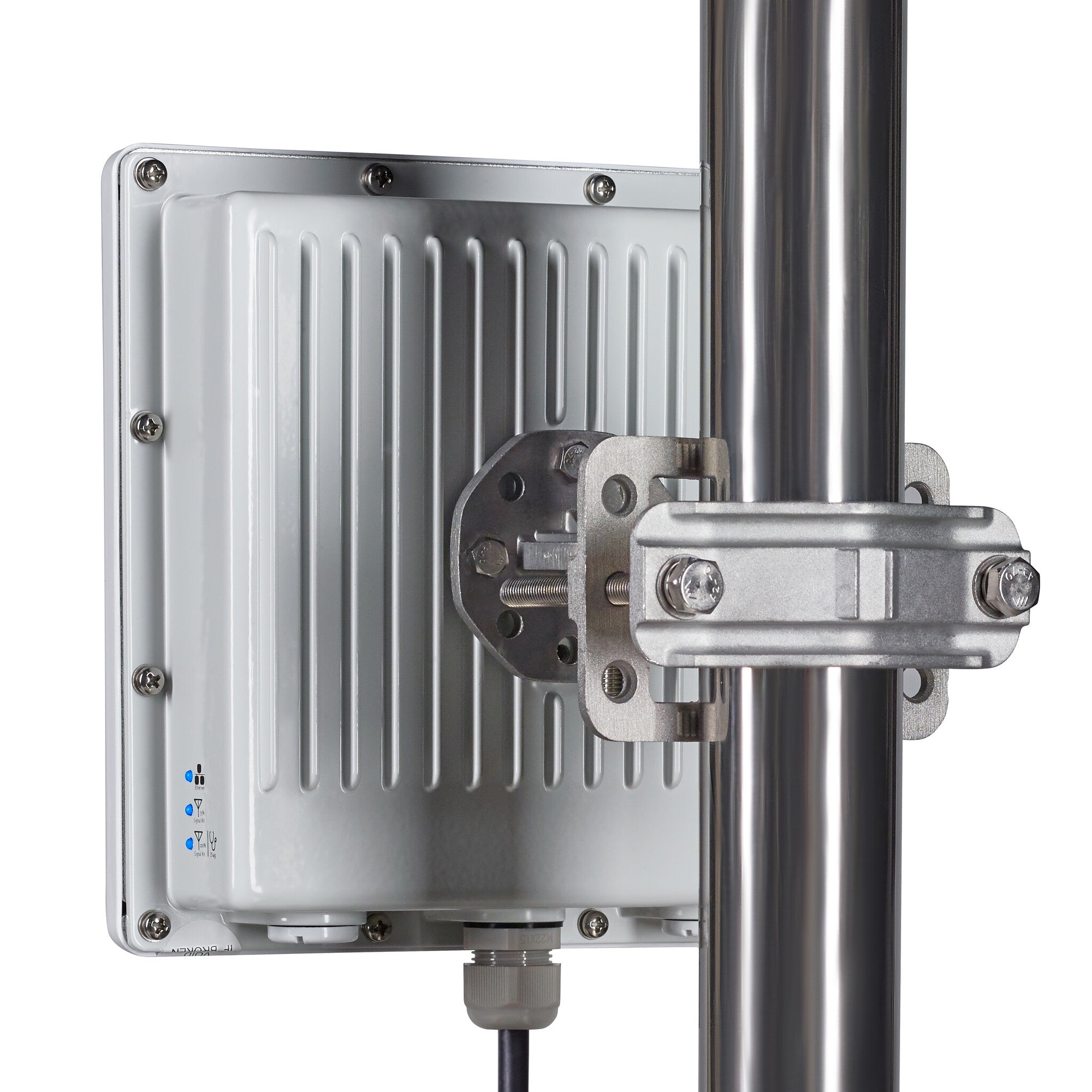

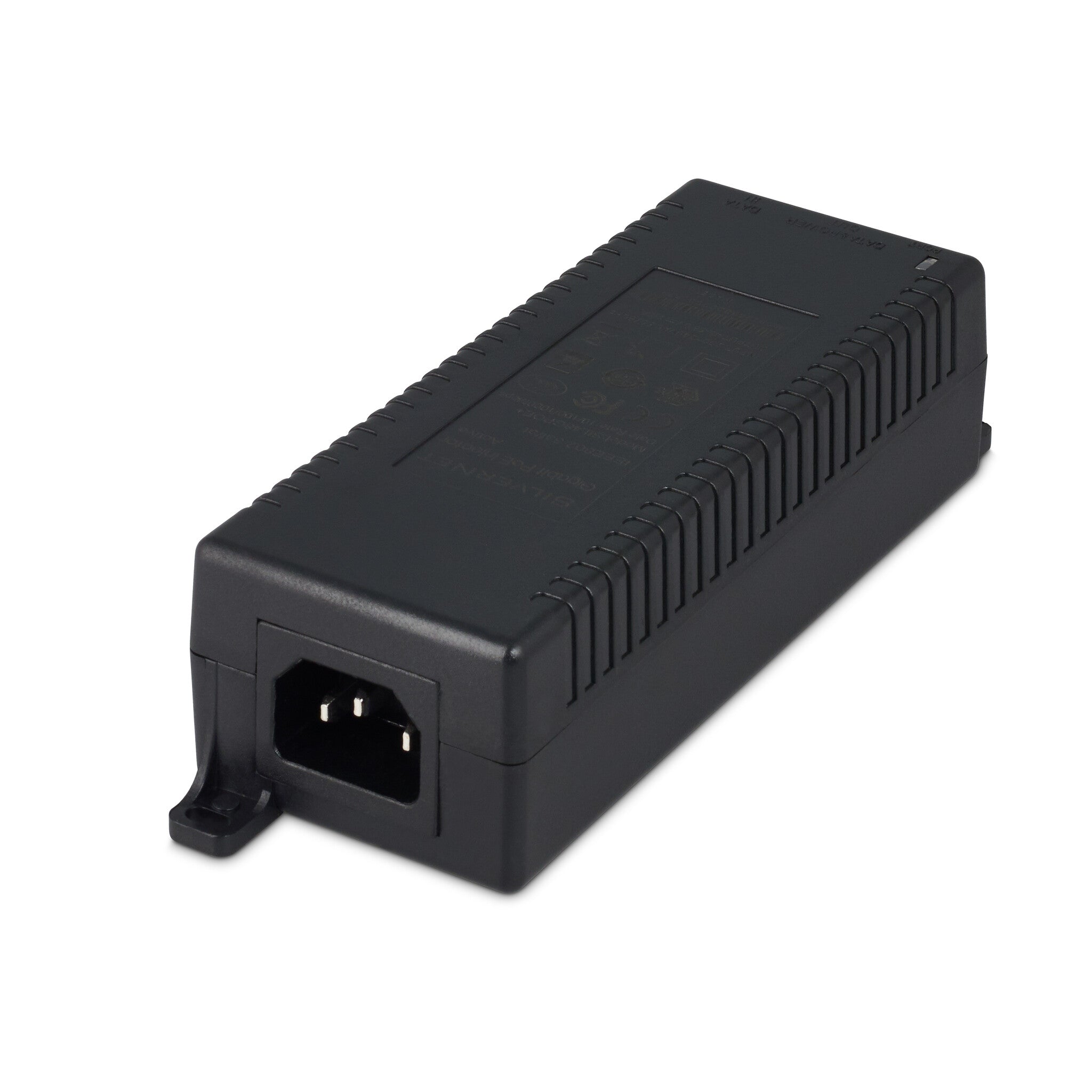

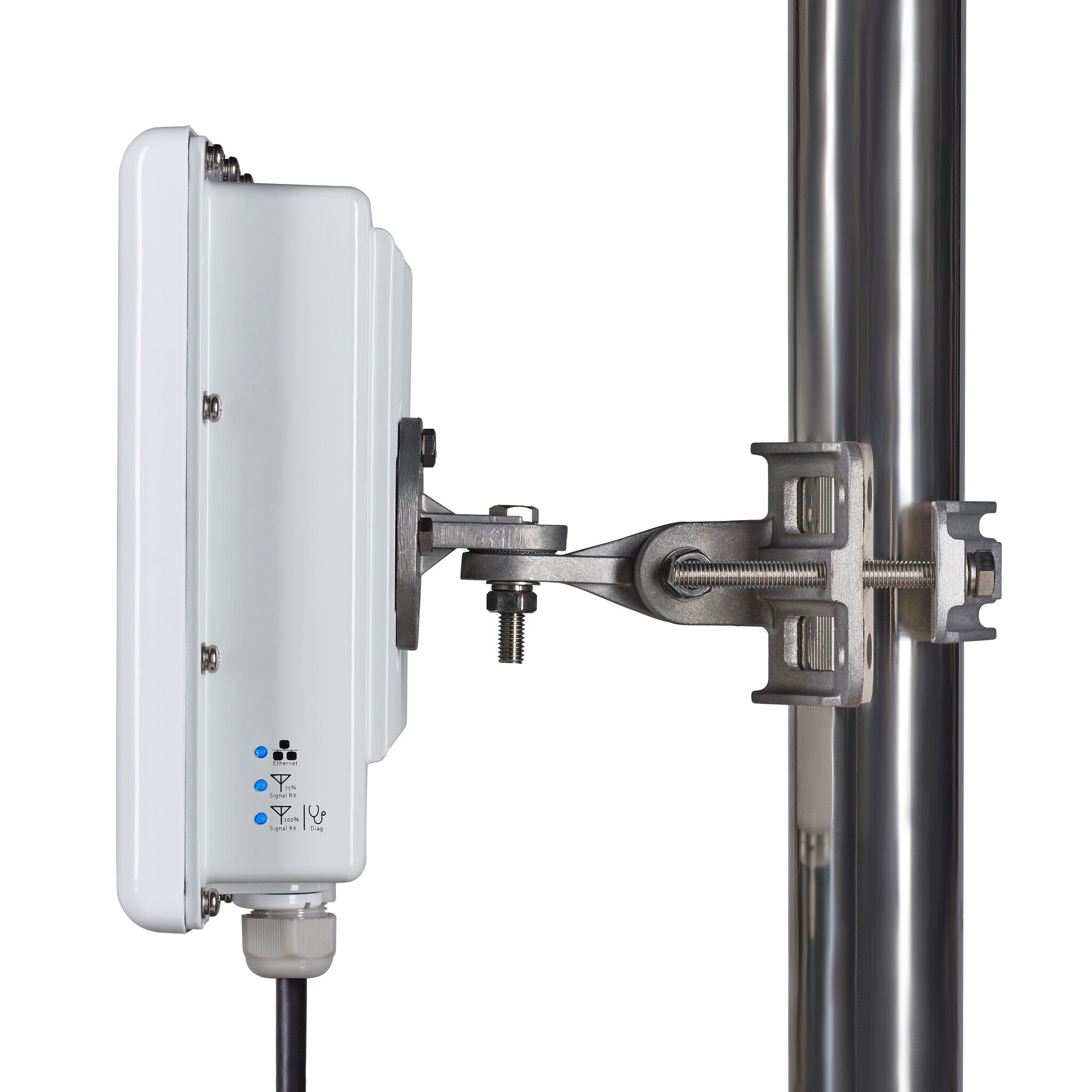

This device comes complete with PoE injector and heavy-duty 3-axis tilt-and-swivel bracket. It features a built-in dual-polarized 18dBi antenna and includes all the capabilities of the standard SIL LITE and SIL LITE 240.
With the addition of our free "SilverView" network monitoring software, this device provides an outstanding, feature-rich solution.
Specifications
Data transmission
| Supported data transfer rates | 240Mbps - 500Mbps |
|---|---|
| Maximum transfer distance | 6000 m |
| Maximum data transfer rate | 500 Mbit/s |
Antenna
| Antennas quantity | 1 |
|---|---|
| Pan/tilt-axis range | 180° |
| Antenna gain level (max) | 18 dBi |
| Antenna design | Internal |
Show all 76 specificationsShow fewer specifications
Wireless LAN features
| Outdoor range | 6000m |
|---|---|
| Indoor range | 6000m |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Signal strength | -40 dBm |
| Transmission gain | 0 - 18 dB |
| Frequency band | 5.1 - 5.8 GHz |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Single-band (5 GHz) |
| Wi-Fi | Yes |
Network
| Static IP | Yes |
|---|---|
| Dynamic IP | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Connectivity technology | Wired & Wireless |
Security
| Authentication method | WPA2 AES |
|---|---|
| MAC address filtering | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH |
Management features
| DHCP client | Yes |
|---|---|
| Web-based management | Yes |
| Management protocols | SNMP V2 |
Features
| Mean time between failures (MTBF) | 60000 h |
|---|---|
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| LED indicators | LAN, Signal strength |
| Remote control function | Yes |
| Product colour | White |
| Product type | Network bridge |
System requirements
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
|---|---|
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
Power
| Power plug type | Type G |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| AC input voltage | 100-240 V |
| Power source type | DC, PoE |
Operational conditions
| Storage relative humidity (H-H) | 0 - 95% |
|---|---|
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
Certificates
| Certification | CE, FCC |
|---|
Weight & dimensions
| Weight | 1.6 kg |
|---|---|
| Height | 77 mm |
| Depth | 215 mm |
| Width | 215 mm |
| Antenna diameter | 30 cm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |
| Grounding | Yes |
| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
