SilverNet LITE 240-PCP Network bridge 240 Mbit/s White
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £596.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Point-to-Point Outdoor Wireless Bridge Up to 6KM
- Point-to-MultiPoint Client
- 240Mbps throughput
- Integrated 18dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (transmit Power Control)
- PoE 802.3af
- Upgradable to 500Mbps

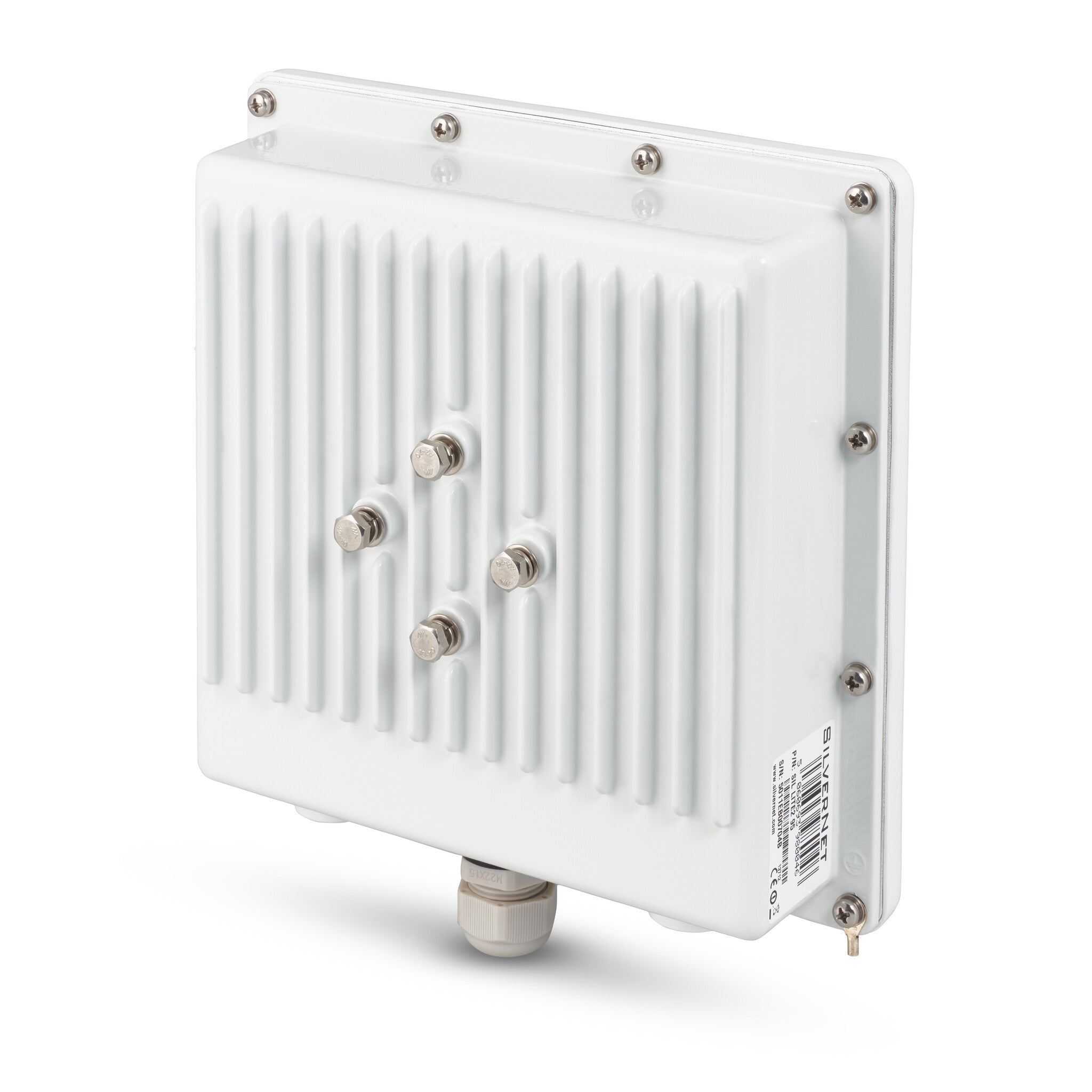

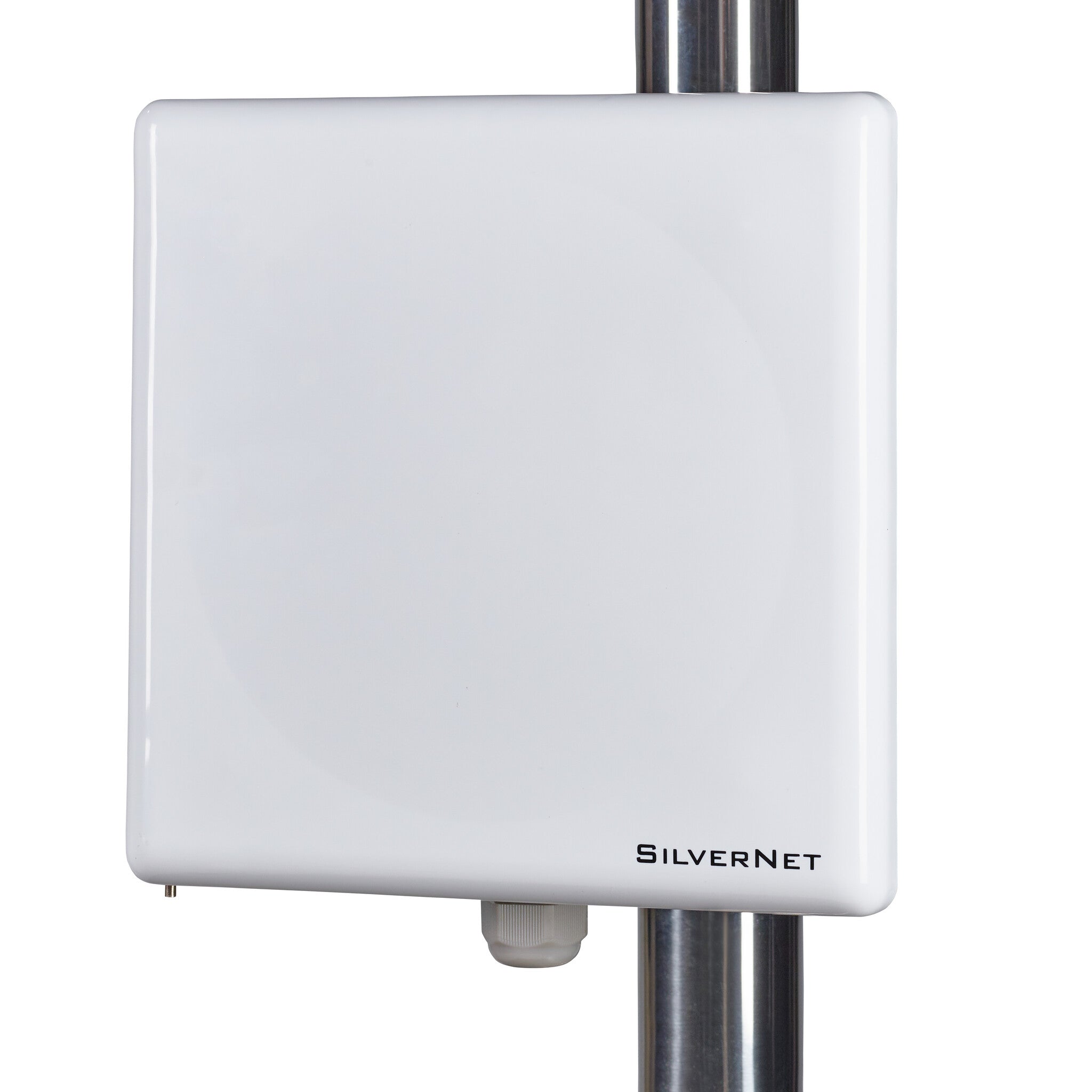

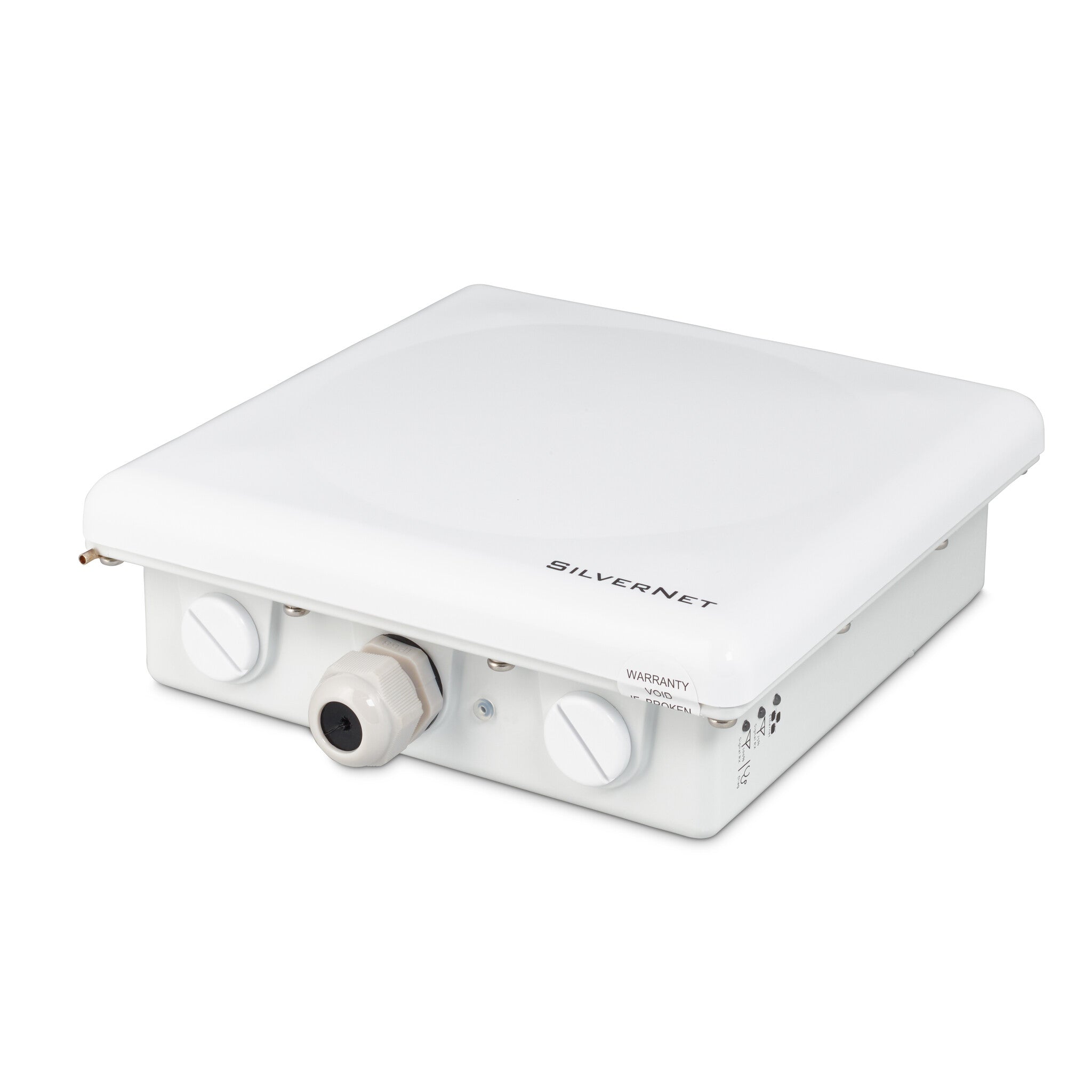

The SIL LITE 240-PCP is an outdoor wireless link that can transmit up to 240Mbps at distances as far as 6km. The radio has a metal enclosure which offers enhanced protection from any external electromagnetic interference and has built-in surge protection to protect itself from lightening strikes and power surges.

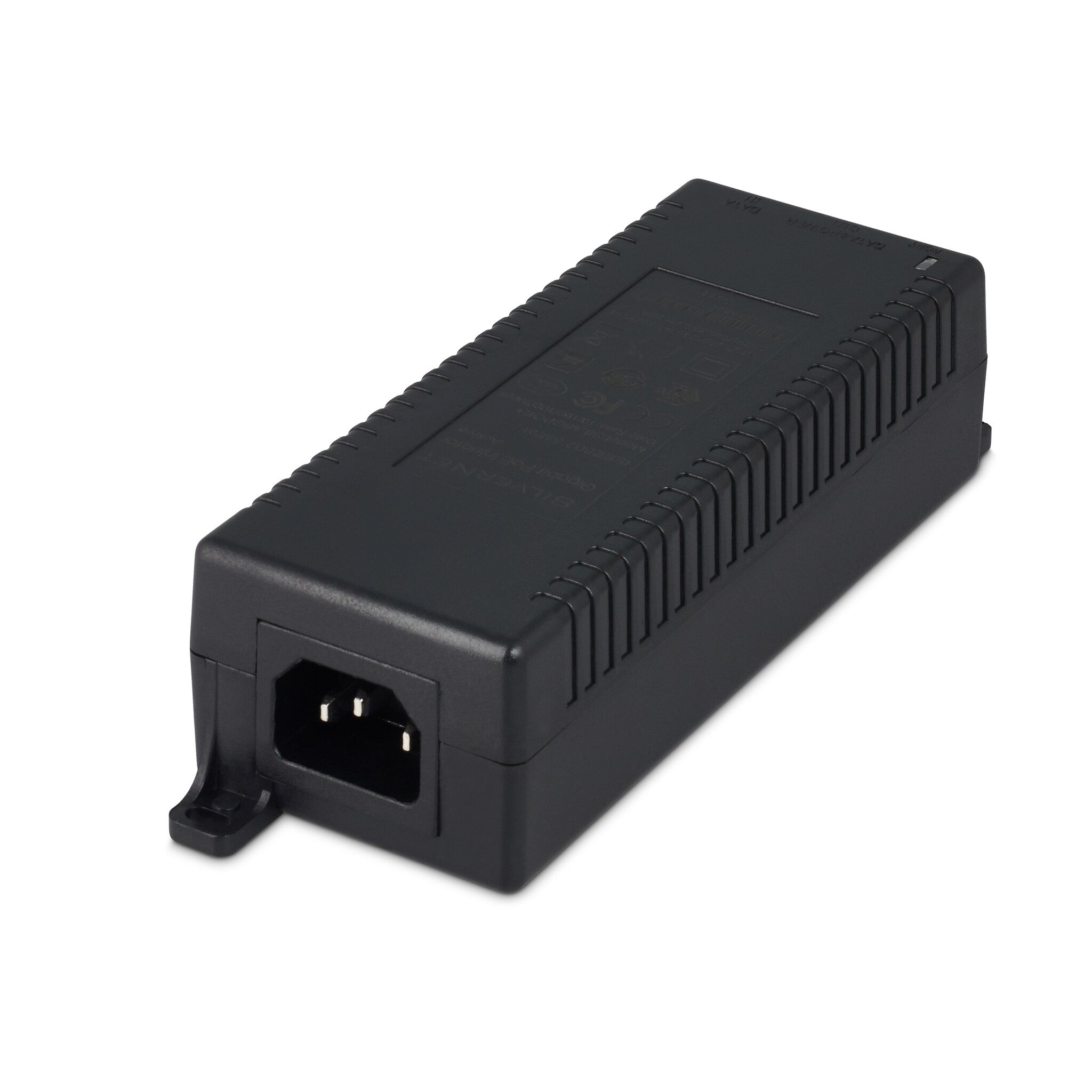

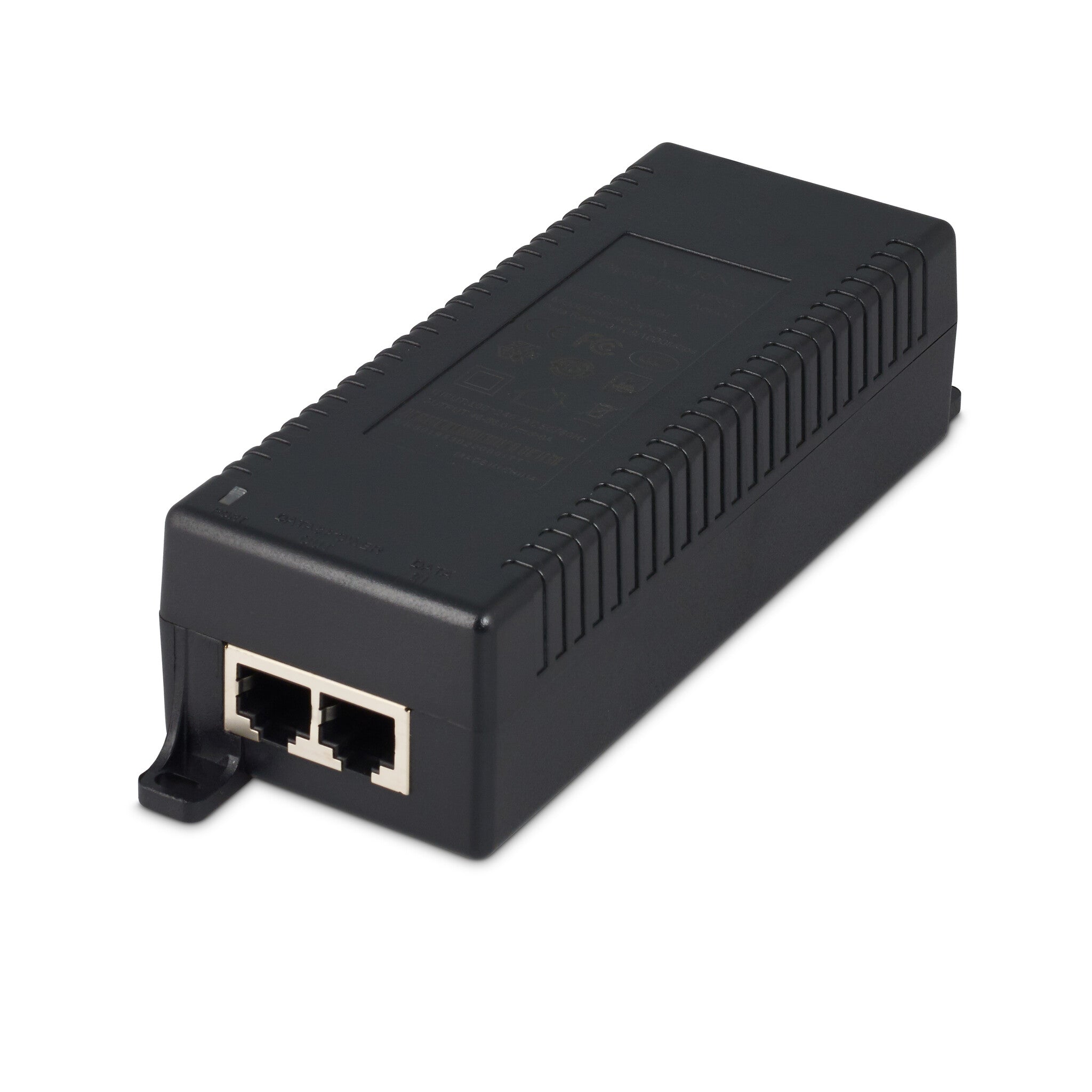

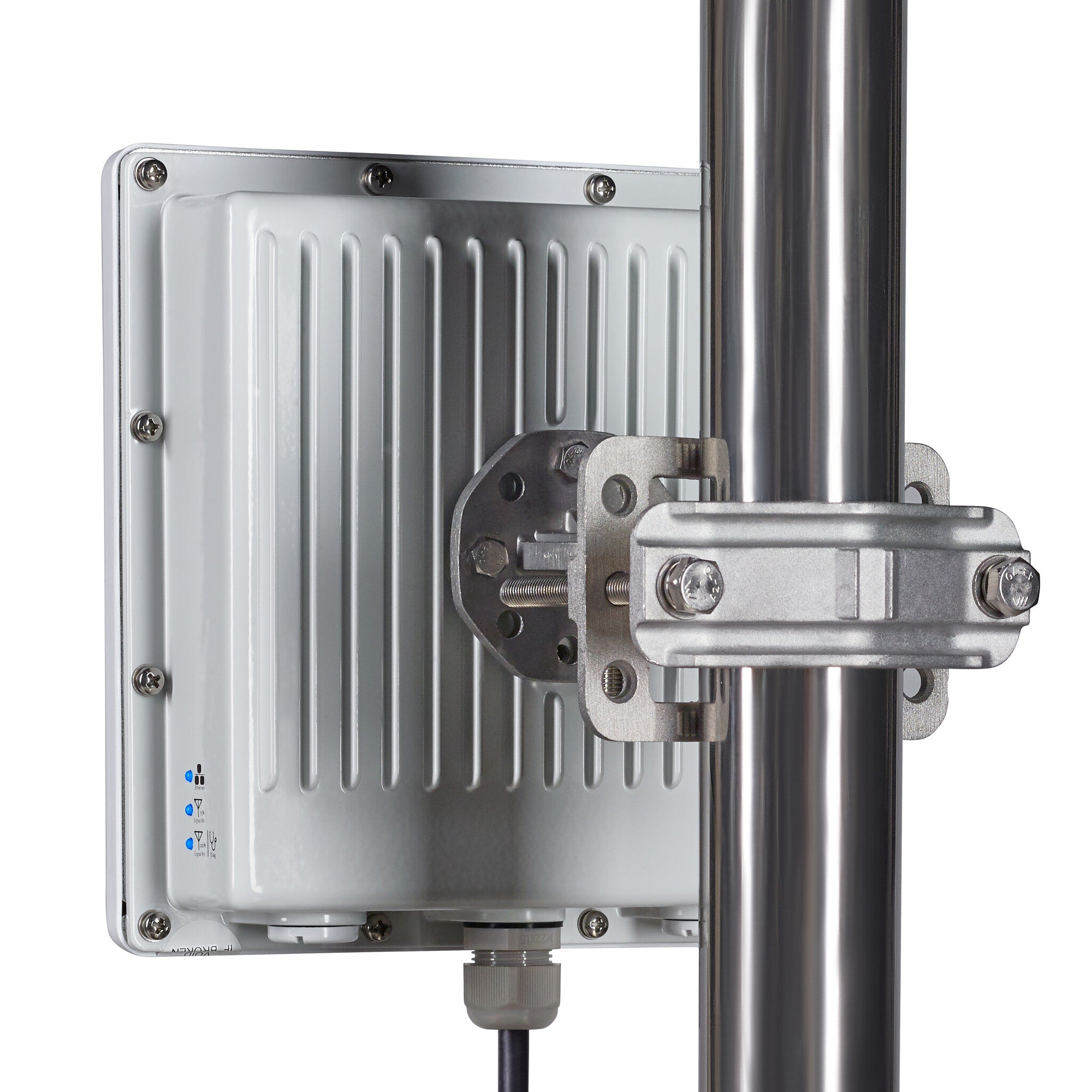

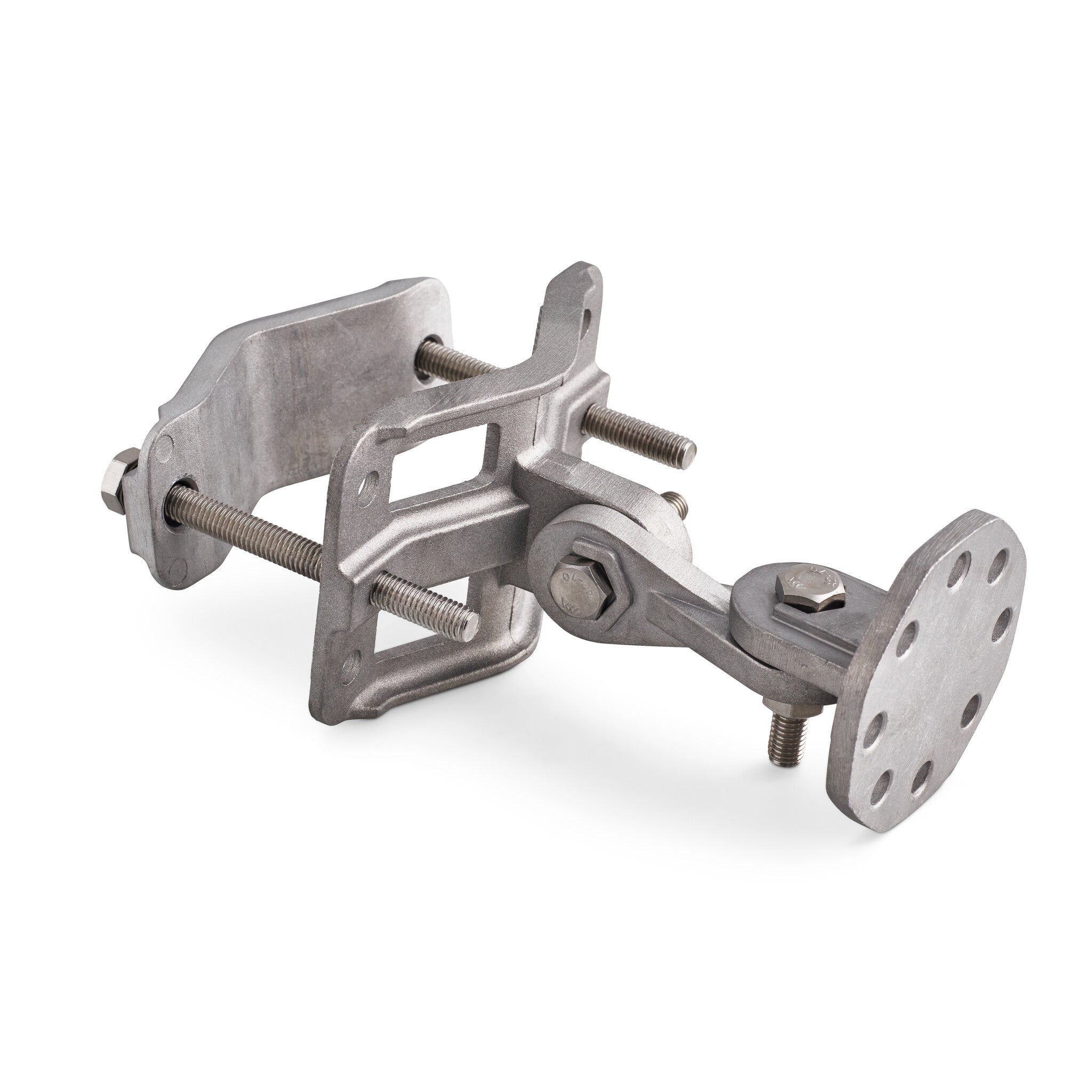

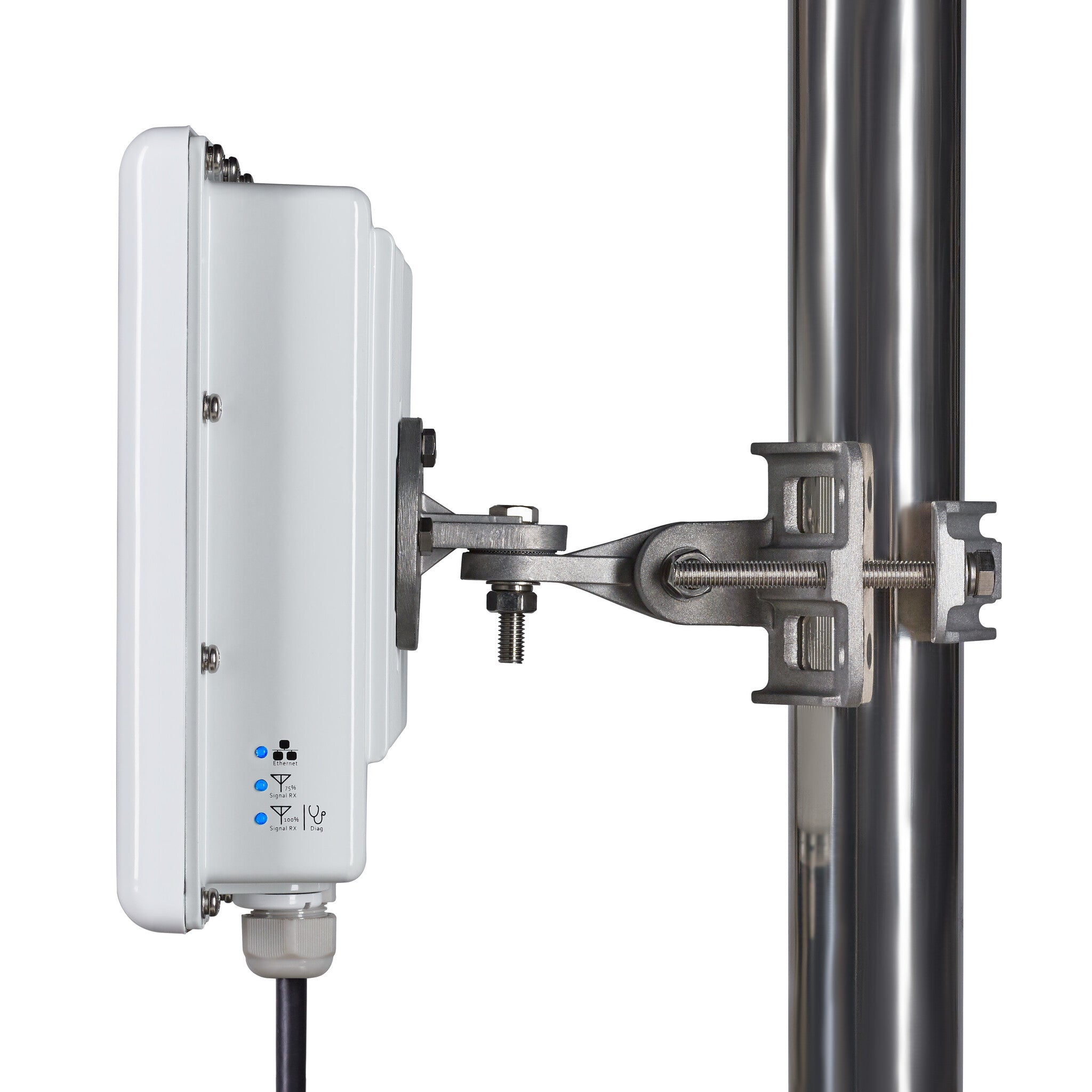

The SIL LITE 240-PCP comes as a pre-configured pair and includes PoE injectors and Heavy duty 3 axis Tilt and Swivel brackets. It has a built-in dual polarised 18dBi antenna, includes all the features of the standard LITE PCP and is upgradable to 500Mbps via a software key.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
Specifications
Data transmission
| Supported data transfer rates | 240Mbps |
|---|---|
| Maximum transfer distance | 6000 m |
| Maximum data transfer rate | 240 Mbit/s |
Antenna
| Antennas quantity | 1 |
|---|---|
| Pan/tilt-axis range | 180° |
| Antenna gain level (max) | 18 dBi |
| Antenna design | Internal |
Show all 77 specificationsShow fewer specifications
Wireless LAN features
| Outdoor range | 6000m |
|---|---|
| Indoor range | 6000m |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Signal strength | -40 dBm |
| Transmission gain | 0 - 18 dB |
| Frequency band | 5.1 - 5.8 GHz |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Single-band (5 GHz) |
| Wi-Fi | Yes |
Network
| Static IP | Yes |
|---|---|
| Dynamic IP | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Connectivity technology | Wired & Wireless |
Security
| Authentication method | WPA2 AES |
|---|---|
| MAC address filtering | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH |
Management features
| DHCP client | Yes |
|---|---|
| Web-based management | Yes |
| Management protocols | SNMP V2 |
Features
| Mean time between failures (MTBF) | 60000 h |
|---|---|
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Automatic Transmit Power Control (ATPC) | Yes |
| LED indicators | LAN, Signal strength |
| Remote control function | Yes |
| Product colour | White |
| Product type | Network bridge |
System requirements
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
|---|---|
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
Power
| Power plug type | Type G |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| AC input voltage | 100 - 240 V |
| Power source type | DC, PoE |
Operational conditions
| Storage relative humidity (H-H) | 0 - 95% |
|---|---|
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
Certificates
| Certification | CE, FCC |
|---|
Weight & dimensions
| Weight | 1.6 kg |
|---|---|
| Height | 77 mm |
| Depth | 215 mm |
| Width | 215 mm |
| Antenna diameter | 30 cm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |
| Grounding | Yes |
| Packaging content | Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
