SilverNet GAN5824 network antenna Parabolic antenna 2x N-type 24 dBi
£147.99
Couldn't load pickup availability
- Dual Polarisation: Horizontal 9°, Vertical 9°
- 4.9GHz to 7.1GHz Frequency Range
- Compatible with PRO Range multipoint receivers
- N-Type Connector
- 24dBi Gain
- 30dB F/B Ratio

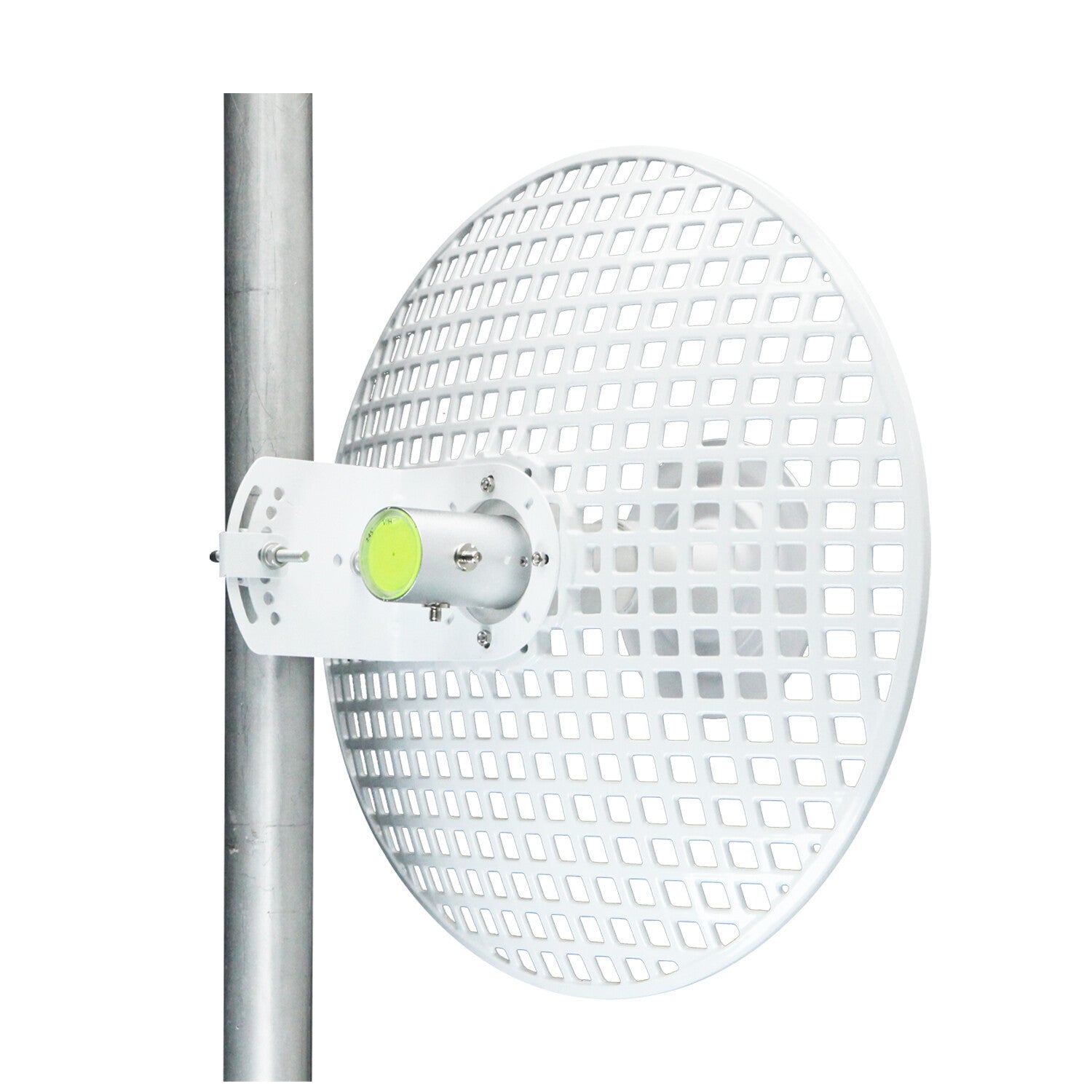

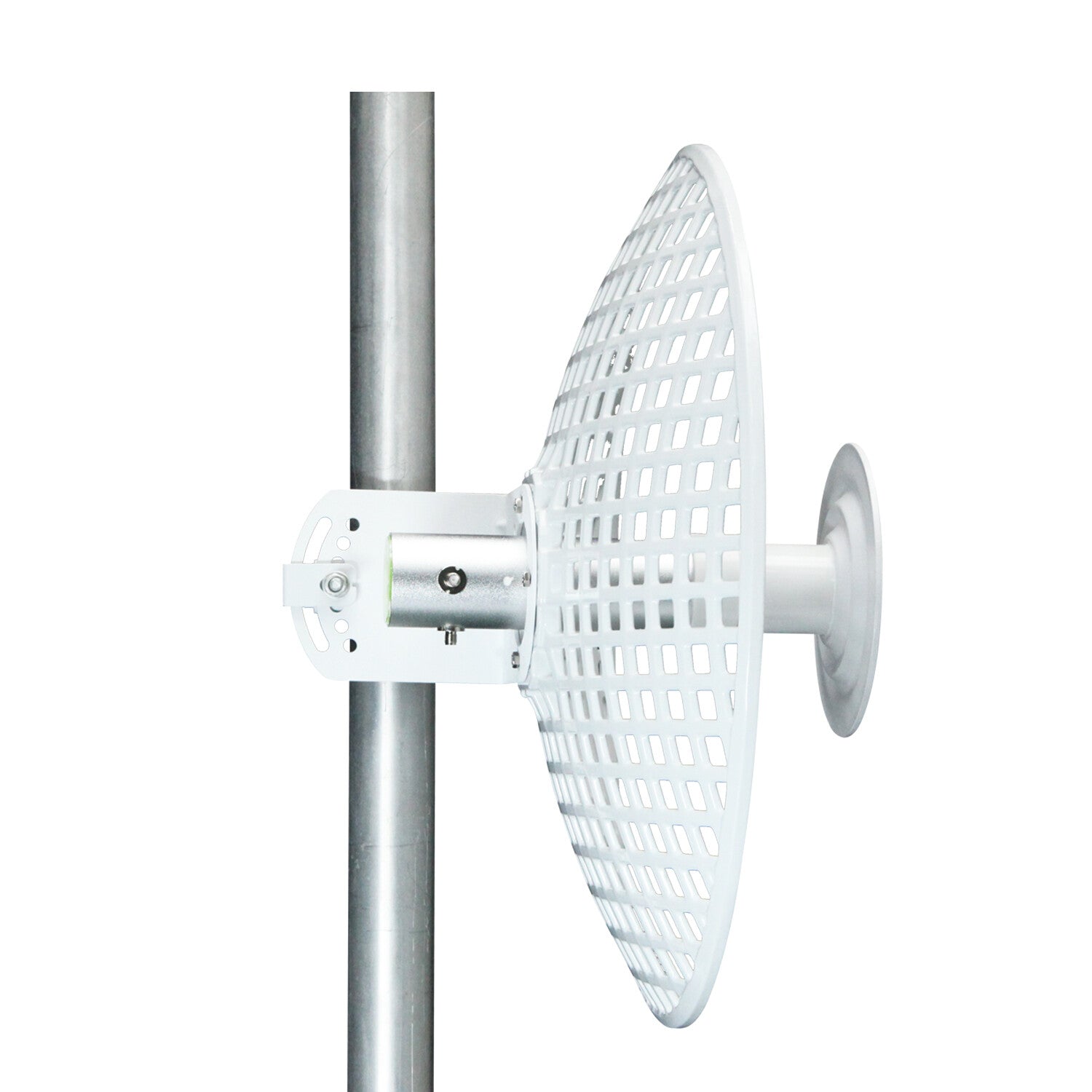

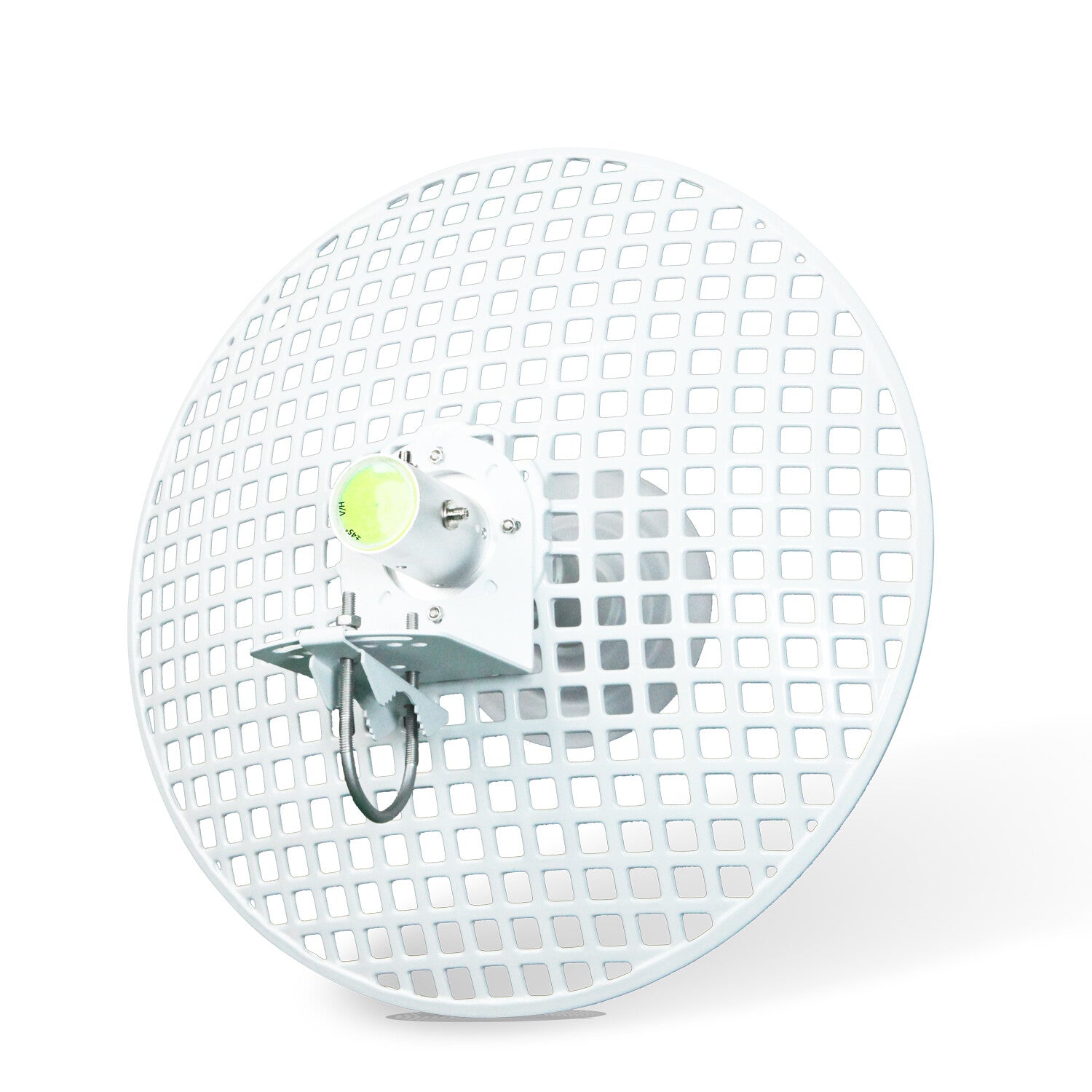

- Wall / Pole Mountable

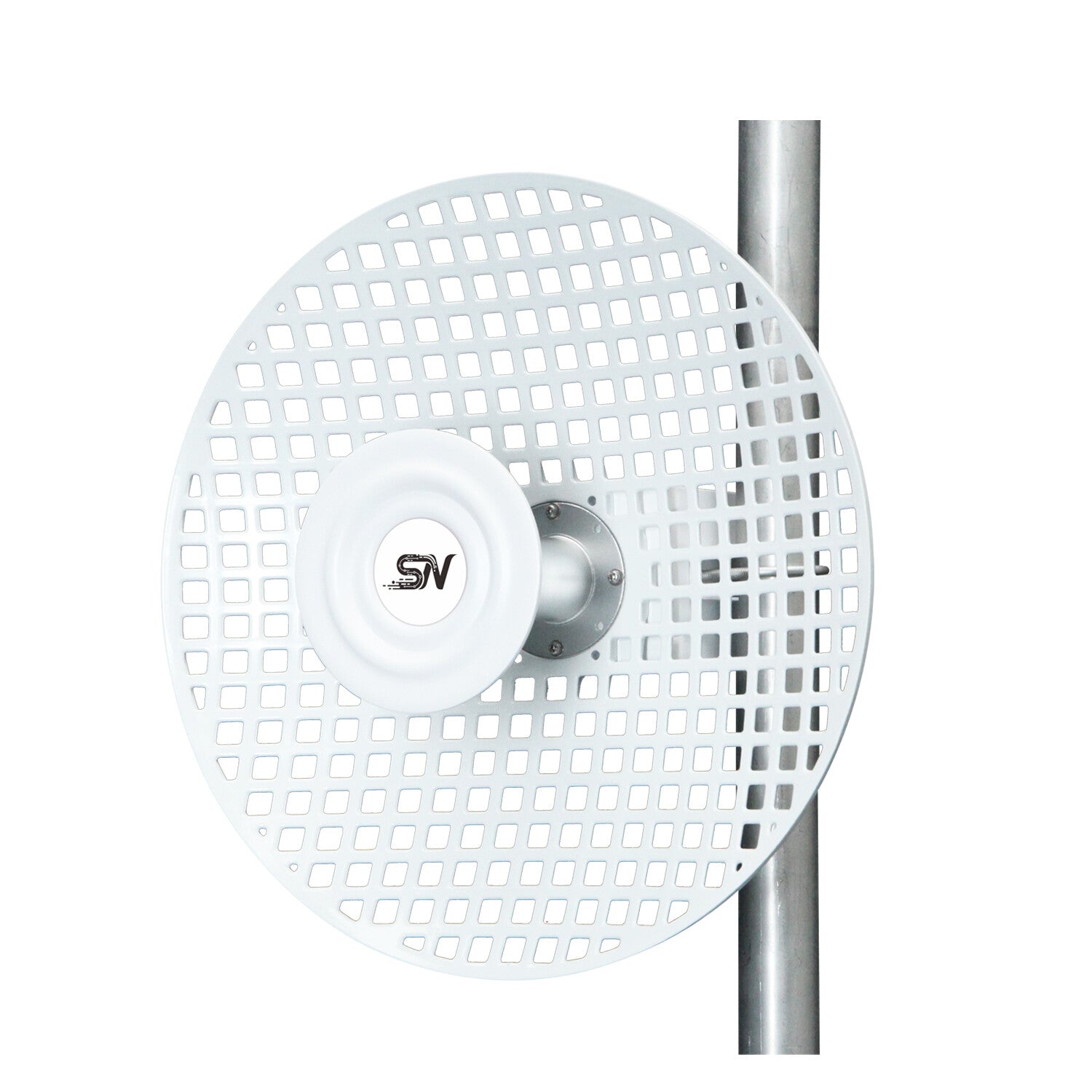

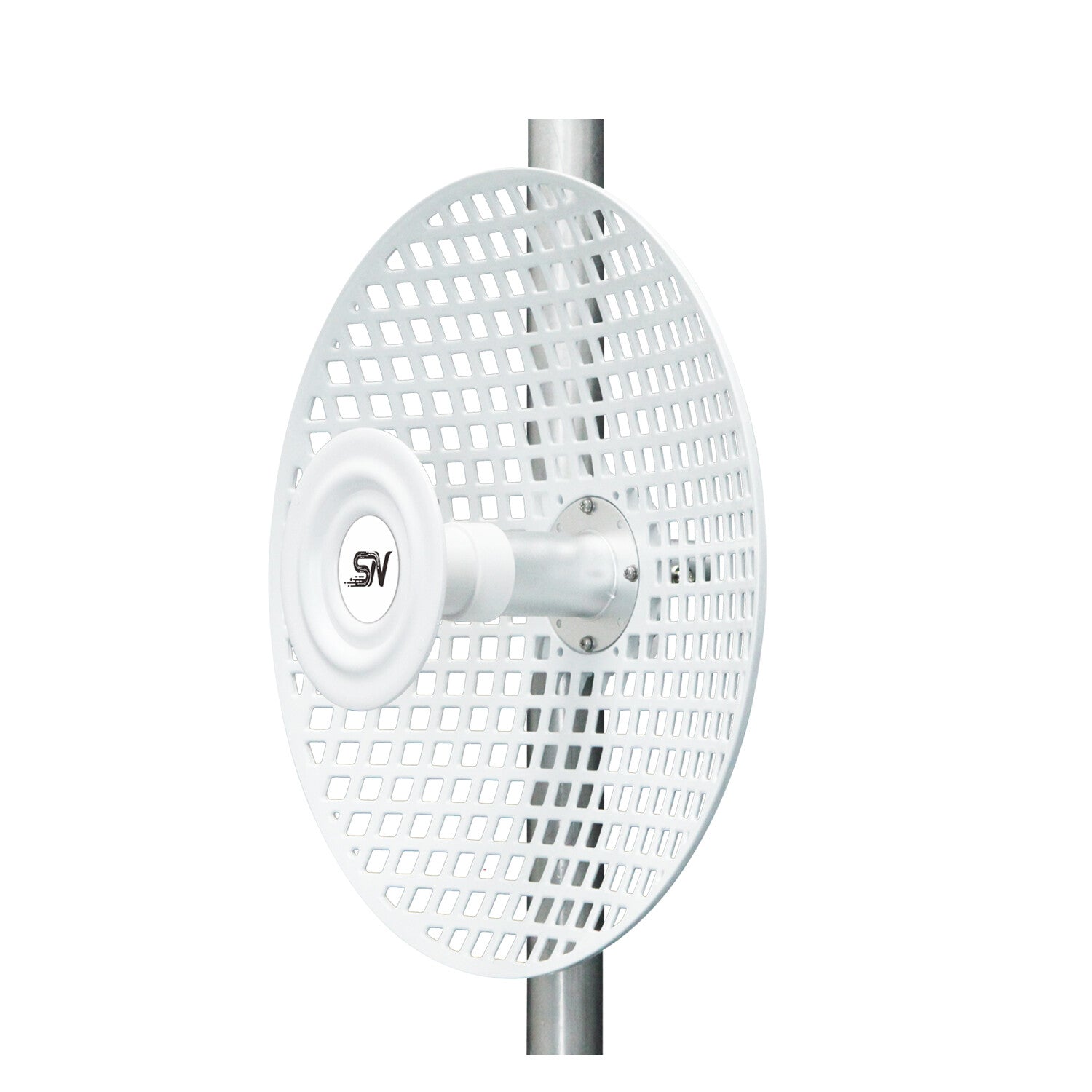

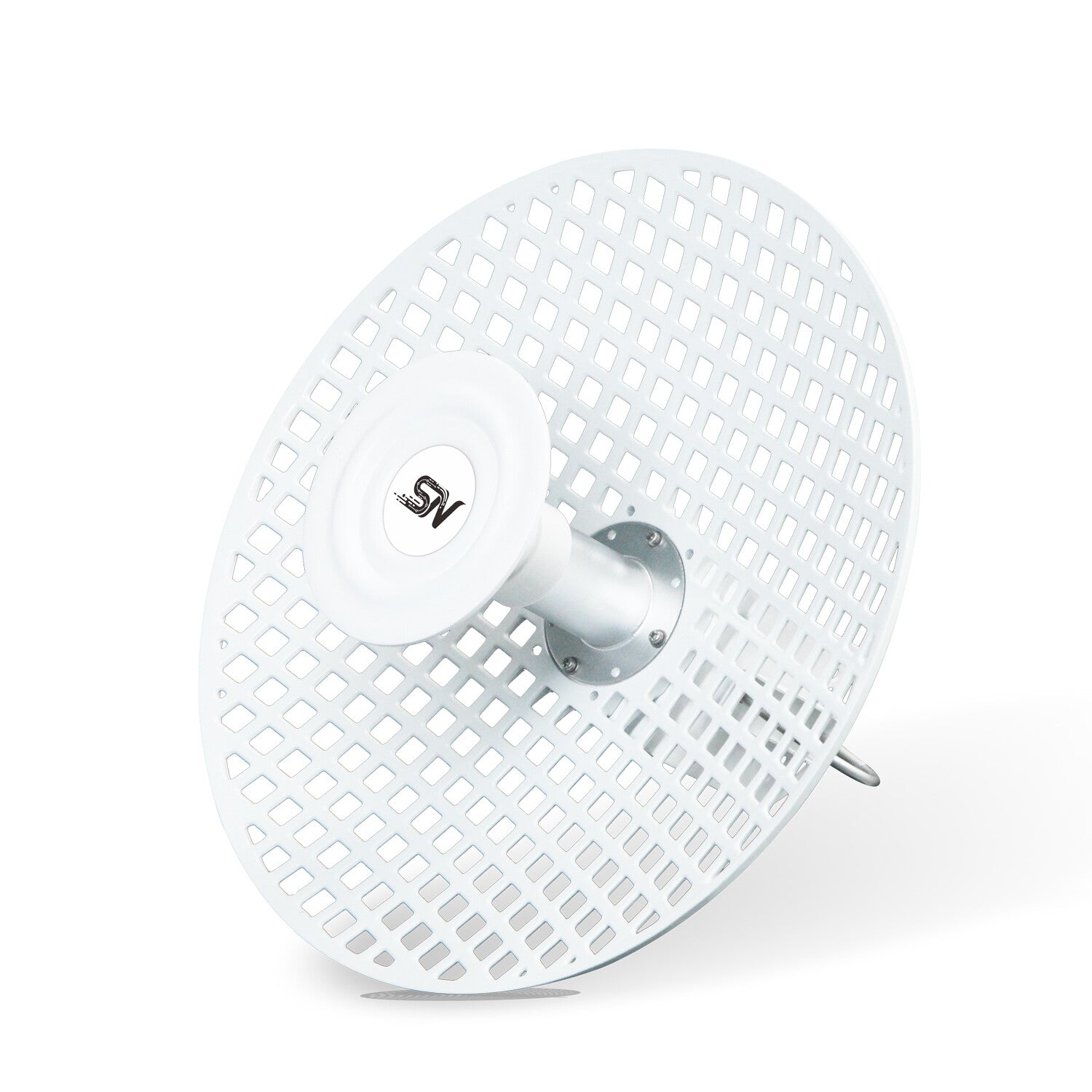

The SIL GAN5824 is an outdoor grid antenna featuring a narrow 9-degree beam width. It functions on the 5GHz band and is designed to work with Pro Range multipoint receivers. Its grid structure is particularly suited for coastal areas where wind is a significant factor.
This antenna is equipped with two N-type female connectors.
For connectivity with the SIL-BASE, LMR400 cables are necessary. SilverNet offers these cables in 1, 2, 4, and 8-meter lengths.
| Performance | |
|---|---|
| Antenna gain level (max) | 24 dBi |
| Frequency band | 4.9 - 7.1 GHz |
| Impedance | 50 Ω |
| Vertical beam width | 9° |
| Horizontal beam width | 9° |
| Features | |
|---|---|
| Antenna type | Parabolic antenna |
| Antenna connector type | 2x N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Waterproof | Yes |
| Wind load | 150 |
| Survival wind speed | 240 km/h |
| Front to back ratio | 30 dB |
| Purpose | Outdoor |
| Mounting | Wall/Pole |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, CE |
| Certification | CE, RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Diameter | 40 cm |
| Weight | 2 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bolts included | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
| Logistics data | |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85177100 |
