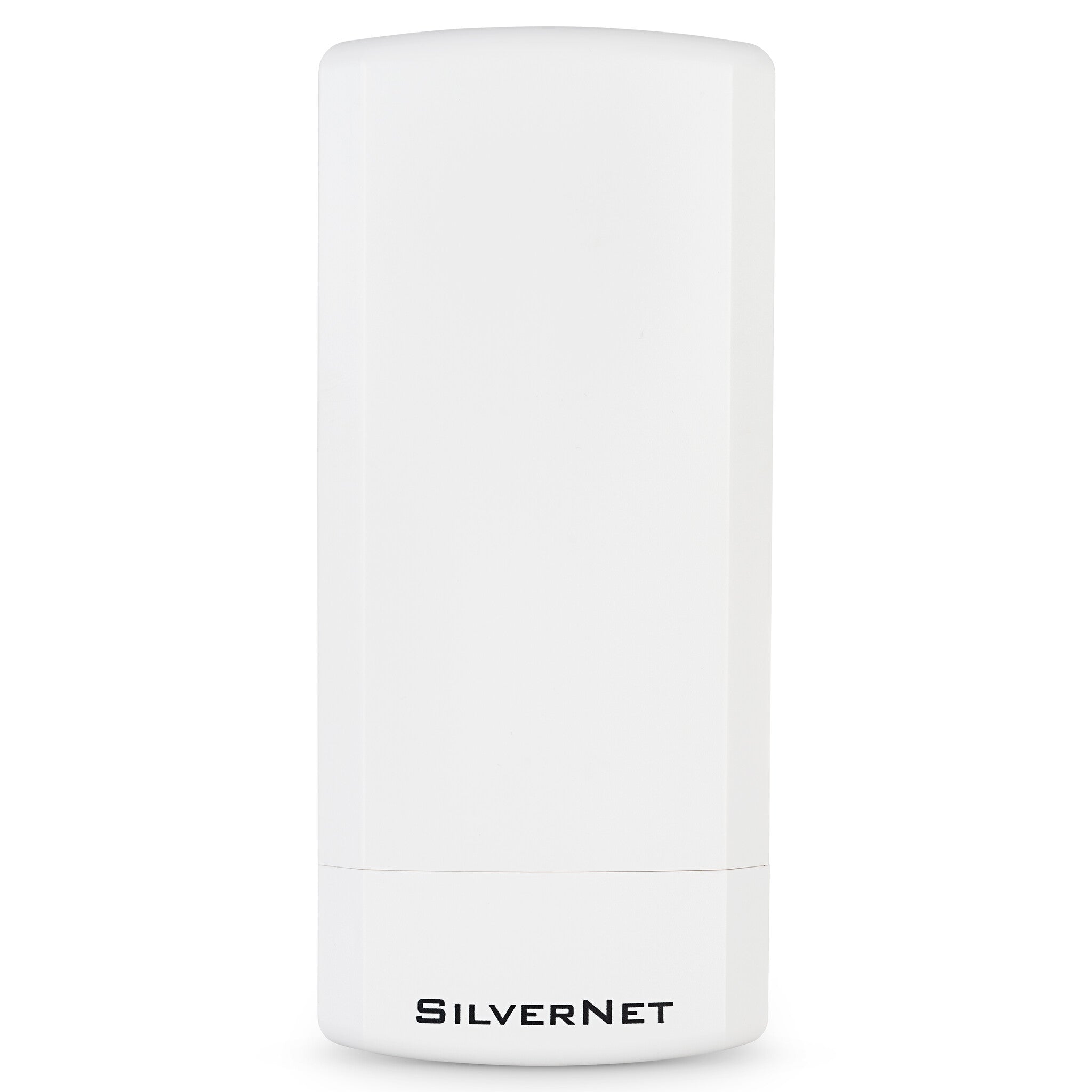

SilverNet · MPN: SIL ECHO-ST
£77.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £25.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Compliant with 5GHz 802.11n/a, radio speed up to 300Mbps
  • TDMA greatly improves the network scalability in throughput and low latency
  • 16dBi dual-polarised antenna to build long distance connections
  • AES Encryption up to 128bit
  • MIMO with spatial multiplexing
  • DFS (Dynamic Frequency Selection)
  • TPC (Transmit Power Control)
  • Selectable transmit power and distance control

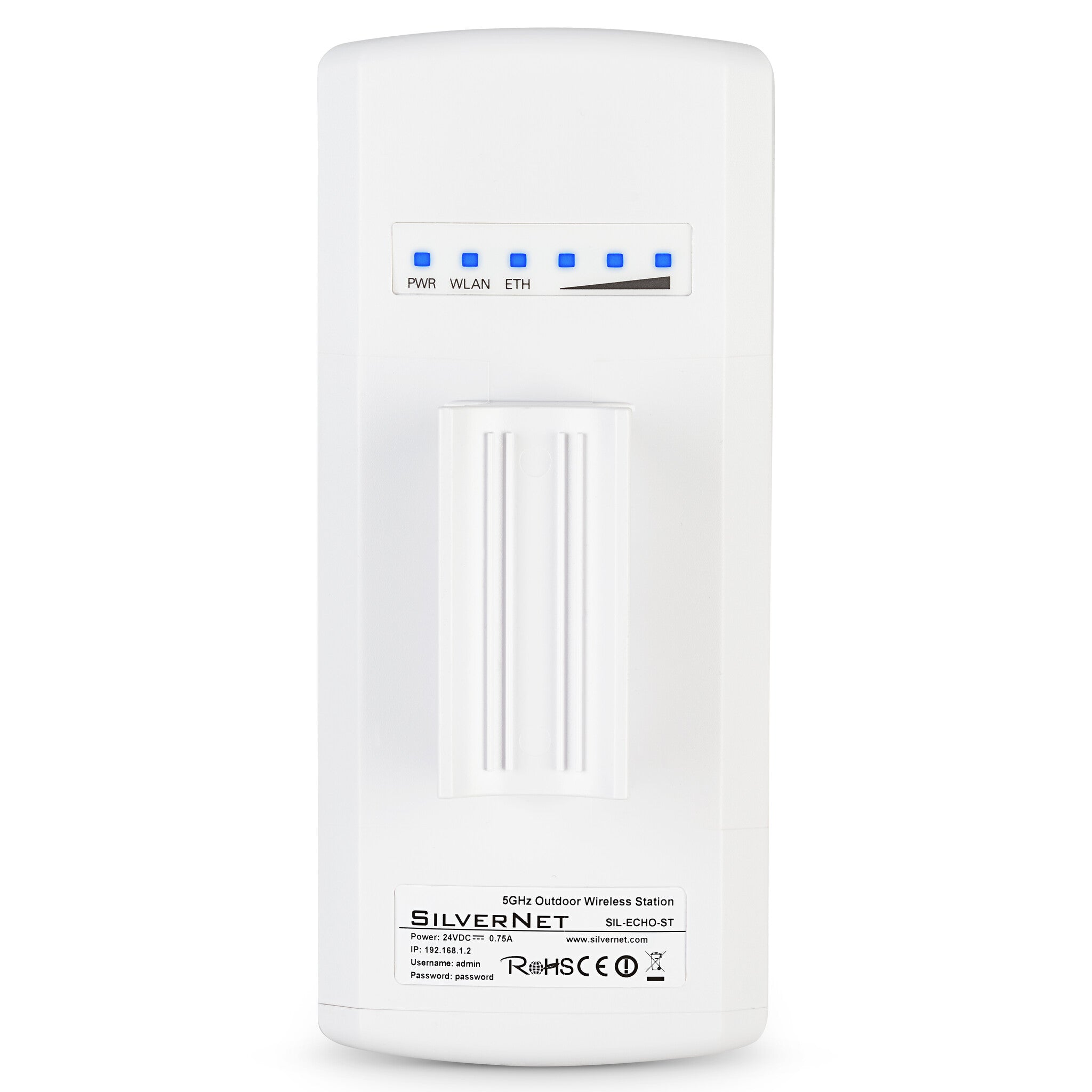

  • Visual alignment LEDs
  • Easy deployment with the moulded mounting bracket and steel banding strap

The ECHO Product range is especially suited for rural and WISP (Wireless Internet Service Provider) type applications where cost is most important. The ECHO-ST will save money, whilst servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive leased lines.

The SIL-ECHO-ST (CPE - Client Premises Equipment) is a low cost driven product, that can be used in Point to Point (2 x ECHO-ST radios in a link) or Point to Multipoint (using ECHO-BS as multipoint collector + Multiple ECHO-ST) configurations.

The ECHO Range is a budget wireless outdoor bridge that has been optimised for last mile access with a compact design. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.

Specifications

Features

Receiver sensitivity-74dBm@300Mbps-78dBm@54Mbps-98dBm@1Mbps
Transmitting power23 dBmW
Dynamic Frequency Selection (DFS)Yes
MIMOYes
Networking standardsIEEE 802.11a, IEEE 802.11n
Ethernet LAN data rates10,100 Mbit/s
Maximum data transfer rate300 Mbit/s
5 GHzYes
2.4 GHzNo

Security

Security algorithms128-bit AES, WPA, WPA2-AES, WPA2-PSK, WPA2-TKIP
Show all 28 specificationsShow fewer specifications

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Power

Power consumption (typical)6 W
Output voltage24 V
Power over Ethernet (PoE)Yes

Design

LED indicatorsLAN, Power, WLAN
Housing materialPlastic
Product colourWhite

Antenna

Antenna gain level (max)16 dBi
Antenna typeInternal

Weight & dimensions

Weight270 g
Height68 mm
Depth90 mm
Width200 mm

Packaging content

Quantity per pack1 pc(s)

Operational conditions

Storage temperature (T-T)-40 - 85 °C
Operating temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 95%
