SilverNet DAN5829 network antenna Parabolic antenna 2x N-type 29 dBi
£214.99
Couldn't load pickup availability
- Dual Polarisation: Horizontal 5°, Vertical 5°
- 4.9GHz to 7.1GHz Frequency Range
- Compatible with PRO Range multipoint receivers
- N-Type Connector
- 29dBi Gain
- Wall / Pole Mountable

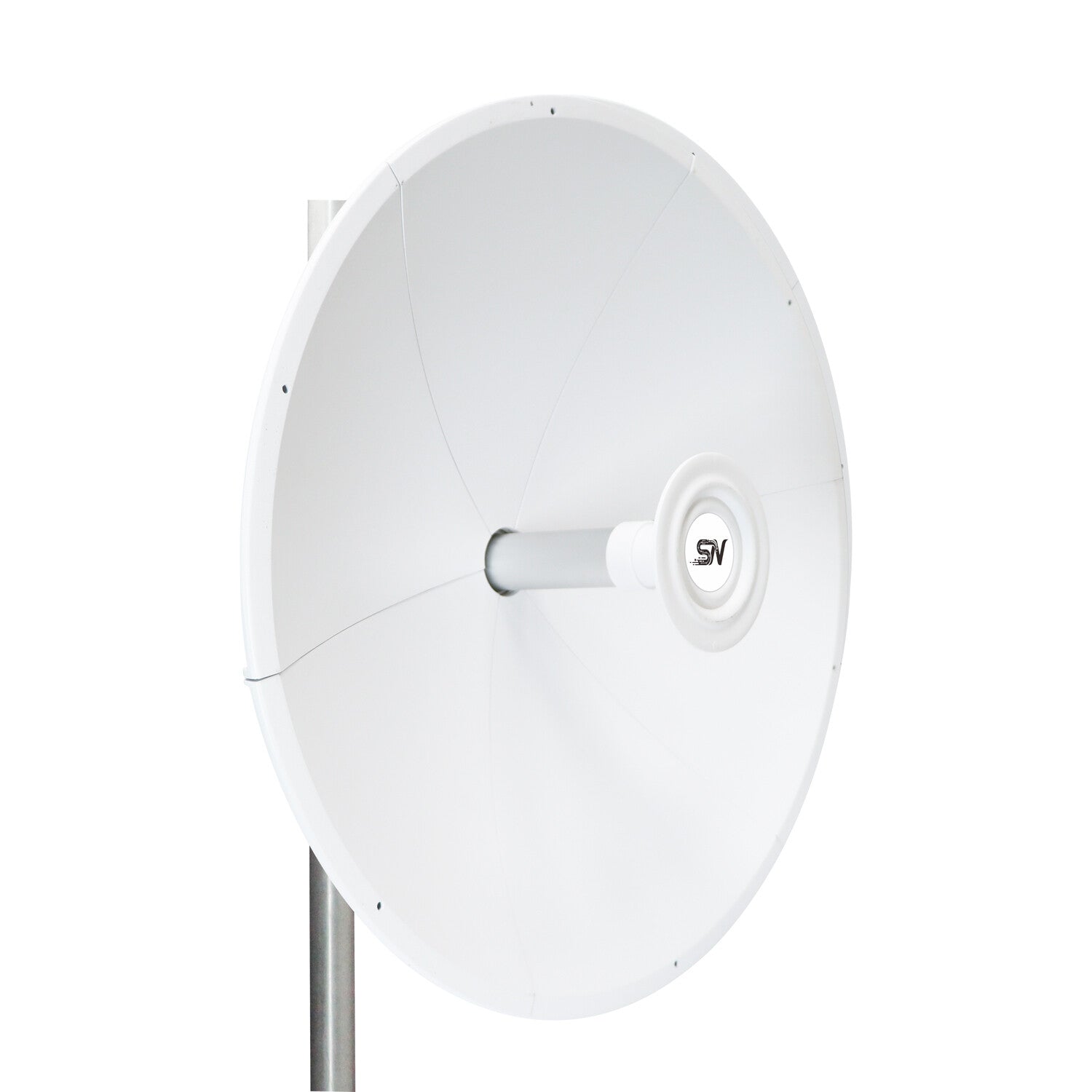

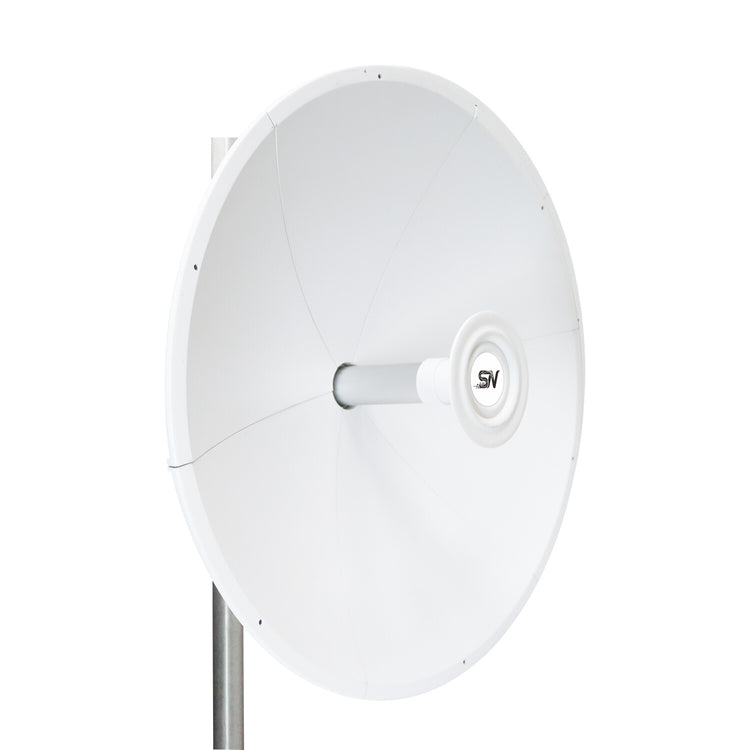

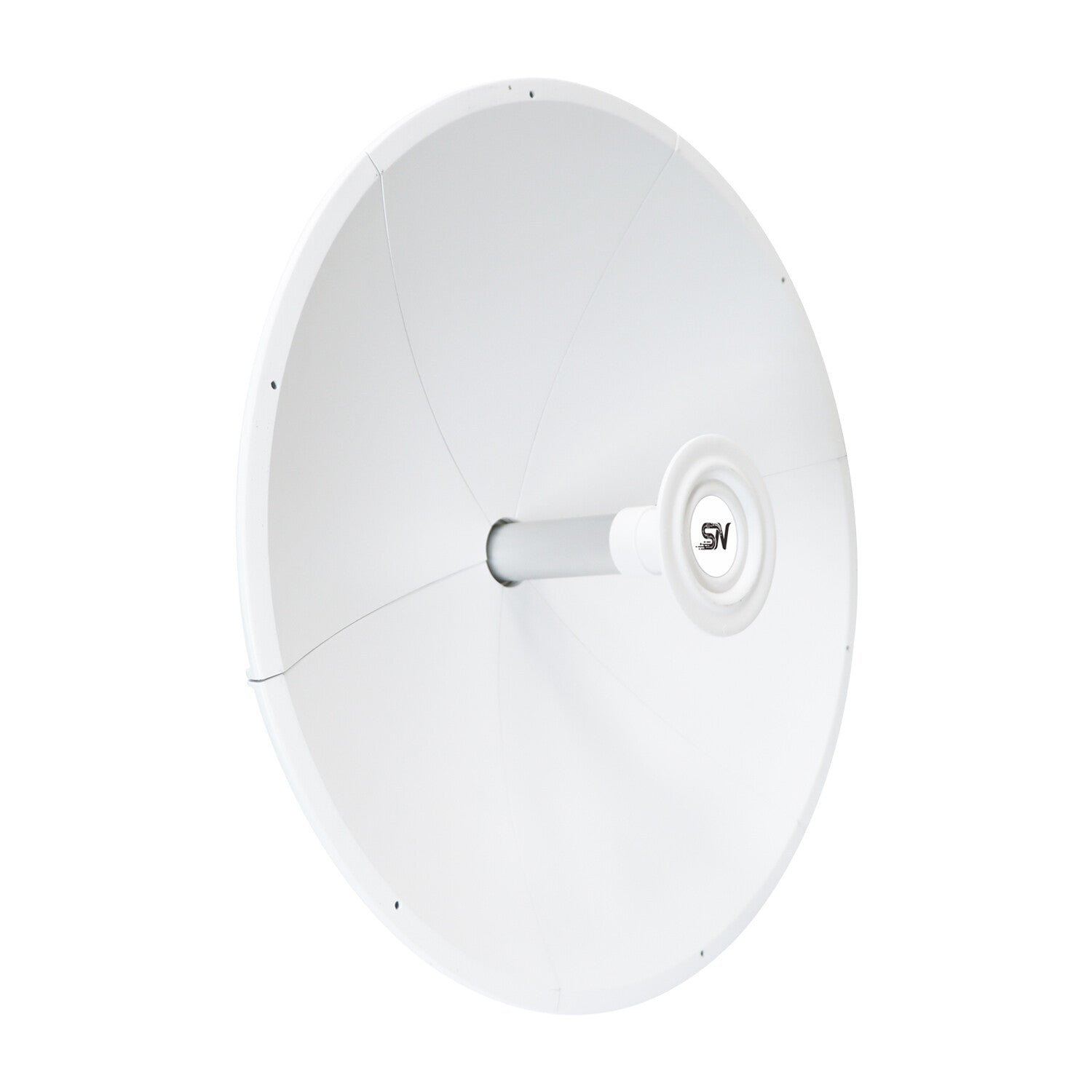

The SIL DAN5829 is an outdoor Dish antenna with a narrow beam width of 5 degrees. It operates on the 5GHz band and is compatible with Pro Range multipoint receivers. The Dish antenna is ideal for long distance transmission.
This antenna has two N-type female connectors.
To connect to our SIL-BASE, LMR400 cables are required. SilverNet provides these cables in lengths of 1, 2, 4, and 8 meters.
| Performance | |
|---|---|
| Antenna gain level (max) | 29 dBi |
| Frequency band | 4.9 - 7.1 GHz |
| Impedance | 50 Ω |
| Vertical beam width | 5° |
| Horizontal beam width | 5° |
| Features | |
|---|---|
| Antenna type | Parabolic antenna |
| Antenna connector type | 2x N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Survival wind speed | 200 km/h |
| Front to back ratio | 35 dB |
| Purpose | Outdoor |
| Mounting | Wall/Pole |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, CE |
| Certification | CE, RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Diameter | 60 cm |
| Weight | 6.5 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bolts included | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
| Logistics data | |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85177100 |
