SilverNet · MPN: SIL BASE 500
£745.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £248.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Point-to-MultiPoint BASE/AP Up to 5KM
  • Designed for Outdoor applications
  • 26dBm OUTPUT POWER MAX
  • SNMP
  • AES Encryption up to 256bit
  • MIMO with spatial multiplexing
  • DFS (Dynamic Frequency Selection)
  • TPC (transmit Power Control)
  • PoE 802.3af
  • SilverView Monitoring software Included
  • WEB Management
  • ONVIF Compliant
  • Surge Protected Radio and PSU

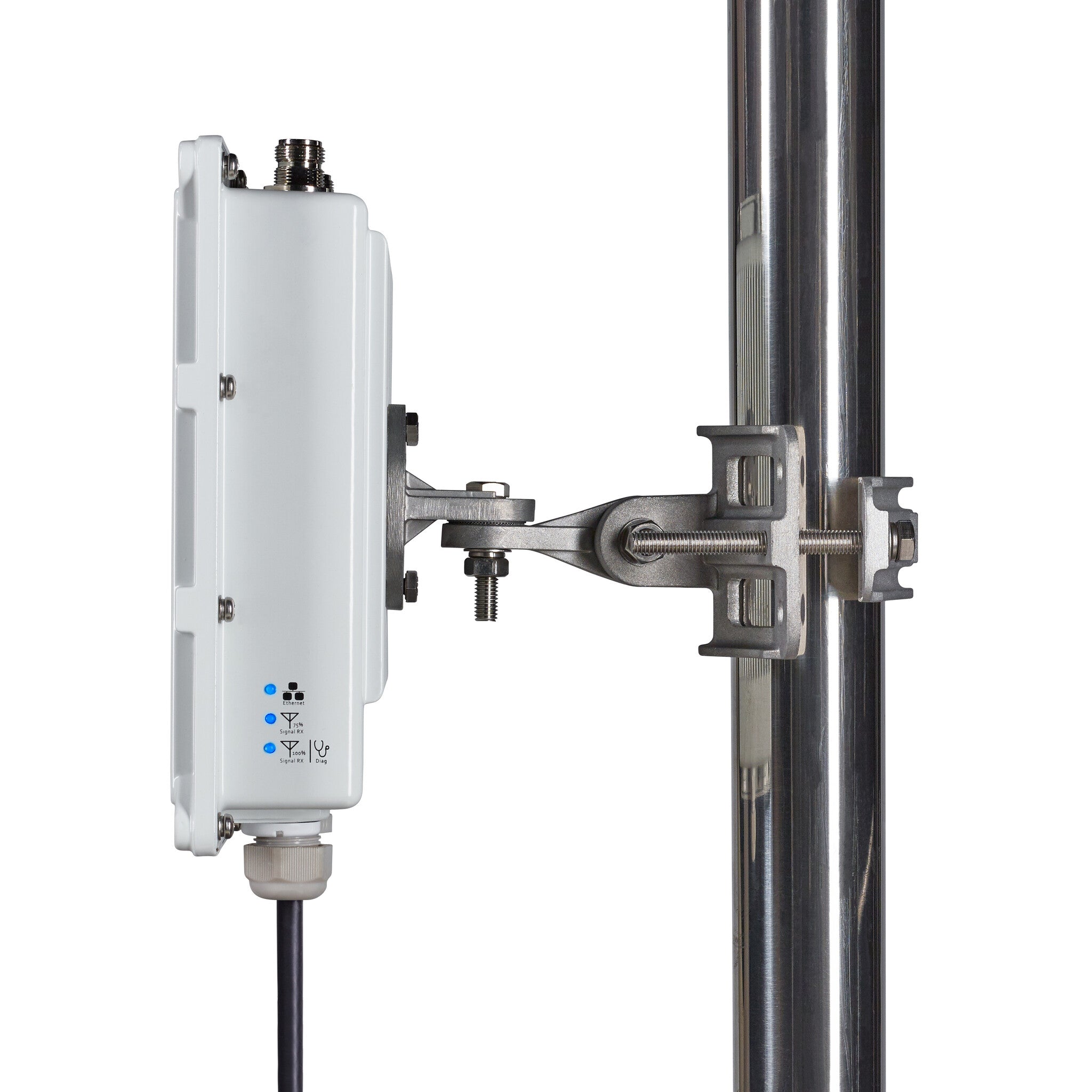

  • Rugged Mounting Brackets
  • up to 500Mbps Throughput

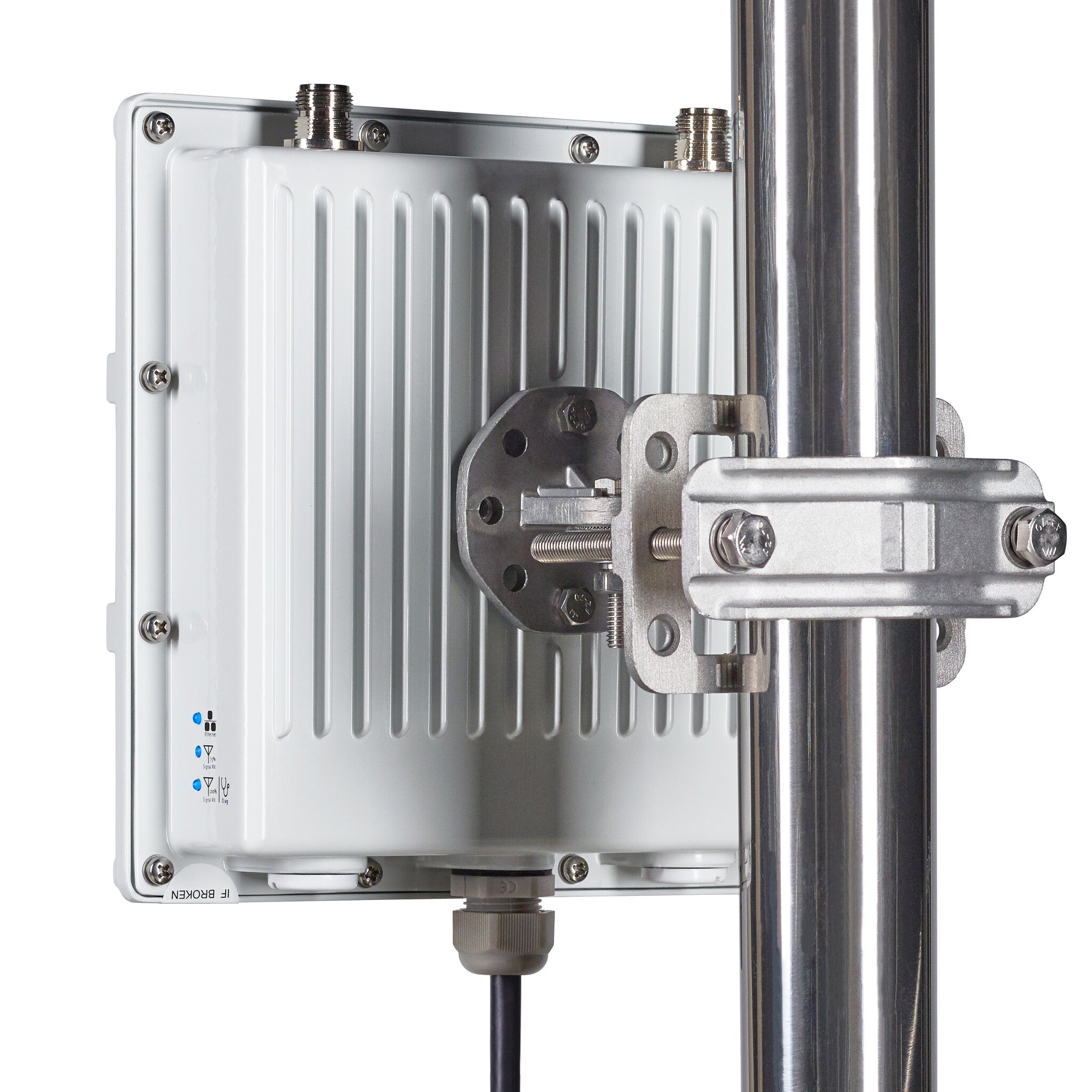

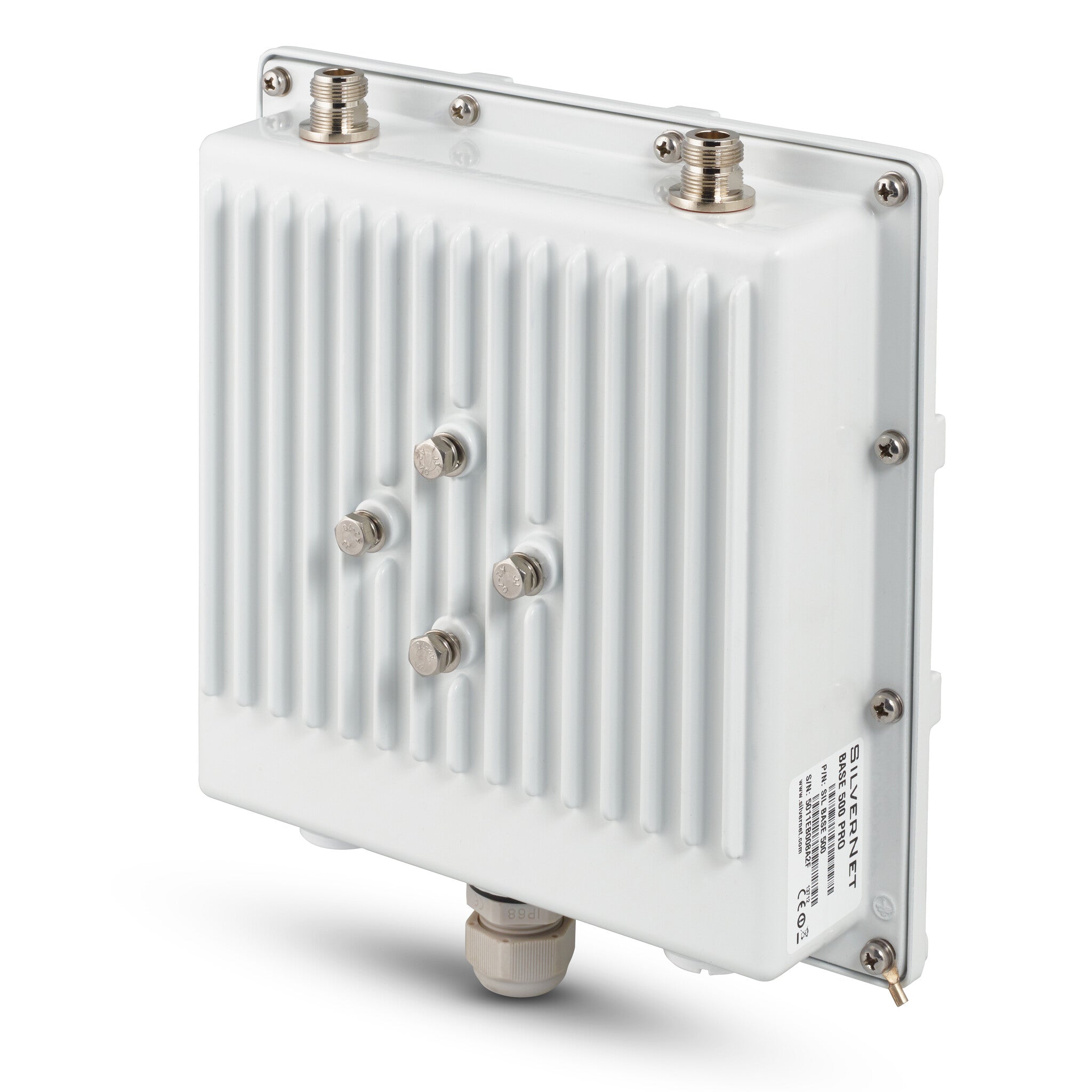

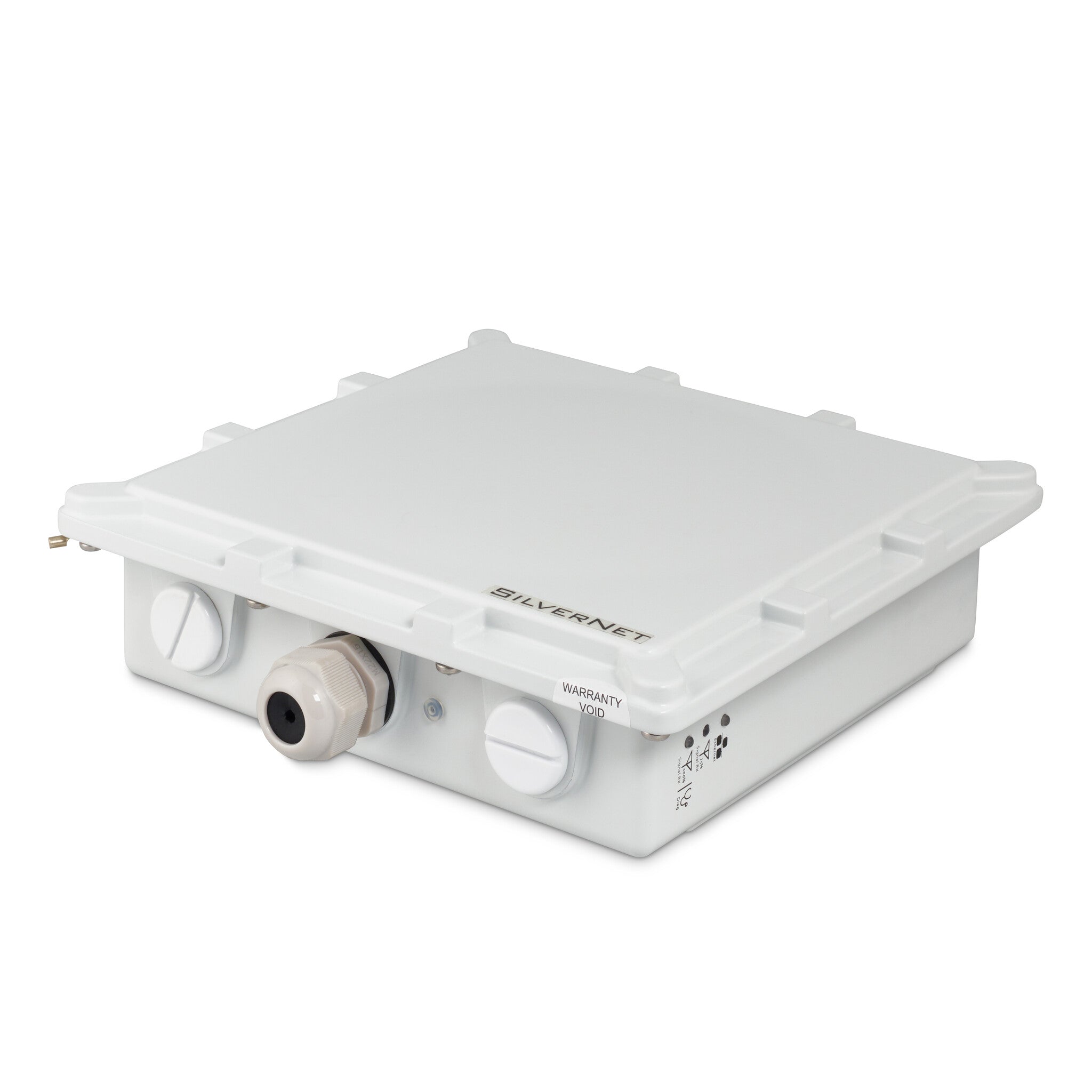

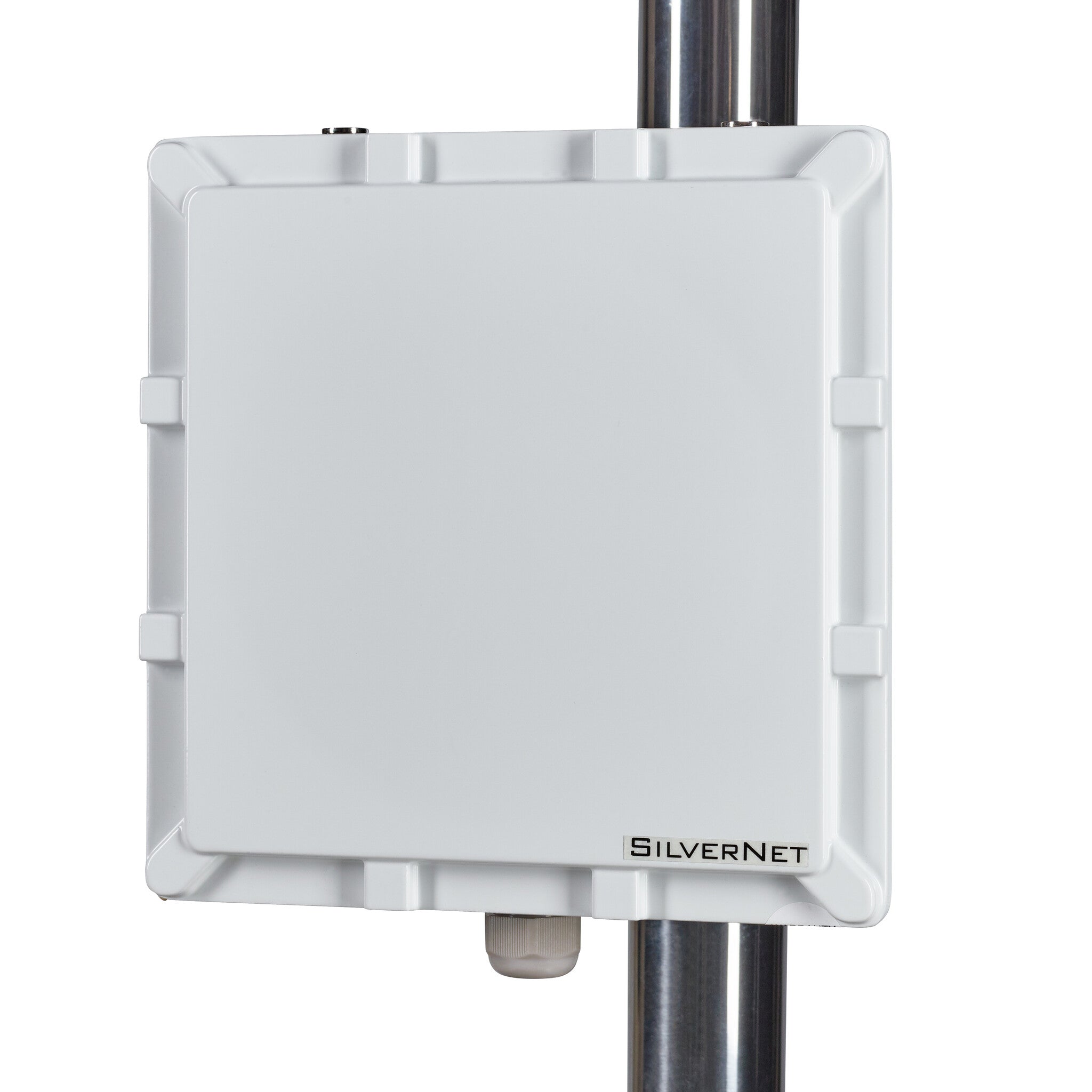

The SIL BASE 500 is a Multipoint receiver with 2 external antenna connectors. It can be used in a multipoint system or as a long range Point to Point link. The SIL BASE 500 is capable of up to 500Mbps up to 5km (depending on which external antenna is fitted).

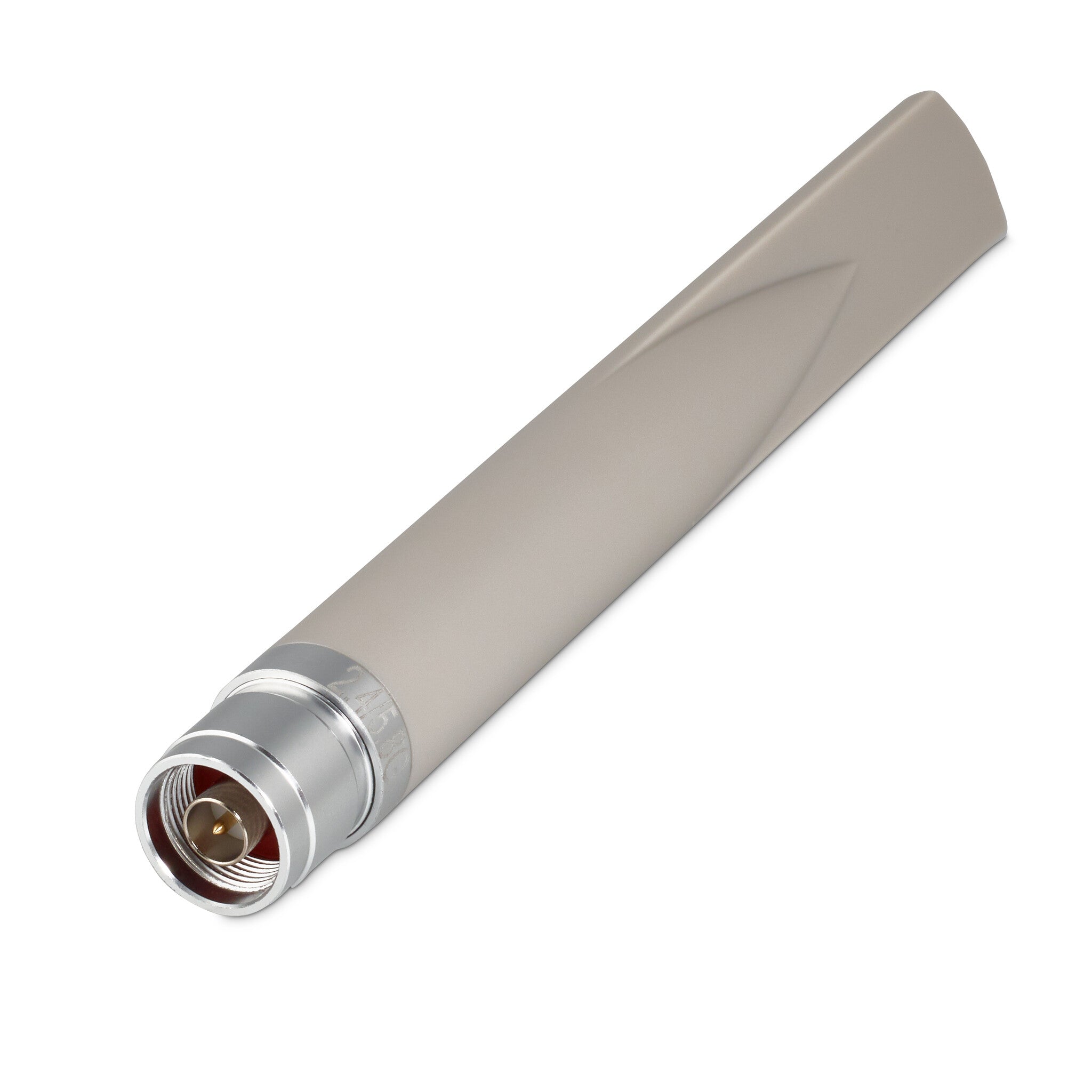

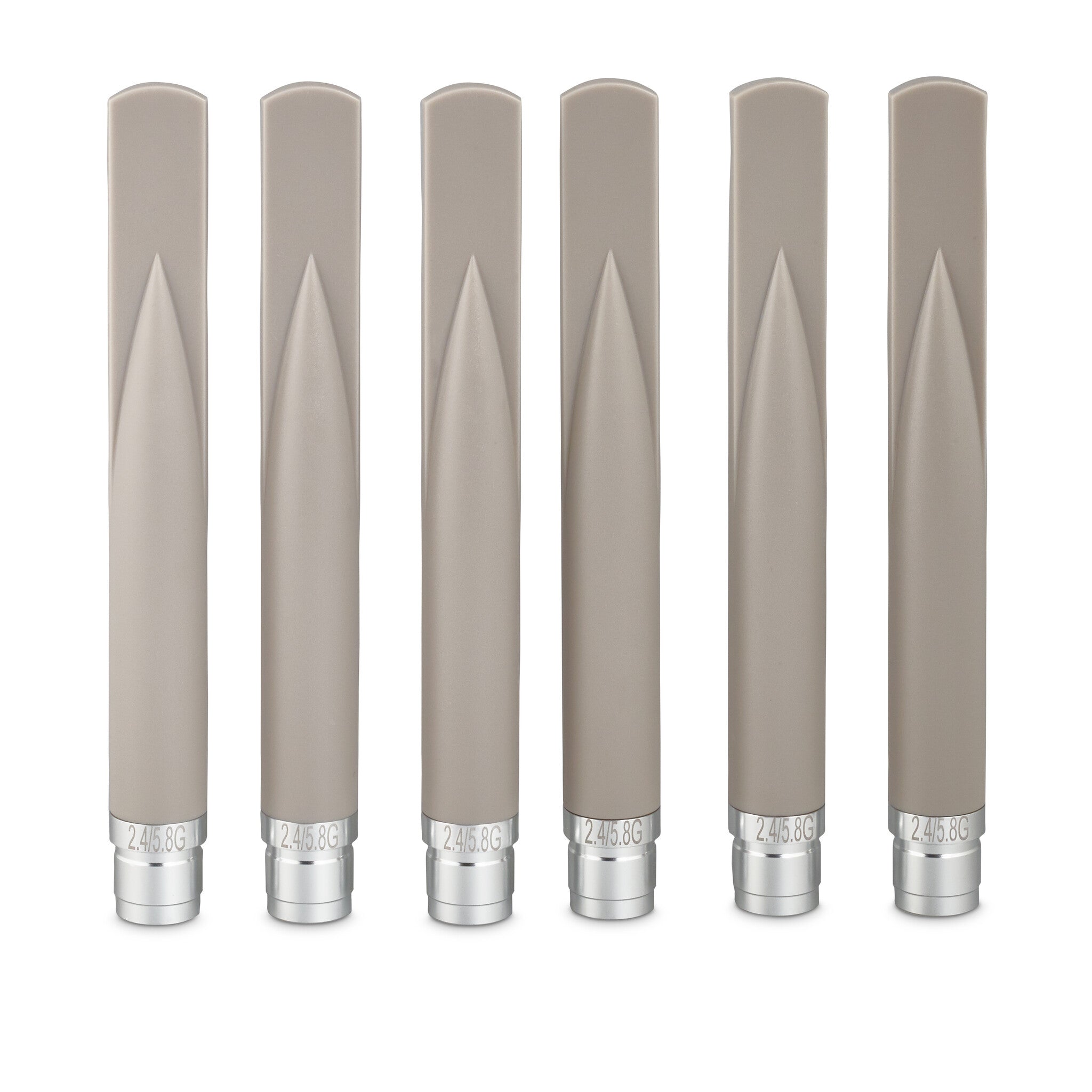

When fitted with a Dual polarised Omni or Sector antenna the SIL BASE 500 can be used as a Multipoint receiver, receiving signals from multiple clients at the same time.

The SIL BASE 500 can also be used as a long range Backhaul link when fitted with Dish or Grid antennas.

Please see our Antenna Datasheet for available antennas.

Specifications

Data transmission

Supported data transfer rates95, 240, 500Mbps
Maximum data transfer rate500 Mbit/s

Antenna

Antennas quantity1
Antenna connector typeN-type
Antenna designExternal
Show all 72 specificationsShow fewer specifications

Wireless LAN features

Outdoor range5.4GHz - 5.8GHz
Indoor range5.1GHz - 5.7Ghz
Receiver sensitivity-82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
Output power (dBm)26
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Frequency band5.1 - 5.8 GHz
WLAN data transfer rate (max)867 Mbit/s
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandSingle-band (5 GHz)
Wi-FiYes

Network

Static IPYes
Dynamic IPYes
Auto MDI/MDI-XYes
Full duplexYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11i, IEEE 802.1Q, IEEE 802.1x
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Ethernet LANYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Connectivity technologyWired & Wireless

Security

Authentication methodWPA2 AES
MAC address filteringYes
Security features802.1x, 802.11i, 802.1Q
Security algorithms256-bit AES, SNMPv2

Management features

DHCP clientYes
Web-based managementYes
Management platformSNMP V2

Features

Mean time between failures (MTBF)60000 h
Surge protectionYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Network Time Protocol (NTP) clientYes
Quality of Service (QoS) supportYes
Wall mountableYes
Reset buttonYes
International Protection (IP) codeIP67
Automatic Transmit Power Control (ATPC)Yes
LED indicatorsLAN, Signal strength
Remote control functionYes
Product colourWhite
Product typeNetwork bridge

System requirements

Compatible operating systemsMicrosoft Windows, Mac OS, Linux Distributions
Minimum system requirementsInternet Explorer, Google Chrome, Mozilla Firefox

Power

Power plug typeType G
Power over Ethernet (PoE) voltage48 V
Power over Ethernet (PoE)Yes
Power consumption (typical)6 W
Power consumption (max)16 W
DC input voltage24 - 48 V
Power supply15.4 W
AC input voltage100 - 240 V
Power source typeDC, PoE

Operational conditions

Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-40 - 90 °C
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-20 - 70 °C

Certificates

CertificationCE, FCC

Weight & dimensions

Weight1.6 kg
Height220 mm
Depth75 mm
Width220 mm

Packaging content

Quick installation guideYes
Power supply includedYes
Mounting bracket(s) includedYes
PoE+ Injector(s)Yes
GroundingYes

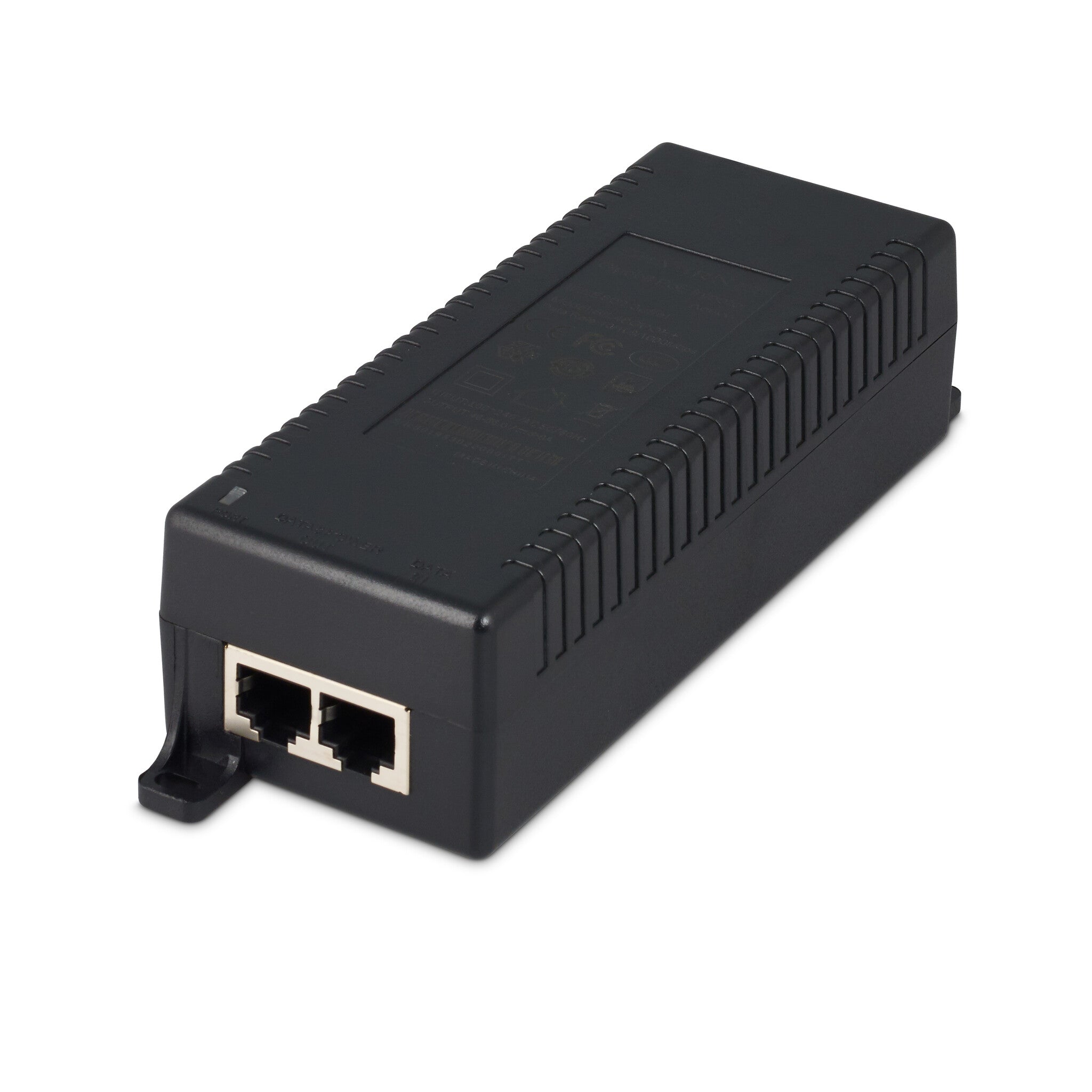

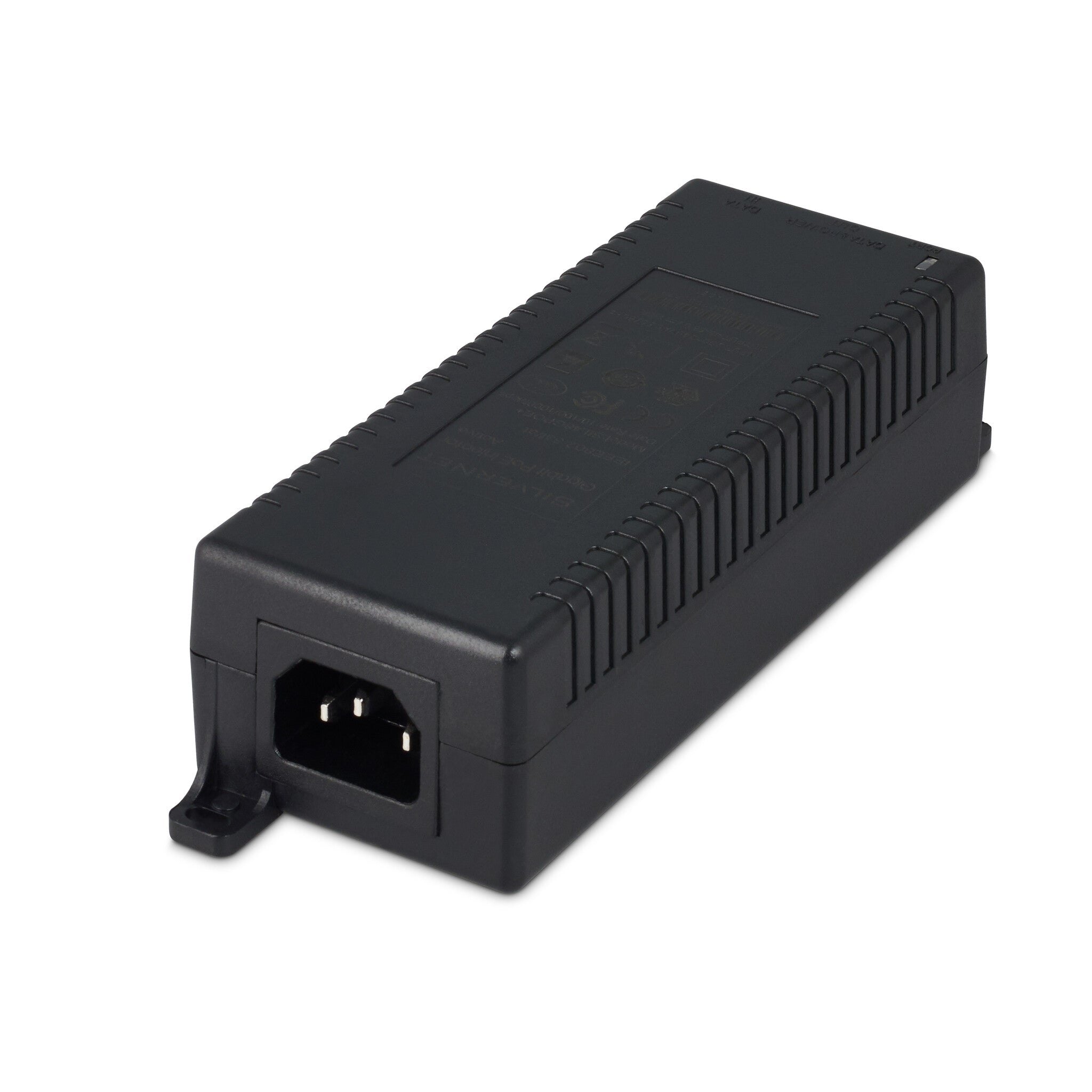

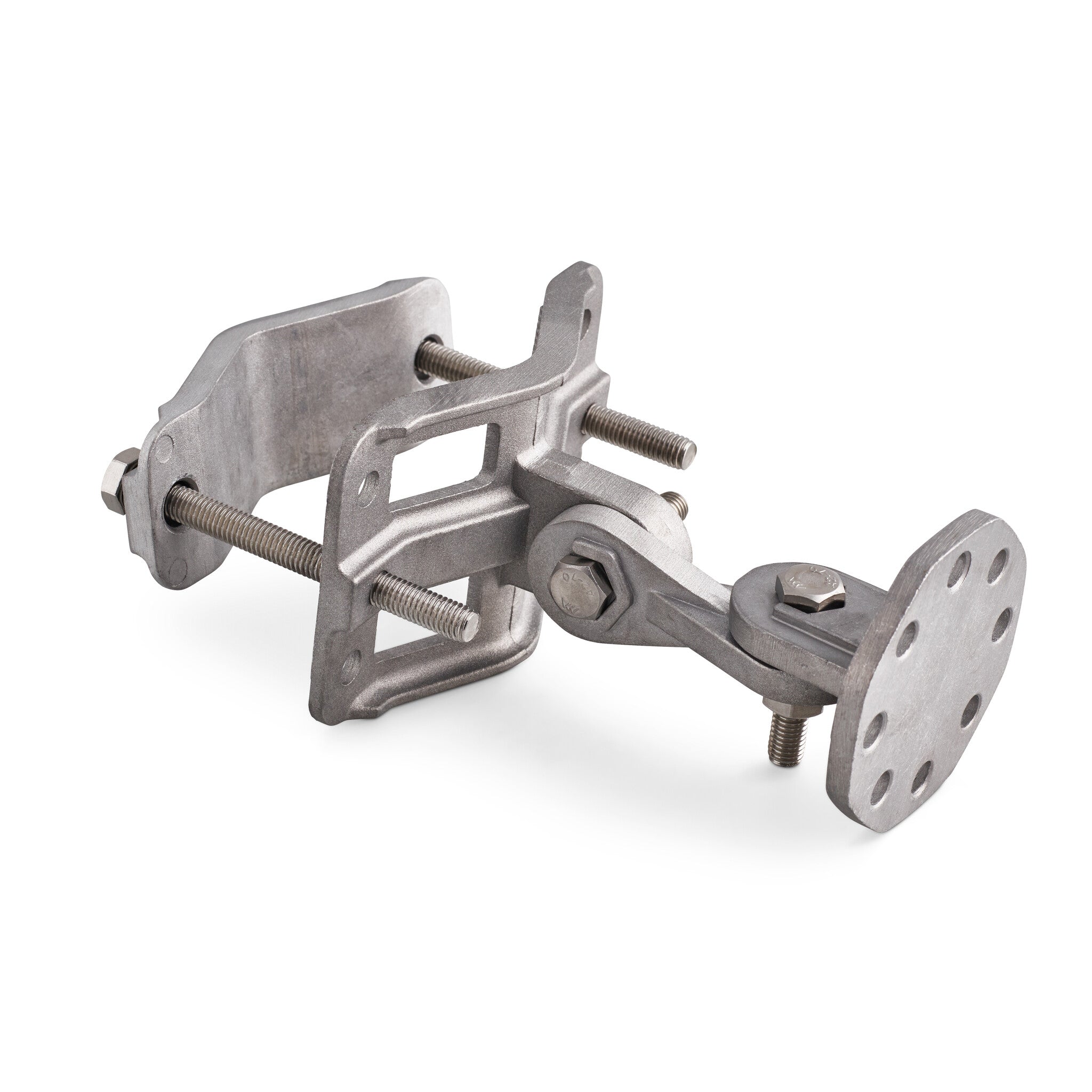

Packaging contentIncludes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
