SilverNet 48G POE+ Gigabit Ethernet 48 V
Couldn't load pickup availability
- Single port Gigabit PoE+ injector
- PoE/PoE+, 15.4W to 30W per port
- Compact, standalone design

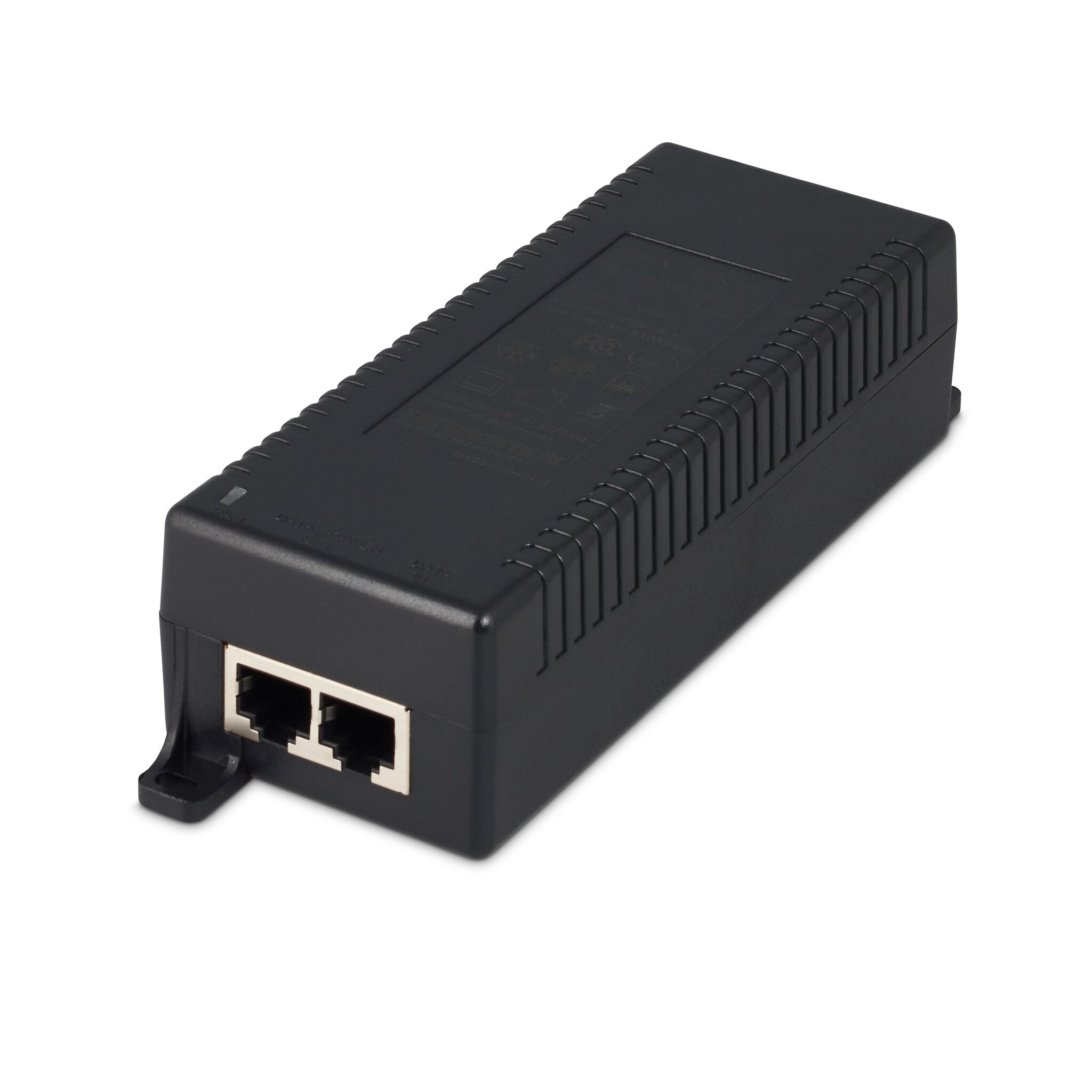

- 2x Auto 10/100/1000BASE-T RJ45 ports
- LED indicators – Power, Link/Activity, PoE
- 240VAC power supply
- Built in surge protection
- 62mm(W) x 38.5mm(H) x 165mm(L)
- Operating temperature (0°C ~+40°C)
- Storage temperature (-10°C ~+70°C)
- Compliant with: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.11af/at

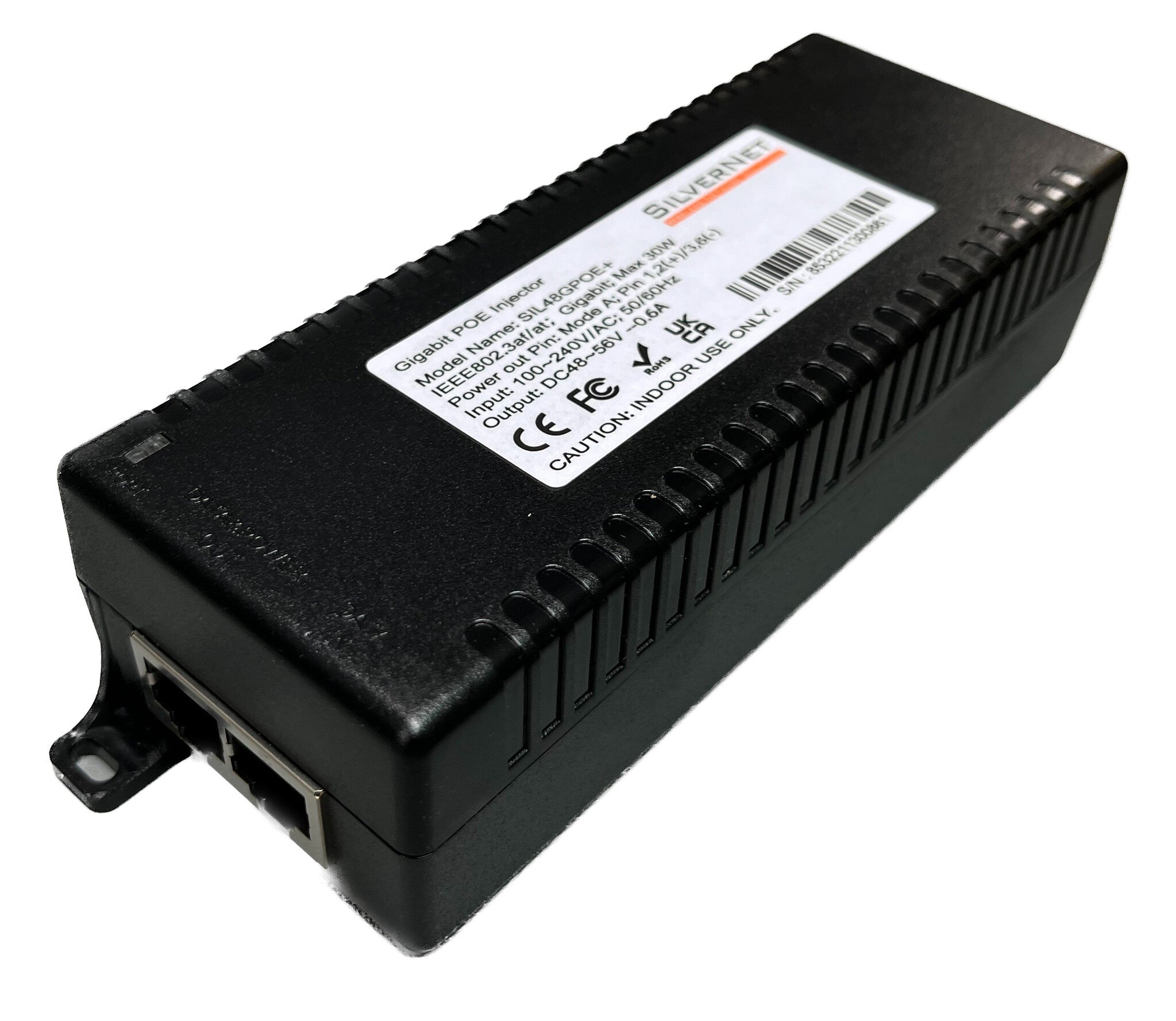

The SilverNet 48G PoE+ is a Single Port Gigabit PoE injector which can carry power to devices such as: IP Cameras, Wireless Access Points, VoIP Phones and much more.
The SIL 48G PoE+ provides a cost effective alternative to upgrading existing switches to PoE enabled devices. With quick and easy plug and play, you can rapidly deploy PoE devices on your network.
This device is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
| Network | |
|---|---|
| Duplex system | Full |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1 |
| Power over Ethernet (PoE) | Yes |
| Cabling technology | 1000/10000 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
|---|---|
| LED indicators | Activity, PoE, Power |
| Maximum operating distance | 100 m |
| Surge protection | Yes |
| Plug and Play | Yes |
| Easy to install | Yes |
| Wall mountable | Yes |
| Housing material | Plastic |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power plug type | Type G |
| Power over Ethernet (PoE) power per port | 30 W |
| AC adapter input voltage | 240 V |
| Power over Ethernet (PoE) voltage | 48 V |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 185 g |
| Height | 38.5 mm |
| Depth | 165 mm |
| Width | 62 mm |
| Packaging content | |
|---|---|

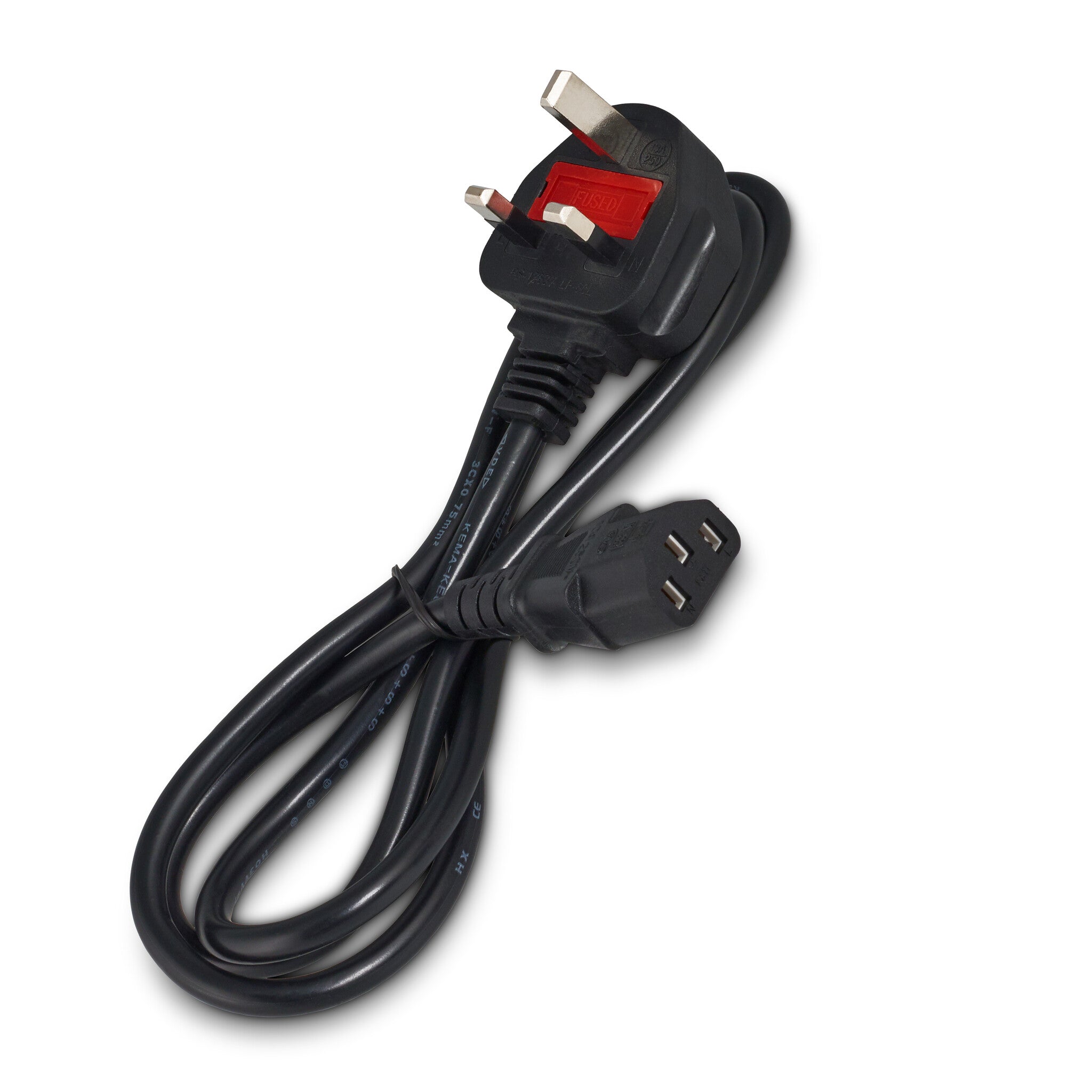

| Power cord included | Yes |
| Number of products included | 1 pc(s) |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 375 g |
| Package height | 45 mm |
| Package depth | 185 mm |
| Package width | 125 mm |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176990 |
| Warranty period | 1 year(s) |
