Shuttle · MPN: DH170
£234.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £78.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • 1.3L-PC for Socket-CPUs up to Core i7
  • Supports 24/7 operating and max. 50°C
  • Triple Monitoring (HDMI, 2x DP), 1x 4K/60Hz

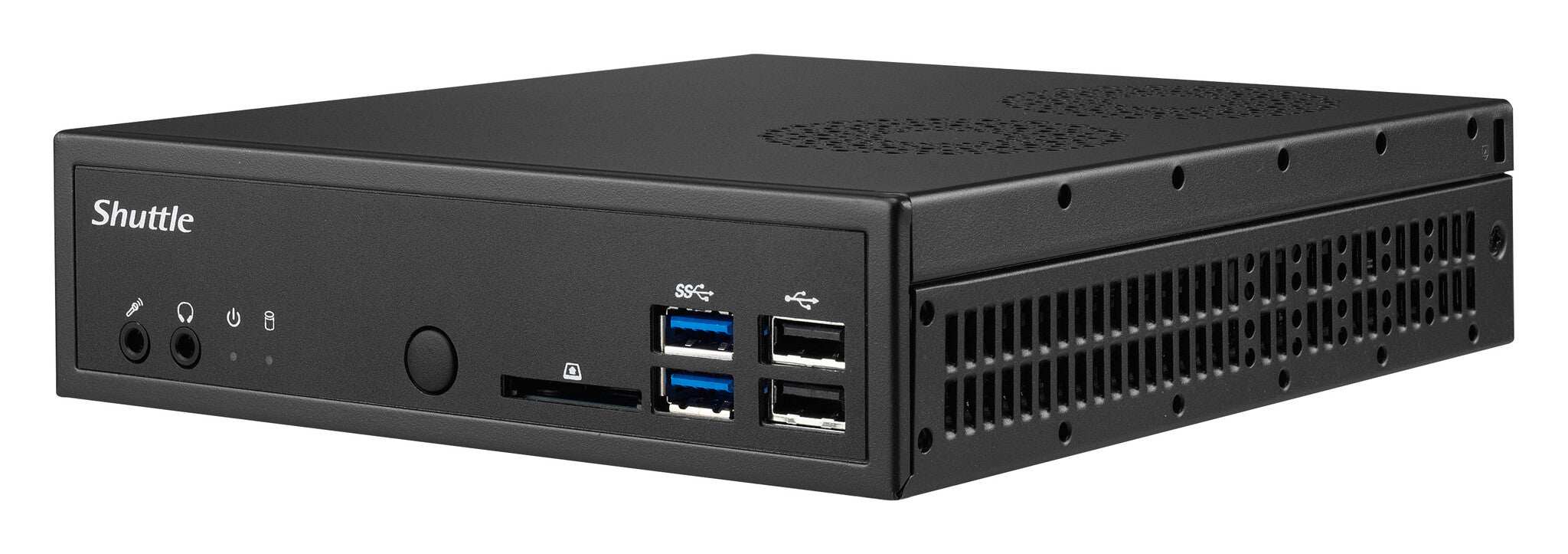

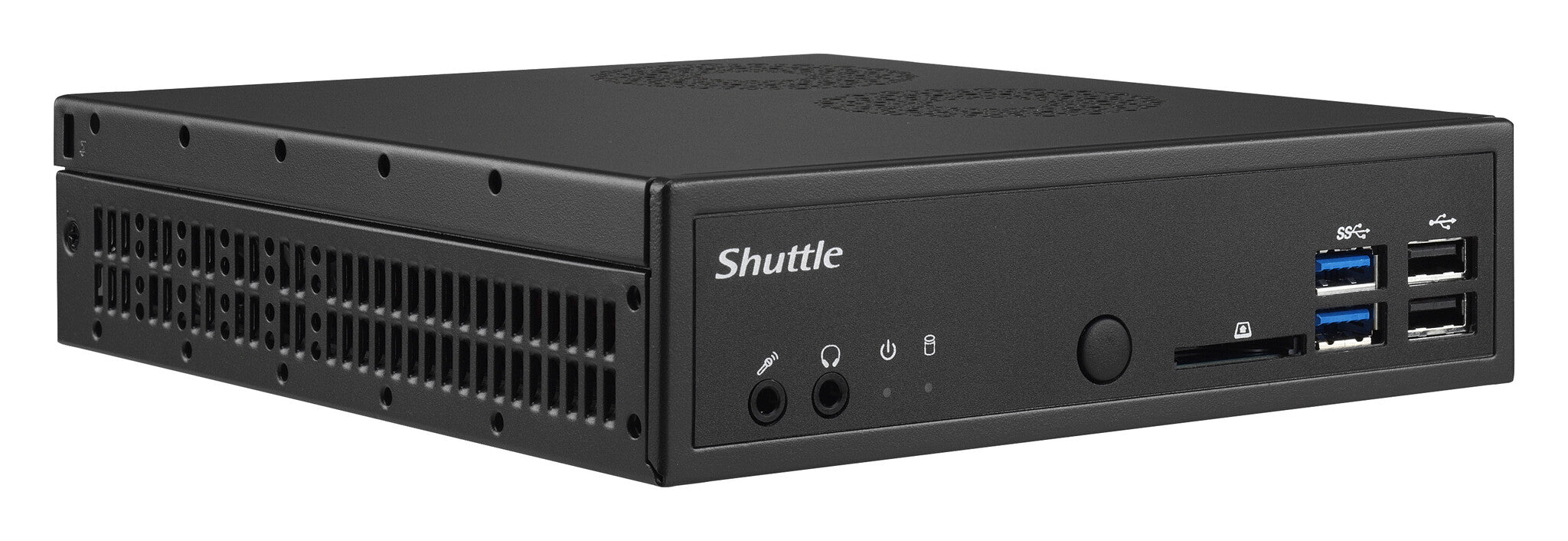

Robust and powerful Slim PC to support three displays
The Shuttle XPC slim Barebone DH170 is a robust 1.3l Barebone PC with H170 chipset for Intel LGA1151 desktop processors, codenamed "Skylake". It allows for three displays to be operated at the same time and offers Dual Intel LAN and COM ports. Its slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50°C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

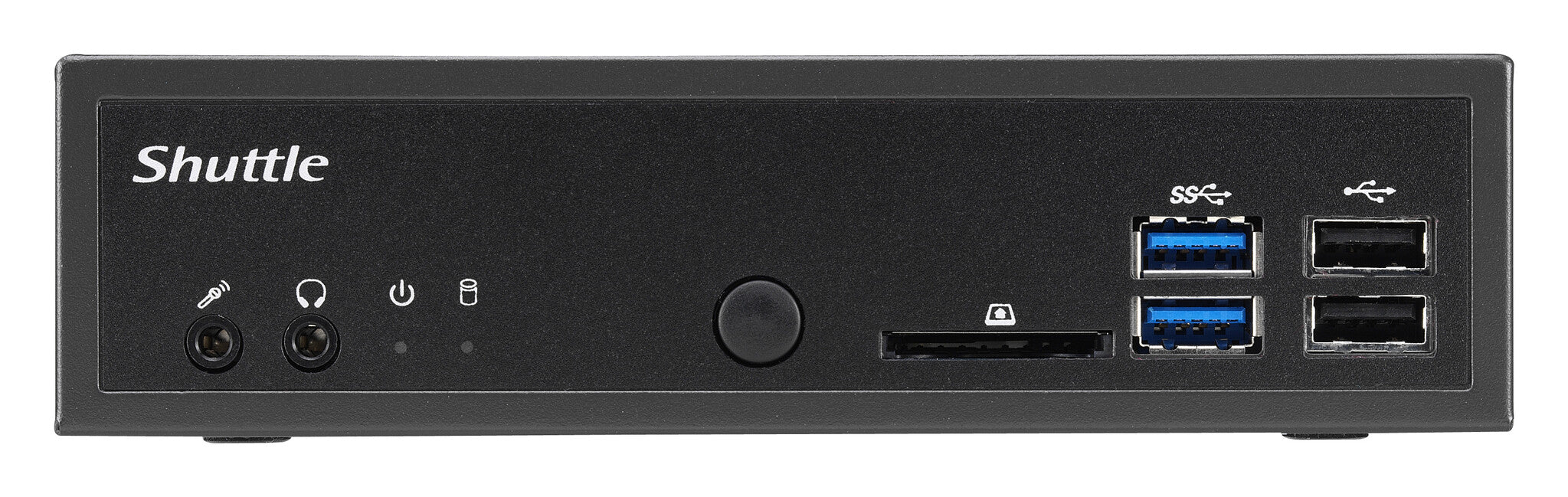

Remote Power-on

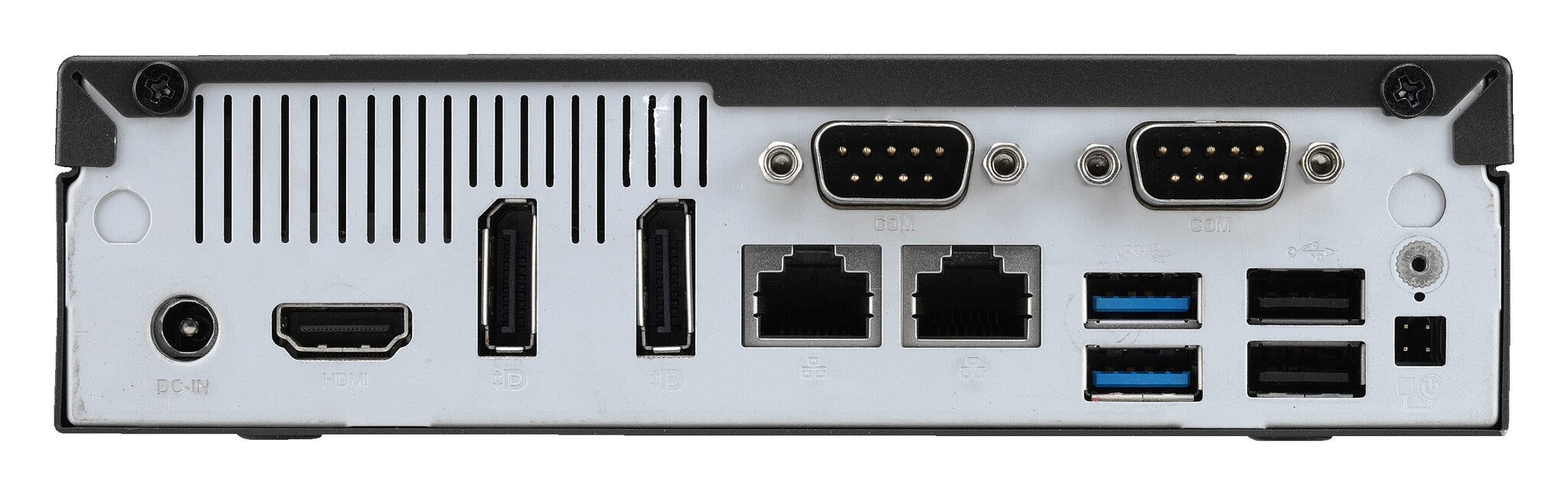

If because of space constraints the machine cannot be switched on by pressing the front power button, it can be started with a separate remote control. You will find an appropriate four-pin connector on the back panel of the PC (pitch 2.54 mm).

High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Depending on processor and display model resolutions of up to 4K/Ultra HD (3840x2160) can be achieved. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.

Always-on Jumper
This machine is provided with a hardware solution to keep it permanently switched on (e.g. after a power outage). If you remove the jumper documented in the manual, the PC then starts as soon as the power supply is restored.

Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.

HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.

Dual network connection
In this model two gigabit network controllers ensure maximum data transmission rates via load balancing and maximum availability via the failover function.

The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.

Pre-assembled cabling saves time
The most important power and data cables are already routed and just have to inserted into the relevant components. This saves valuable time when setting up the system.

Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.

Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.

You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.

Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.

Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.

Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.

The interface for the fastest of memory media
Internal drives to be used inside this Mini-PC can transfer data at a speed of up to 6 Gbit/s. Hard drives thus run significantly faster and brand-new media technologies such as SSDs can use their full potential. Be sure to look for SATA 6 Gbit/s.

Specifications

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Memory voltage1.35 V
Memory channelsDual-channel
Maximum internal memory32 GB
Supported memory clock speeds1333,1600 MHz
Supported memory typesDDR3L-SDRAM
ECCNo
Show all 65 specificationsShow fewer specifications

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceM.2, Serial ATA III
Number of storage drives supported2
Card reader integratedYes
Compatible memory cardsSD

Graphics

On-board graphics cardNo
Graphics card familyIntel

Network

Ethernet LANYes
Wi-FiNo

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
DisplayPorts quantity2
Microphone inYes
Headphone outputs1
Serial ports quantity2
Ethernet LAN (RJ-45) ports2
DC-in jackYes

Expansion slots

PCI Express x4 slots1

Design

Chassis type1.3L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface75 x 75,100 x 100 mm
Product typeMini PC barebone
SafetyCB, BSMI, ETL

Performance

Motherboard chipsetIntel® H170
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Pentium®
BIOS typeAMI
Audio systemHD

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operating system installedNo

Certificates

CertificationFCC, CE, BSMI, C-Tick

Power

Power supply typeExternal AC adapter
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
AC adapter output current4.74 A
AC adapter output voltage19 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width190 mm
Depth165 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
