Sharp OPS Slot-in PC Advanced
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £477.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Processor modeli5-1135G7
- Internal memory8 GB
- Internal memory typeDDR4-SDRAM
- Total storage capacity128 GB
- Operating system installedWindows 10 IoT LTSB
- Weight800 g
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- High performance - the Core™ i5 with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing
- Long-term OS support - with its Microsoft Windows 10 IoT pre-installed operating system and its Long-term Servicing Channel (LTSC) you get software support for many years

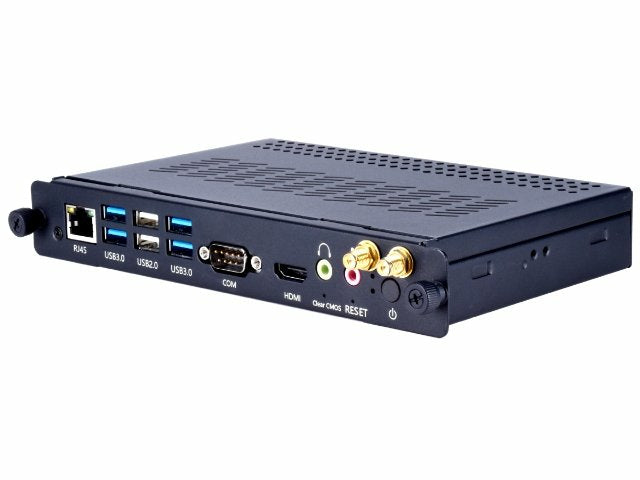

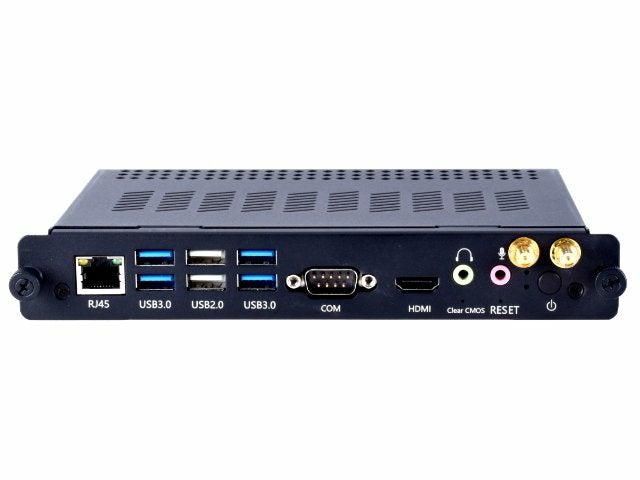

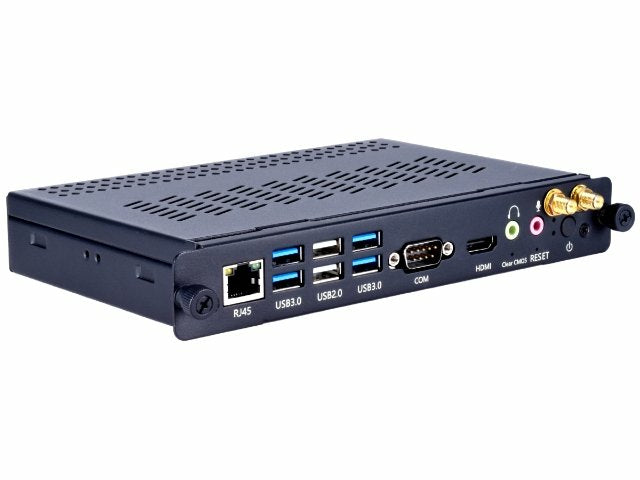

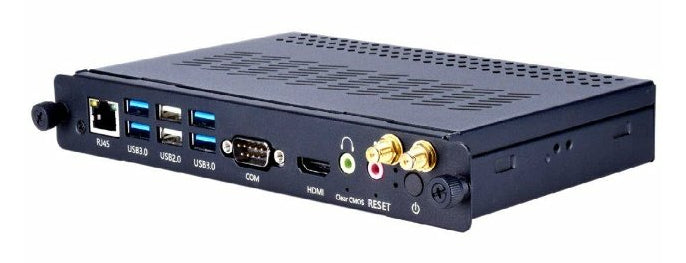

- High usage flexibility - thanks to wide connectivity such as 6 x USB, HDMI, Gigabit Ethernet, RS-232 and Audio there’s no need to add additional adapters or signal splitters

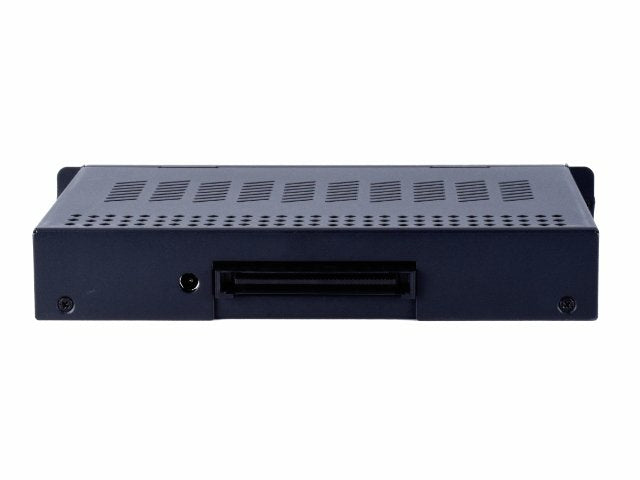

- Seamless and fully embedded - the OPS form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS-232
- 100% compatibility and enhanced feature-set - in combination with supported NEC and Sharp large format displays
- High reliability - ideally suited for 24/7 operation due to the use of industrial grade components
OPS Computing Module Advanced (Core i5)
The Advanced computing module supports a wide variety of applications such as interactive signage applications, video walls and more complex intelligent signage installations where sensor and other data are processed and displayed in real-time.
Specifications
Processor
| Processor frequency | 2.1 GHz |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor threads | 8 |
| Processor lithography | 10 nm |
| Thermal Design Power (TDP) | 12 W |
Memory
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
Show all 44 specificationsShow fewer specifications
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Number of storage drives installed | 1 |
| SSD interface | M.2 |
| SSD capacity | 128 GB |
Graphics
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
Network
| Wi-Fi | No |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Headphone outputs | 1 |
Performance
| Product colour | Black |
|---|
Software
| Operating system installed | Windows 10 IoT LTSB |
|---|---|
| Operating system architecture | 64-bit |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Weight & dimensions
| Width | 180 mm |
|---|---|
| Depth | 118 mm |
| Height | 30 mm |
| Weight | 800 g |
| Package width | 325 mm |
| Package depth | 245 mm |
| Package height | 75 mm |
| Package weight | 1.2 kg |
