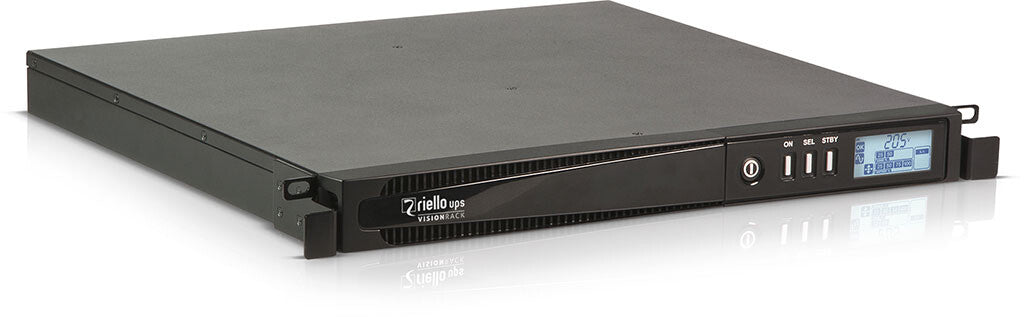

Riello VSR 800 uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 640 W 4 AC outlet(s)
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £150.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Automatic voltage stabilisation reduces risk of sags, surges, and brownouts
- Up to 98% efficiency
- EnergyShare socket allows load-shedding to extend battery runtime for critical loads
- Plug and play installation rackmount-style UPS
This is the rackmount-style version of our popular Vision INE INTERACTIVE UPS system. Available in either 800 VA or 1100 VA versions, the Vision Rack is an easy-to-use plug and play power supply suitable for servers, peripherals, and network backup systems.
Rackmount-style 800 VA or 1100 VA line interactive uninterruptible power supply which protects against power failures and incorporates an automatic voltage stabiliser that balances sags and power surges.
Designed for use with storage servers, peripherals, and network hardware, the Vision Rack features a special EnergyShare socket that enables load-shedding to extend the battery runtime available for more critical loads.
As well as protecting against blackouts, its automatic voltage stabiliser smooths out potentially damaging sags and surges to the mains supply.
Simple plug and play installation plus a backlit LCD display panel are just two of the Vision Rack’s user-friendly features. Another is a Cold Start function where you can start up the UPS even if there isn’t any mains electricity available.
Operating efficiency of up to 98% minimises energy waste and power consumption. While load-shedding is possible thanks to a special EnergyShare socket, meaning you can shut down less sensitive devices and prioritise battery runtime for more critical loads.
Easily integrates with the free Riello UPS communications software PowerShield3 so each connected device can be safely shut down.
Specifications
Features
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 0.8 kVA |
| Output power | 640 W |
| Waveform | Sine |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Noise level | 50 dB |
| Power protection features | Battery discharge, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| AC outlet types | C13 coupler |
|---|---|
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
Show all 35 specificationsShow fewer specifications
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 6 h |
Design
| Form factor | Rackmount |
|---|---|
| Product colour | Black |
| Rack capacity | 1U |
| Display type | LCD |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
Safety regulation & standards
| Safety | IEC EN 62040-1, EMC IEC EN 62040-2 |
|---|
Packaging content
| Manual | Yes |
|---|
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | L V 2014/35/EU, EMC 2014/30/E |
Weight & dimensions
| Depth | 420 mm |
|---|---|
| Weight | 12 kg |
