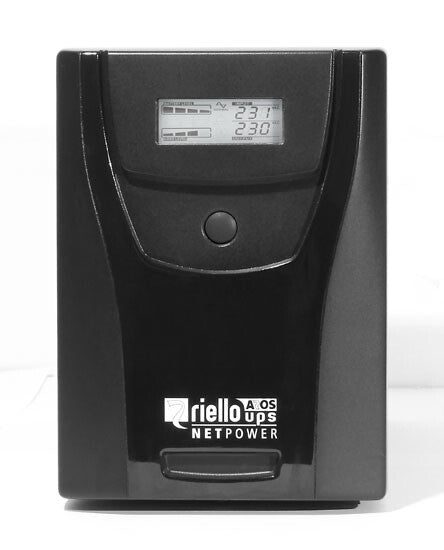

Riello NPW 2000 uninterruptible power supply (UPS) 2 kVA 1200 W 6 AC outlet(s)
Couldn't load pickup availability
- 2 kVA 1200 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Compact Grey
The NetPower series includes the 600-2000VA models and uses digital Line Interactive (VI) technology.
The load is powered from the mains through an AVR to stabilise brownout, sag and surge voltages, and EMI filters to suppress spikes and transients. When the mains fails, the load is powered by the inverter with a pseudo sinewave to provide sufficient runtime for computer system shutdown using the PowerShield.
- mains power supply stabilisation and filtering (Line Interactive (VI) technology with AVR and filters for atmospheric disturbance suppression).
- cold start capability: the UPS can power up without a mains supply present.
- high reliability with built-in battery test feature.
- supplied with 2 output cables.
- USB port.
| Features | |
|---|---|
| Output frequency regulation | 50 - 60 Hz |
| Output operation voltage (max) | 253 V |
| Output operation voltage (min) | 211 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 170 V |
| Waveform | Sine |
| Output power | 1200 W |
| Output power capacity | 2 kVA |
| Ports & interfaces | |
|---|---|

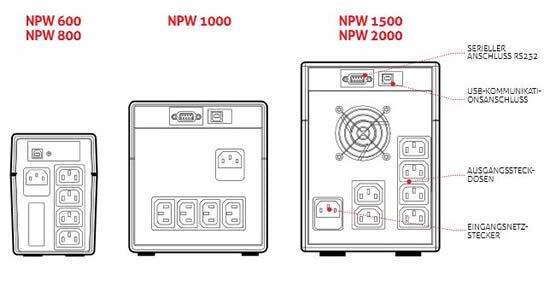

| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Battery recharge time | 4 h |
| Typical backup time at half load | 20 min |
| Typical backup time at full load | 9 min |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Product colour | Grey |
| Form factor | Compact |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 6000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | EN 62040-1-1 2006/95/EC;EN 62040-2 C2 2004/108 ECCE |
| Weight & dimensions | |
|---|---|
| Weight | 11.5 kg |
| Height | 205 mm |
| Depth | 397 mm |
| Width | 146 mm |
| Packaging data | |
|---|---|
| Package weight | 14 kg |
| Package height | 280 mm |
| Package depth | 480 mm |
| Package width | 230 mm |
