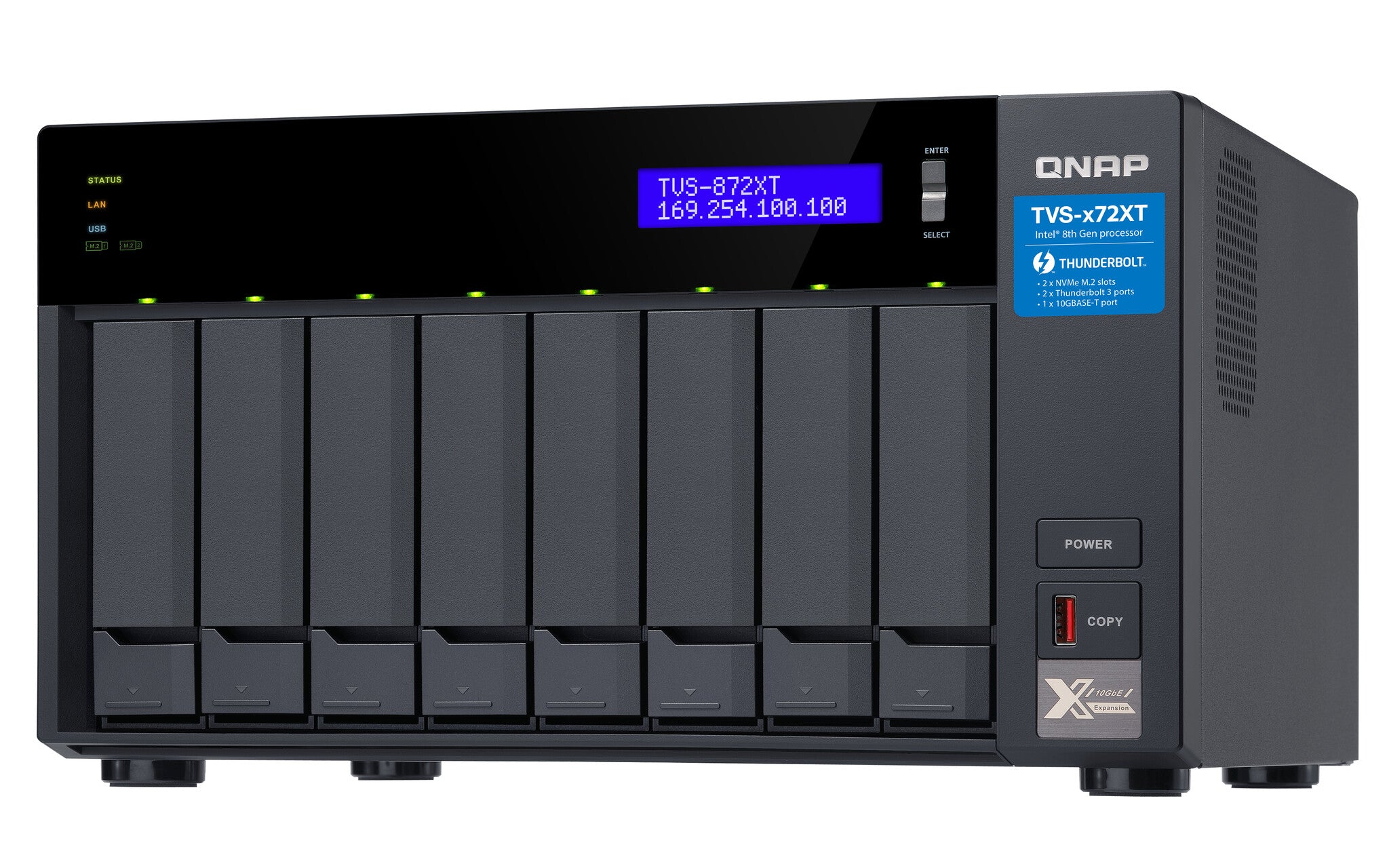

QNAP · MPN: TVS-872XT-I5-16G/48TB-EXOS
£3,833.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,277.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory typeDDR4
  • Weight7.06 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing
  • 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices
  • PCIe expandability allows the use of an entry-level graphics card to accelerate NAS video processing and GPU computing
  • Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency
  • 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output
  • Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks

Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-872XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-872XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-872XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity
The TVS-872XT adopts the powerful 8th generation Intel® Core™ i5 8400T 6-core 1.7 GHz processor (burst up to 3.3 GHz) with 16 GB dual-channel DDR4 memory (upgradable to 32 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.

Extend NAS functionality with a graphics card and other PCIe devices
The TVS-872XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.

Obtain performance benefits from M.2 SSD caching
Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-872XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TVS-872XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

Potentially attain performance and endurance levels similar to enterprise-grade SSDs
With SSD prices continuing to become more affordable, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-872XT, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.

Flexibly manage virtual and physical networks
The Network & Virtual Switch app manages physical network interfaces (including network adapters and Thunderbolt™ ports) and virtual adapters (virtual machines and containers) and their communications, providing a visualized topology that clearly presents the connections of physical and virtual networks. The flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TVS-872XT, virtual machines and containers whenever needed.

Collaboration station for Mac and Windows
The TVS-872XT is the perfect match for Thunderbolt™-equipped Mac® and Windows® users - especially for photographers, filmmakers, and graphic designers who require 4K media storage, instant sharing and have bandwidth-intensive workflows. Up to 2 Thunderbolt™ devices can be connected to the TVS-872XT to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro® X 10.3 (and later) supports file sharing via SMB, Windows® users and other devices utilizing Thunderbolt™ 3, 10GbE or GbE connections can join the editing workflow more efficiently.

The best storage solution for the 10GbE-equipped iMac Pro
The iMac Pro® is the first Mac® computer that includes a 10Gb Ethernet port, marking a milestone in the growing mainstream demands for 10GbE connectivity. As the TVS-872XT comes with both 10GbE and Thunderbolt™ 3 ports, it provides an exceptional storage base for iMac Pro® users as they can flexibly choose between Thunderbolt™ 3 and 10GbE connections to suit their application and device needs.

Create a seamless 10GbE environment for both Mac and Windows users
QNAP provides various budget-friendly solutions to help upgrade your network environment to 10GbE. No matter if your team members use Mac® or Windows® computers, they can enjoy blazing-fast transfer speeds and simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia).

Ultimate visual experience with 4K HDMI output
The TVS-872XT has an HDMI 2.0 port which supports 4K (3840 x 2160) 60Hz output, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-872XT to a HDTV via the HDMI output, you can directly view multimedia content saved on the NAS on a bigger screen. You can also download and install versatile multimedia apps from Ubuntu® Software Center through QNAP Linux Station. QNAP's HD Station also allows users to directly enjoy multimedia using the HD Player or third-party players such as Plex® Home Theater.

Real-time transcoding for an excellent cross-device media experience
Featuring advanced Intel® UHD Graphics 630, the TVS-872XT supports triple-channel 4K H.264 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be smoothly played on multiple devices*.
*The TVS-872XT’s hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

Complete backup planning
The TVS-872XT provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

Optimized collaboration with seamless file sharing and sync
The TVS-872XT centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TVS-872XT will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

All-in-one server to host virtual machines and containers
Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

Specifications

Storage

Bad block scanYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4
Hot-swap drive baysYes
RAID rebuildYes
Online RAID expansionYes
Online RAID migrationYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
RAID supportYes
Number of M.2 (M & B) slots2
Storage drive sizes supported2.5,3.5"
Supported storage drive interfacesSerial ATA III
Supported storage drive typesHDD & SSD
Installed storage drive typeHDD
Number of storage drives supported8
Storage drives installedYes

Processor

Conflict-Free processorYes
Memory bandwidth supported by processor (max)41.6 GB/s
Maximum internal memory supported by processor64 GB
CPU configuration (max)1
PCI Express configurations1x16, 1x8+2x4, 2x8
Tjunction100 °C
Bus typeDMI3
Scalability1S
System bus rate8 GT/s
ECC supported by processorNo
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codeSR3X6
Processor lithography14 nm
Processor operating modes64-bit
Configurable TDP-down frequency1.2 GHz
Processor package size37.5 x 37.5 mm
SteppingU0
Thermal Design Power (TDP)35 W
Processor cache9 MB
Processor boost frequency3.3 GHz
Processor frequency1.7 GHz
Show all 151 specificationsShow fewer specifications

Memory

Flash memory4000 MB
Memory slots2
Maximum RAM supported32 GB
Internal memory typeDDR4
Internal memory16 GB

Network

WLAN adapter supportedYes
Dynamic DNS (DDNS)Yes
Supported network protocolsTCP/IP, IPv4, IPv6
Wake-on-LAN readyYes
iSCSI supportYes
Jumbo frames supportYes
DHCP serverYes
DHCP clientYes
Wi-FiNo
Ethernet LAN data rate supported (max)10000 Mbit/s
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Ethernet LANYes

Ports & interfaces

PCI Express x4 (Gen 3.x) slots1
3.5 mm (1/8-inch) outYes
Microphone inYes
Thunderbolt 3 ports quantity2
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB portYes
Ethernet LAN (RJ-45) ports3

Graphics

Number of displays supported (on-board graphics)3
Maximum on-board graphics card memory64 GB
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1050 MHz
On-board graphics card ID0x3E92

Design

Built-in speaker(s)Yes
Number of built-in speakers1
Cable lock slot typeKensington
Cable lock slotYes
Built-in displayYes
LED indicatorsHDD, LAN, USB
Fan diameter 26 cm
Fan diameter12 cm
Number of fans4 fan(s)
Product colourBlack
Cooling typeActive
Chassis typeTower

Performance

Security algorithms256-bit AES, FIPS 140-2, HTTPS, SNMPv3, SSH, SSL/TLS
On/off switchYes
S.M.A.R.T. supportYes
USB copy functionYes
Share folderCIFS/SMB
Browser supportedApple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Access Control List (ACL)Yes
Built-in iTunes serverYes
System logYes
Hot spareYes
Reset buttonYes
Built-in FTP serverYes
Universal Plug and Play (UPnP)Yes
Web-based managementYes
Multilingual supportYes
BuzzerYes
Backup featuresCloud, iSCSI LUN
Backup functionYes
Device classSmall & Medium Business
TypeNAS

Software

Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Operating system version4.4.0

Power

Fan voltage12 V
AC input voltage100 - 240 V
Number of power supply units1
Power supply unit (PSU) capacity250 W
Power supply locationBuilt-in

Weight & dimensions

Weight7.06 kg
Height188.2 mm
Depth279.6 mm
Width329.3 mm

Processor special features

Memory types supported by processorDDR4-SDRAM
Memory channels supported by processorDual
Embedded options availableNo
Execute Disable BitYes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes16
Intel Secure Key Technology version1.00
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel Identity Protection Technology version1.00
Intel® Identity Protection Technology (Intel® IPT)Yes
Thermal solution specificationPCG 2015A
Enhanced Intel SpeedStep TechnologyYes
Idle StatesYes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Trusted Execution TechnologyNo
Intel TSX-NINo
Intel TSX-NI version0.00
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Quick Sync Video TechnologyYes
Intel Stable Image Platform Program (SIPP)No
Thermal Monitoring TechnologiesYes

Packaging content

Quick installation guideYes
Cables includedAC, LAN (RJ-45)

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 40 °C

Other features

Digital Living Network Alliance (DLNA) certifiedYes
