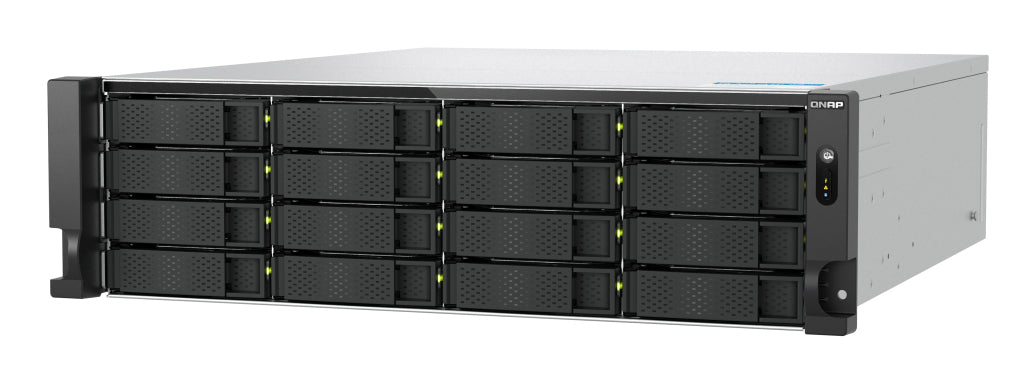

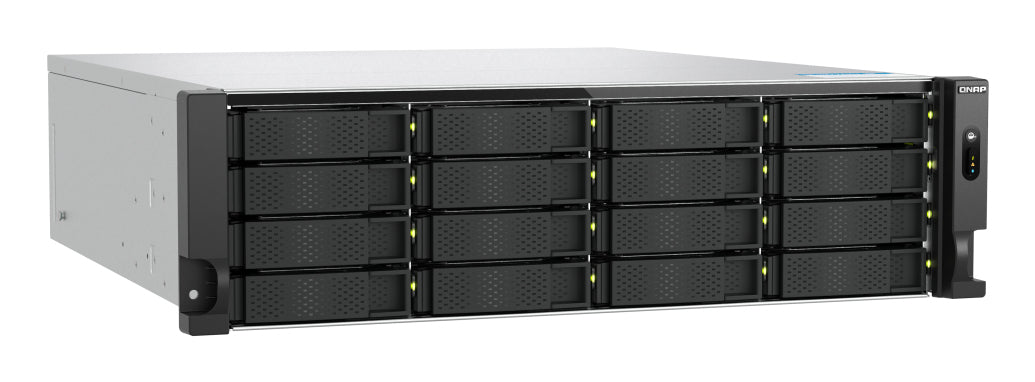

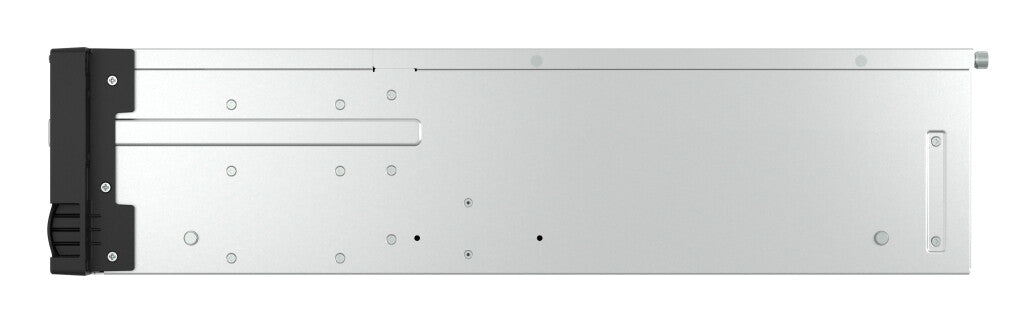

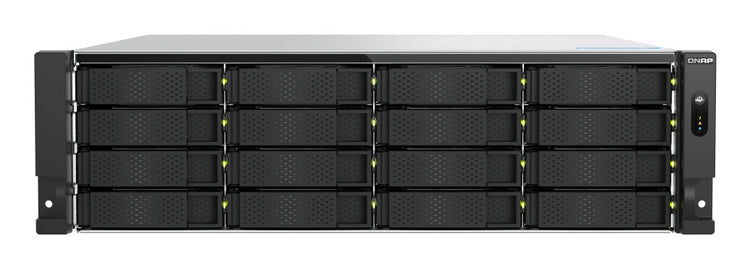

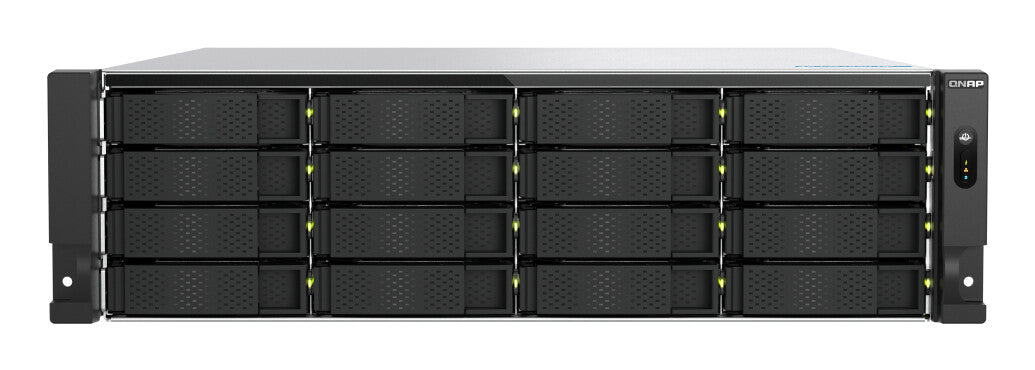

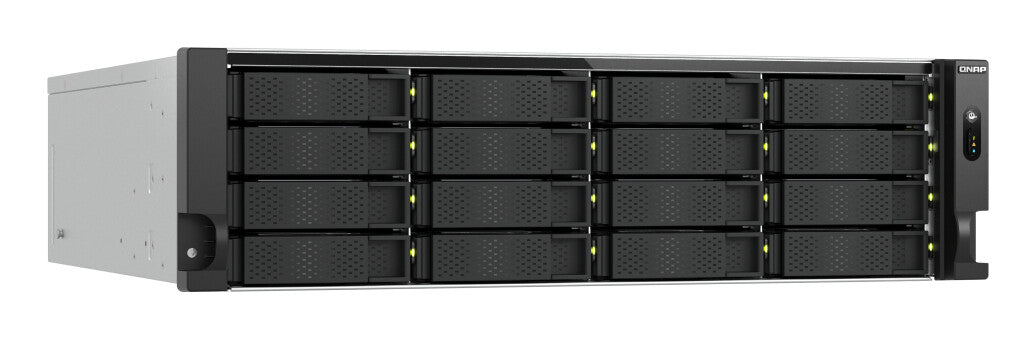

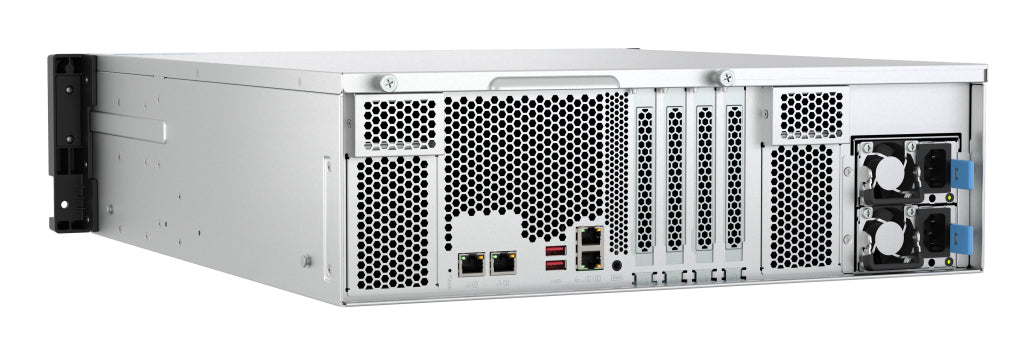

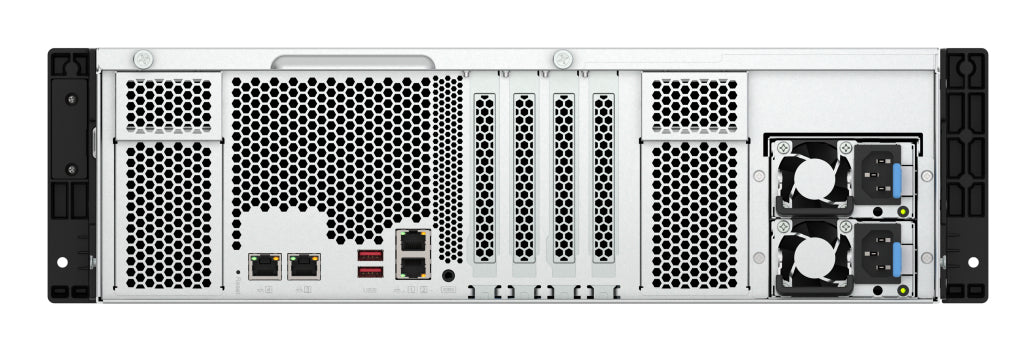

QNAP TS-H1677AXU-RP-R7-32G
£6,418.99
Couldn't load pickup availability
- DDR5 RAM: Supports up to 192GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported)
- Dual M.2 PCIe Gen 5 slots: Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment
- 2.5GbE and 10GbE as standard: Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer
- PCIe Gen 4 expandability: Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cards
- Petabyte-scale storage: Connect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 208 disks
- Long-term supply: The TS-h1677AXU-RP will be available and supported by QNAP for an extended period, up to 2030

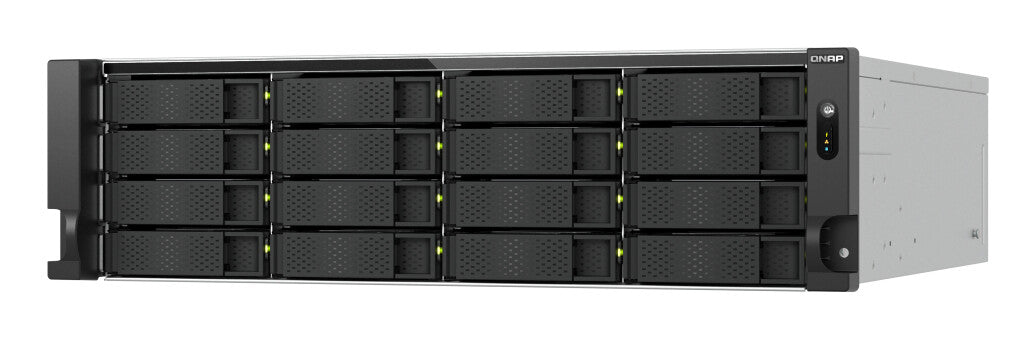

TS-h1677AXU-RP
Experience exceptional enterprise performance with the power of AMD Ryzen™ 7000 Series processors, DDR5, and M.2 PCIe Gen 5
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1677AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1677AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
| Storage | |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 16 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | M.2, Serial ATA III, Serial ATA II |
| Storage drive sizes supported | 2.5,3.5" |
| Number of system drives supported | 2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Bad block scan | Yes |
| Disk roaming | Yes |
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen PRO 7000 Series |
| Processor model | 7745 |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Number of processors supported | 1 |
| On-board graphics card model | AMD Radeon Graphics |
| Memory | |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 128 GB |
| ECC | No |
| Memory form factor | UDIMM |
| Memory slots | 4 |
| Flash memory | 5000 MB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Design | |
|---|---|
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | HDD, LAN, SSD, Status, USB |
| Performance | |
|---|---|
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Number of users | 4096 user(s) |
| Remote administration | PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt |
| Web-based management | Yes |
| Disk scan | Yes |
| Reset button | Yes |
| Password authentication | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder | Y |
| S.M.A.R.T. support | Yes |
| On/off switch | Yes |
| Software | |
|---|---|
| Operating system installed | QNAP QTS |
| Operating system version | 5.2.6 |
| Power | |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Width | 482.2 mm |
| Depth | 550.8 mm |
| Height | 131.3 mm |
| Weight | 15.6 kg |
| Package width | 567 mm |
| Package depth | 724 mm |
| Package height | 313 mm |
| Package weight | 19.6 kg |
| Packaging content | |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Number of screws | 128 |
| Drive tray key included | Yes |
| Package type | Box |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
