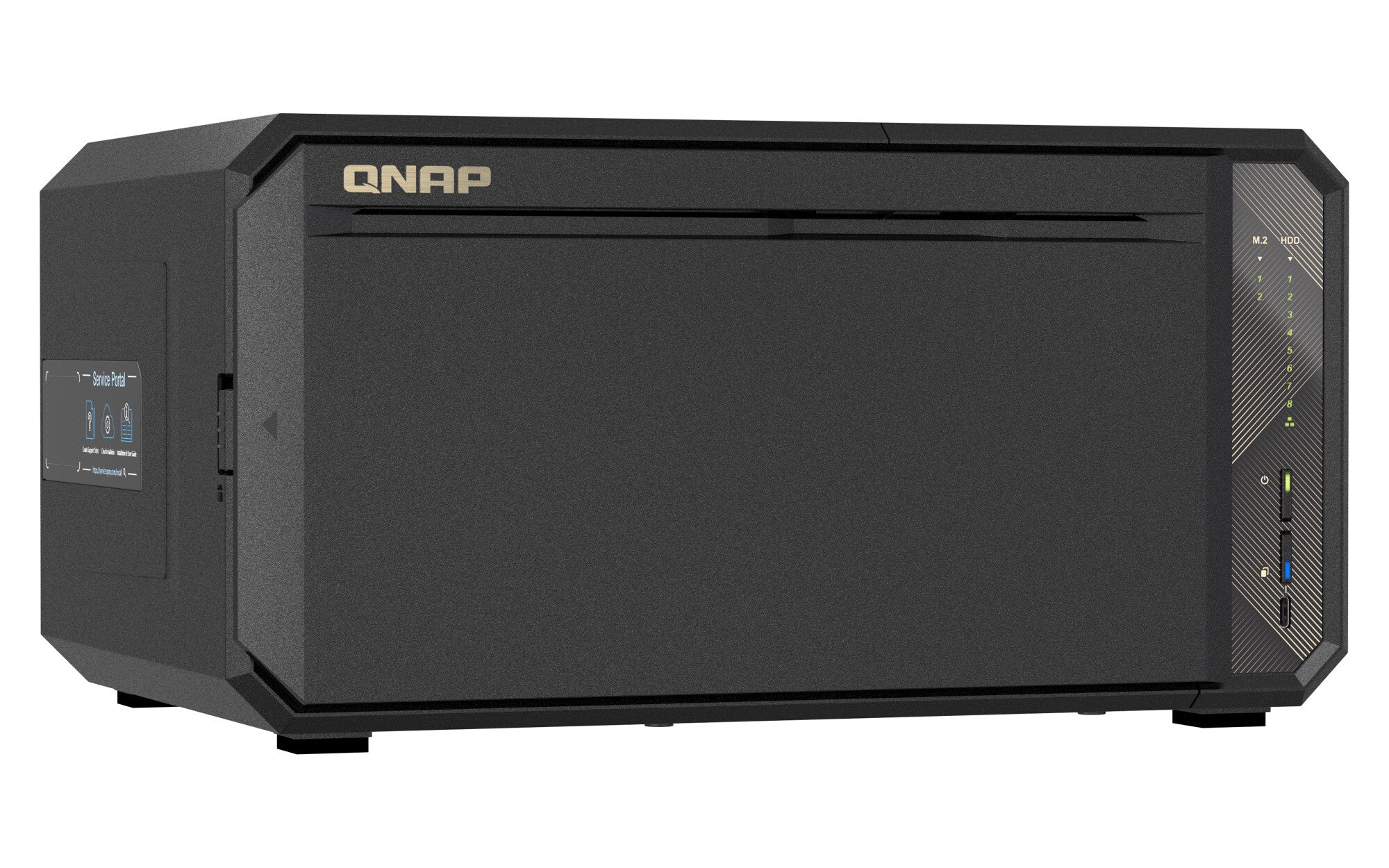

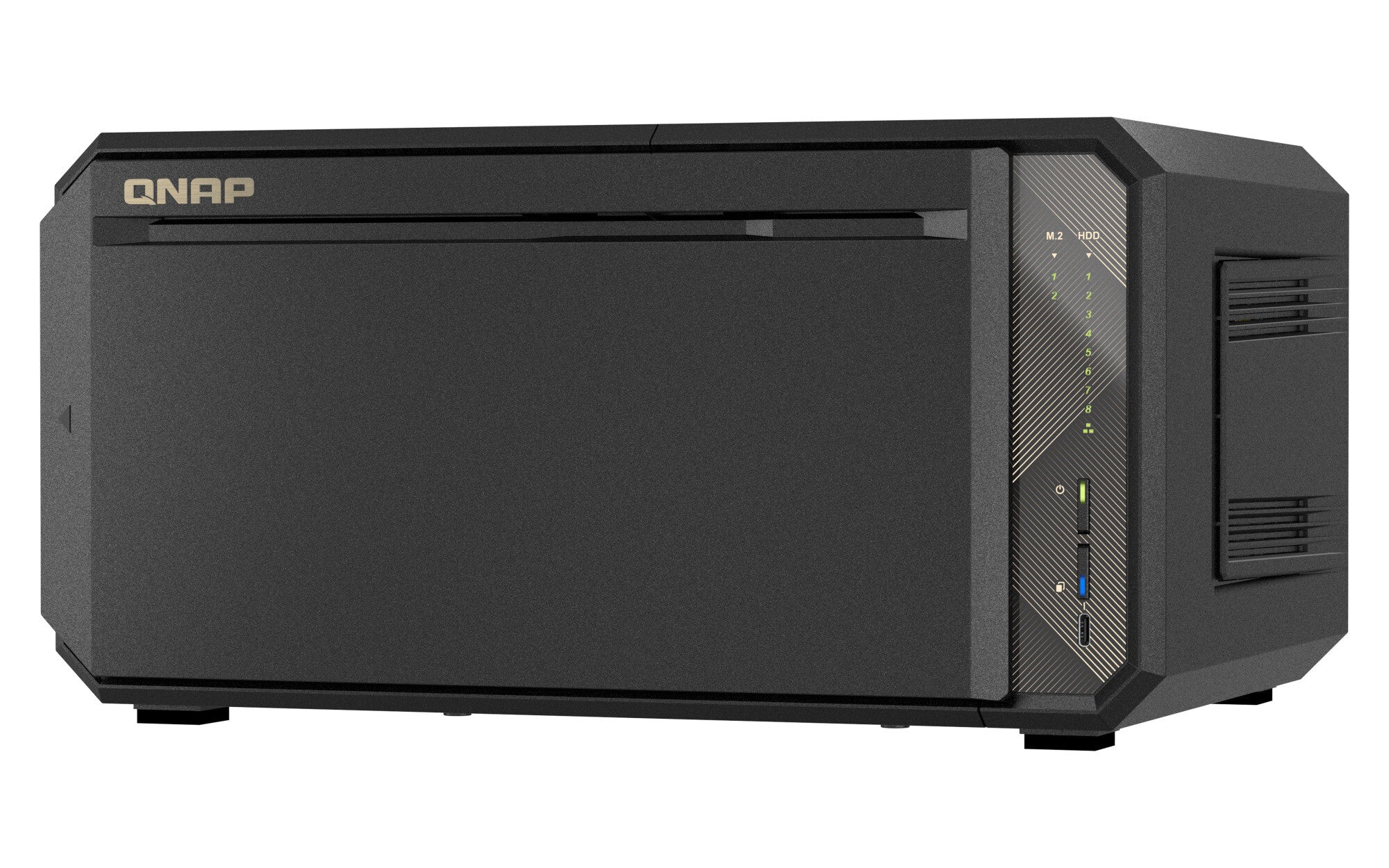

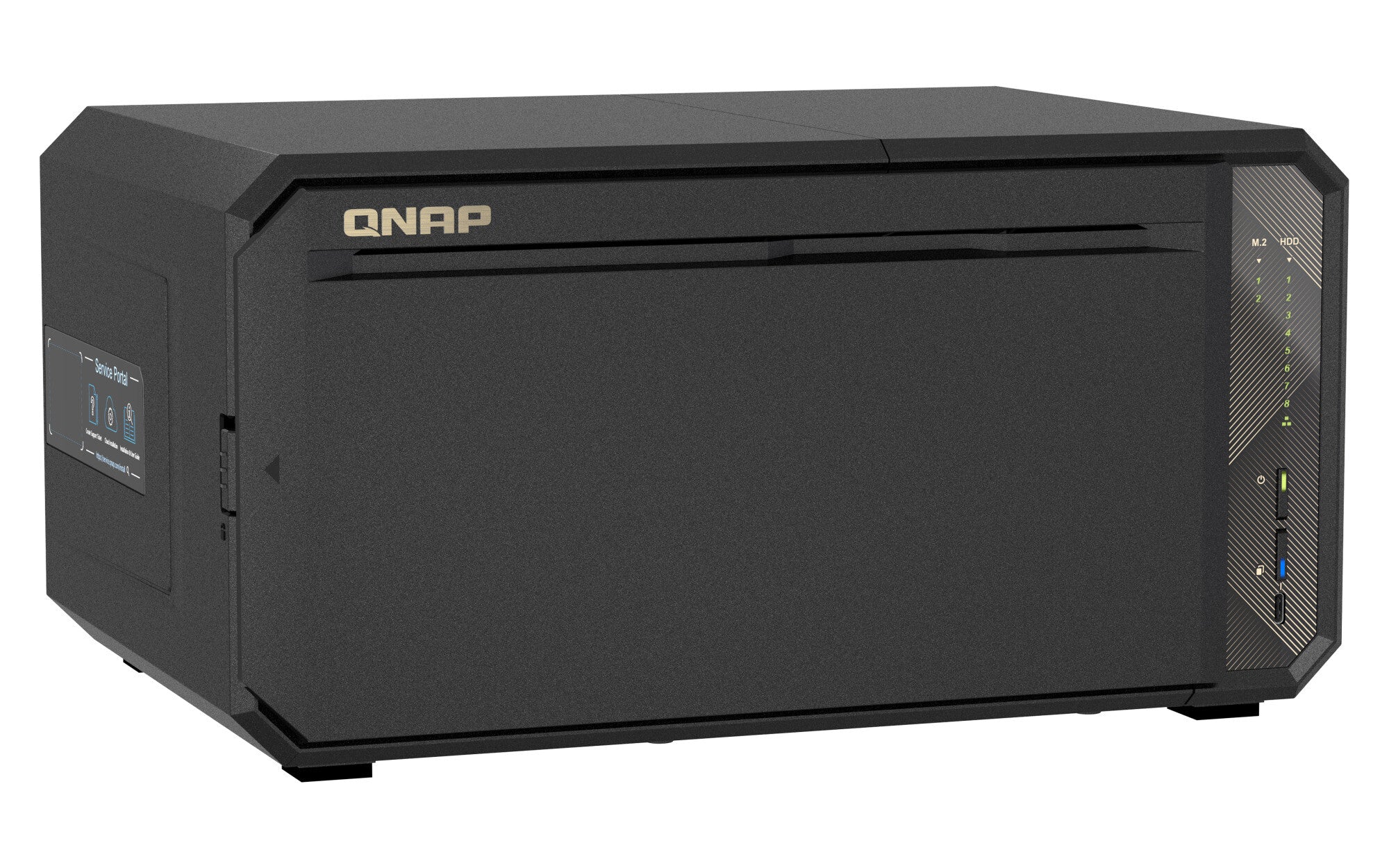

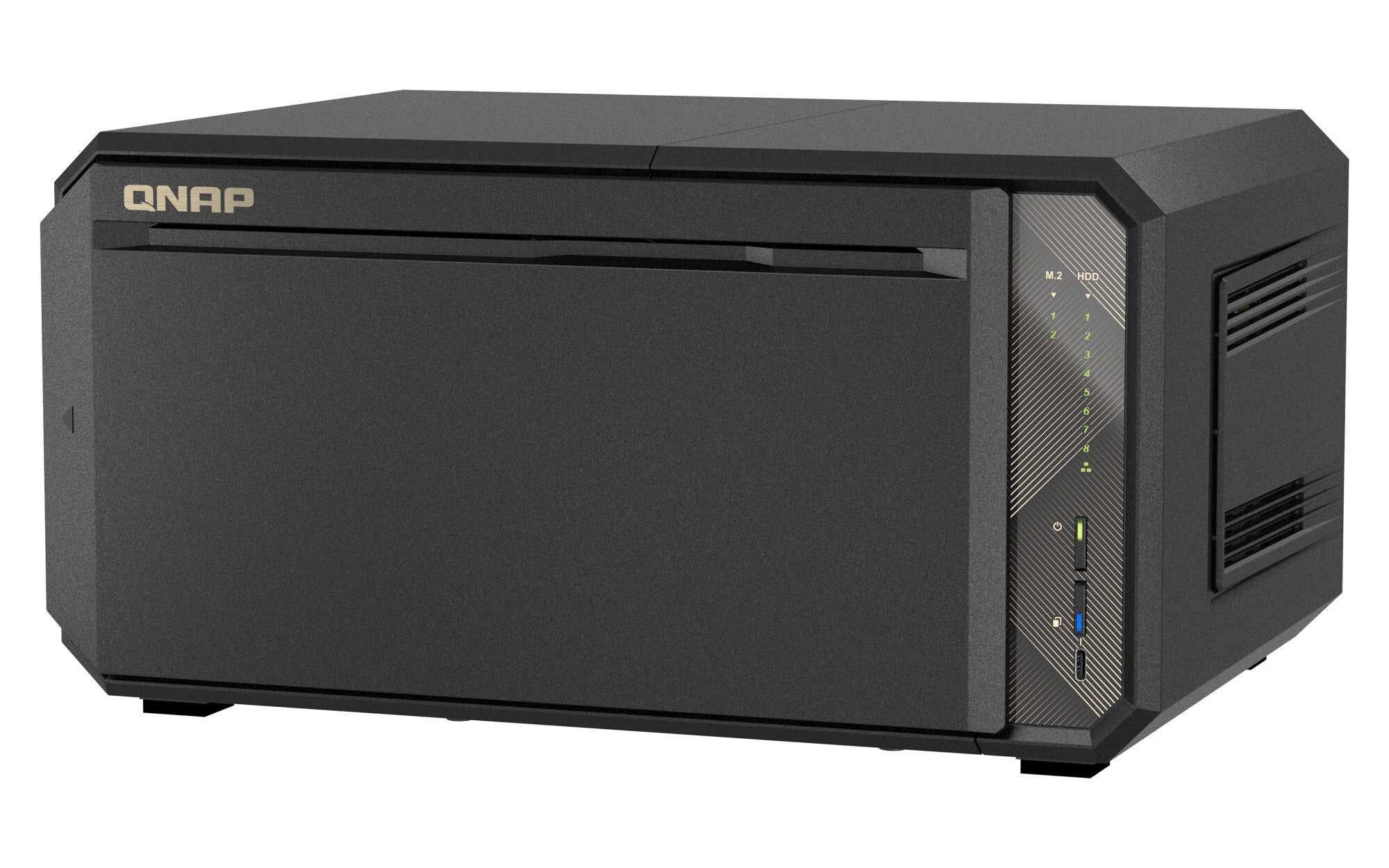

QNAP TS-867X NAS Tower Ryzen Embedded V1500B 4 GB DDR4 QNAP QTS Black
£1,147.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £382.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Processor modelV1500B
- Internal memory4 GB
- Internal memory typeDDR4
- Weight3.92 kg
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Dual 10GbE Ports: Built-in high-speed 10GBASE-T Multi-Gig networking with full support for 10G/5G/2.5G/1G transfer rates — accelerating large file transfers, intensive access, and shortening backup times.
- Flexible PCIe Expansion: One PCIe Gen 3 x4 slot supports 2.5GbE/10GbE network cards, QM2 M.2 NVMe/SATA SSD expansion cards, and USB 3.2 Gen 2 (10Gbps) expansion cards to boost application performance.
- SSD Cache Acceleration: Two dedicated M.2 2280 PCIe NVMe SSD slots support Qtier auto-tiering and SSD caching technology for round-the-clock storage acceleration.
- ECC Memory Support: Ships standard with 4GB of memory, with the flexibility to upgrade to ECC (Error Correcting Code) memory, which automatically detects and corrects single-bit errors to help prevent project data corruption.
- USB 4 JBOD Storage Expansion Support: Supports external USB storage expansion units such as the TL-D810TC4 , giving teams a flexible way to scale up capacity. No complicated setup required — easily handle large project backups and massive file archiving needs.
- QTS / QuTS hero OS Support: Ships with QTS by default for an intuitive user experience, while also supporting a switch to QuTS hero to harness the power of the ZFS file system for data reduction and efficient backups.
TS-867X
Built-in 10GbE, PCIe expansion, and USB4 deliver cost-effective, high-speed storage for studios and enterprises.
Powered by an AMD Ryzen™ V1500B quad-core/8-thread processor, the TS-867X delivers professional-grade dual-port 10GBASE-T networking at an exceptional price. With precisely optimized hardware, it's the ideal storage solution for SMBs and professional teams that demand blazing-fast transfers — leave bandwidth bottlenecks behind, whether you're collaborating online with your team or backing up large-scale projects. The TS-867X also lets you freely switch between QTS and QuTS hero operating systems, striking the perfect balance of high performance, high bandwidth, and outstanding value — making it the ideal choice for SMBs and SOHO studios ready to upgrade to a 10GbE environment.
Specifications
Storage
| Storage drives installed | No |
|---|---|
| Number of storage drives supported | 10 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | JBOD, 0, 1, 5, 6, 10, 50, 60 |

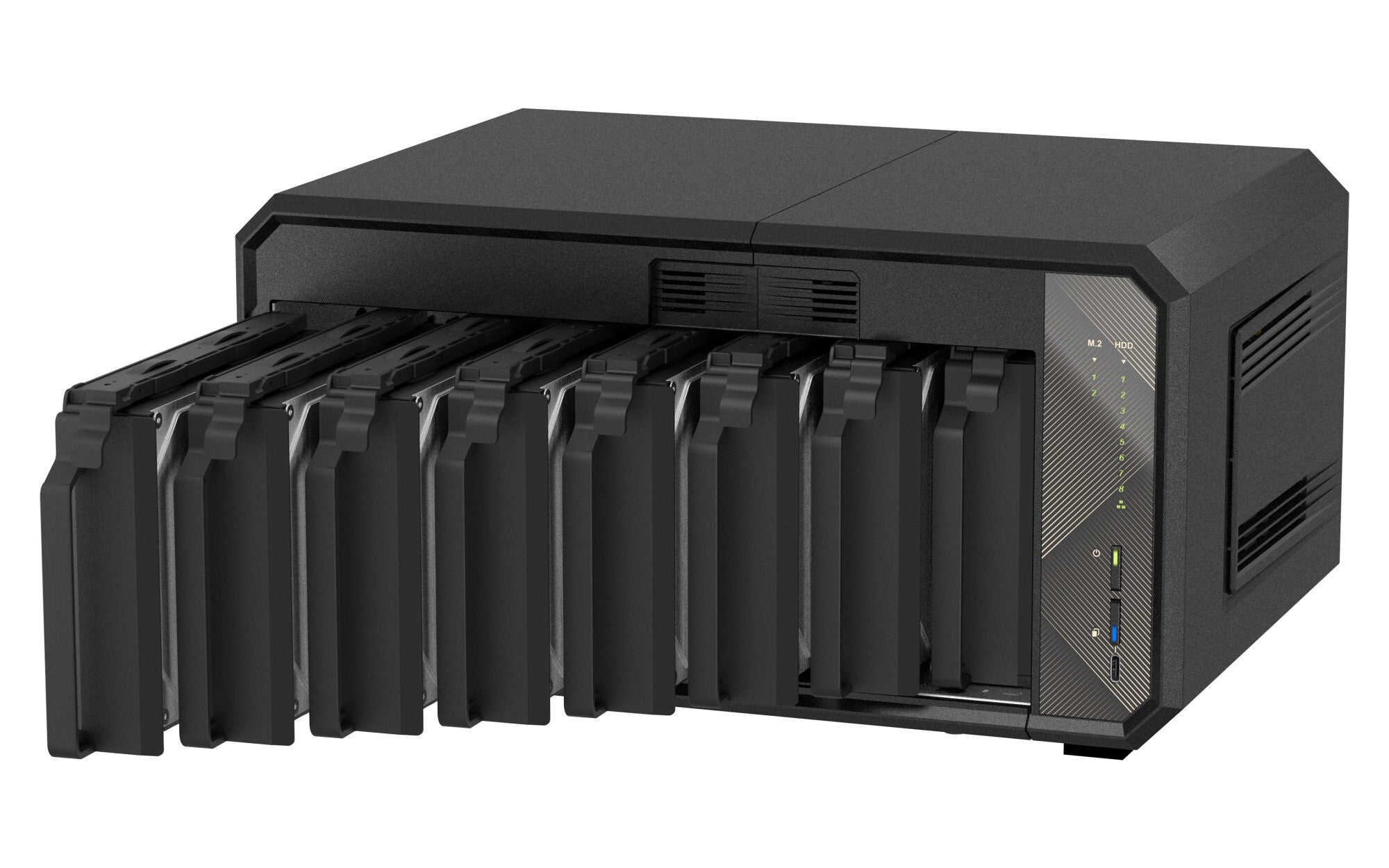

| Hot-swap drive bays | Yes |
| Supported file systems | ext4, ext3, FAT32, HFS+, NTFS, exFAT |
| Disk roaming | Yes |
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
Show all 63 specificationsShow fewer specifications
Memory
| Internal memory | 4 GB |
|---|---|
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| ECC | No |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
| Flash memory | 8000 MB |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
Design
| Chassis type | Tower |
|---|---|
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 9.2 cm |
| LED indicators | Status, Power, USB, LAN, HDD, M.2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Type | NAS |
|---|---|
| Device class | Small & Medium Business |
| Backup function | Yes |
| Buzzer | Yes |
| USB copy function | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Security algorithms | AES |
Software
| Operating system installed | QNAP QTS |
|---|
Power
| Power supply location | Built-in |
|---|---|
| Power supply unit (PSU) capacity | 150 W |
| Power consumption (typical) | 48 W |
| Power consumption (HDD standby) | 24 W |
| AC input voltage | 100-240 V |
Weight & dimensions
| Width | 332 mm |
|---|---|
| Depth | 232 mm |
| Height | 171 mm |
| Weight | 3.92 kg |
| Package weight | 5.32 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Other features
| Warranty period | 3 year(s) |
|---|
