QNAP · MPN: QSW-M1208-8C
£872.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £290.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Includes eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing cables
  • The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive
  • Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security
  • One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention
  • Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M1208-8C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections
  • QSS can be updated with just one click, helping IT staff ensure their network security

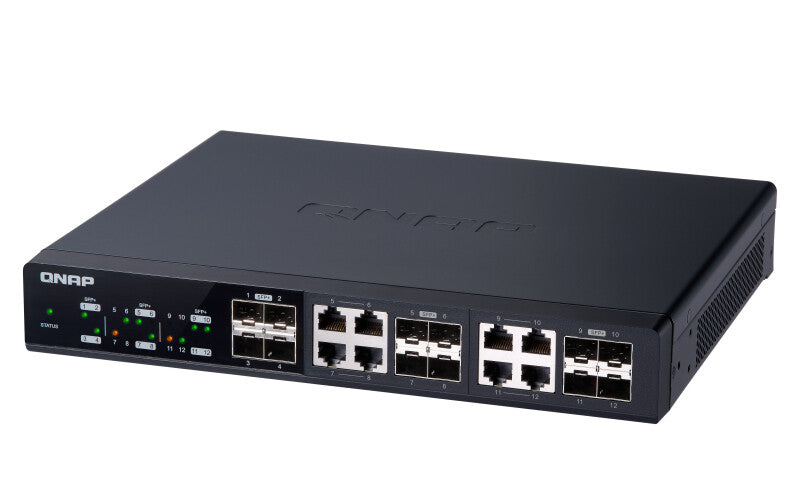

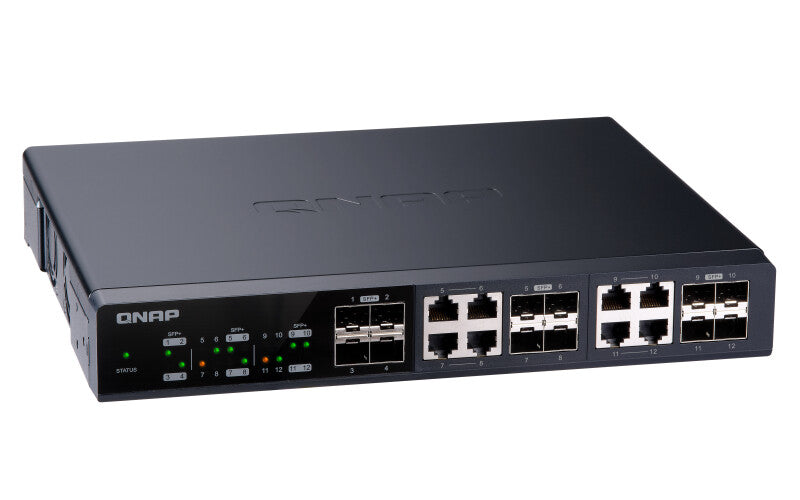

The QSW-M1208-8C is a Layer 2 Web Managed Switch with four 10GbE SFP+ ports and eight 10GbE SFP+/RJ45 combo ports that enables blazing-fast transfer speeds, simultaneous multi-workstation access to large files (ideal for video editing and multimedia), and empowers bandwidth-demanding tasks like virtualization. Supporting Layer 2 switching and providing a user-friendly entry-level network management solution, the QSW-M1208-8C is an affordable way for businesses and organizations to fully embrace 10GbE connectivity.

Flexible deployment combo ports and 10GbE / NBASE-T

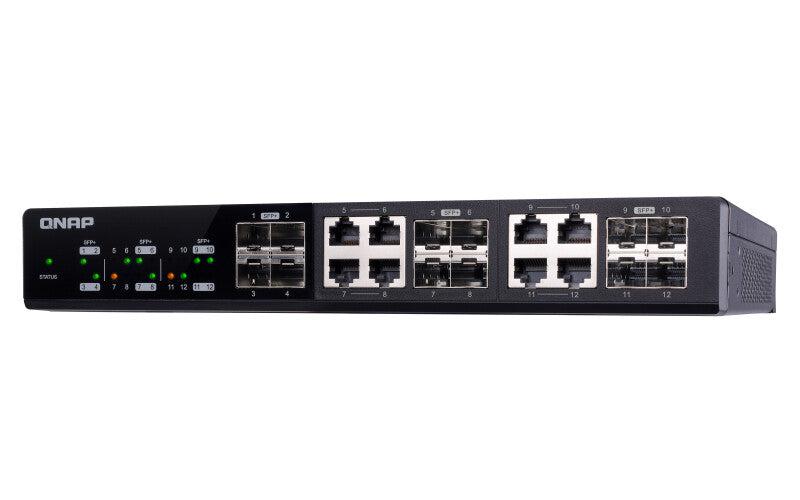

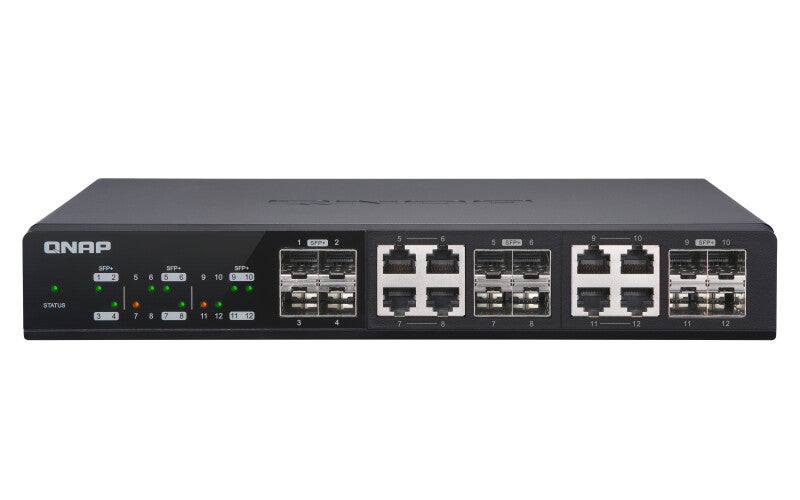

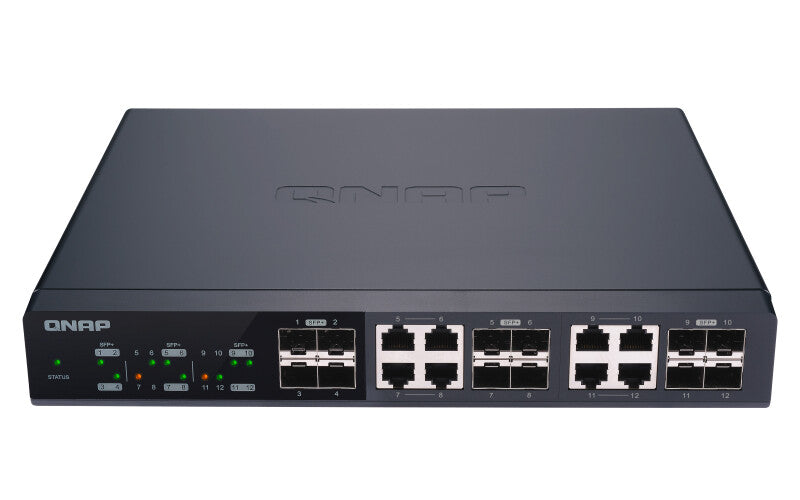

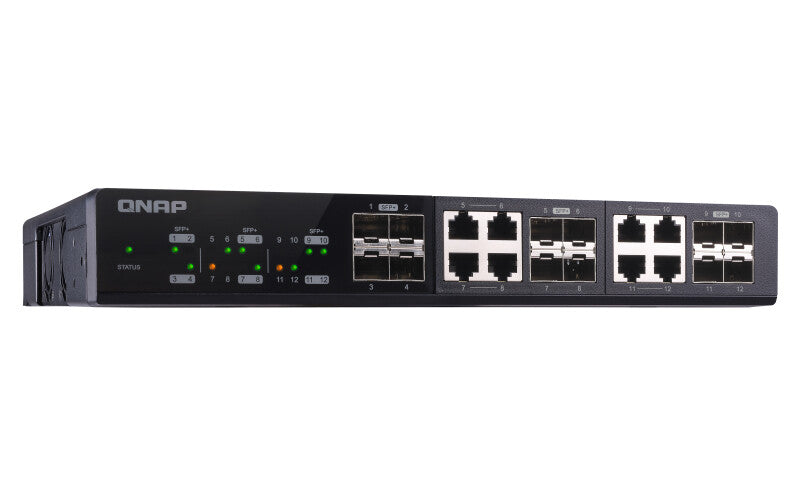

The 12-port QSW-M1208-8C switch includes four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M1208-8C is 240 Gbps, guaranteeing the full potential of each port. The QSW-M1208-8C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Fully embrace High-Speed Networking with QNAP!
From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M1208-8C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.

QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

Sleek Design
Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

GUI
The visual illustration matches physical ports for greater usability.

Value-added
With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.

Optimize Network Performance with bandwidth and packet control
The QSW-M1208-8C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

Powerful security and system functions
The QSW-M1208-8C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

Near-silent and energy saving

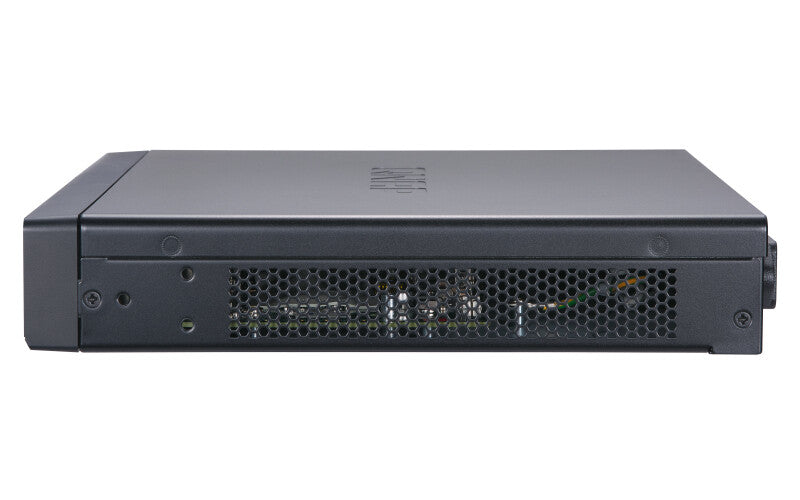

With its smart cooling system, the QSW-M1208-8C ensures high-speed network performance without distracting background noise. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting link speeds and activities and adjusting accordingly, the QSW-M1208-8C provides energy savings of up to 50% to minimize operational costs.

Versatile installation and sleek appearance
The QSW-M1208-8C features a sleek modern design that blends in with modern digital homes and offices. A Rackmount Kit is included to provide extra installation options.

Specifications

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged

Ports & interfaces

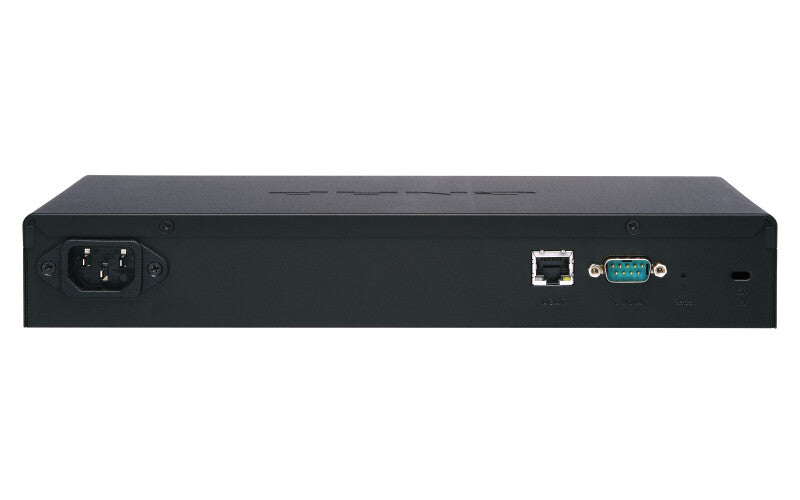

Console portRS-232
SFP+ module slots quantity4
Combo SFP ports quantity8
Gigabit Ethernet (copper) ports quantity1
Basic switching RJ-45 Ethernet ports typeNo
Show all 46 specificationsShow fewer specifications

Network

Virtual LAN featuresPort-based VLAN
VLAN supportYes
Flow control supportYes
Auto-negotiationYes
Spanning tree protocolYes
Full duplexYes
10G supportYes
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission

Jumbo frames9000
Jumbo frames supportYes
Switching capacity240 Gbit/s
MAC address table32000 entries

Security

IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client

Design

Electromagnetic compatibilityCLASS A

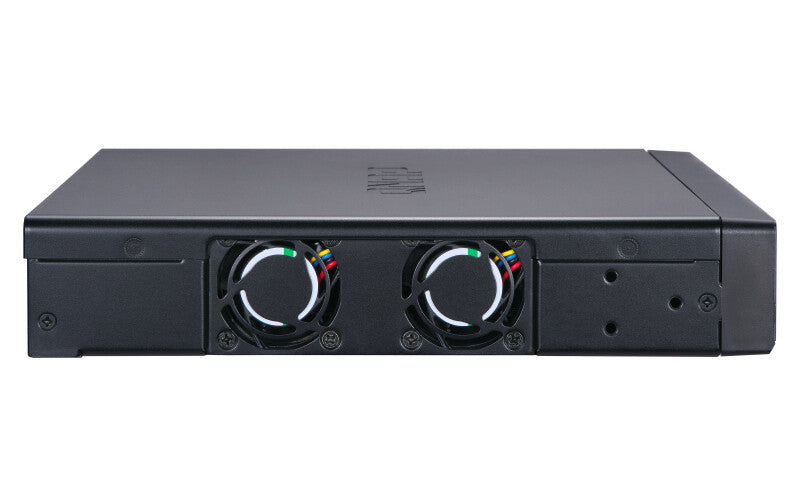

Number of fans4 fan(s)
LED indicatorsActivity, Link, Power, Speed, Status
Reset buttonYes
Product colourBlack
Rack mountingYes

Performance

Firmware upgradeableYes

Power

Power consumption (max)70 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply includedYes
Power sourceAC

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight2.2 kg
Height46.6 mm
Depth236.6 mm
Width285 mm

Packaging content

User guideYes
Cables includedAC

Certificates

CertificationFCC, CE, VCCI, BSMI, RCM, WEEE
