Overview

  • With an industrial hardened IP20 metal case, fanless design and ventilated construction, the QSW-IM1200-8C can operate in temperatures of -30 ~ 65° Celsius. The redundant DC power supply and circuit breaker also guarantees continuous operation
  • The QSW-IM1200-8C is equipped with eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-IM1200-8C offers higher transmission speeds when used with existing cables
  • The QSW-IM1200-8C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for users to efficiently control network bandwidth and enhance security
  • Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central industrial network management intuitive and easy
  • Supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention
  • Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-IM1200-8C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections

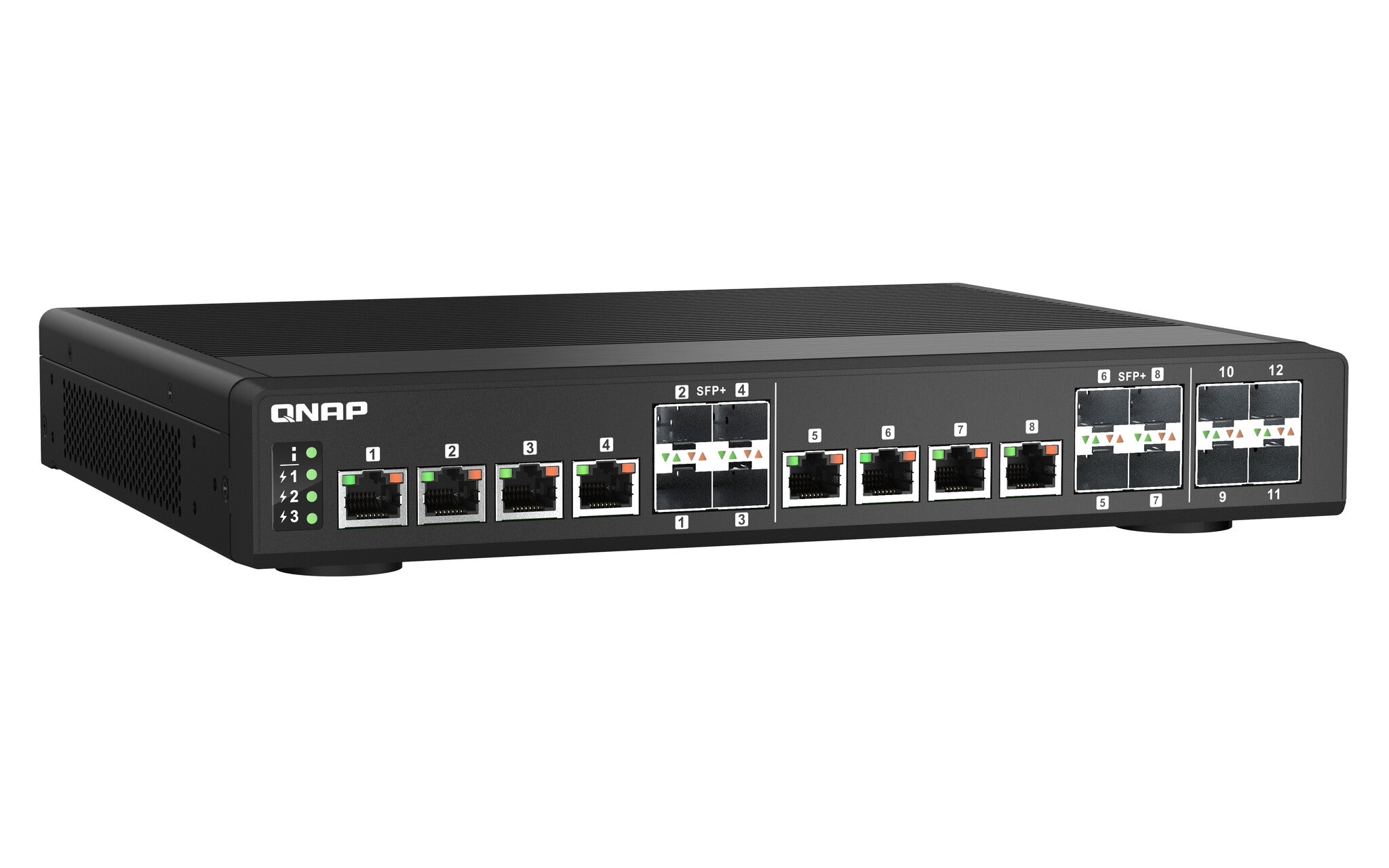

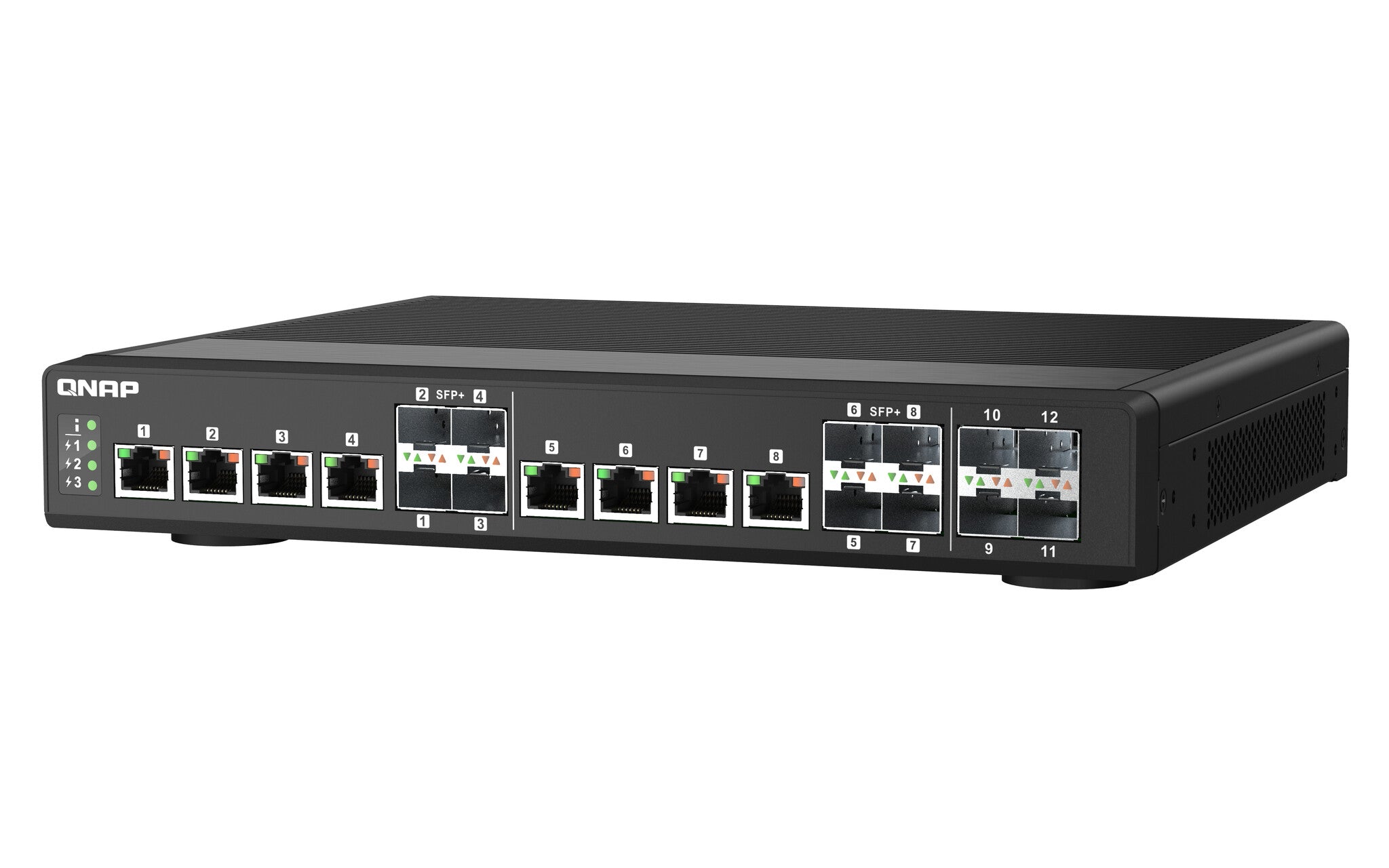

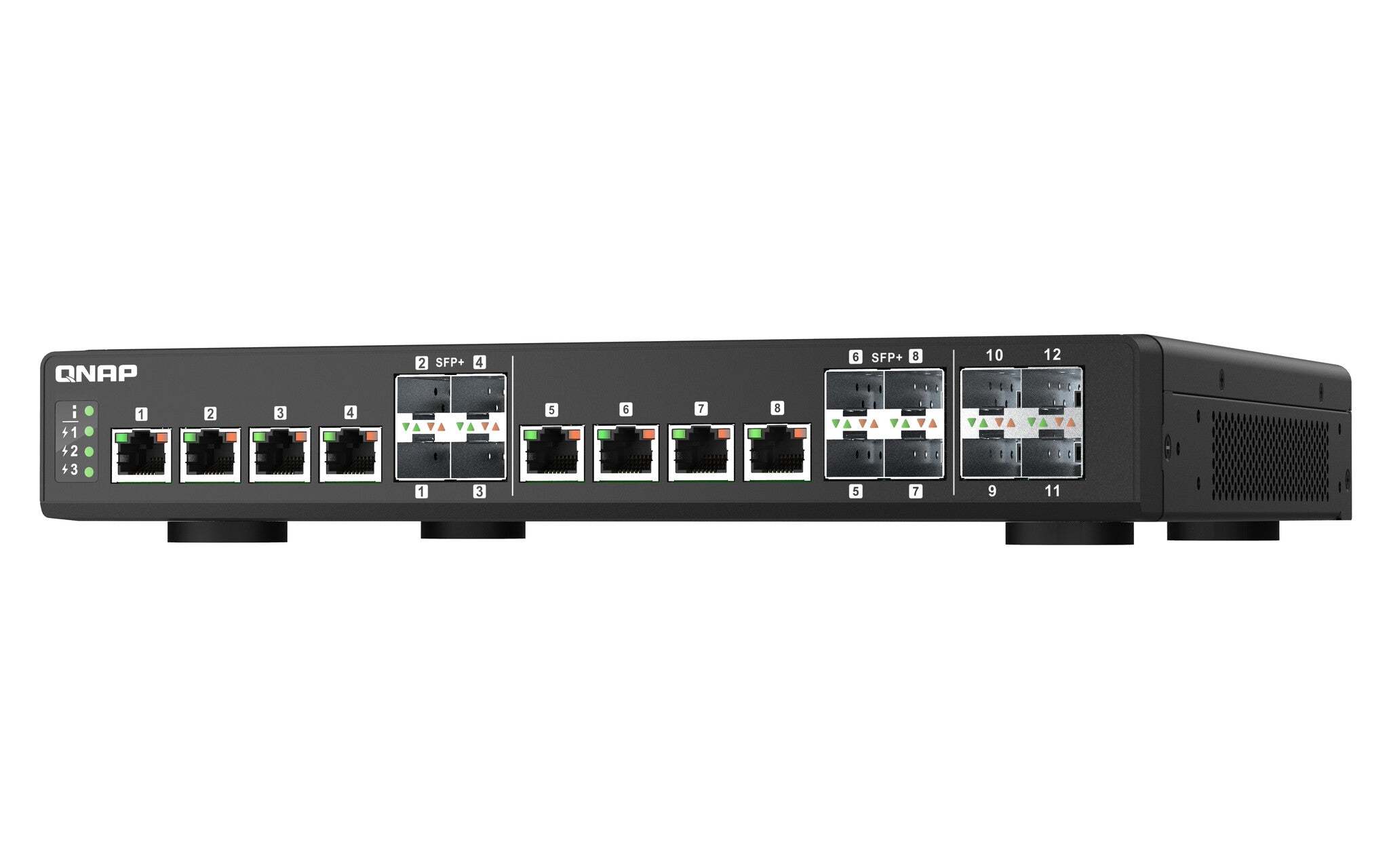

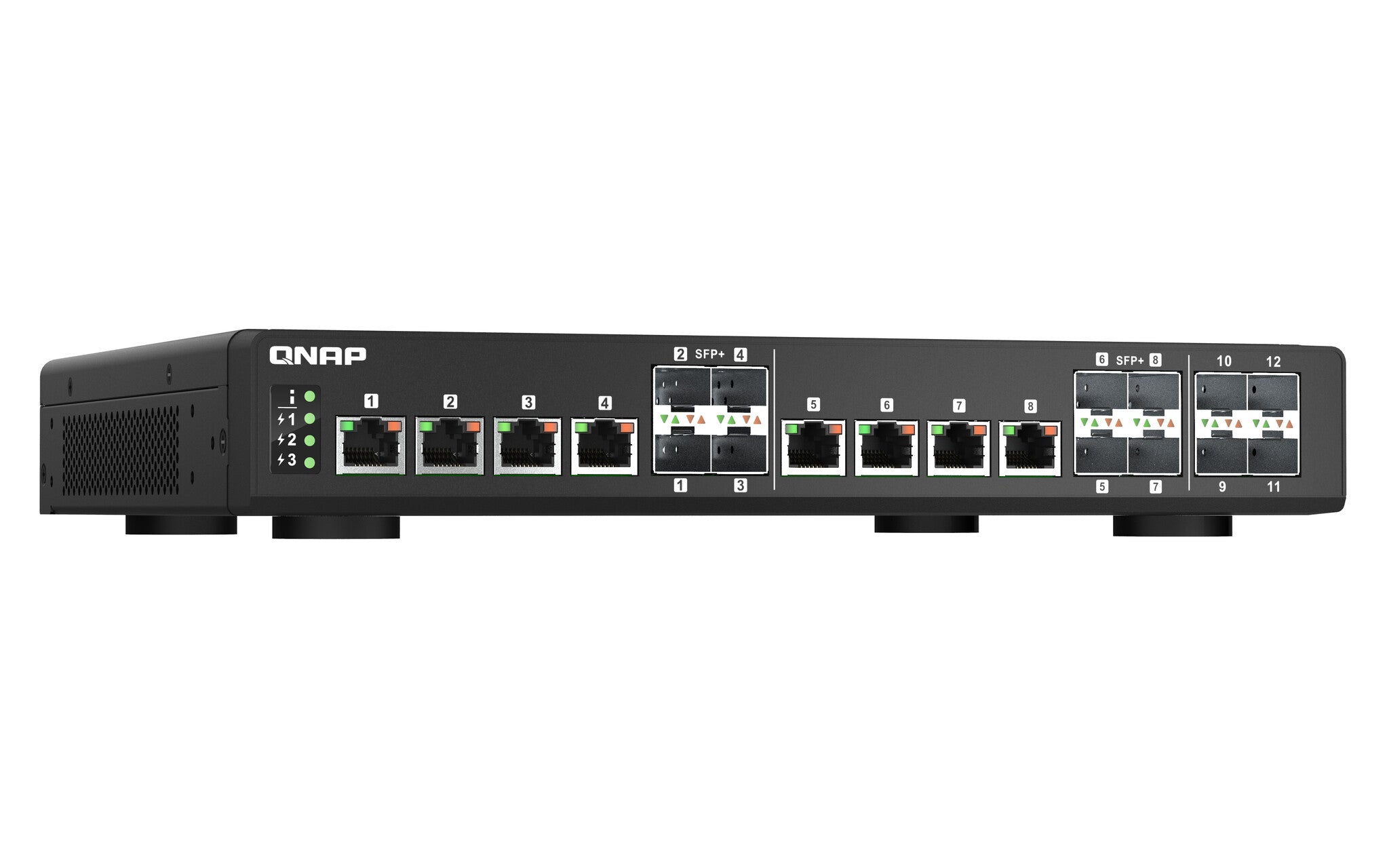

The rugged 12-Port 10GbE Managed Switch QSW-IM1200-8C has four 10GbE SFP+ fiber ports, eight 10GbE SFP+/RJ45 combo ports, and supports Layer 2 switching and network management to provide a user-friendly entry-level network management solution. With a robust industrial-grade hardware design and operating temperatures of -30 ~ 65° Celsius in airy environments (0.5~0.7m/s ) or -30 ~ 45° Celsius in enclosed spaces, the QSW-IM1200-8C enables high-speed network deployment in the rugged environments of Industry 4.0, smart transportation, and smart cities.

Industrial-grade hardened hardware design
The QSW-IM1200-8C features an IP20-rated metal case, providing protection in rugged and industrial environments. Adopting a fanless design with ventilated construction, the QSW-IM1200-8C can operate in temperatures of -30 ~ 65° Celsius in airy environments (0.5~0.7m/s ) or -30 ~ 45° Celsius in enclosed space.

Flexible deployment combo ports and 10GbE / NBASE-T

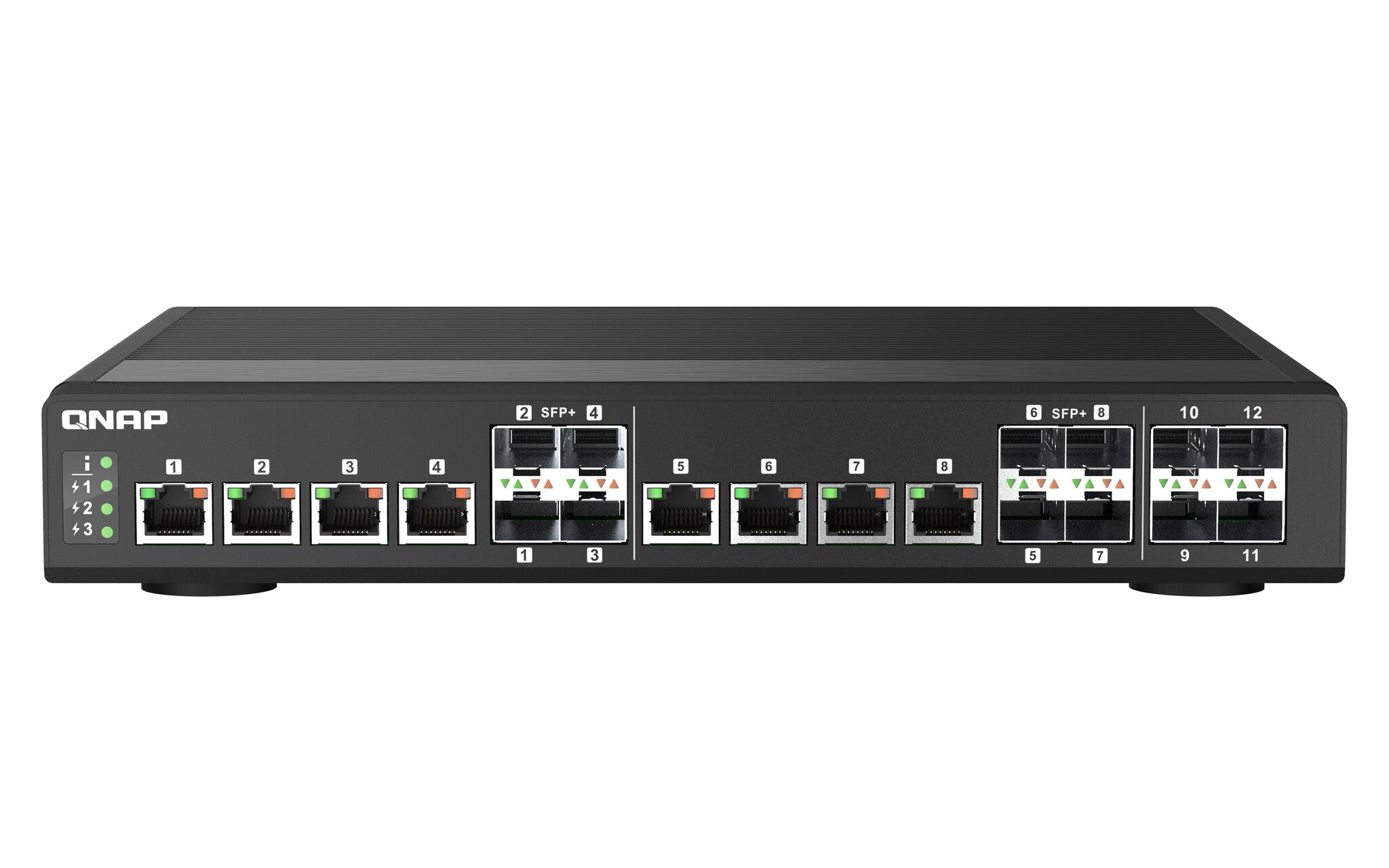

The 12-port QSW-IM1200-8C switch includes four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M1208-8C is 240 Gbps, guaranteeing the full potential of each port. The QSW-IM1200-8C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Redundant DC power for reliable operations in variable environments

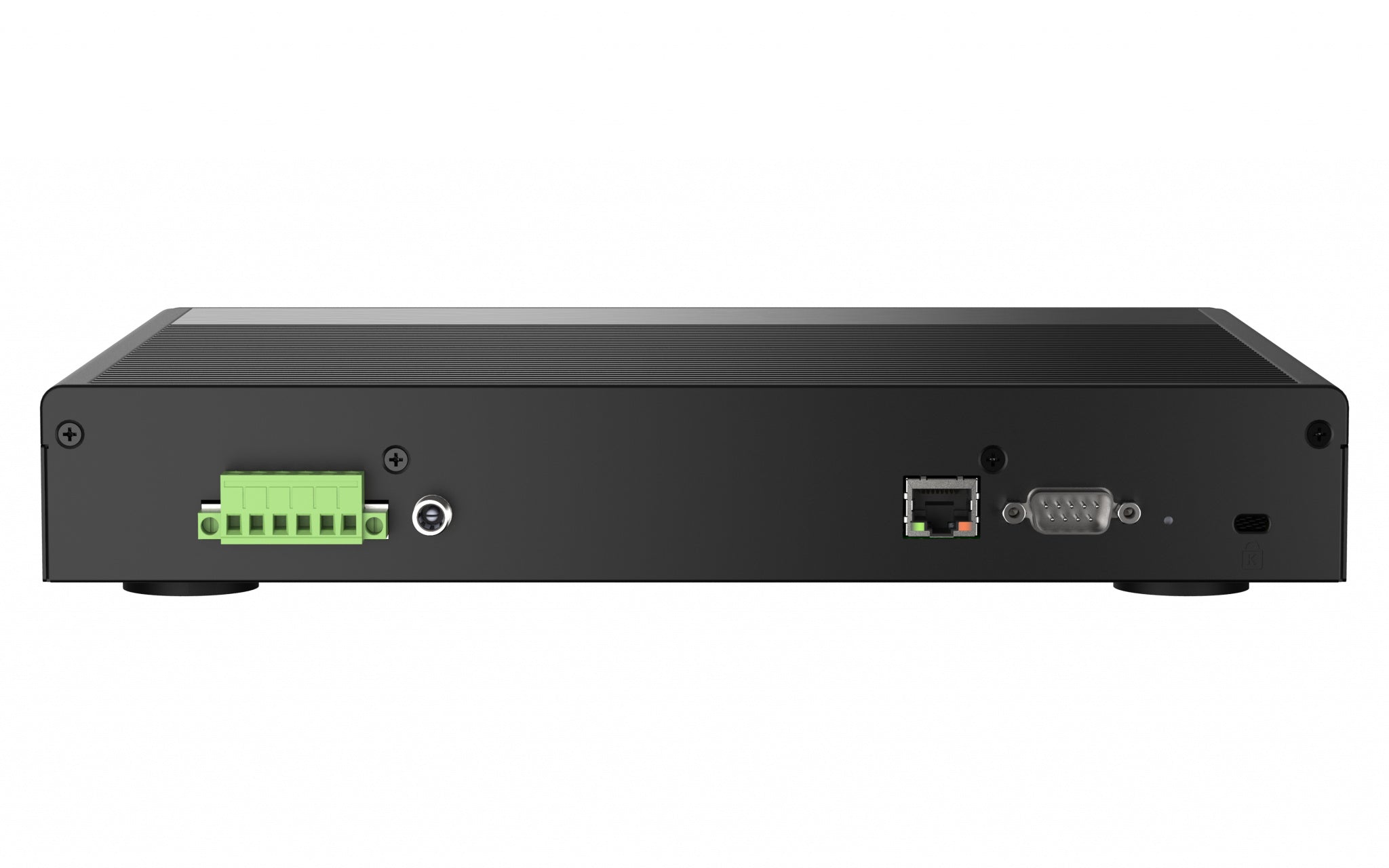

The QSW-IM1200-8C has three redundant DC power input supplies and a circuit breaker to protect the electrical circuits from potential overvoltage in factories. The QSW-IM1200-8C ensures an uninterrupted power supply in constant-motion factories and outdoor environments with varying power supplies.

Fully embrace Industrial High-Speed Networking with QNAP!
From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters for Mac, Windows or Industrial computers (IPC). These can all be used with the QSW-IM1200-8C to boost the performance of virtualization, surveillance, 3D printing, large-file data transfers, and other bandwidth-demanding tasks in industrial high-speed network environments.

Fanless, energy saving design
With its fanless design and smart ventilated construction, the QSW-IM1200-8C ensures high-speed network performance without any moving parts. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting link speeds and activities and adjusting accordingly, the QSW-IM1200-8C provides energy savings of up to 50% to minimize operational costs.

QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

Optimize Network Performance with bandwidth and packet control
The QSW-IM1200-8C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

Powerful security and system functions
The QSW-IM1200-8C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help users enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

Specifications

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged

Ports & interfaces

Console portRS-232
SFP+ module slots quantity4
Combo SFP ports quantity8
Gigabit Ethernet (copper) ports quantity1
Basic switching RJ-45 Ethernet ports typeNo
Show all 44 specificationsShow fewer specifications

Network

VLAN supportYes
Flow control supportYes
Auto-negotiationYes
Full duplexYes
Copper ethernet cabling technology10GBASE-T, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T, 2500BASE-T
10G supportYes
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission

Jumbo frames9000
Jumbo frames supportYes
Switching capacity240 Gbit/s
MAC address table16000 entries

Security

IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client

Design

Electromagnetic compatibilityCLASS A
LED indicatorsActivity, Link, Power, Speed, Status
Reset buttonYes
Product colourBlack
Rack mountingYes

Performance

FanlessYes
Firmware upgradeableYes

Power

Power consumption (max)78 W
DC input voltage9 - 54 V
Power supply includedYes
Power sourceDC

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-30 - 65 °C

Weight & dimensions

Weight4.58 kg
Height43.5 mm
Depth238 mm
Width285 mm

Packaging content

Quick start guideYes
Cables includedAC

Certificates

CertificationCE, FCC, VCCI, BSMI
