Phanteks PH-EC400GA_DBK01 computer case Midi Tower Black
Couldn't load pickup availability
- Midi Tower PC Gaming
- ATX, micro ATX, Mini-ITX, EATX
- Supported HDD sizes: 3.5" SSD form factor: 2.5"
- Number of 2.5" bays: 2 Number of 3.5" bays: 2
- Side window Illumination Multi Tempered glass panel(s)
- Steel, Tempered glass
- Black

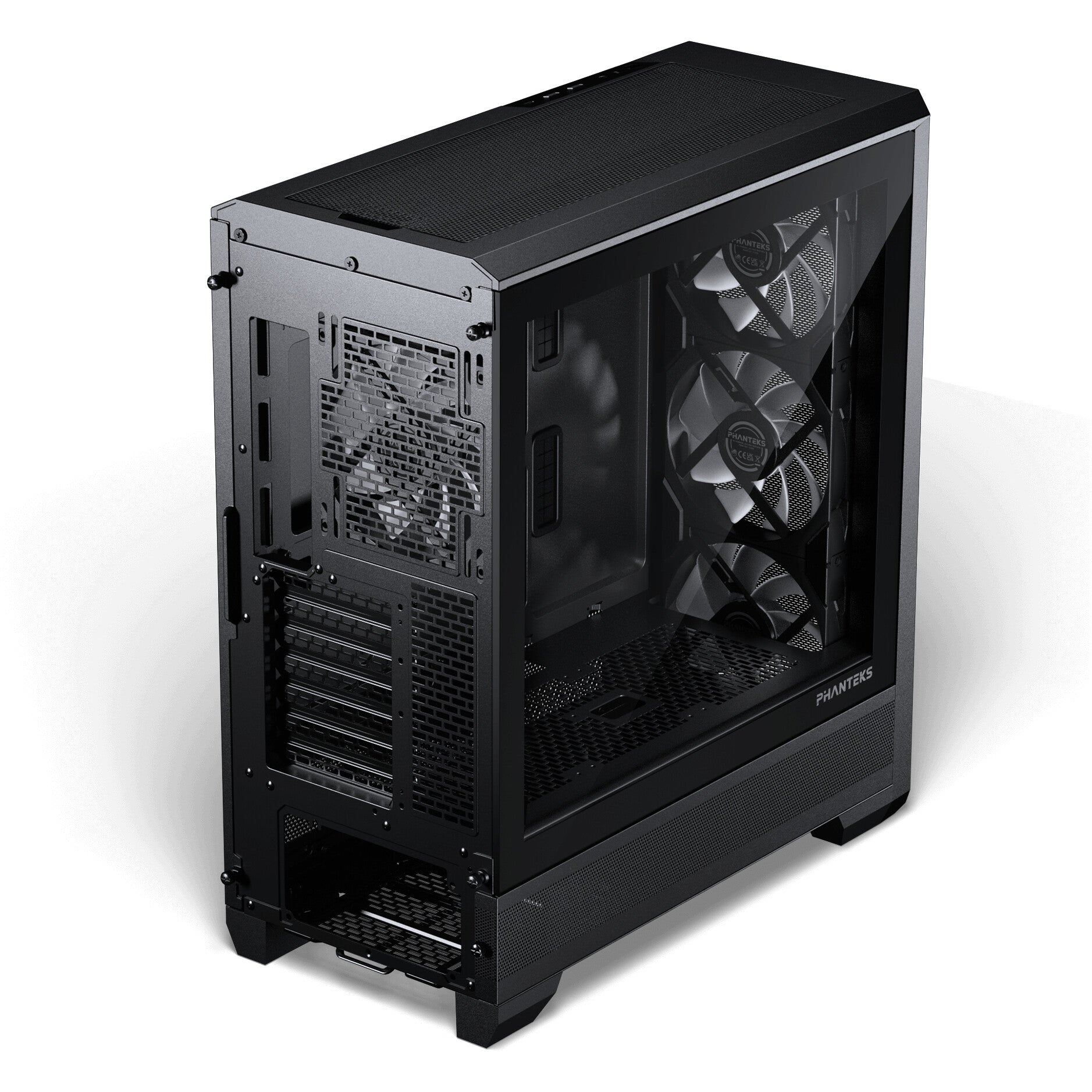

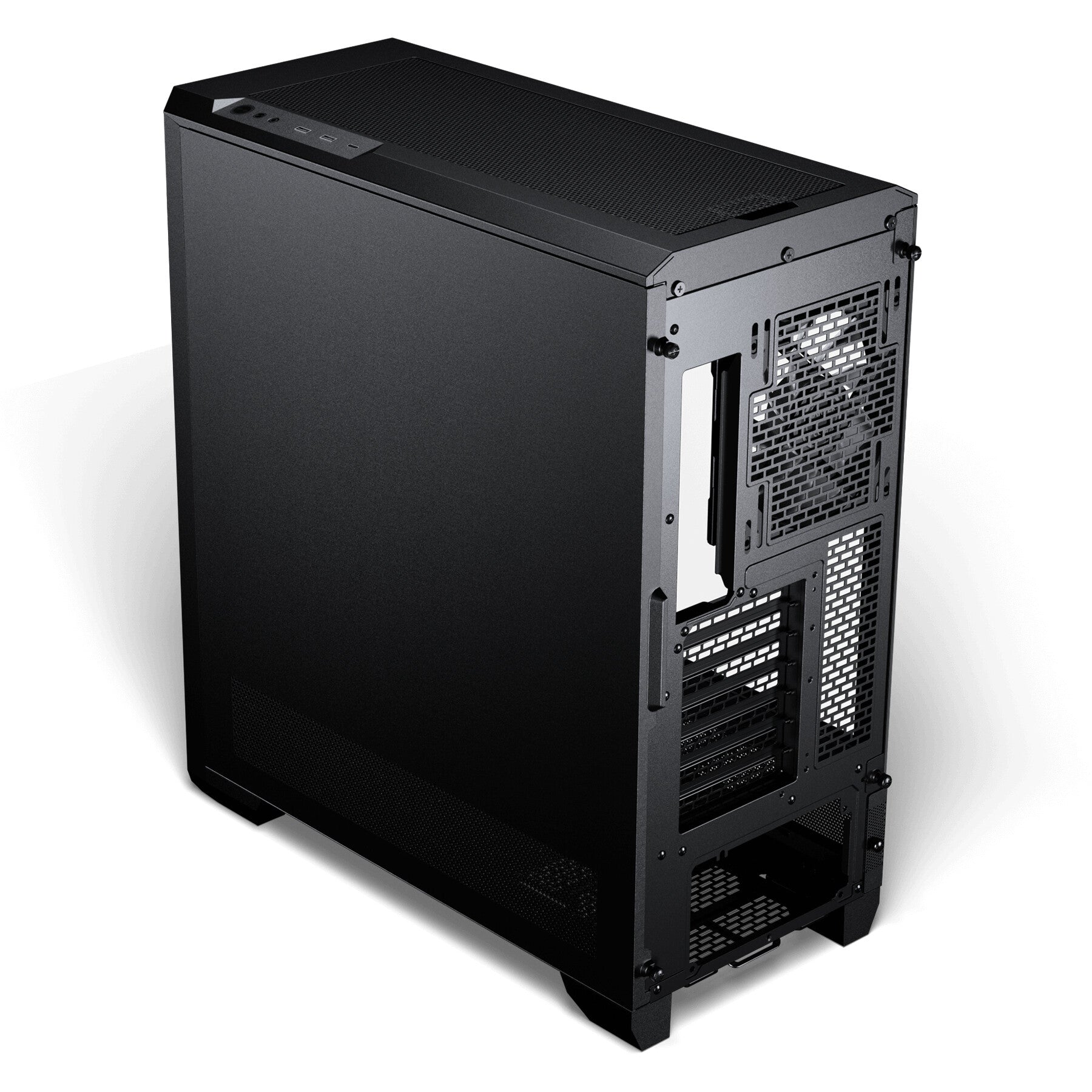

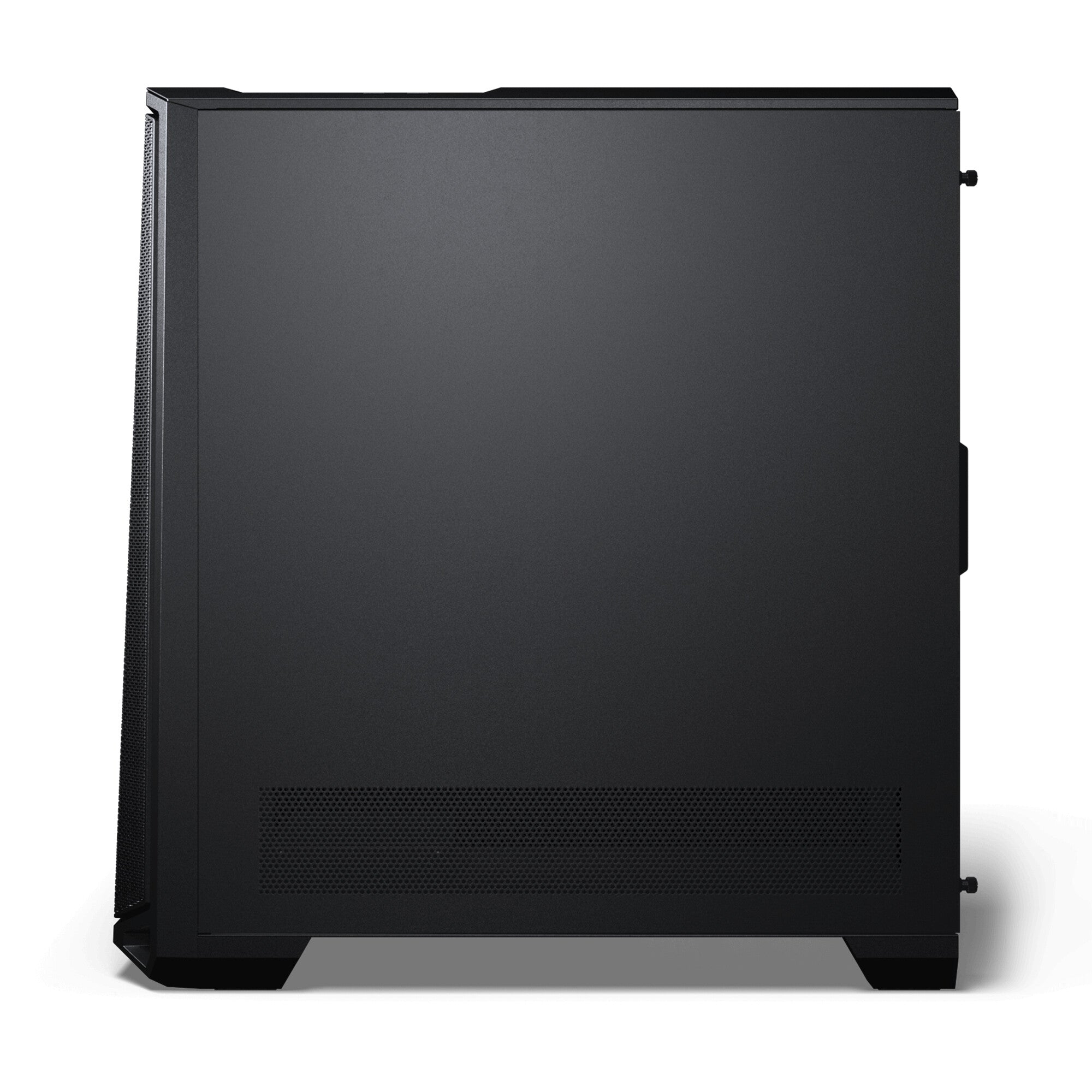

Eclipse G400A
Spacious D-RGB Gaming Chassis
The G400A is the upgraded successor to the popular P400A, featuring a completely redesigned and more spacious chassis. It’s perfect for clean, modern hardware setups, easily accommodating even the largest graphics cards while leaving ample room for cable management. With up to 10 fan mounting points, support for 140 mm fans, and dedicated radiator space at the top, cooling performance has been significantly enhanced.
The G400A also supports the latest mainboards, with rear-side connectors hidden to enable a cable-free appearance. Additionally, the graphics card benefits from direct cooling via three 120 mm fan mounts on the mid-plate.

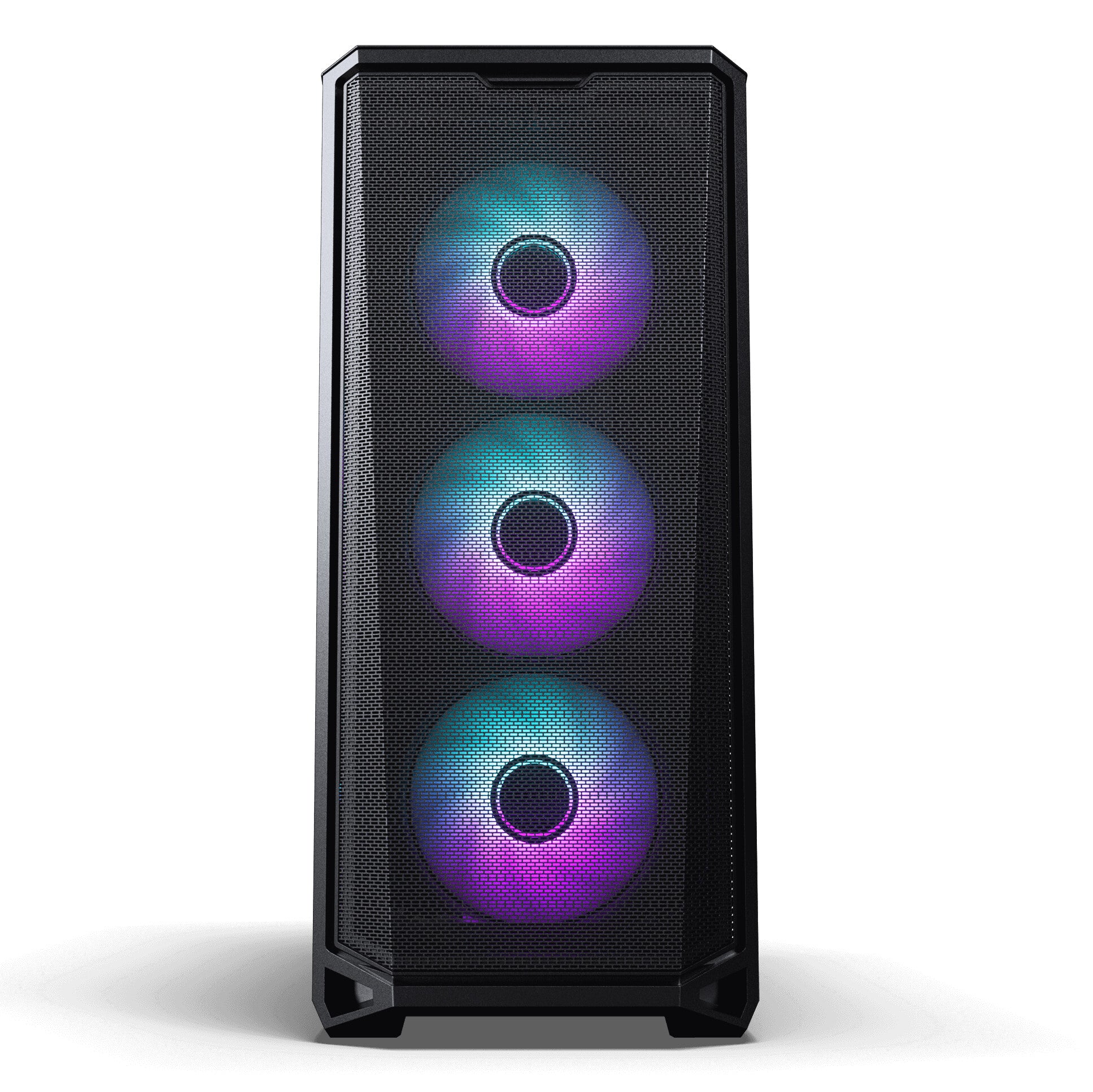

Clean front inlet design
Clean design allows for focused airflow.
4x M25-140 Gen2 D-RGB fans included.
Dedicated 360 radiator support in the top without restrictions.
Improved Air Intake
45% open surface for more air intake compared to standard mesh which only provides 35%.
Ultra-fine Performance Mesh
Large mesh intake areas on both side panels for high cooling performance.
Triple mid-plate 120 fan locations for direct GPU cooling.
Support for the largest graphics cards without compromise.

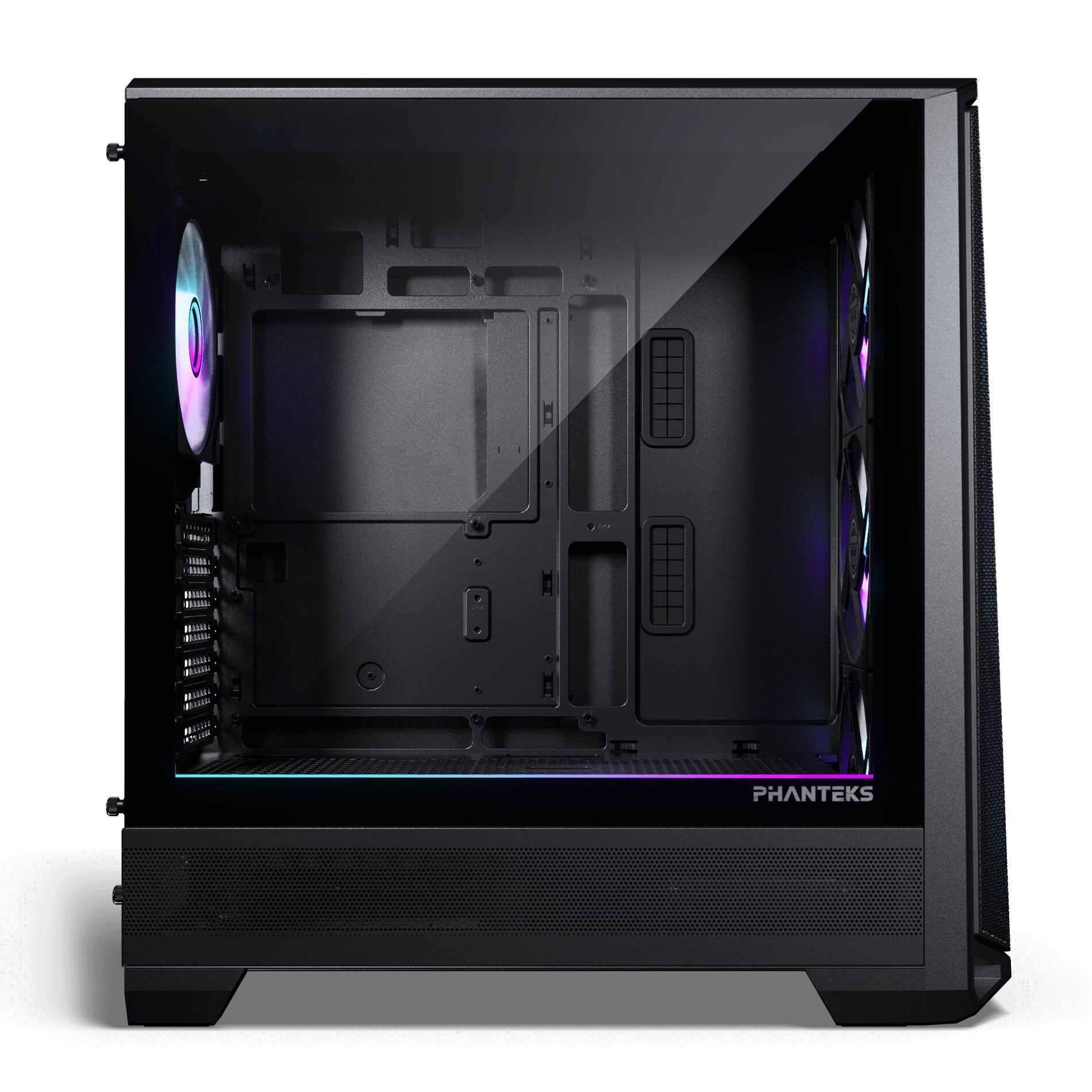

Clean Cable Management
Dedicated cable management tool.
Support for the latest rear-side connector mainboards.
| Design | |
|---|---|
| Maximum PSU length | 27 cm |
| Maximum graphics card length | 41.5 cm |
| Maximum CPU cooler height | 18.4 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Heat sink included | No |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX, EATX |
| Product colour | Black |
| Material | Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Number of power supply units | 1 |
| Power supply location | Rear |
| Ports & interfaces | |
|---|---|
| Audio output | No |
| Audio input | No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 5 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 3x 140 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 8.63 kg |
| Height | 522 mm |
| Depth | 230 mm |
| Width | 495 mm |
