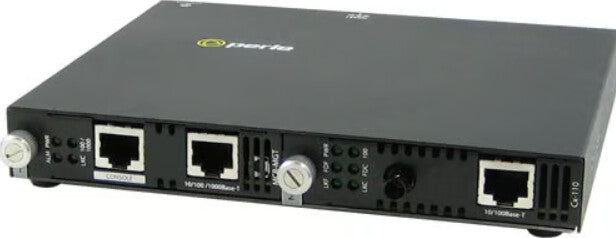

Perle SMI-110-S1ST20U network media converter 100 Mbit/s 1550 nm Multi-mode Black
Couldn't load pickup availability
- Wired
- 100 Mbit/s 20000 m 1550 nm
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode Fiber ports quantity: 1 ST
- IP20
- Black
Perle’s advanced line of Managed 10/100 Ethernet Media Converters, transparently connect UTP ethernet copper to multimode or single mode fiber. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.
Perle 10/100 Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed 10/100 Ethernet Converters the smart choice for IT professionals.
SMI-110-S1ST20U - 10/100 Fast Ethernet IP Managed Media and Rate Converter. 10/100BASE-TX (RJ-45) [100 m/328 ft.] to 100BASE-BX 1310nm TX / 1550nm RX single fiber single mode (ST) [20 km/12.4 miles]
| Network | |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX, 10Base-TX |
| Networking standards | IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5 |
| Performance | |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1550 nm |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 248259 h |
| Features | |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| International Protection (IP) code | IP20 |
| Product colour | Black |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| Power | |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 4.1 W |
| Weight & dimensions | |
|---|---|
| Width | 175 mm |
| Depth | 145 mm |
| Height | 23 mm |
| Weight | 722 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
|---|---|
| Package width | 300 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package weight | 1.2 kg |
| Certificates | |
|---|---|
| Certification | Reach, RoHS, WEEE |
