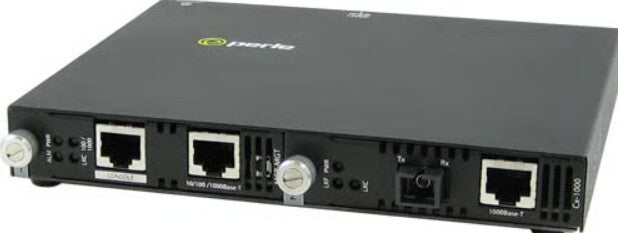

Perle SMI-1000-S1SC20D network media converter 1000 Mbit/s 1490 nm Single-mode Black
Couldn't load pickup availability
- Wired
- 1000 Mbit/s 20000 m 1490 nm
- Ethernet LAN (RJ-45) ports: 1
- Single-mode Fiber ports quantity: 1 SC
- IP20
- Black
Perle’s advanced line of Managed Gigabit Media Converters, provides transparent and reliable Gigabit Ethernet to fiber connections. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.
Perle Gigabit Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed Gigabit to Fiber Converters the smart choice for IT professionals.
SMI-1000-S1SC20D - Gigabit Ethernet IP Managed Standalone media Converter. 1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-BX 1490nm TX / 1310nm RX single fiber single mode (SC) [20 km/12.4 miles]
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3x, IEEE 802.3ab |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5 |
| Performance | |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1490 nm |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 248259 h |
| Features | |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| International Protection (IP) code | IP20 |
| Product colour | Black |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 4.98 W |
| Weight & dimensions | |
|---|---|
| Width | 175 mm |
| Depth | 145 mm |
| Height | 23 mm |
| Weight | 722 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
|---|---|
| Package width | 300 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package weight | 1.2 kg |
| Certificates | |
|---|---|
| Certification | Reach, RoHS, WEEE |
