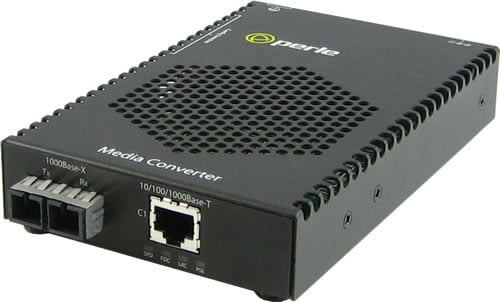

Perle S-1110P-S2SC10 network media converter 1000 Mbit/s 1310 nm Multi-mode Black
£885.99
Couldn't load pickup availability
- Wired
- 1000 Mbit/s 10000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode SC
- Black
S-1110P-S2SC10 - 10/100/1000 Gigabit Ethernet Stand-Alone Media Rate Converter w/ PoE PSE. 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-LX/LH 1310 nm single mode (SC) [10 km/6.2 miles] or multimode (SC) [550 m/1804 ft.] using a mode conditioning adapter. Includes AC Power Adapter
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-LX, 1000Base-T |
| Networking standards | IEEE 802.3u, IEEE 802.3bt |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Duplex system | Full, Half |
| Cable types supported | Cat5 |
| Performance | |
|---|---|
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Features | |
|---|---|
| Internal | No |
| Product colour | Black |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Power | |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 95 mm |
| Height | 26 mm |
| Weight | 450 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
|---|---|
| Package width | 300 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
