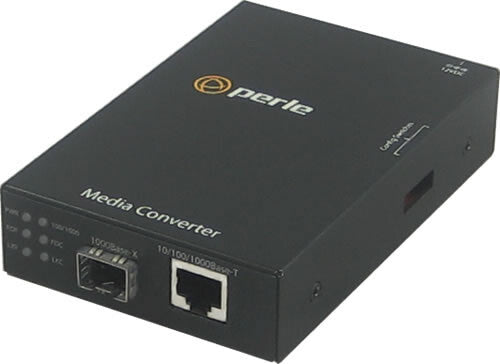

Perle S-1110-SFP-XT network media converter 1000 Mbit/s
£359.99
Couldn't load pickup availability
- Wired
- 1000 Mbit/s 100 m
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Fiber ports quantity: 1 SFP
SFP Slot, 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-X or 100BASE-X - SFP Slot (empty). Extended Temperature, terminal block power connector for external power source . Perle's Industrial Temperature Media Converters transparently connect copper to fiber in locations that are exposed to harsh extended temperatures of -40F to 167F ( -40C to 75C ).
| Network | |
|---|---|
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Converter output interface | 1000Base-X |
| Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 576450 h |
| Maximum transfer distance | 100 m |
| Features | |
|---|---|
| LED indicators | Yes |
| Hot-swap | Yes |
| Internal | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| External power adapter | Yes |
| Power consumption (typical) | 2.1 W |
| Input voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Weight | 300 g |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Packaging data | |
|---|---|
| Package weight | 430 g |
| Package height | 40 mm |
| Package width | 150 mm |
| Package length | 21 cm |
| Certificates | |
|---|---|
| Certification | FCC 15 A, EN55022 ACISPR 22 AEN61000-3-2EN55024Reach, WEEEECCN: 5A991A |
| Safety | UL 60950-1, EN60950, CE |
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 120 x 80 x 26 mm |
