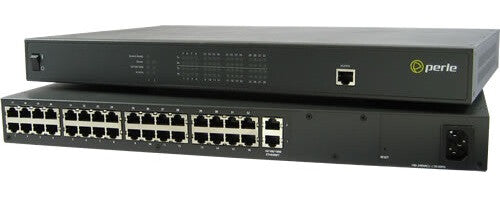

Perle IOLAN SDS32C serial server RJ-45
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,646.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 8, 16 and 32 software selectable RS232/422/485 serial port interfaces
- Dual 10/100/1000 Ethernet with Redundant Path Technology
- Advanced security features for data encryption, user authentication and event management
The IOLAN SDSC Terminal Server (also used as a Device Server or Console Server) is the most advanced product for serial to Ethernet applications.
Delivering the highest performance in a 1U form factor, an IOLAN SDSC offers robust security, reliability flexibility and next generation IP (IPv6) technology. It is ideal for applications that require remote serial device communication, data capture or device monitoring. With 8, 16 or 32 RJ45 ports, the IOLAN SDSC has the right fit for your serial to Ethernet application. The built-in dual Ethernet and Redundant Path Technology on the IOLAN SDSC provides dependable serial port access, making it the most reliable solution for connecting remote RS232, RS422 or RS485 equipment to Ethernet… all at the best price performance.
IOLAN SDSC Terminal Servers are ideal for:
Network engineers and Project Managers requiring a high performance serial to Ethernet interface for serial RS232 or RS485 based devices
Environments where redundant network paths provided by Dual Ethernet interfaces are critical.
Why IOLAN SDSC Terminal Servers are the preferred choice:
TrueSerial® delivers the most authentic serial connections across ethernet
Universal, software selectable RS232/422/485 (EIA-232/422/485) serial ports prevents mechanical tampering in the field
High performance 400 MHz, 750 MIPS, 32 bit processor with integrated hardware encryption processor for the best throughput
Clustering – Provides a single view of all out of band console ports. Ideal for large data centers
Next Generation IP support (IPv6) for investment protection and network compatibility
Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
RJ45 serial ports with Cisco pinouts for use with common CAT5 “rolled” cabling
EasyPort Web – Access equipment serial console ports by using your java-enabled Internet browser
Dynamic DNS – Easy console management access from anywhere on the Internet
Java-free browser access to remote serial console ports via Telnet and SSH
Lifetime warranty – best investment protection available
Specifications
Technical details
| Mean time between failures (MTBF) | 87003 h |
|---|---|
| Serial interface type | RJ-45 |
| Serial ports quantity | 32 |
Ports & interfaces
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
Show all 28 specificationsShow fewer specifications
Memory
| RAM capacity | 128 MB |
|---|---|
| Flash memory | 16 MB |
Processor
| Processor frequency | 400 MHz |
|---|---|
| Built-in processor | Yes |
Design
| Product colour | Black |
|---|---|
| International Protection (IP) code | IP30 |
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
Weight & dimensions
| Width | 434 mm |
|---|---|
| Depth | 264 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
| Package width | 590 mm |
| Package depth | 360 mm |
| Package height | 90 mm |
| Package weight | 4.5 kg |
Indication
| LED indicators | Power, System, Network |
|---|
Protocols
| Supported network protocols | IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP |
|---|
Power
| Input voltage | 100 - 240 V |
|---|---|
| Input frequency | 47/63 Hz |
